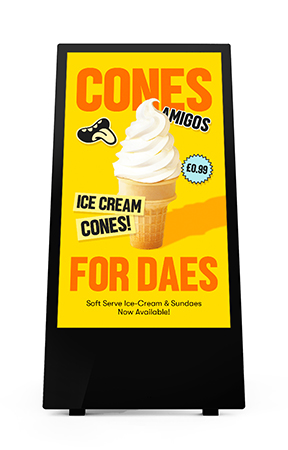

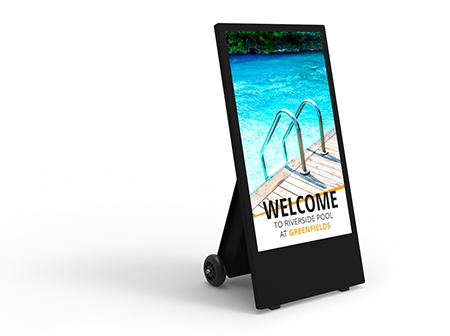

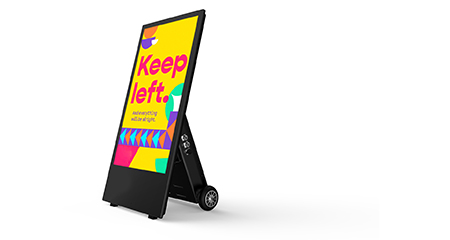

43" High Brightness Outdoor Digital Android Battery A-Boards

Fully Portable

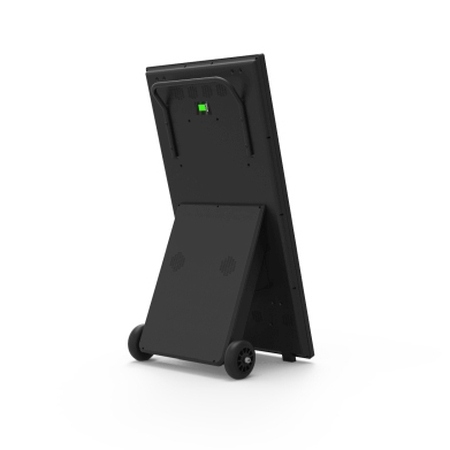

With a moulded polymer rear these displays are incredibly lightweight and this, along with their rugged castors, means they can easily be moved by one person. The specialised castors are designed to minimise vibrations on uneven surfaces, protecting the internal components for a longer product lifespan.

1,500cd/m² High Brightness

These displays strike the perfect balance between brightness and battery life. With a high brightness blackening resistant panel (1,500cd/m²) which is up to five times brighter than a domestic TV, the screen is clearly visible in outdoor spaces without compromising on running time or battery lifespan.

Battery-Powered Display

The integrated lithium-polymer battery offers an amazing 27 hours run time from a single charge*, allowing you to display messaging all day and night without needing to recharge. A secure housing safely isolates this commercial grade battery from other components for total peace of mind. A full charge takes 5.5 hours.
*Based on average running time, subject to variation. Excludes degradation and user damage caused by sulphation, deep cycling, and overcharging.

Fully Weatherproof

Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP56-rated outer casing. This means they can be used in any environment, come rain or shine.

Tempered Anti-Glare Glass

These displays feature a tempered glass front that has been specially treated to give an anti-glare finish. This completely diffuses external light reflections without reducing the brightness of the screen, improving the readability of on-screen content.

Intelligent Temperature Control System

Our advanced cooling system uses intelligent fan control and temperature-responsive sensors to automatically adjust airflow as needed, maintaining stable performance while protecting internal components and extending both battery life and overall product longevity.

Robust Fixed Design

Unlike traditional A-boards, these displays have a sturdy non-foldable design for ultimate durability and extended lifespan. This is further enhanced by the tempered glass front, which protects the panel and internal components from damage.

Specification

Full Specification

43 Inch - HOAB43HD10-B

Display Area (mm)

531.4 x 943.2

Screen Dimensions (mm)

1197.8 x 603.2 x 487.5

Package Dimensions (mm)

1430 x 753 x 643

Footprint (mm)

603.2 x 487.5

Net Weight (kg)

44.7

Gross Weight (kg)

60.7

Panel

Resolution (px)

1920 x 1080 @ 60Hz

Aspect Ratio

16:9

Brightness (cd/m²)

1,500

Contrast Ratio

1,200:1

Viewing Angle

89/89/89/89

Colour

16.7M (8-bit)

Orientation Support

Portrait

Operating Hours

24/7 Commercial Use

Audio

Speakers

5W x 2

Battery

Battery Technology

Integrated lithium polymer

Charging Time

5.5 hours

Battery Life

27 hours*

Battery Capacity

58,000mAh

Power Consumption (Max)

121W

Environmental Conditions

Operating Temperature

0°C to 40°C

Storage Temperature

-10°C to 55°C

Operating Relative Humidity

10% to 80%

Storage Relative Humidity

10% to 80%

System & Performance

CPU

RK3568 64-bit Cortex-A55 Quad @ 2GHz

GPU

Quad Mali-G52 2EE

Graphics API Support

OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1

Operating System

Android 14

RAM

4GB

Storage

32GB

Video Decoding

Supports FHD 60 fps H.264/H.265 video decoding

Supported Media Formats

Video (MPG, AVI, MP4), Audio (AAC, MP3), Image (JPG, PNG)

LAN

N/A

Wi-Fi

Dual-band 2.4GHz / 5GHz (802.11a/b/g/n/ac)

Bluetooth

5.0

Optional 4G Module

1 × SIM Slot (optional)

Connectivity & Interface

HDMI

N/A

USB

2 × USB 2.0

RS232

N/A

Ethernet

N/A

Audio Out

N/A

Expansion Slot

N/A

DC Input / Charger Output

9.2V DC, 12A

Switch

1 x Power Switch

4G Module (Optional)

N/A

Accessories

Included Accessories

Mains Power Cable; Charger; Remote Control + Batteries; User Manual (QR Code x2); Quick Start Guide

Optional Accessories

Network Upgrade, Security Chain

Warranty

Warranty Period

3 Years

Technical Support

Lifetime

*Based on average running time, subject to variation. Excludes degradation and user damage caused by sulphation, deep cycling, and overcharging.

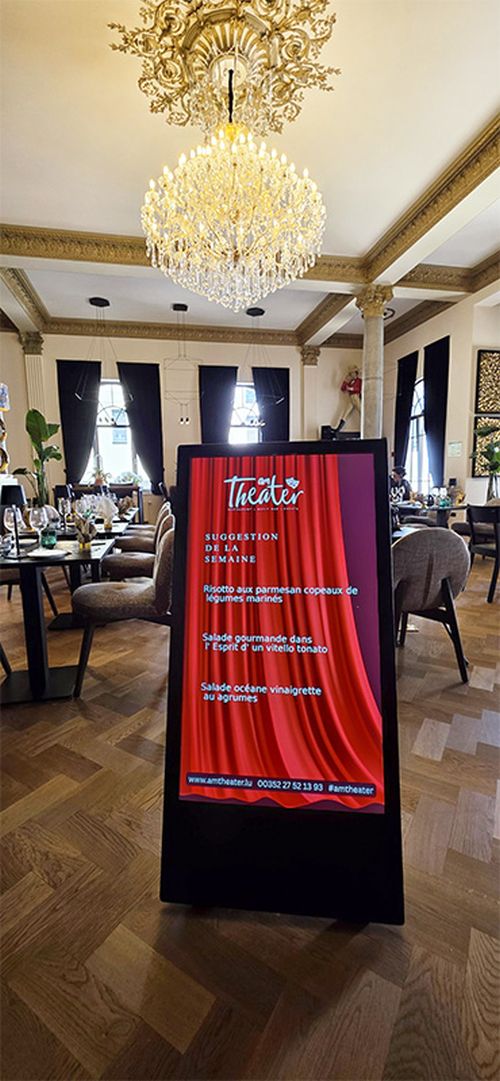

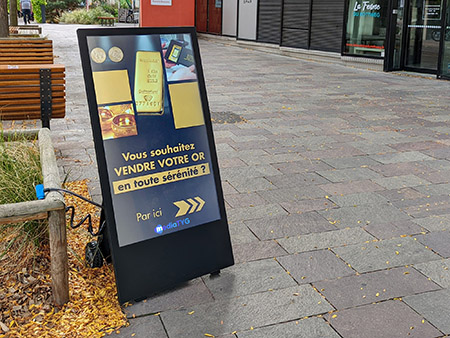

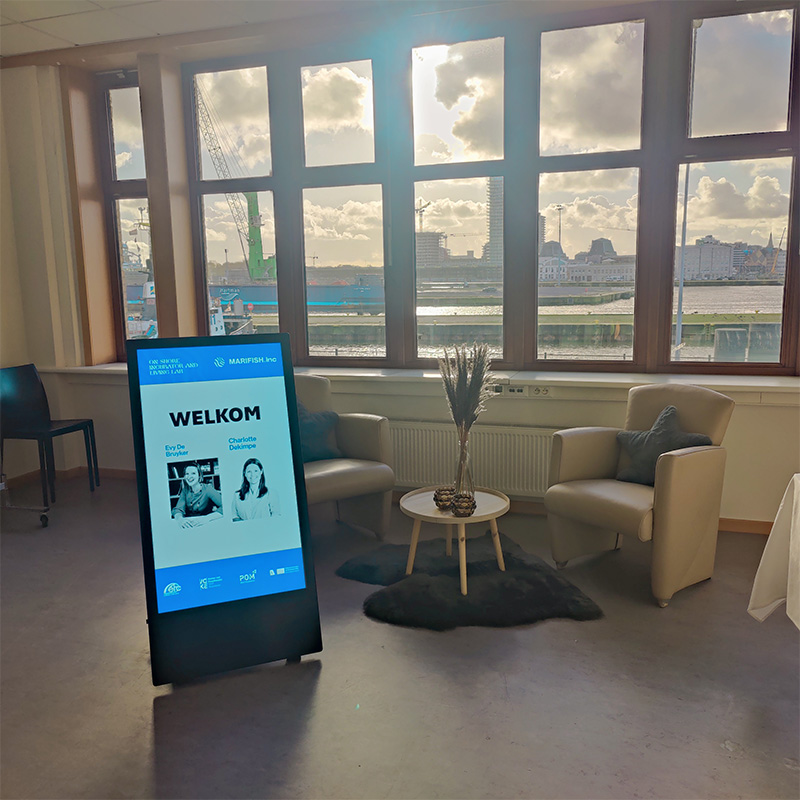

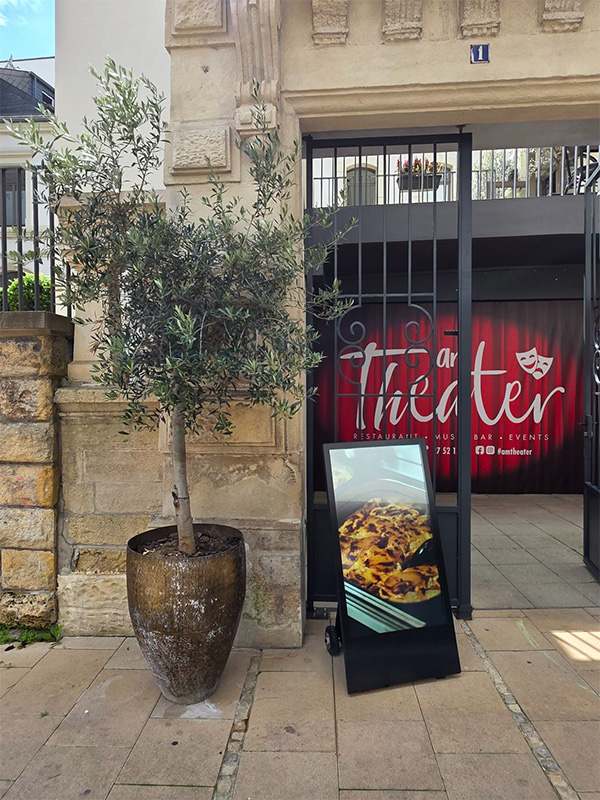

Gallery
