The Simplicity of Plug and Play

Plug and Play

The Android Freestanding Digital Posters come with a built in HD media player, allowing you to update them using a USB memory stick. Load your pictures and videos onto a USB memory stick then insert it into the display, which will copy the files into its internal flash memory. Once you remove the memory stick the screen will then start playing the pictures and videos in a continuous loop.

Free Scheduling Software

For more advance use the Android Freestanding Digital Posters come with a piece of free Scheduling Software for displaying different content at different times of the day as well as setting image display durations and transition effects. For example, a restaurant can create three daily schedules; the breakfast menu in the morning, lunch menu in the afternoon and the dinner menu in the evening. If you prefer to keep it simple you can update the screen directly without using the software. To download the Scheduling Software for this range click here.

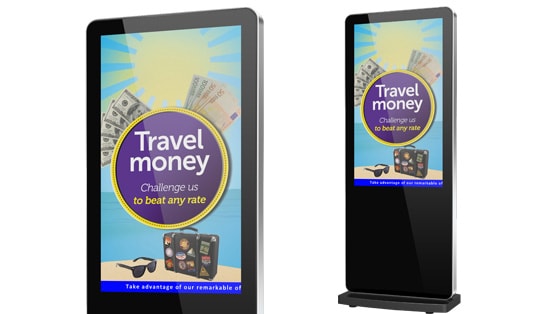

Scrolling Text

If you want you can also display a “ticker tape” style scrolling text message along the bottom of the screen, to help you get your message across or help highlight any specific promotions or offers. This is also great when used as a dynamic ticker feed displaying a welcome message.

Optional Network Upgrade

For a small charge you can also upgrade your screen to be networked, allowing you to remotely update your screen via LAN, WiFi or 3G. To find out more about our Digital Signage CMS CLICK HERE.

Designed for Public Spaces

The Android Freestanding Digital Posters are fitted with a commercial grade LCD panel with an LED backlight. They have the ability to be in constant use 24/7 for over 70,000 hours. They have no buttons, controls, logos or branding on show and are much brighter than LCD panels found in home TVs or computer monitors. Their tempered glass face, rounded corners, steel enclosure with super slim profile and aluminium surround all add to their captivating tablet-like aesthetics and also protect the internal components from potential damage.

IPS Panel

As well as having a brightness of 450cd/m², much brighter than a domestic TV, the commercial IPS panels accurately display an image’s quality and colour depth at a 178° ultra wide viewing angle. There is no fall-off in colour accuracy and no diversion in contrast ratio at wide angles. From bright sunlight to the most challenging lighting environments these displays are designed to reproduce and maintain the ultimate colour temperature for lifelike images. The panel is also optimised for portrait orientation.

Power Timer

The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen. The ability to power on and off automatically means that the screen is only in use when it needs to be; improving your environmental efficiency.

Complete Signage Solution

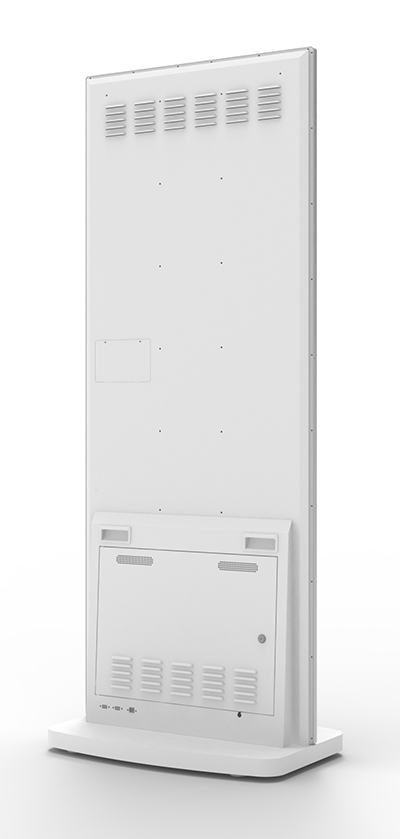

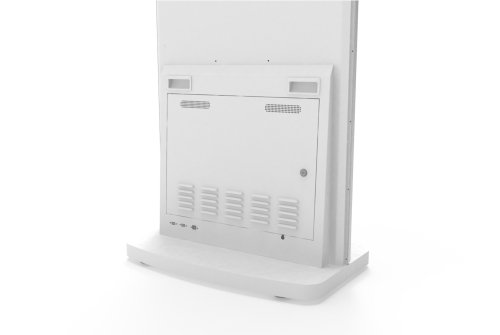

Internal Locker

Should you need to run the screen from an external source, like a PC or media player, you can do so by using the HDMI input or the VGA and 5mm audio jack inputs. There is also a space to fit a small PC or media player inside the lockable compartment.

Free Integrated Castors

Our Freestanding Digital Posters are a fully portable solution and come with discreet integrated castors, which are also retractable. Easily manoeuvre the display into position then if you prefer you can retract the wheels and use the feet to make sure it stays put.

Specification

Full Specification

50 Inch

55 Inch

50 Inch - L50HD7

Display Area

618.4x1097.8

Unit Size

747x1862x50

Package Size

835x2010x535

Footprint

747x400

Net Weight

82kg

Gross Weight

90kg

Power Consumption (w)

100

55 Inch - L55HD7

Display Area

682.4x1211.6

Unit Size

813x1965x50

Package Size

940x2110x535

Footprint

813x400

Net Weight

87kg

Gross Weight

95kg

Power Consumption (w)

120

Panel

Resolution

1920x1080

Aspect Ratio

16:9

Brightness (cd/m2)

450

Colour

16.7M

Viewing Angle

178°

Contrast Ratio

5000:1

AV Inputs

Video

HDMI, VGA

Audio

Audio Socket (3.5mm)

Environmental

Operating Temperature

0°C to 50°C

Storage Temperature

-30°C to 60°C

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%

Speaker Type

5W, 8Ω (x2)

Computer

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

1920x1080/1080x1920

Internal Memory

6GB

CPU

Quad-Core Cortex-A17@1.61GHz

GPU

Mali-T760 MP4 @600MHz

RAM

2GB DDR3

ROM

8GB NAND

USB

USB2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11b/g/n (Network version screen only)

OS

Android 5.1.1

Graphic Engine

OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1

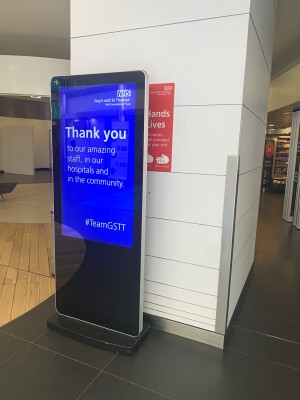

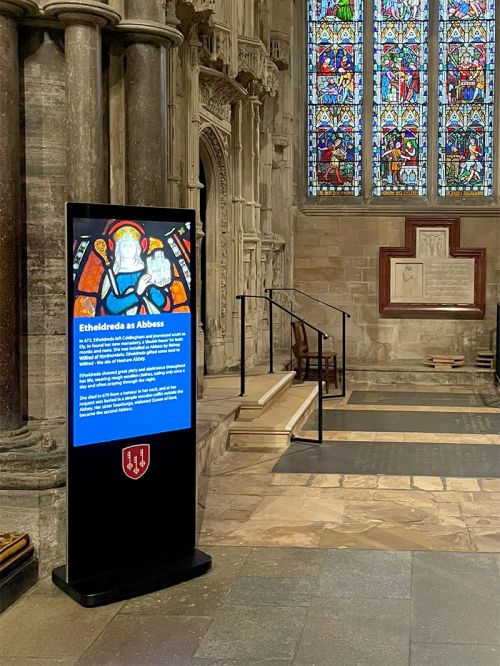

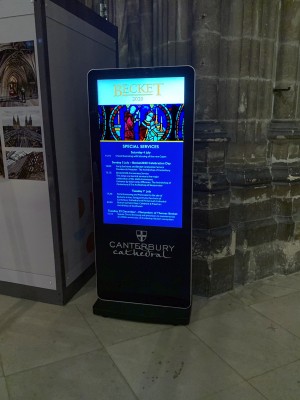

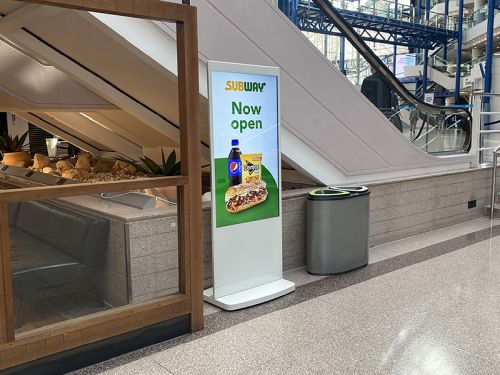

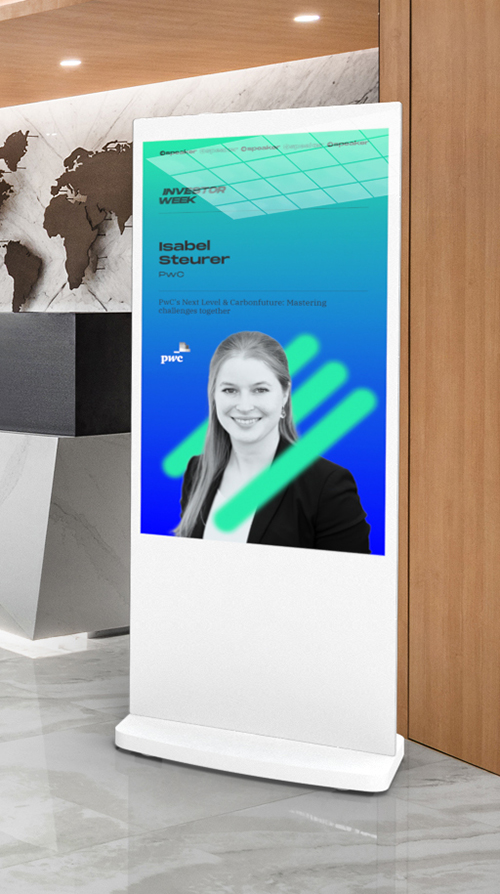

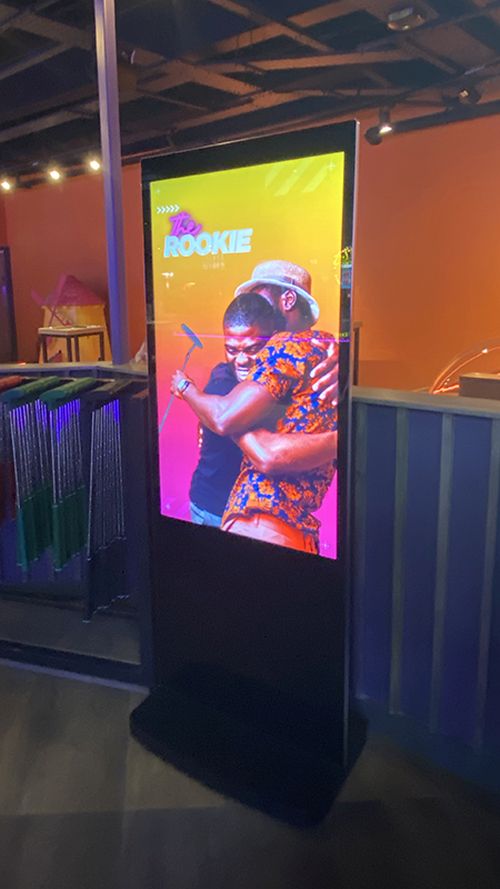

Gallery

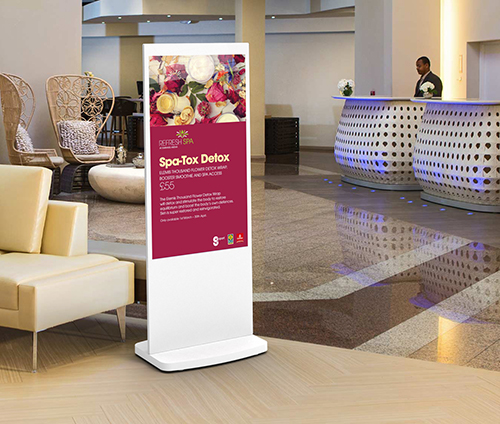

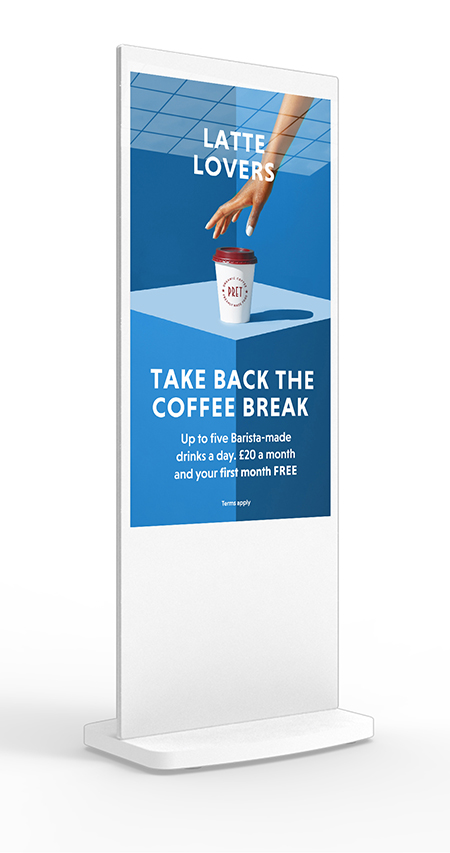

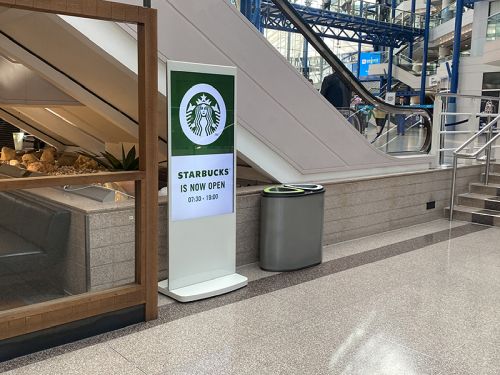

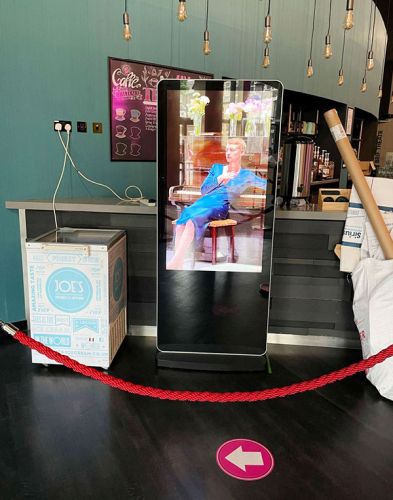

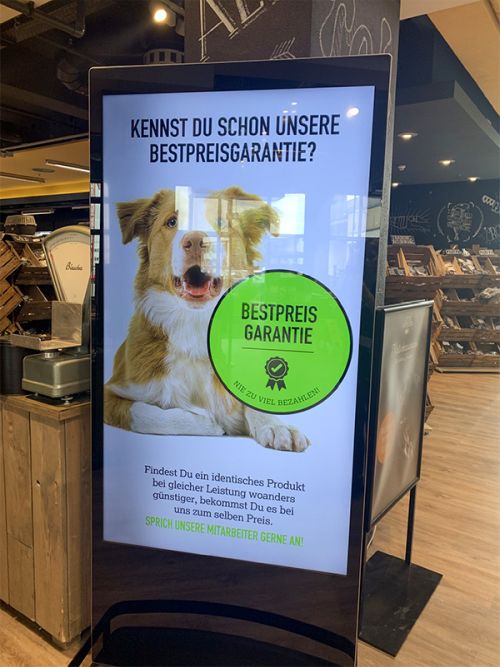

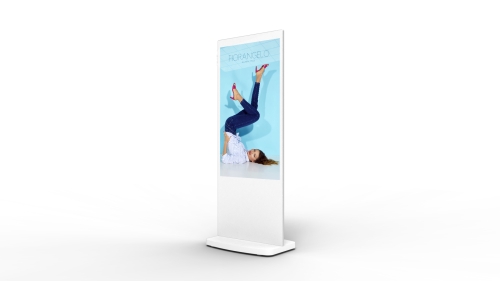

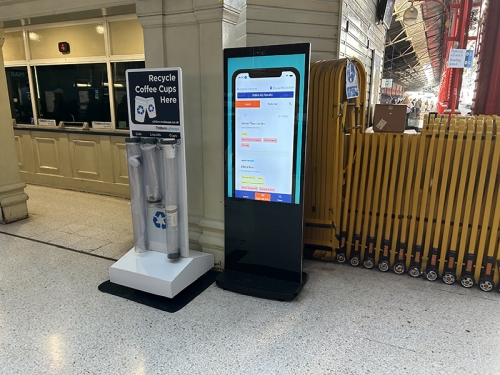

digital signage screen freestanding poster

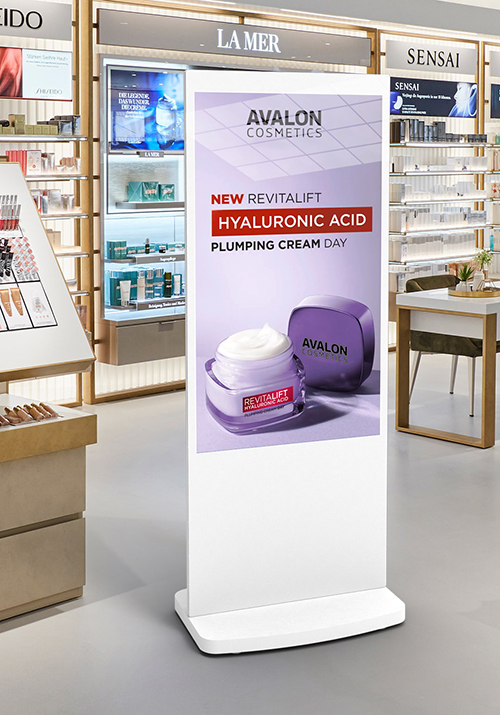

digital signage screen white window shop retail

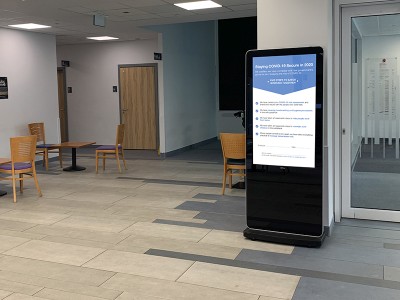

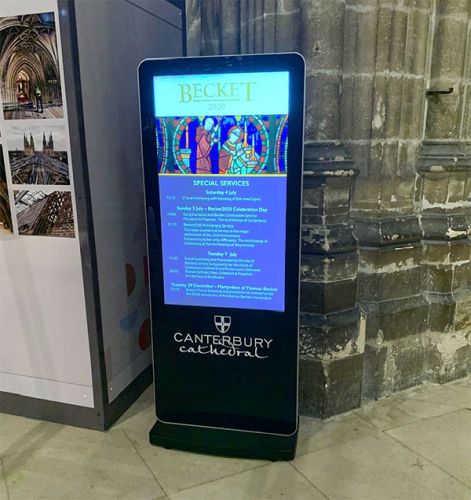

digital signage screen store window display white

digital signage screen hospitality ascot horse racing

Videos

Case Studies

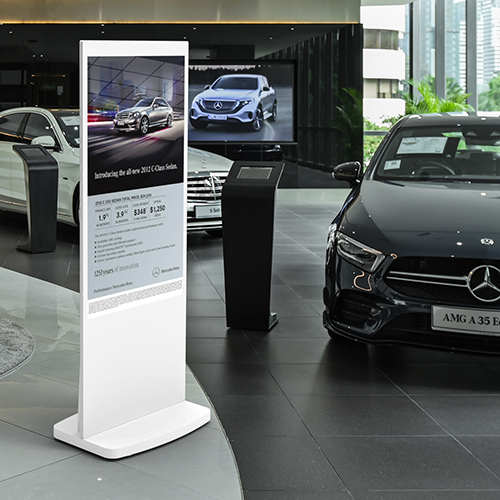

mercedes benz digital signage case study
