Dual-Sided Digital Signage Window Displays

ULTRA HIGH BRIGHTNESS HANGING DOUBLE-SIDED DISPLAYS

(49" & 55") 3,500cd/m² Outward-Facing; 1,000cd/m² Inward-Facing
Maximise window displays by broadcasting content inwards and outwards, even in direct sunlight
Double Sided Display
Double Sided Display
3500 cd/m² Brightness
3,500 cd/m² & 1,000 cd/m² Brightness
24/7 Usage
24/7 Usage
Plug and Play
Plug and Play
easy installation
Easy Install
Wide Viewing Angle
Wide Viewing Angle

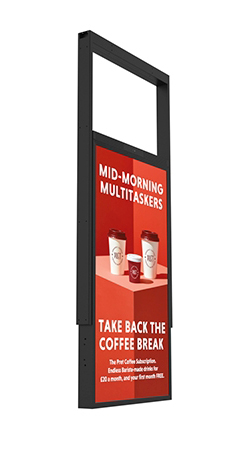

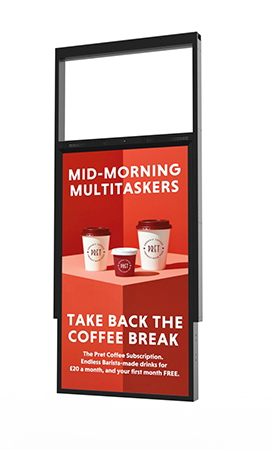

ceiling mount
Integrated Ceiling Mount

Ultra Resistant Blackening
Ultra Resistant Blackening 110˚C
external light sensor
Ambient Light Sensor
temperature control system
Smart Temperature Control
lightweight enclosure
Lightweight Aluminium Enclosure
freestanding version
Freestanding Version Available
Network product
Optional Network Upgrade
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3-Year Warranty

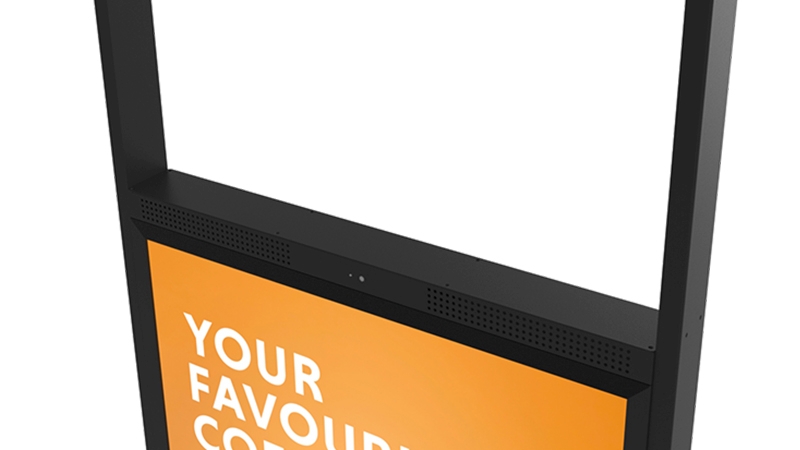

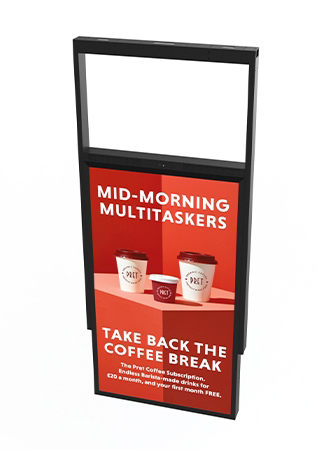

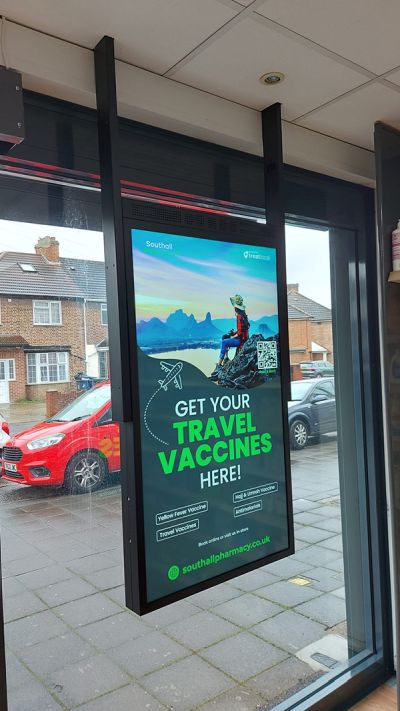

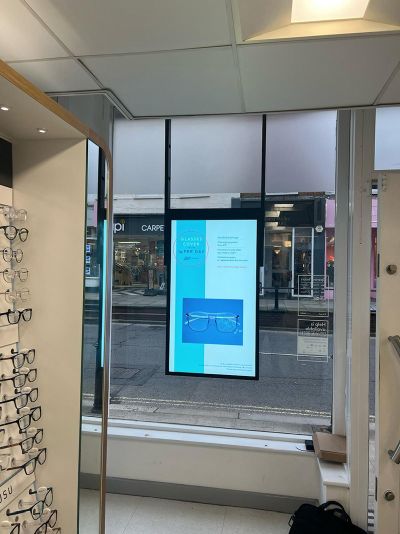

Ultra High Brightness double sided Window Displays
sunlight readable

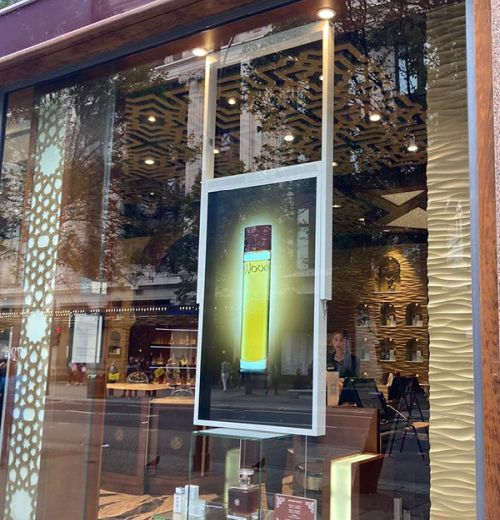

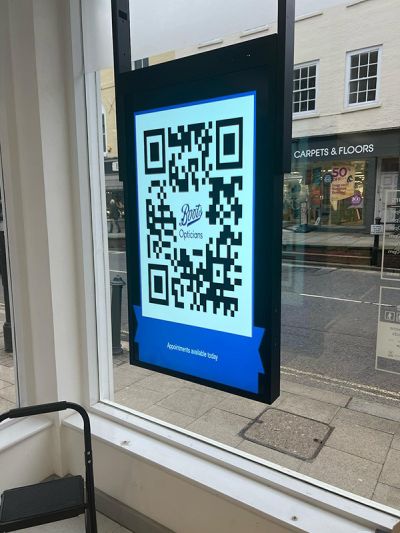

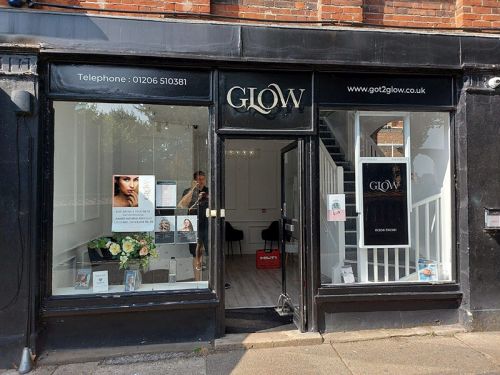

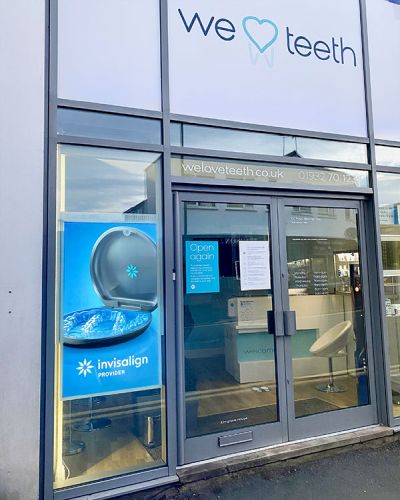

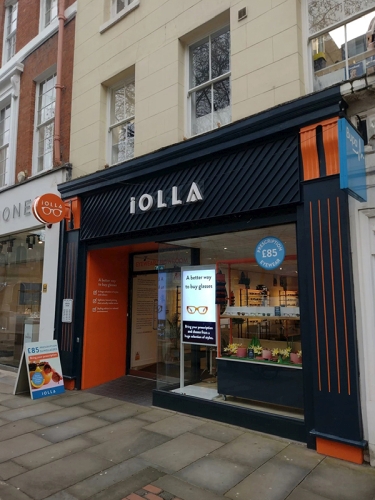

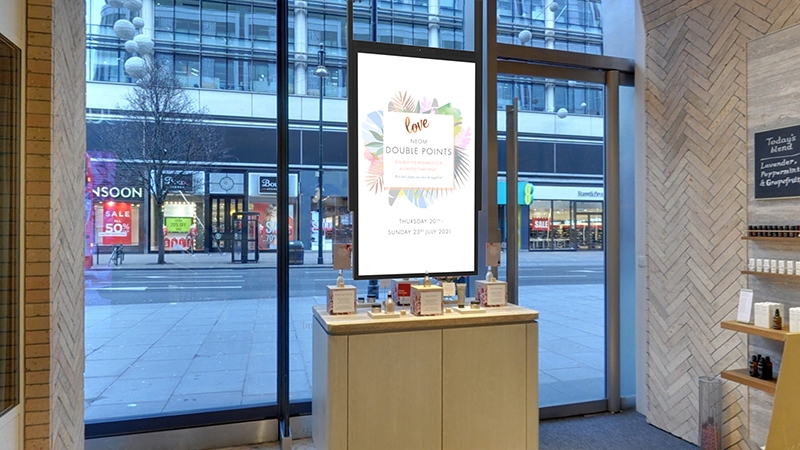

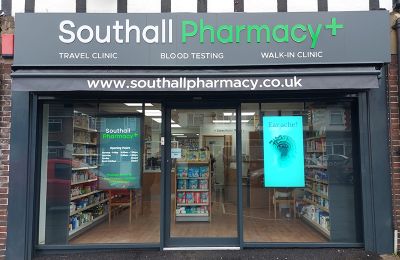

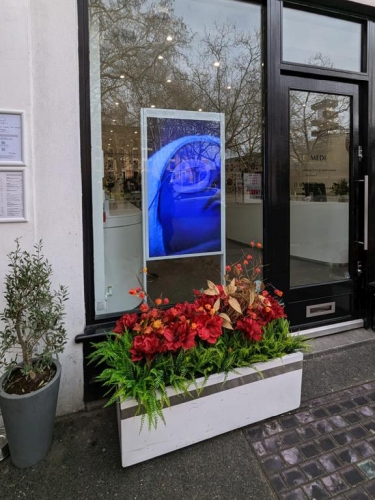

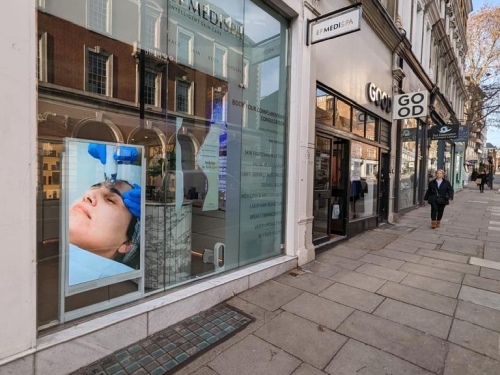

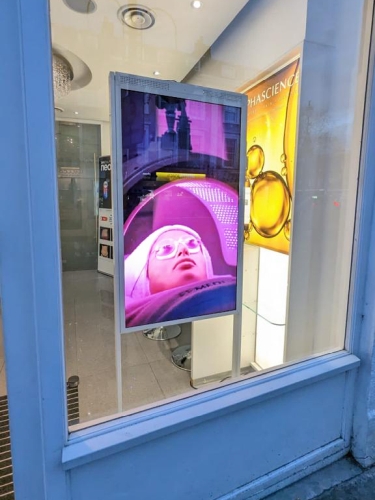

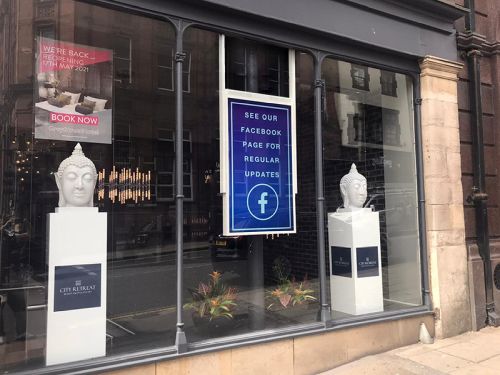

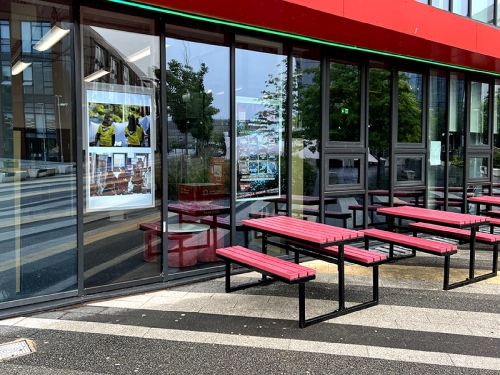

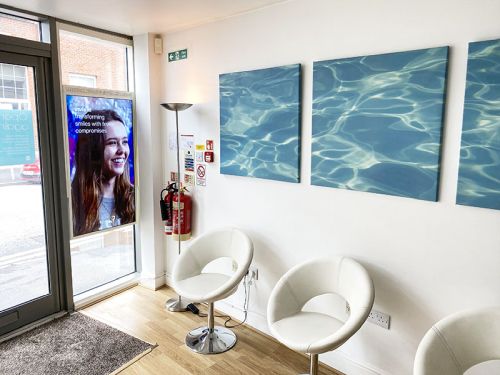

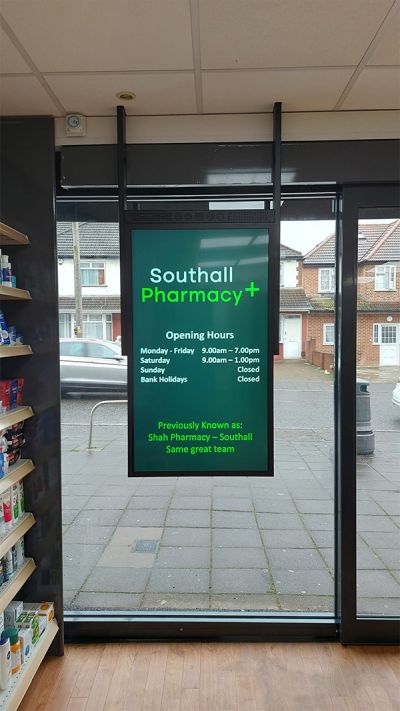

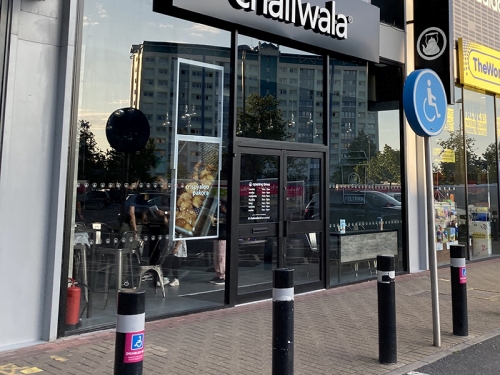

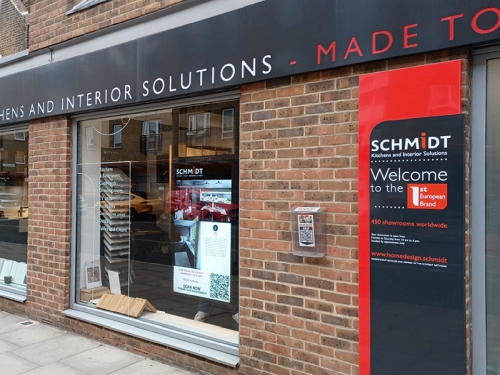

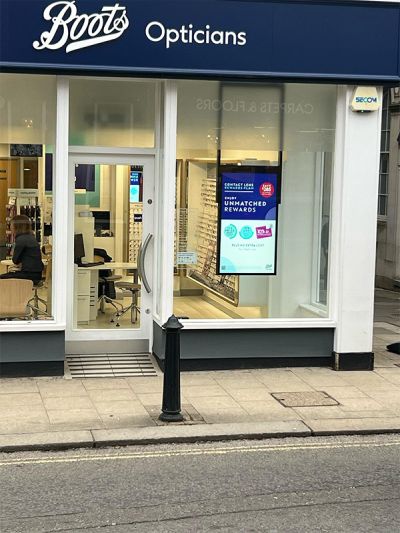

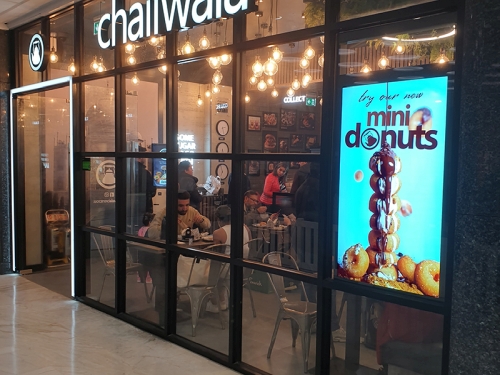

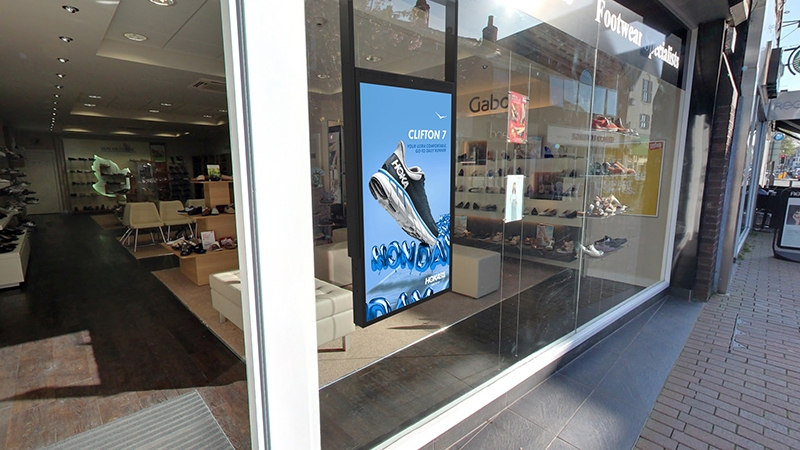

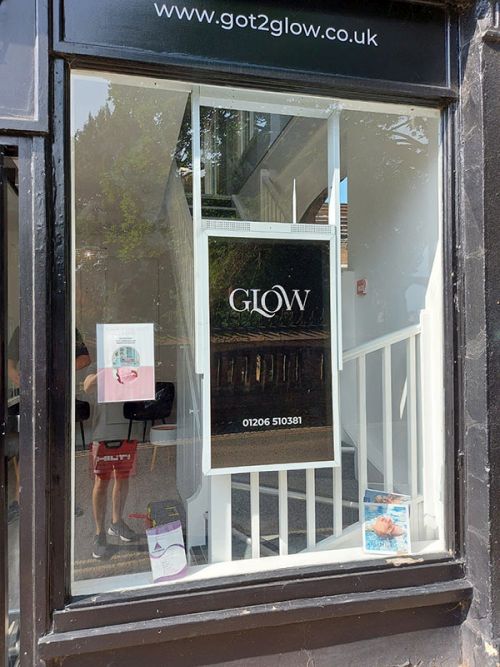

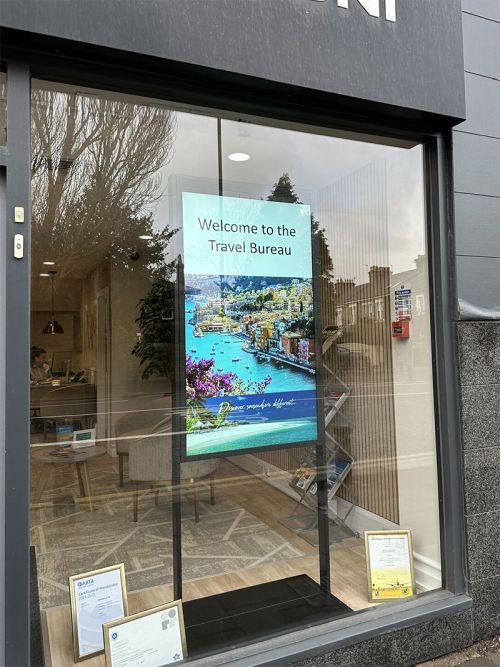

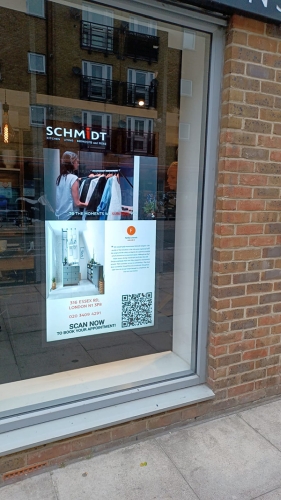

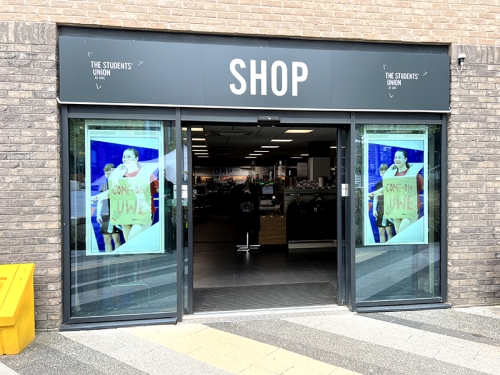

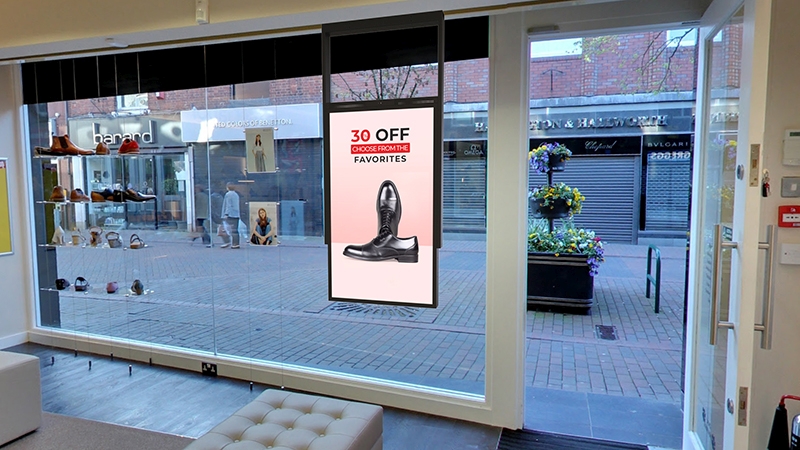

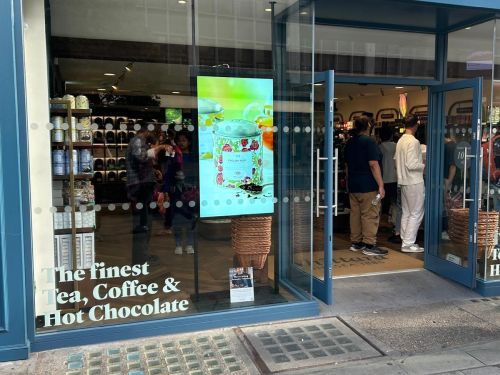

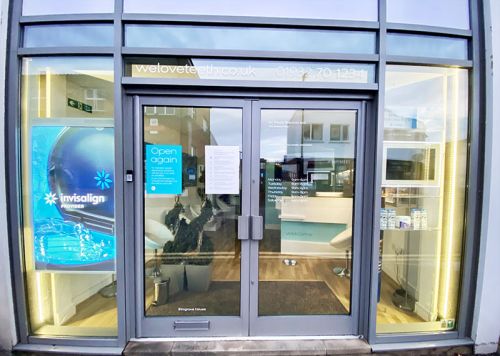

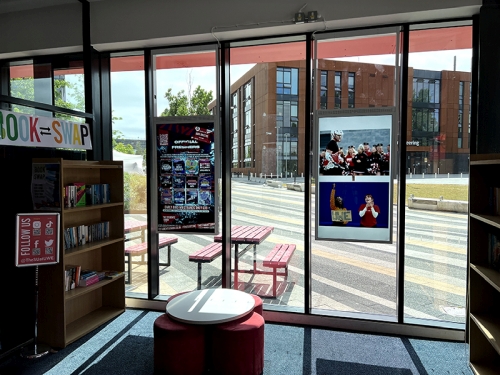

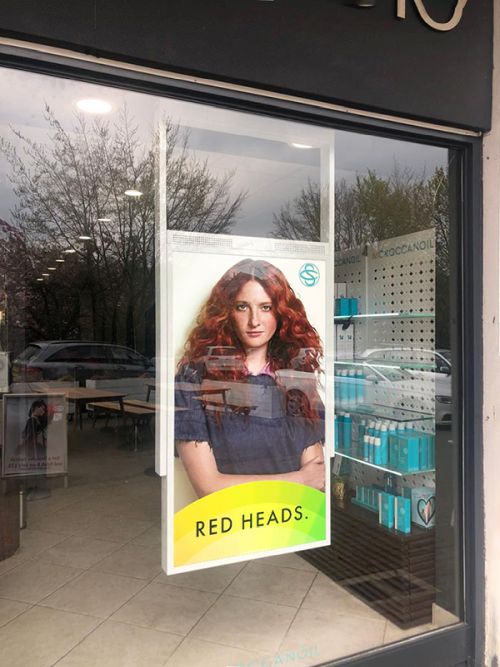

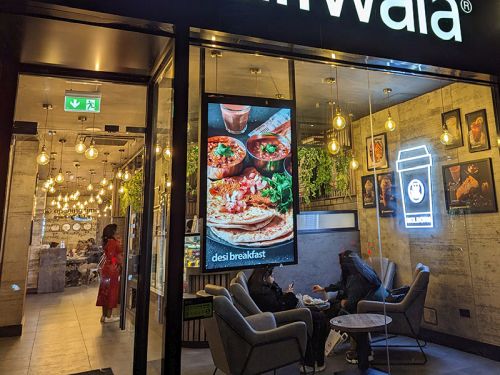

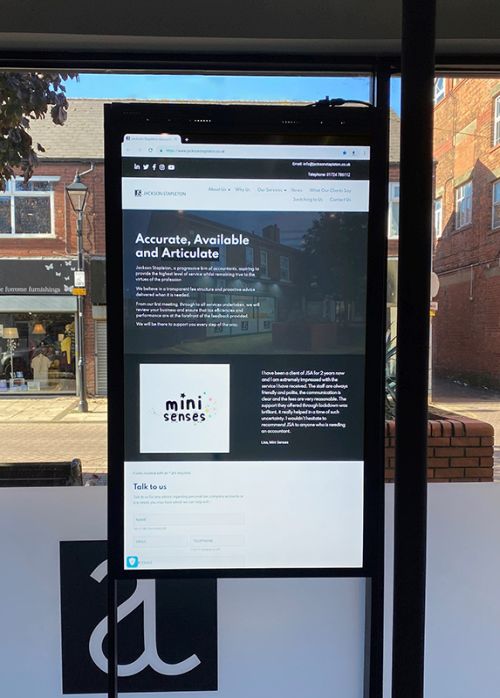

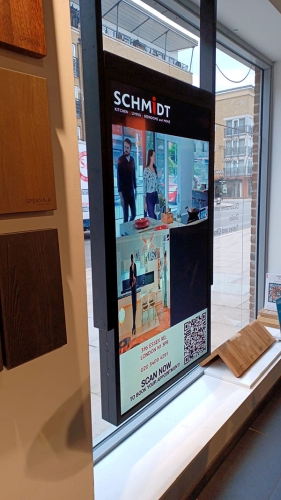

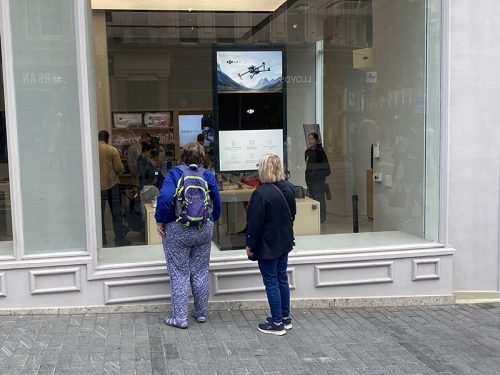

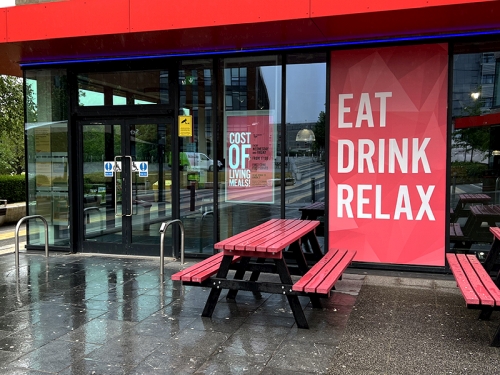

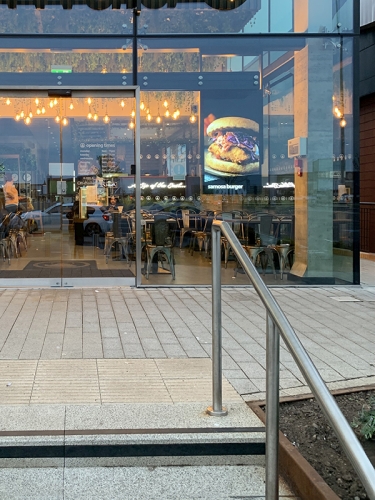

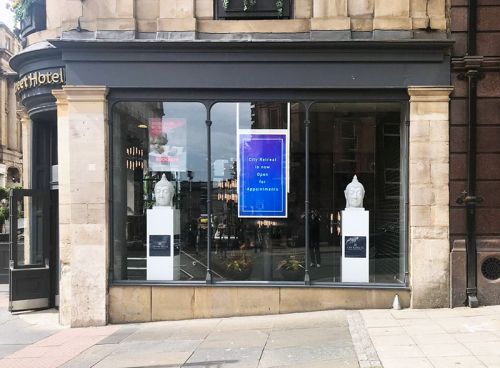

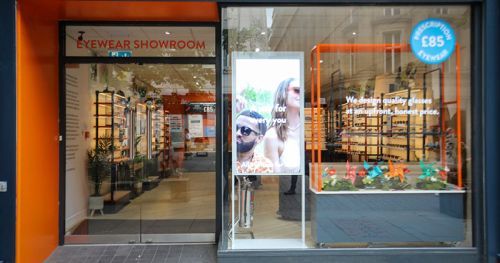

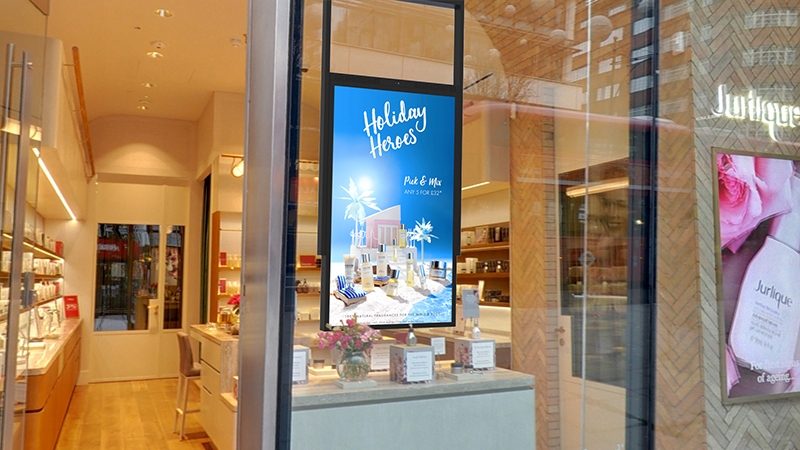

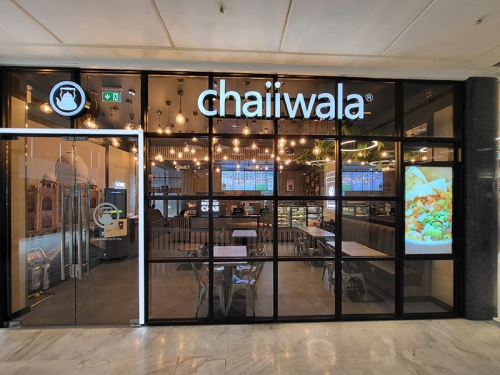

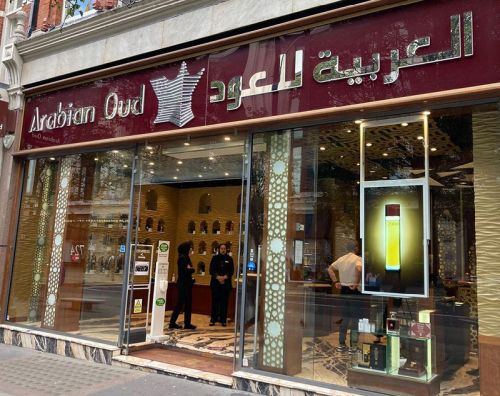

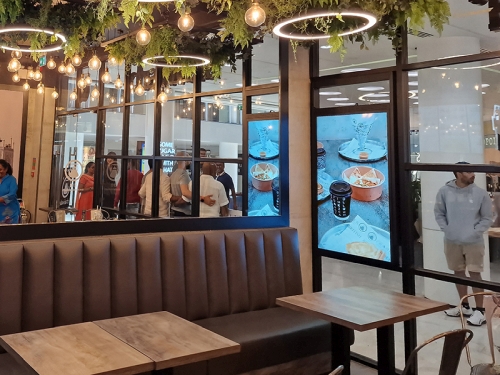

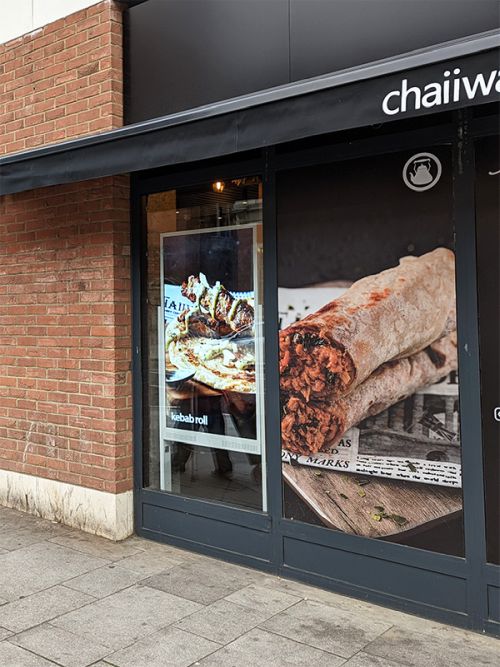

Perfect for Window Displays
With a 3,500cd/m² outward-facing screen to combat direct sunlight and a 1,000cd/m² inward-facing screen to combat brightly-lit indoor spaces, these dual-sided displays are designed for shopfront windows. On top of this, they are also ultra resistant to blackening defect up to 110°C.
double sided
Different Content on Each Side
When using our user-friendly online CMS software, you can really capitalise on the duality of these displays by broadcasting different content on each side. Tailor your messaging to people inside and outside the building for maximum effectiveness.

Ultra High Brightness double sided Window Displays
lightweight
Lightweight Slim Enclosure
Thanks to their streamlined design, these innovative displays feature a slim depth, minimal cord clutter, and high energy efficiency. Plus, not only is the aluminium enclosure incredibly lightweight for easy installation, it also has high thermal conductivity. This allows rapid heat loss, improving overall performance and increasing lifespan.

android advertising display
Integrated Android Media Player
The integrated Android media player allows you to easily update on-screen content via USB plug and play. Alternatively, upgrade your screen to be networked without needing any additional hardware to unlock our cloud-based CMS software. Third-party software can be installed instead if required.

temperature control
Smart Temperature Control
The responsive internal airflow system keeps the panel and other internal components at optimum working temperature. This ensures a long and reliable life for your screen, even when used continuously in outward-facing windows.

digital signage ultra high brightness sunlight readable digital signage ultra high brightness sunlight readable
blackening defect
Ultra Resistant to Blackening
Thanks to their special ultra-high brightness panels, these displays can withstand surface temperatures up to 110˚C without suffering from any blackening defect. This is crucial for outward-facing window displays, which must contend with exposure to direct sunlight.

multiple inputs
Accessible Ports
To prevent tampering, the AV ports are recessed into the top of the enclosure. However, they are still accessible for easy content updates via USB plug and play. This design strikes the perfect balance between user-friendliness and commercial use.

multiple colours

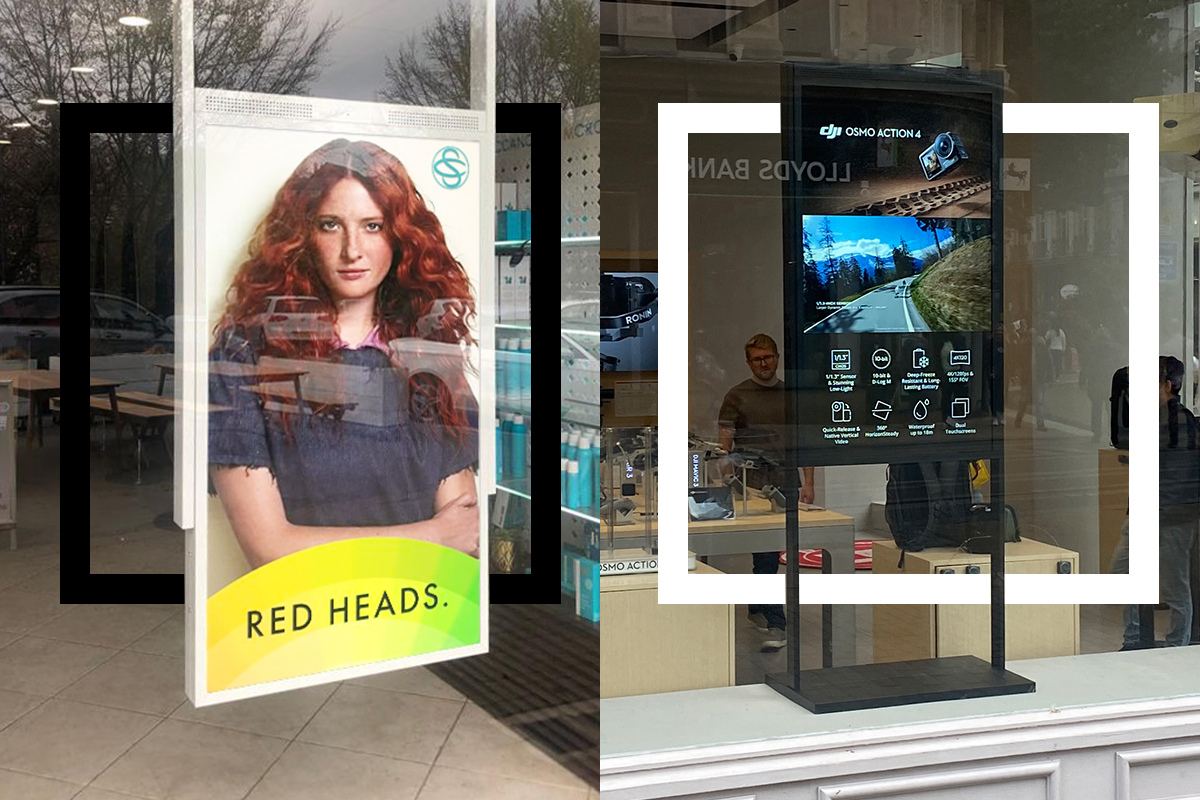

Other Colours Available
Although these displays come in crisp black as standard, which offers a clean, modern aesthetic making them ideal for environments such as retail stores and pharmacies, the enclosure can also be customised to any colour you desire.

freestanding

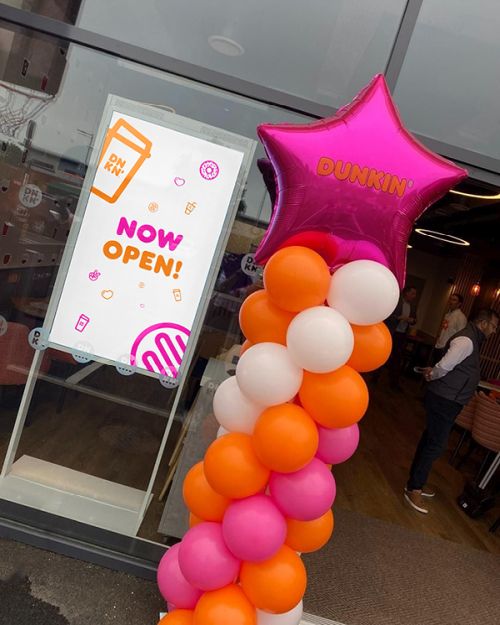

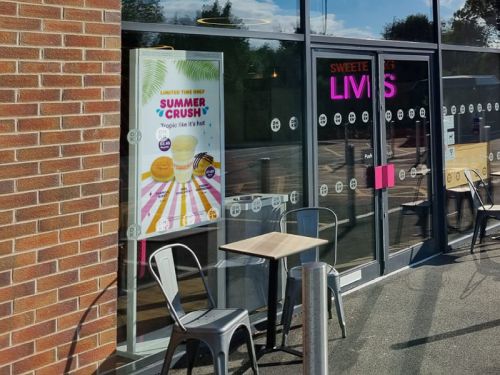

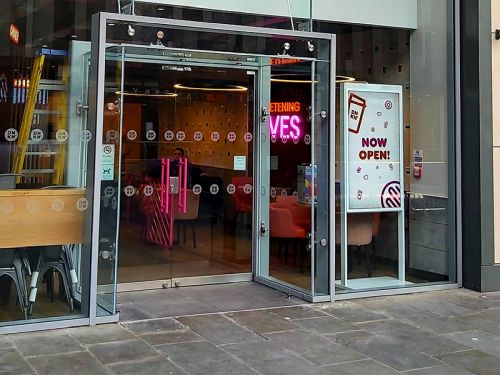

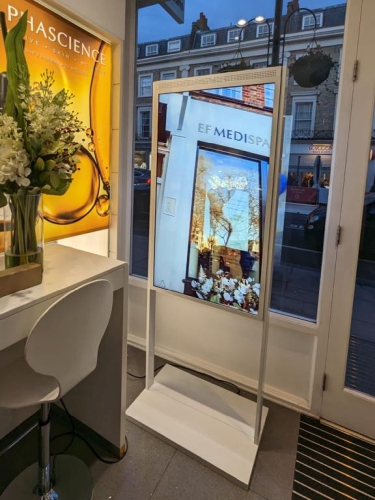

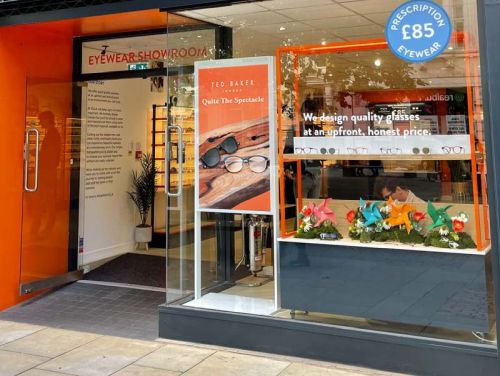

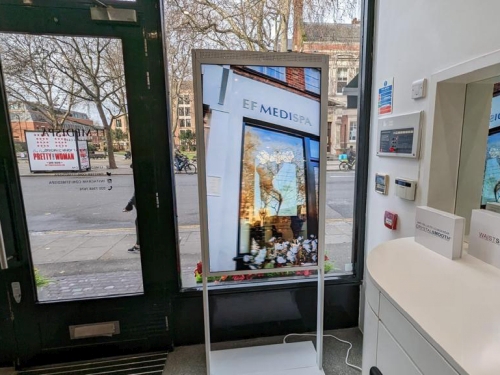

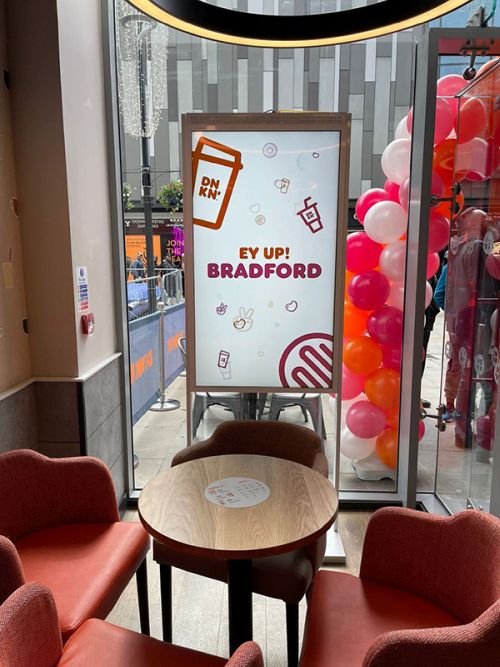

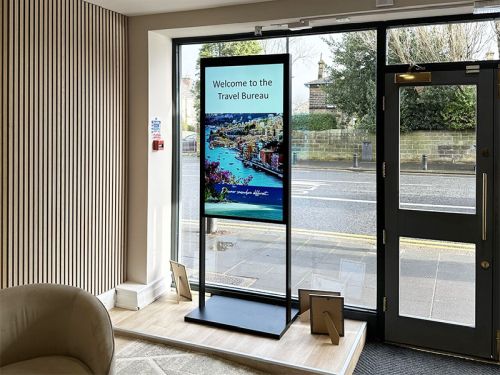

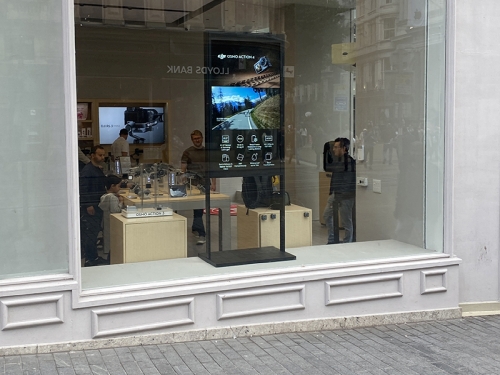

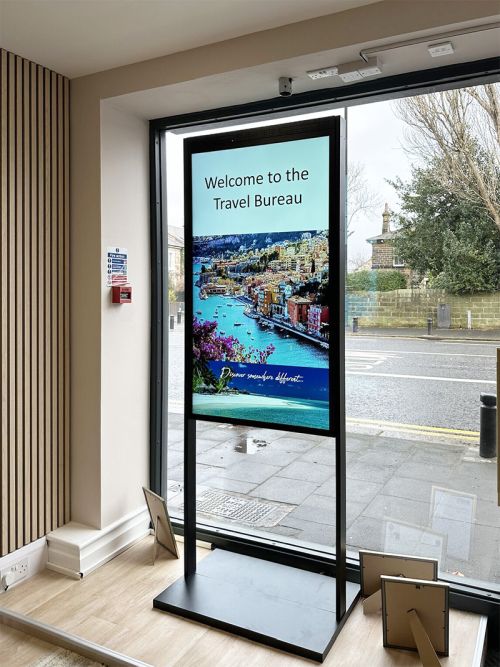

Freestanding Option Available
For projects where hanging installation is not possible, these versatile displays can also be transformed into a freestanding solution using the optional floor stand. No matter which mounting option you go for, an easy install is guaranteed.

ultra high brightness double sided ports ultra high brightness double sided ports
Full Specification
49 Inch - UDS49HD10

Display/Active Area (mm)

1073.78 x 604

Side A Resolution (px)

1920 x 1080 @60Hz

Side B Resolution (px)

1920 x 1080 @60Hz

Contrast Ratio

5,000:1

Media Format

Supports FHD 60FPS H.264/H.265 video encoding

Power Consumption

Typical: tbc; Max: 326W

Screen Only Dimensions (mm)

656 x 1181.9 x 80

Hanging Display Dimensions (mm)

708 x 1599.9 x 80 or 708 x 1829.9 x 80 or 708 x 2059.9 x 80

Package Dimensions (mm)

906 x 1474.7 x 255

Net Weight (kg)

35.7

Gross Weight (kg)

42.8
55 Inch - UDS55UHD10

Display/Active Area (mm)

1208.6 x 679.4

Side A Resolution (px)

1920 x 1080 @60Hz

Side B Resolution (px)

3840 x 2160 @60Hz

Contrast Ratio

1,300:1

Media Format

Supports 4K 60FPS H.265/H.264/VP9 video decoding; Supports FHD 60FPS H.264/H.265 video decoding

Power Consumption

Typical: tbc; Max: 390W

Screen Only Dimensions (mm)

727 x 1317.2 x 80

Hanging Display Dimensions (mm)

786 x 1725 x 80 or 786 x 1975 x 80

Package Dimensions (mm)

906 x 1474.7 x 255

Net Weight (kg)

40

Gross Weight (kg)

45
Display

Aspect Ratio

16:9

Side A Brightness (cd/m²)

3,500

Side B Brightness (cd/m²)

1,000

Colour

16.7M (10-Bit)

Viewing Angle (°)

89/89/89/89

Blackening Defect Free

Up to 110°C (230°F)

Orientation Support

Portrait

Operating Hours

24/7 Commercial Use
System & Performance

CPU

RK3568 64bit Cortex-A55 Quad @2GHz

GPU

Quad Mali-G52 2EE

Graphics API Support

OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1
OS

Operating System

Android 14

RAM

4GB

Storage

32GB
Connectivity & Interface

LAN

10/100/1000M RJ45

Wi-Fi

Dual-band 2.4GHz / 5GHz (802.11a/b/g/n/ac)

Bluetooth

5.0

HDMI

1 x HDMI 2.0 IN

USB

1 x USB 3.0 Type-A; 3 x USB 2.0 Type-A; 1 x USB Type-C (OTG only)

RS232

1 x RJ45 (Serial Control)

Ethernet

1 x RJ45 (10/100/1000M)

Audio Out

1 x 3.5mm Audio Out

Expansion Slot

1 x Micro SD

Power Input

1 x IEC C13 (Kettle Lead)

Switch

1 x Power Switch

Speakers

5W x 2
Power Management

Power Supply

AC 100-240V, 50/60Hz

Standby Power

≤0.5W
Environmental Conditions

Operating Temperature

0°C to 40°C

Storage Temperature

-10°C to 55°C

Operating Humidity

10% to 80%

Storage Humidity

10% to 80%
Accessories

Included Accessories

Kettle Power Lead, Remote Control + Batteries; User Manual (QR Code x2); Quick Start Guide

Optional Accessories

Floor Stand Mount, Network Upgrade
Warranty

Warranty Period

3 Years

Technical Support

Lifetime
