PCAP Touch Screen Monitors | Allsee Technologies

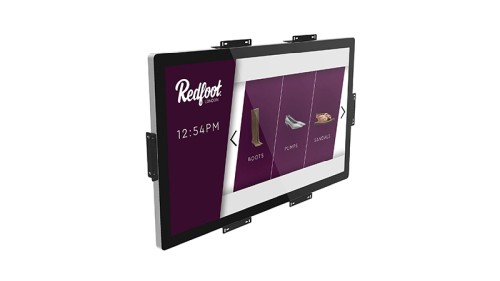

Open Frame Option

These open frame touch screen monitors are ideal for system integrators. With an underside mounting bracket included at no extra cost, this flexible solution can be mounted into any kiosk, table or cabinet in any direction or orientation. The bracket also features micro-adjustment in all three directions to enable flush-fit surface integration. Alternatively, these monitors can be wall or stand mounted thanks to their complete enclosure.

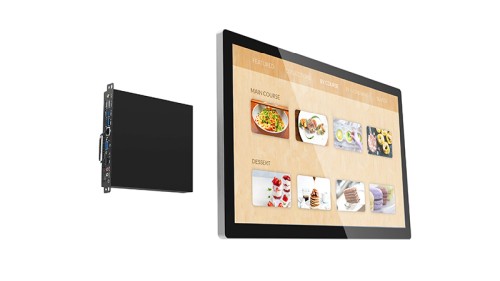

Optional Integrated Windows PC

Easily transform this solution from an interactive touch monitor into a fully integrated all-in-one Windows touch screen simply by inserting an OPS PC into the built-in slot, with no cables required. To prevent theft or damage, this can be secured with a hex security screw.

OPS PC Specifications – OPS-ES2 / OPS-P6

10-Point PCAP Touch

Having up to 10 touch points allows users to perform a variety of touch gestures, including manipulating images and zooming in/out - much like you would with a domestic tablet or smart phone. It also allows multiple users to interact with the screen at the same time.

24/7 Commercial Use

These monitors are designed for continuous use in public spaces, able to be used 24/7 for over 50,000 hours. Built using true commercial grade components and having undergone rigorous quality control testing, they offer a reliable and cost-effective solution.

Surface Plasma Treatment

A special oleophobic coating makes the glass front more resistant to the oily residue left by fingerprints and improves the smoothness of touch gestures. Unlike other touch screens on the market, this glass is not etched, which vastly enhances the optical clarity.

500cd/m² IPS Panel

With a brightness of 500cd/m², these monitors are ideal for brightly-lit public spaces. Plus, commercial grade IPS technology ensures accurate image quality and colour depth with no fall-off in colour accuracy, as well as achieving ultimate lifelike colour temperature in both landscape and portrait orientation.

Complete Monitor Solution

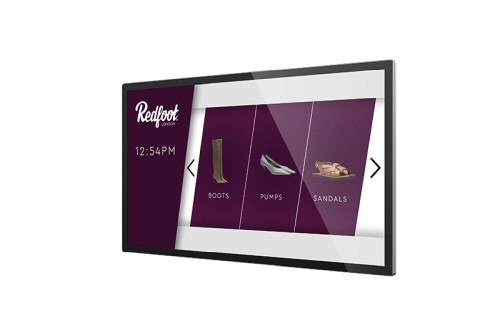

Giant Tablet Styling

A stylish edge-to-edge glass face, rounded corners, aluminium surround with unique concave indent profile, and thin black border deliver a captivating tablet-like aesthetic. The protective tempered glass face and mild steel enclosure also increase the durability of the display, protecting the LCD panel and other internal components from potential damage in public spaces.

Budget Friendly Touch Monitor

For projects where interactivity is required but costs need to be kept to a minimum these displays are perfect. If you have your own PC or media player and need to add a stylish touch screen monitor, look no further. Simply connect your media source via HDMI and USB and away you go.

Integrated Speakers

For applications that require an audio element, these monitors feature two integrated slimline speakers.

Specification

Full Specification

22 Inch

32 Inch

43 Inch

50 Inch

55 Inch

22 Inch - WP22C

Resolution (px)

1920x1080

Display Area (mm)

476.4x267.8

Unit Size (WxHxD mm)

518.8x310.3x52

OPS PC Specification (mm)

200x119x30 (OPS)

Package Size (WxHxD mm)

605x405x125

VESA Holes (mm)

100x100 M5

Power Consumption (W)

Net Weight (kg)

5.1

Gross Weight (kg)

6.6

Contrast Ratio

4,000:1

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%

32 Inch - WP32B

Resolution (px)

1920x1080

Display Area (mm)

697.4x391.7

Unit Size (WxHxD mm)

747.4x441.7x62.7

OPS PC Specification (mm)

200x119x30 (OPS)

Package Size (WxHxD mm)

835x516x185

VESA Holes (mm)

200x200 M5

Power Consumption (W)

Net Weight (kg)

9.9

Gross Weight (kg)

12.3

Contrast Ratio

1,200:1

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%

43 Inch - WP43C

Resolution (px)

3840x2160

Display Area (mm)

940.2x528.1

Unit Size (WxHxD mm)

990.2x578.9x63

OPS PC Specification (mm)

200x119x30 (OPS)

Package Size (WxHxD mm)

1080x710x147

VESA Holes (mm)

400x400 / 400x200 M6 10mm

Power Consumption (W)

110

Net Weight (kg)

21.8

Gross Weight (kg)

25.6

Contrast Ratio

1,200:1

Operating Humidity

10% to 90%

Storage Humidity

10% to 90%

50 Inch - WP50B

Resolution (px)

3840x2160

Display Area (mm)

1094.8x615.4

Unit Size (WxHxD mm)

1145.9x665.4x63

OPS PC Specification (mm)

200x119x30 (OPS)

Package Size (WxHxD mm)

1190x712x185

VESA Holes (mm)

400x400 M6

Power Consumption (W)

140

Net Weight (kg)

19.4

Gross Weight (kg)

Contrast Ratio

1,000:1

Operating Humidity

20% to 80%

Storage Humidity

10% to 90%

55 Inch - WP55C

Resolution (px)

3840x2160

Display Area (mm)

1208.6x679.9

Unit Size (WxHxD mm)

1262.6x733.9x63

OPS PC Specification (mm)

200x119x30 (OPS)

Package Size (WxHxD mm)

1367x910x182

VESA Holes (mm)

400x400 / 400x200 M6 10mm

Power Consumption (W)

120

Net Weight (kg)

32.5

Gross Weight (kg)

38.6

Contrast Ratio

1,200:1

Operating Humidity

10% to 90%

Storage Humidity

10% to 90%

Panel

Aspect Ratio

16:9

Brightness (cd/m²)

500

Viewing Angle

178°

Colour

16.7M

Touch

Touch Technology

Projected Capacitive

Touch Points

Glass Hardness

7H minimum

Glass Thickness

3.0±0.2mm

Audio

Speaker Type

8W (x2)

AV Ports

Ports

1 x HDMI Input, 1 x USB Touch, 1 x USB 2.0, 1 x VGA, 1 x Audio In, 1 x AV, 1 x Headphones

Power

Input Voltage

AC100~240V (50Hz~60Hz)

Environmental

Operating Temperature

0°C to 40°C

Storage Temperature

-20°C to 60°C

Accessories

Included

Open Frame Mounting Bracket, Remote Control, User Manual, Power Cable, USB to USB Cable, Wi-Fi Aerial

Optional

Windows Slot-in OPS PC, Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand

Warranty

Warranty Period

3 Year Warranty

Technical Support

Lifetime

Gallery

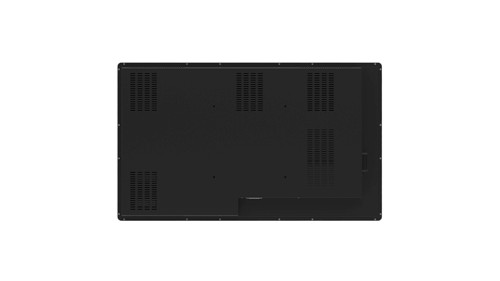

digital signage screens touch screen hospital

digital signage screens touch screen ports

digital signage screens touch screen alluminium bezel

digital signage screens touch screen hotel lobby

Downloads

Spec Sheet

22" PCAP Touch Screen Monitors - Spec Sheet

32" PCAP Touch Screen Monitors - Spec Sheet

43" PCAP Touch Screen Monitors - Spec Sheet

50" PCAP Touch Screen Monitors - Spec Sheet

55" PCAP Touch Screen Monitors - Spec Sheet

Technical Drawings

22" PCAP Touch Screen Monitors - Technical Drawing

32" PCAP Touch Screen Monitors - Technical Drawing

43" PCAP Touch Screen Monitors - Technical Drawing

50" PCAP Touch Screen Monitors - Technical Drawing

55" PCAP Touch Screen Monitors - Technical Drawing

OPS PC Spec Sheets

Essential OPS Slot-in PC Intel® i5 - Spec Sheet

Premium OPS Slot-in PC Intel® Core™ i5 - Spec Sheet

User Manual

PCAP Touch Screen Monitors - User Manual

PCAP Touch Screen Monitors - Open Frame Installation Guide

Photos

PCAP Touch Screen Monitors - Images
