43" Outdoor Digital Android Battery A-Boards
Watch Video
Fully portable solution for any environment; display content all day and night on a single charge
portable display
Portable Display
lightweight
Lightweight Enclosure
antiglare
Tempered Anti-Glare Glass
running time
27 Hour Running Time
rugged castors
Rugged Vibration-Proof Castors
Weather Proof
IP65-Rated Weatherproof
Integrated Android Media Player
700 cd/m² Brightness

robust fixed design
Robust Fixed Design
ambient light sensor
Ambient Light Sensor
secure locking bar
Secure Locking Bar
battery display
Isolated Battery Housing
Integrated Android Media Player
Android Media Player
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3-Year Warranty
portable
Fully Portable
Anti Glare Glass icon
Tempered Anti-Glare Glass
These displays feature a tempered glass front that has been specially treated to give an anti-glare finish. This completely diffuses external light reflections without reducing the brightness of the screen, improving the readability of on-screen content.

battery
Battery-Powered Display
The integrated lithium-polymer battery offers an amazing 27 hours run time from a single charge*, allowing you to display messaging all day and night without needing to recharge. A secure housing safely isolates this commercial grade battery from other components for total peace of mind.
*Excludes degradation and user damage caused by sulphation, deep cycling and overcharging

syncronised digital rod displays
weatherproof
Fully Weatherproof
Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65-rated outer casing. This means they can be used in any environment, come rain or shine.

sunlight readable
700cd/m² High Brightness
These displays strike the perfect balance between brightness and battery life. With a high brightness panel which is up to three times brighter than a domestic TV, the screen is clearly visible in outdoor spaces without compromising on running time or battery lifespan.

robust enclosure
Robust Fixed Design
Unlike traditional A-boards, these displays have a sturdy non- foldable design for ultimate durability and extended lifespan. This is further enhanced by the tempered glass front, which protects the panel and internal components from damage.

secure locking bar
Secure Locking Bar

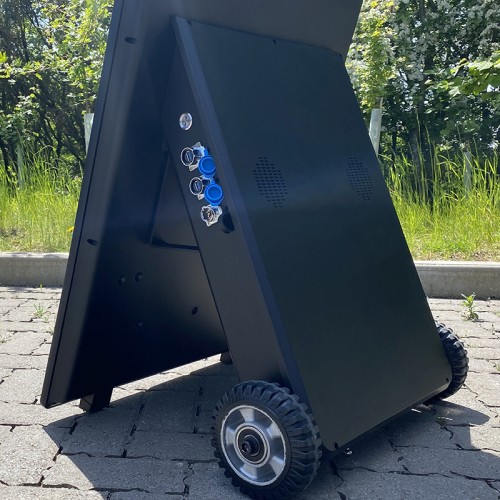

Once in position, the rugged castors can be locked in place with the built-in locking bar. For additional security, a padlock can be used to lock the bar in place.

charge indicator
Charge Level Indicator
The smart meter on the rear of the display tells you exactly how much charge the left battery has left, including an estimation of running time remaining, so you can rest assured that the battery will never die unexpectedly.

android media player
Integrated Android Media Player
The integrated Android media player allows you to easily update on-screen content via USB plug and play. Alternatively, upgrade your screen to be networked without needing any additional hardware to unlock our cloud-based CMS software. Third-party software can be installed instead if required.

multiple colours

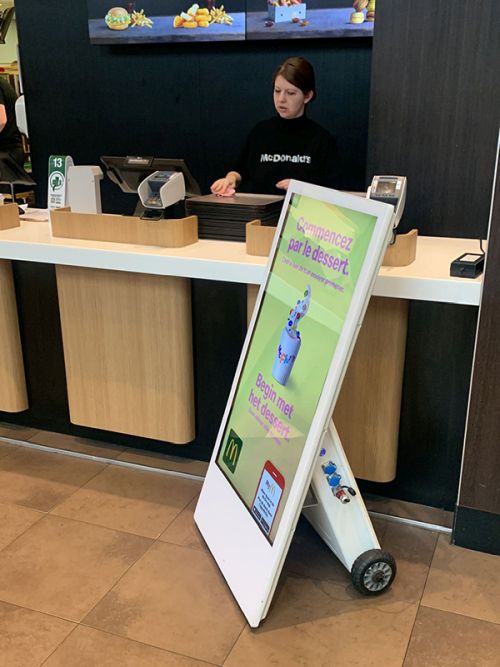

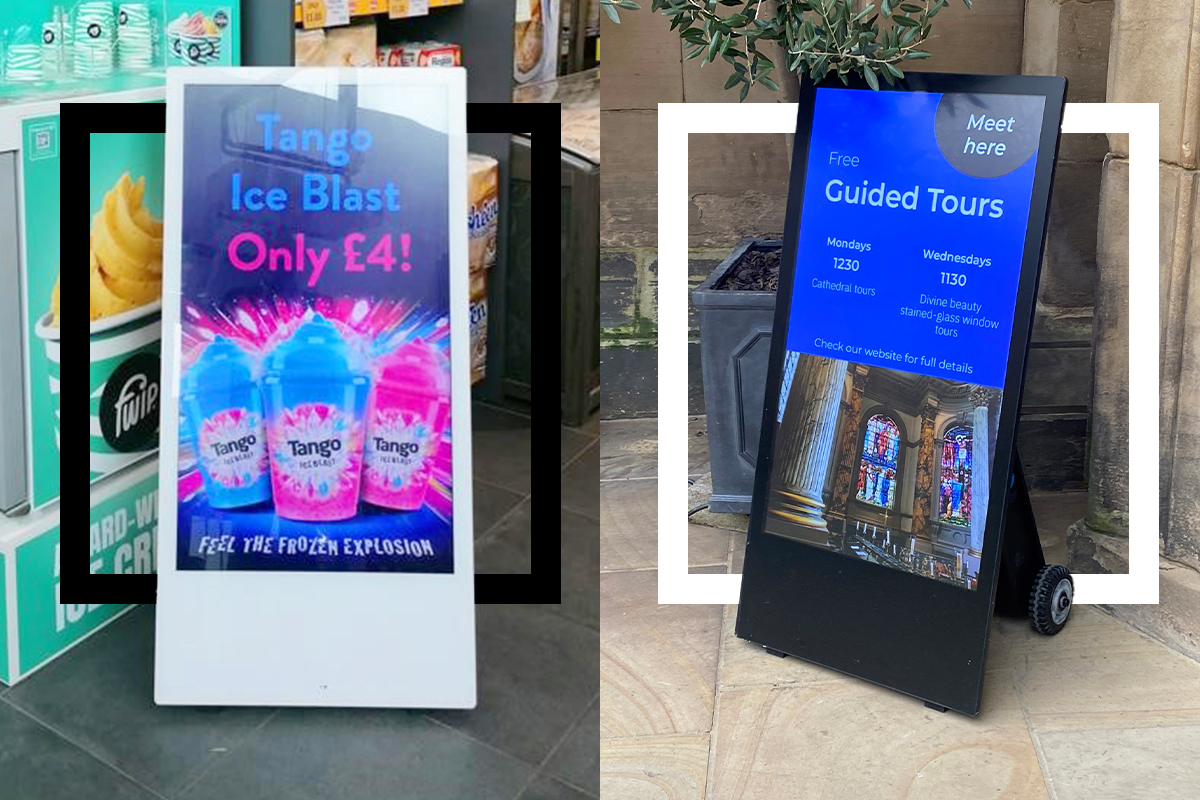

White Version Available
As well as the classic piano black model, you can also order a modern and stylish white version if required.

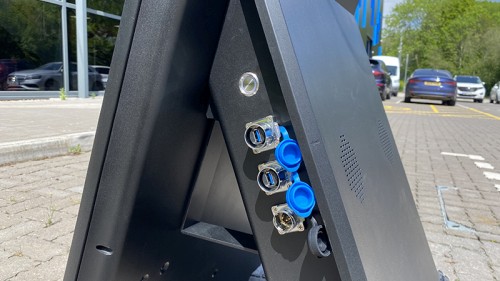

oab-ports-rear oab-ports-rear
Full Specification
43 Inch - OAB43HD8-B

Display Area

531.4x943.2

Unit Size (WxHxD mm)

1232x604.7x478

Package Size (WxHxD mm)

1310x745x645

Net Weight (kg)

37.5

Gross Weight (kg)

43

Footprint (WxH mm)

604.7x478
Panel

Resolution

1920x1080

Aspect Ratio

16:9

Brightness (cd/m²)

700

Contrast Ratio

5000:1

Viewing Angle

178°

Colour

16.7M
Audio

Speaker Type

5W, 8Ω (x2)
Battery

Battery Technology

Integrated lithium polymer

Charging Time

7 hours

Battery Life

14 hours

Battery Capacity

44000mAh

Power Supply

29.4V - 21V

Power Consumption

126W

Energy

1108.8 Watt-hours
Environmental

Operating Temperature

0°C to 50°C

Storage Temperature

-30°C to 60°C

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%
Computer

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

1920x1080/1080x1920

CPU

Quad-Core ARM Cortex A17, 1.6GHz

GPU

Quad-Core ARM Mali-T764

RAM

DDR3 2GB

ROM

8GB eMMC

USB

1 x USB (OTG/HOST), 4 x USB (HOST)

Wi-Fi

802.11b/g/n (Network version screen only)

OS

Android 7.1

Graphic Engine

OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1
Accessories

Included

Scheduling Software, Remote Control, User Manual, Charger, Mains Power Cable

Optional

Network Upgrade, Security Chain
Videos

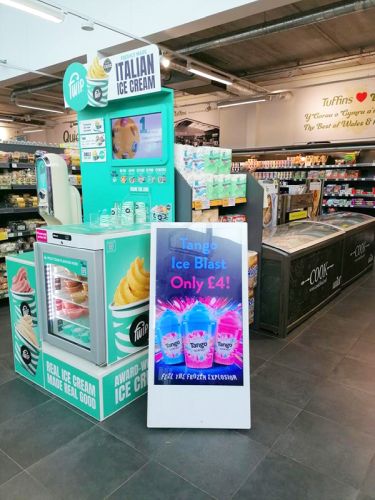

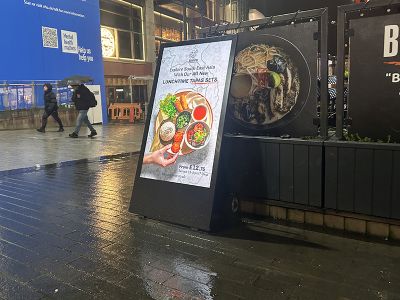

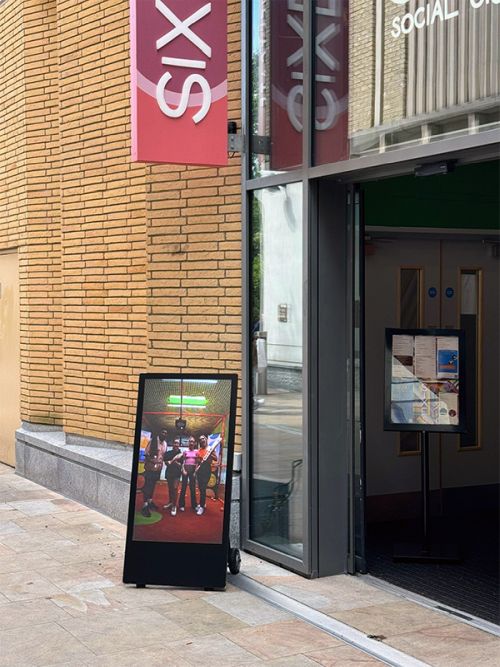

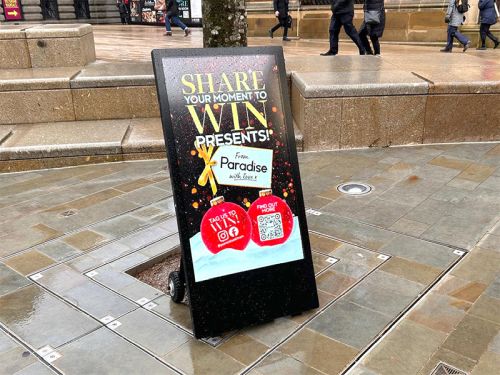

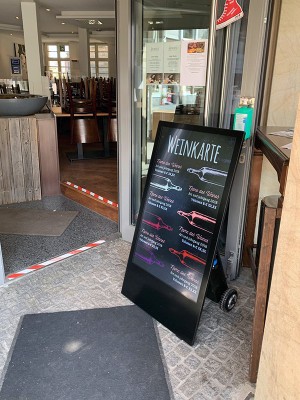

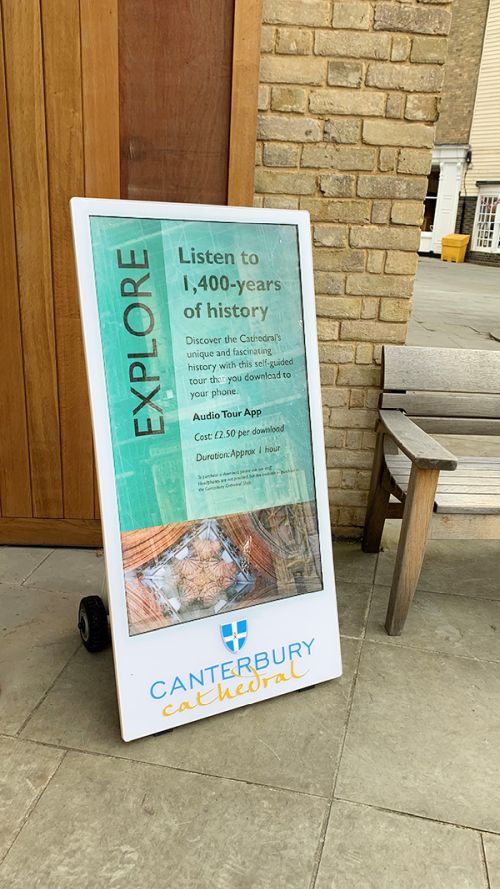

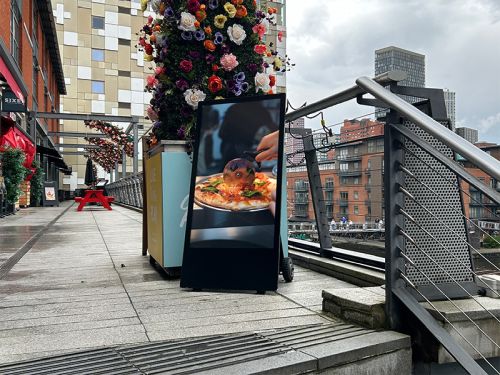

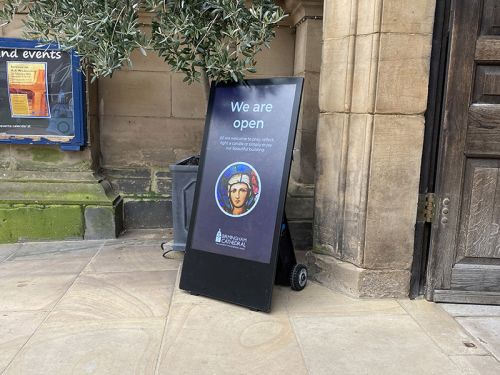

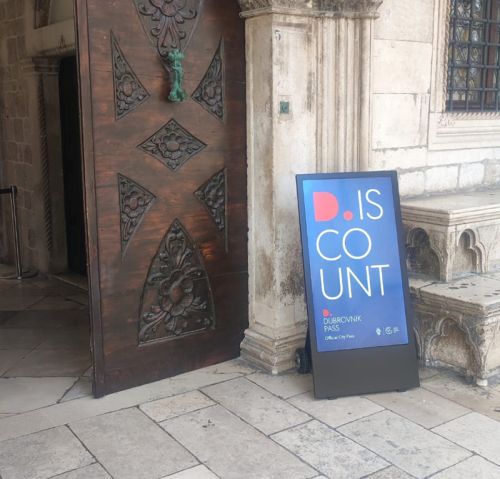

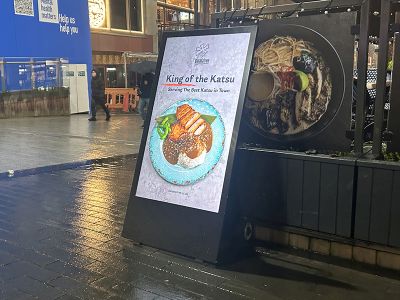

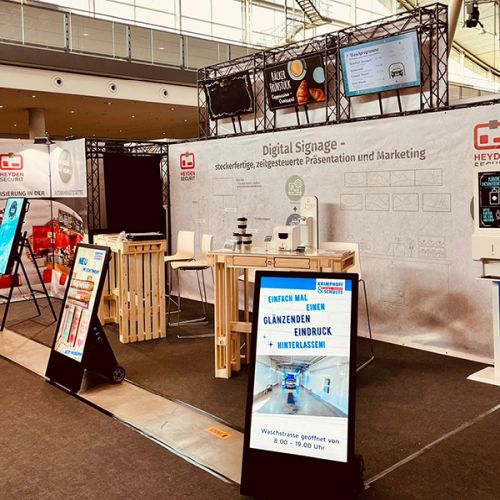

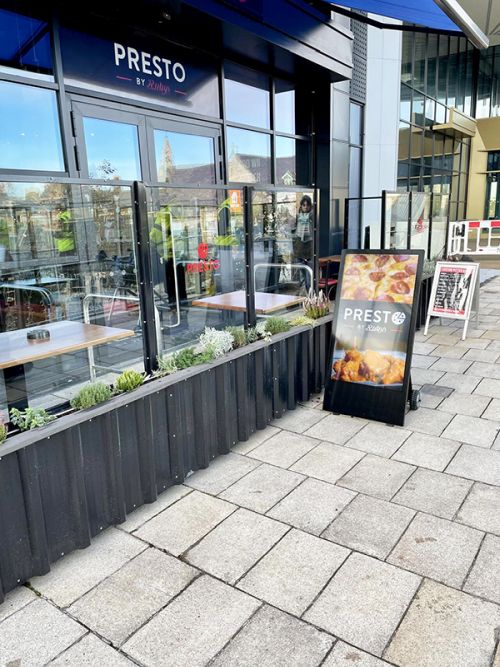

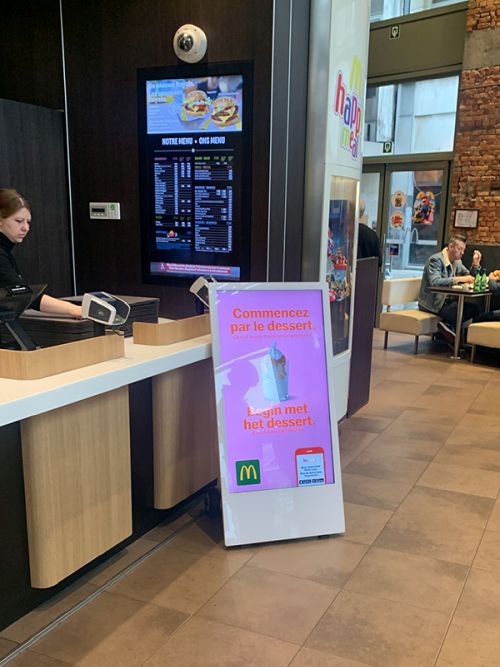

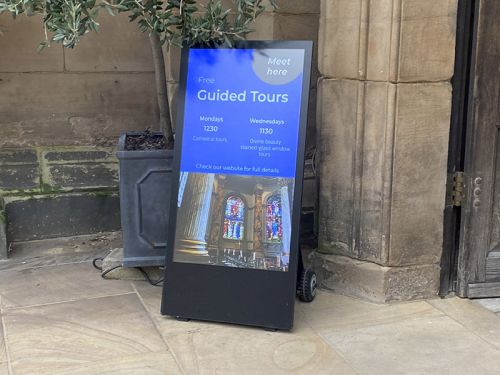

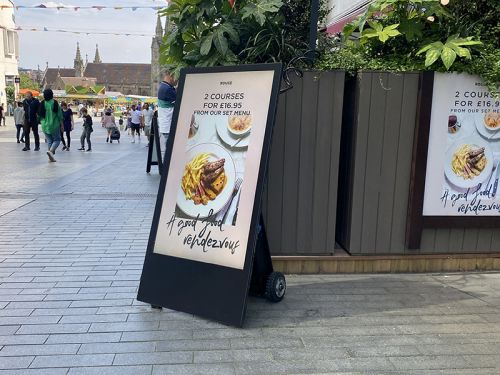

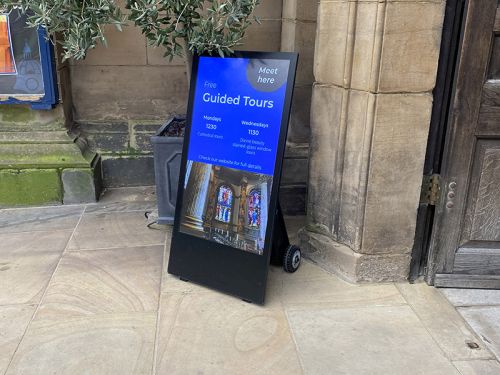

Case Studies
