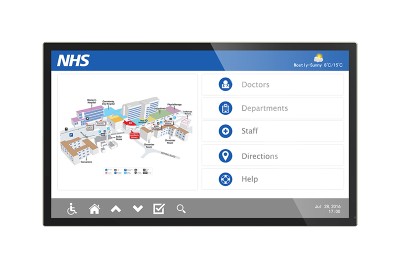

Android PCAP Touch Screens

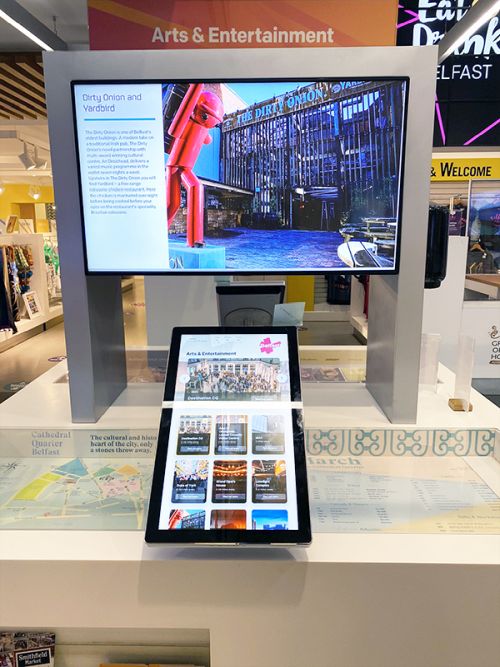

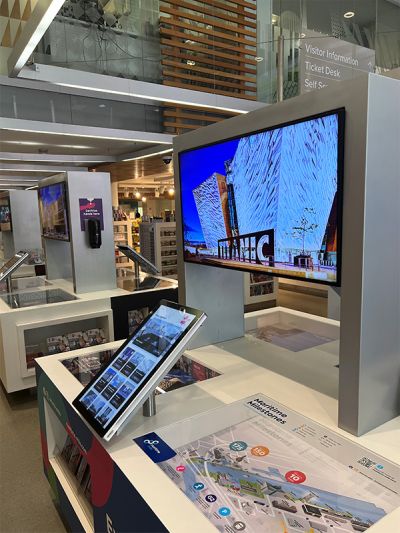

Perfect for interactive experiences, such as wayfinding and product browsing
pcap touch
PCAP Touch
Android OS
Android OS
Multiple AV Inputs
Multiple AV Inputs
Commercial grade IPS Panel
Commercial Grade IPS panel

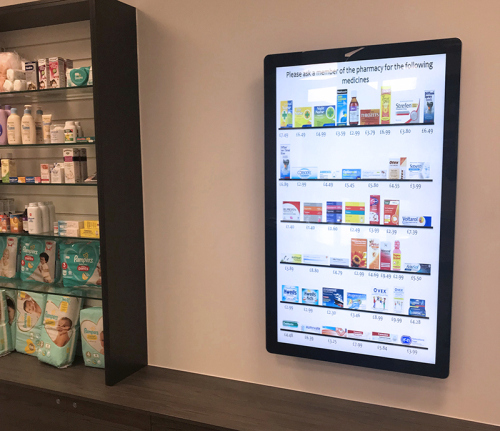

Portrait or Landscape Orientation
Landscape/Portrait Orientation
Wireless Wi-Fi connection
Integrated WI-Fi
Ten Touch Points
10 Touch Points

anti fingerprint
Anti Fingerprint/ Smooth Gestures
Lightweight Design
Lightweight Design
24/7 Usage
24/7 Usage
Free Wall Mount
Free Wall Mount
Integrated Speakers
Integrated Speakers
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3-Year Warranty
pcap touch screen
Ultra Responsive Interactivity
Ultra Responsive Interactivity

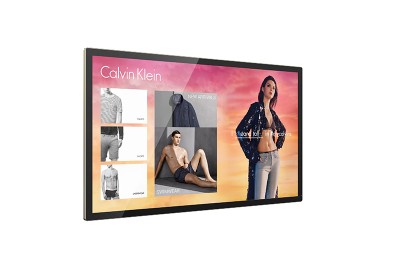

tablet styling
Giant Tablet Styling

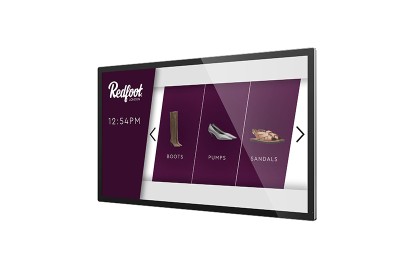

The tempered edge-to-edge glass face, rounded corners, super slim depth, aluminium surround and thin black border give a captivating tablet-like aesthetic. This stylish glass face also increases the durability of the display, protecting the LCD panel and other internal components from potential damage in public spaces.

10 touch points
10-Point PCAP Touch
Having up to 10 touch points allows users to perform a variety of touch gestures, including manipulating images and zooming in/out - much like you would with a domestic tablet or smart phone. It also allows multiple users to interact with the screen at the same time.

24 7 commercial grade
24/7 Commercial Use
These displays are able to be in constant use 24/7 for over 70,000 hours thanks to their commercial grade LCD panel, media player and other components. They also have no external buttons or controls to prevent tampering.

fingerprint
Surface Plasma Treatment
A special oleophobic coating makes the glass front more resistant to the oily residue left by fingerprints and improves the smoothness of touch gestures. Unlike other touch screens on the market, this glass is not etched, which vastly enhances the optical clarity.

ips panel
450cd/m² IPS Panel
Thanks to the commercial grade IPS technology, these panels are designed to accurately display image quality and colour depth with no fall-off in colour accuracy, as well as achieving ultimate lifelike colour temperature in both landscape and portrait orientations.

pcap touch screen android
 pcap touch screen
lightweight design
Lightweight Design

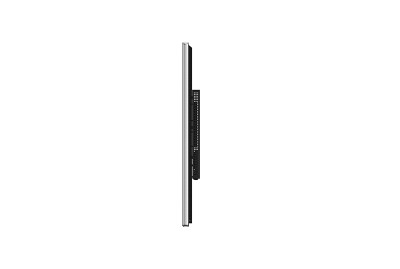

With a robust but lightweight aluminium enclosure and moulded polymer rear, these displays are over 30% lighter than their predecessor, allowing for easier installation and maintenance.

attach external ports
Touch Screen Monitor

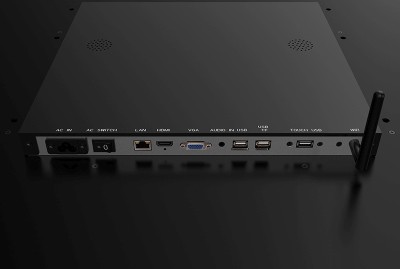

Connect to an external source, such as a third-party PC or media player, using the built-in USB and HDMI or VGA/3.5mm audio inputs to use the display as touch screen monitor. This increases the versatility of applications that can be run.

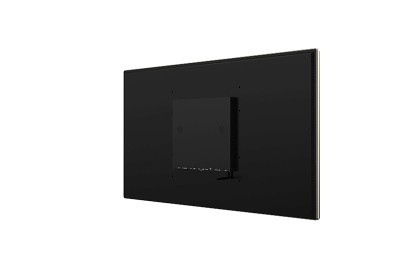

free wall mount
Free Wall Mount

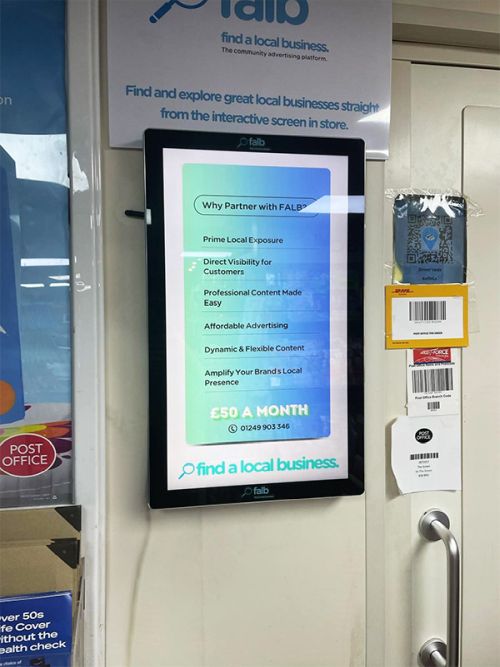

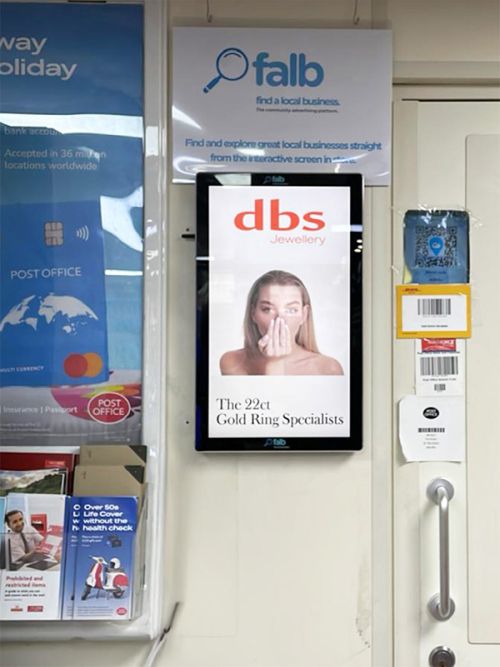

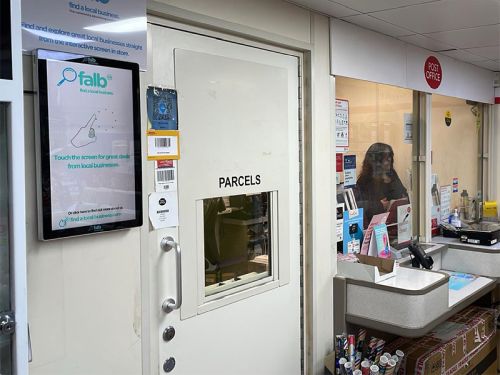

A super slim wall mount is included at no extra cost, enabling you to install your screen in either landscape or portrait orientation with a secure and aesthetically-pleasing flush fit to the wall.

*included wall mount for 22" model is for landscape mounting only. This model can be mounted in portrait using third party wall mount.

Touch Content Management System
Touch Content Management System (CMS)
You can run your own touch software from the integrated PC board with Android or take advantage of our user friendly Touch Cloud Management System that puts you in control as you create, deploy and touch your very own content on screen. First, you create your custom layouts with our user friendly software that requires no knowledge of coding to use. Then deploy the content from your PC direct to your Touch Screens in a matter of seconds. Now all that is left to do is touch as you let your content do the talking about your brand, company, service or product.

Full Specification
22 Inch - AO22H

Display Area

475x266.4

Unit Size

529.6x321x42.3

Package Size

690x440x135

VESA Holes

400x200

Power Consumption (W)

22

Net Weight

6kg

Gross Weight

7.55kg
32 Inch - AO32H

Display Area

697.4x391.3

Unit Size

757.8x452.3x49.3

Package Size

868x560.5x165

VESA Holes

400x200

Power Consumption (w)

52

Net Weight

10.3kg

Gross Weight

13.2kg
43 Inch - AO43H

Display Area

941.2x529.4

Unit Size

997.6x585.8x50.6

Package Size

1076x680x149

VESA Holes

400x200

Power Consumption (w)

TBC

Net Weight

16.7kg

Gross Weight

20.3g
50 Inch - AO50H

Display Area

1072.8x603

Unit Size

1135.2x665.4x63.2

Package Size

1279.2x818x199

VESA Holes

400x400/400x200

Power Consumption (w)

TBC

Net Weight

27.1kg

Gross Weight

32.79kg
55 Inch - AO55H

Display Area

1209.6x680.4

Unit Size

1275x745.8x54.8

Package Size

1417x864.5x193.7

VESA Holes

400x200

Power Consumption (w)

TBC

Net Weight

29.4kg

Gross Weight

36.9kg
Panel

Resolution

1920x1080

Aspect Ratio

16:9

Brightness (cd/m²)

450

Viewing Angle

178°

Contrast Ratio

5000:1

Colour

16.7M
Touch

Touch Technology

Projected Capacitive

Touch Points

10

Glass Hardness

7H minimum
AV Inputs/Audio

Inputs (when used as monitor)

HDMI, VGA

Audio Input (when used as monitor)

Audio Socket (3.5mm)

Audio Output (internal PC)

Audio Socket (3.5mm)

Speaker Type

2W, 5Ω (x2)
Power

Input Voltage

AC110~240V (50Hz~60Hz)
Environmental

Operating Temperature

0°C to 50°C

Storage Temperature

-30°C to 60°C

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%
Computer

CPU

Quad-Core ARM Cortex A17, 1.6GHz

GPU

Quad-Core ARM Mali-T764

RAM

DDR3 2GB

ROM

8GB eMMC

USB

1 x USB (OTG/HOST), 1 x USB (HOST)

LAN

10/100/1000 Ethernet

Wi-Fi

802.11b/g/n

OS

Android 7.1

Graphic Engine

OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1

Other

No accessible buttons or controls
Accessories

Included

Remote Control, User Manual, Power Cable,
USB to USB Cable, Wi-Fi Aerial

Optional

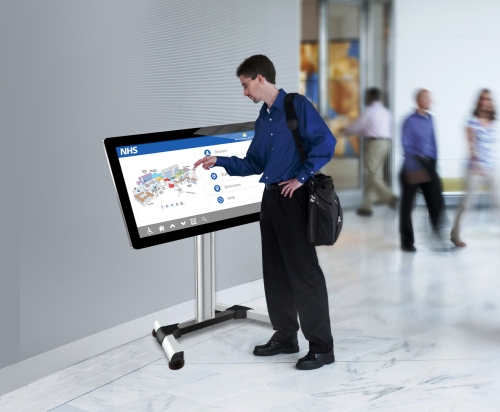

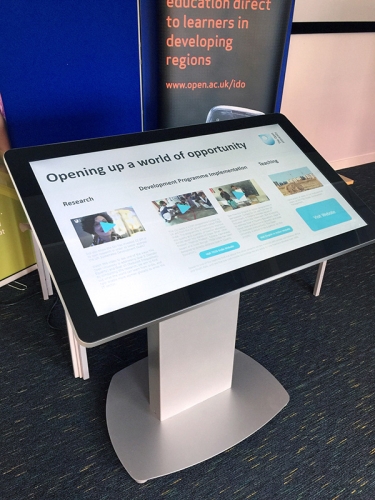

Special Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand
