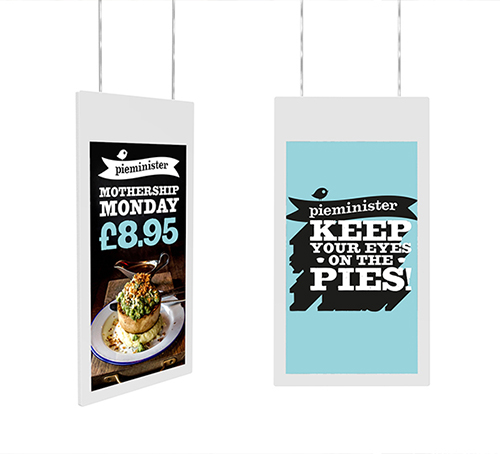

700cd/m² Double Sided Window Displays

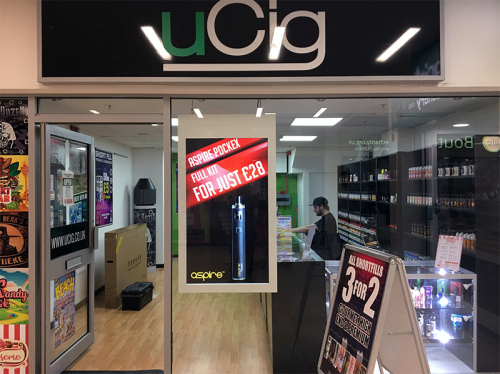

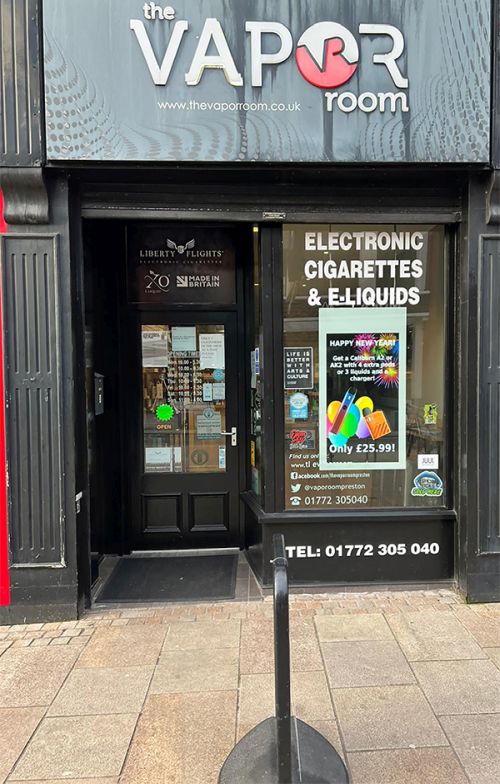

With two high definition 700cd/m² vibrant screens to combat sunlight, these dual-sided displays are designed for shopfront windows. More than twice the brightness of a standard home TV to allow easy readability.

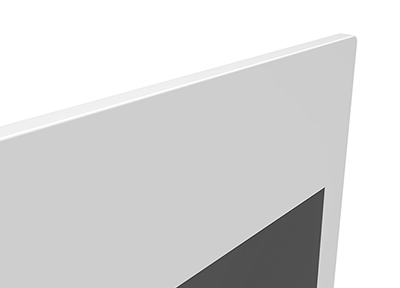

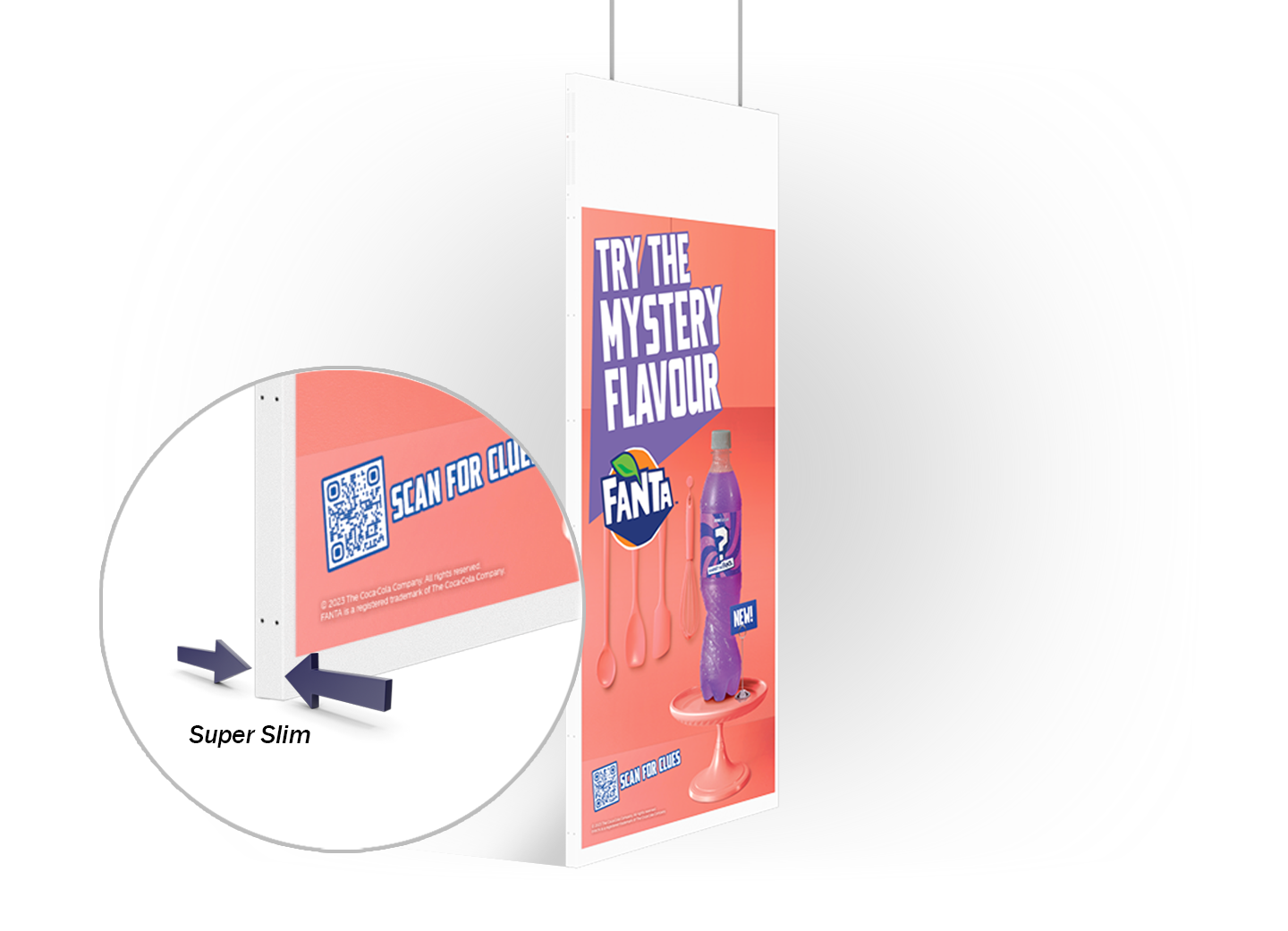

Lightweight Slim Enclosure

Thanks to their streamlined design, these innovative displays feature a slim depth, minimal cord clutter, and high energy efficiency. Plus, not only is the aluminium enclosure incredibly lightweight for easy installation, it also has high thermal conductivity. This allows rapid heat loss, improving overall performance and increasing lifespan.

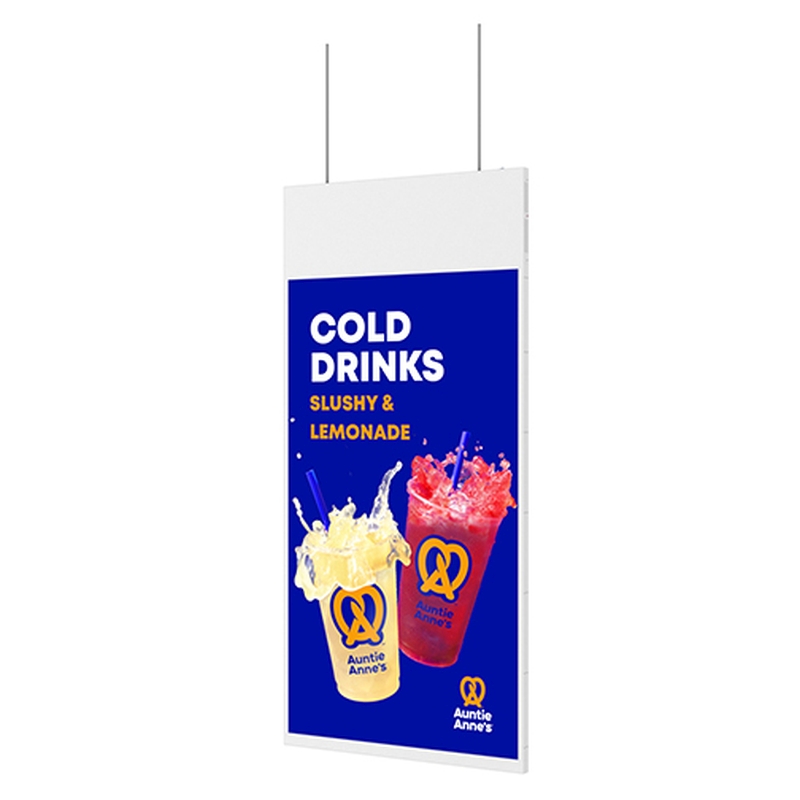

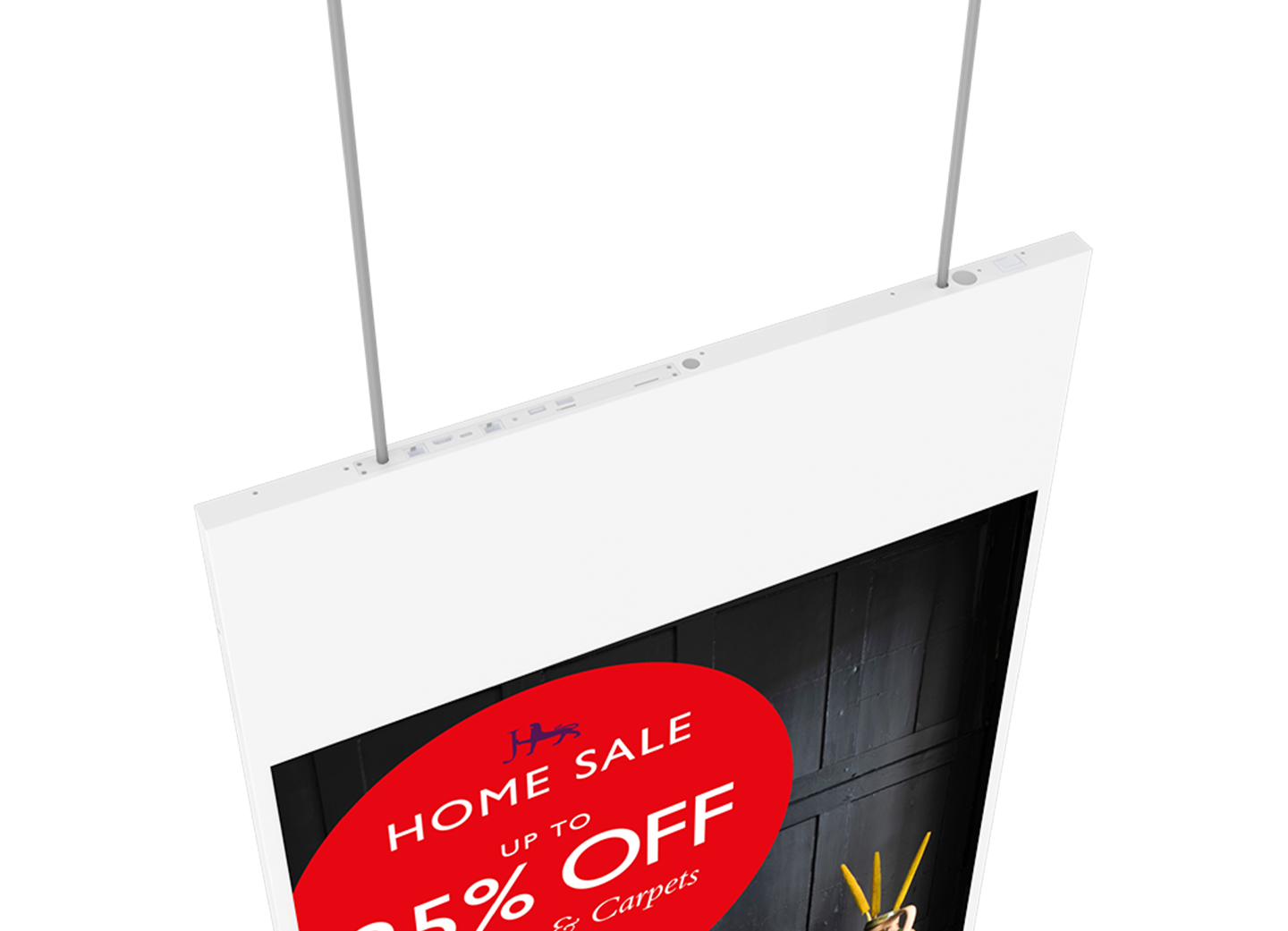

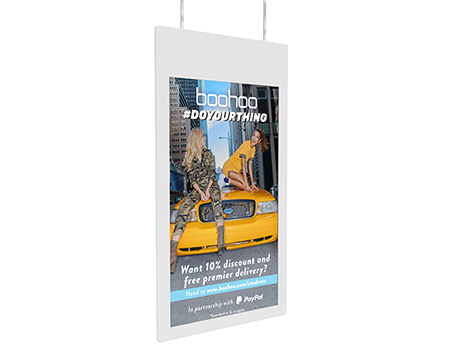

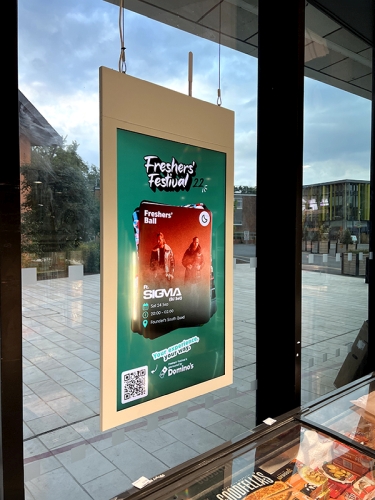

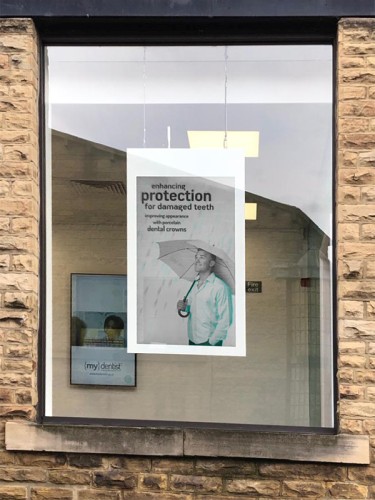

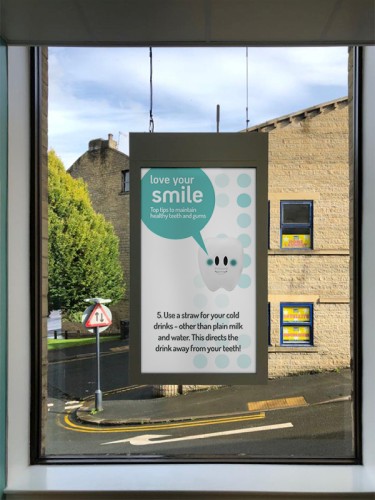

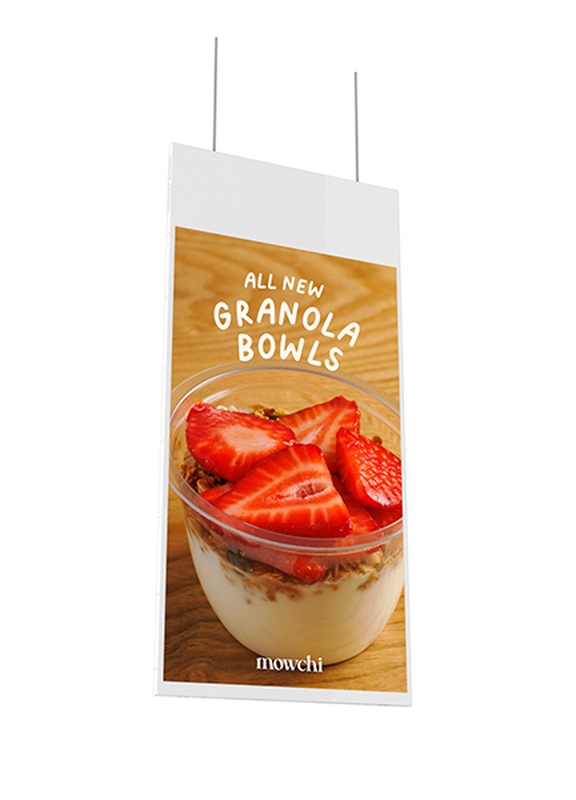

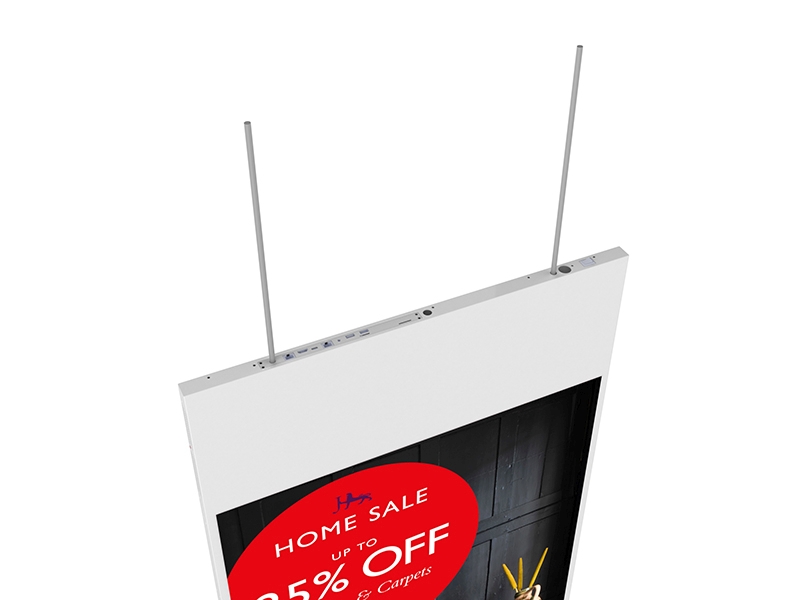

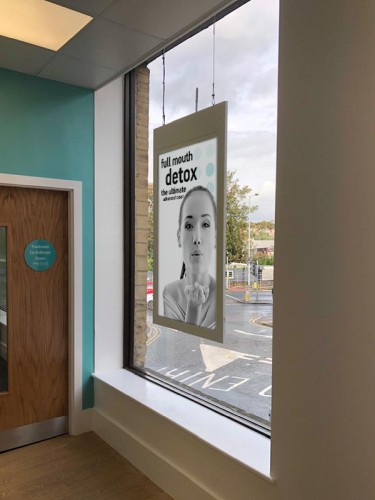

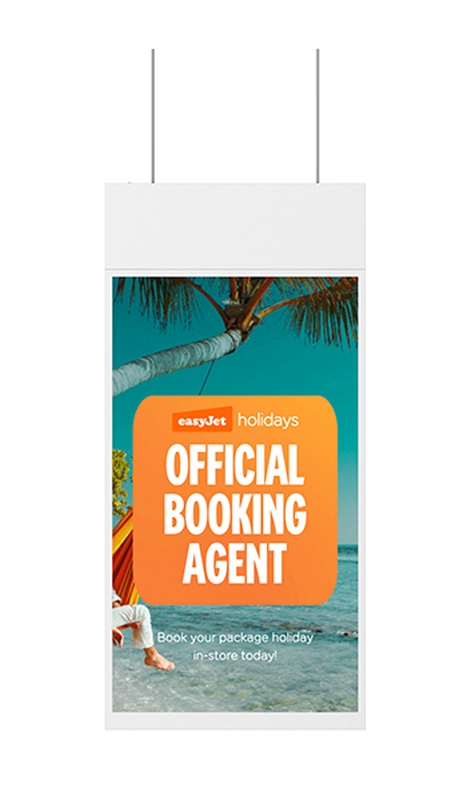

Integrated Ceiling Mount

The screen comes with an integrated wire hanging mounting solution so no additional ceiling mount is required. You can even hide unsightly power and data cables in the cover tubes provided. Cables to secure the screen from the floor are also available on request.

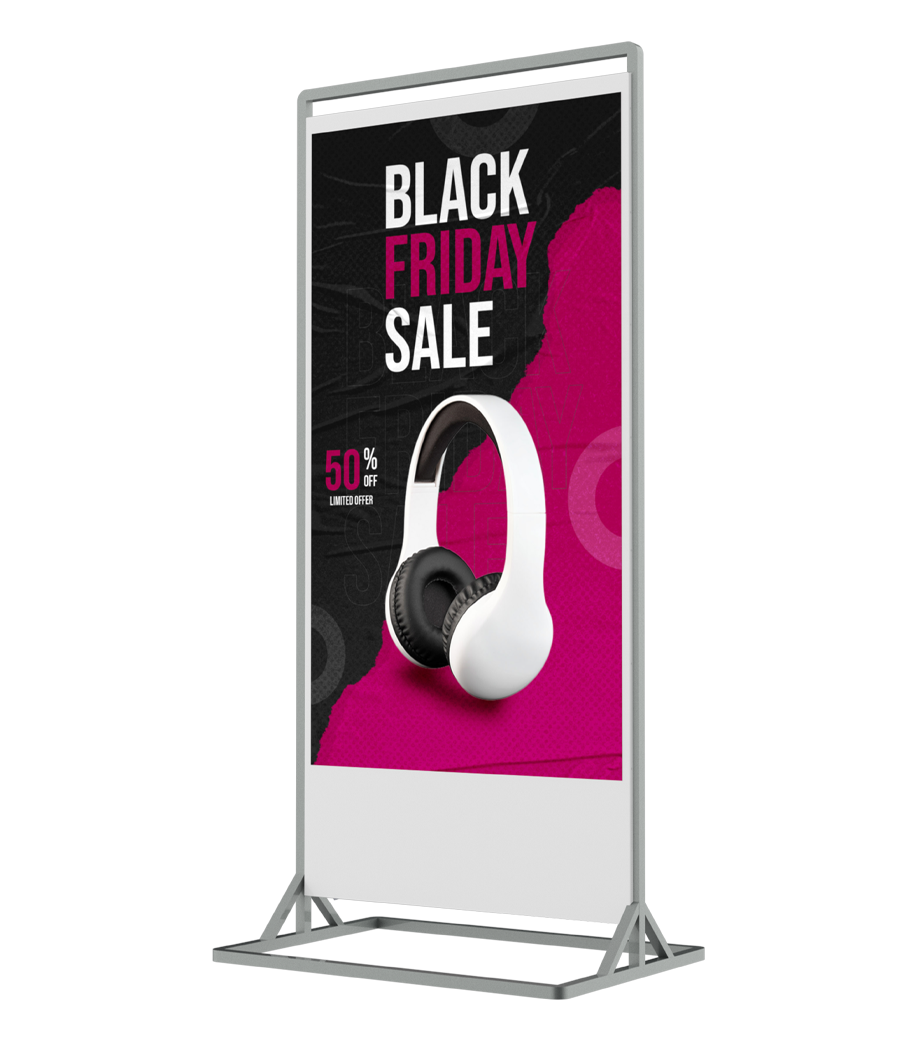

Freestanding Option Available

For projects where hanging installation is not possible, these versatile displays can also be transformed into a freestanding solution using the optional floor stand. No matter which mounting option you go for, an easy install is guaranteed.

Specification

Full Specification

43 Inch

55 Inch

43 Inch - HDSW43HD10

Display / Active Area (mm)

940.2 × 528.4

Unit Size (mm)

566.8 × 1247.4 × 29.4

Package Size (mm)

1356.4 × 678 × 171

VESA Holes (mm)

460 (M8)

Power Consumption (W)

Typical: TBC; Max: 140W

Net Weight

19.5 kg

Gross Weight

24 kg

55 Inch - HDSW55HD10

Display / Active Area (mm)

1211.4 × 683.4

Unit Size (mm)

723.4 × 1520.4 × 27

Package Size (mm)

1596.1 × 933 × 162

VESA Holes (mm)

460 (M8)

Power Consumption (W)

Typical: TBC; Max: 160W

Net Weight

24.6 kg

Gross Weight

32.1 kg

Panel

Resolution

1920 × 1080 @ 60Hz

Aspect Ratio

16:9

Brightness (cd/m²)

700

Colour

16.7M (8-bit)

Viewing Angle (°)

89 / 89 / 89 / 89

Contrast Ratio

1,200:1 (43) / 1,000:1 (55)

Orientation Support

Portrait

Operating Hours

24/7 Commercial Use

System & Performance

CPU

RK3568 64-bit Cortex-A55 Quad @ 2GHz

GPU

Quad Mali-G52 2EE

Graphics API

OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

OS

Android 14

RAM

4GB

Storage

32GB

Media Format

Supports FHD 60FPS H.264/H.265 encoding

LAN

10/100/1000M RJ45

Wi-Fi

Dual-band 2.4/5GHz (802.11a/b/g/n/ac)

Bluetooth

5.0

Optional 4G Module

1 × SIM Slot (optional)

Connectivity & Interface

HDMI

1 × HDMI 2.0 IN

USB

1 × USB 3.0 Type-A; 3 × USB 2.0 Type-A; 1 × USB Type-C (OTG)

RS232

1 × RJ45 (Serial Control)

Ethernet

1 × RJ45 (10/100/1000M)

Audio Out

1 × 3.5mm

Expansion

1 × Micro SD

Power Input

Integrated

Switch

1 × Power Switch

Speakers

3W × 2

4G Module (Optional)

1 × SIM In

Power Management

Power Supply

AC 100–240V, 50/60Hz

Power Consumption

Typical: TBC; Max: 140W (43) / 160W (55)

Standby Power

≤ 0.5W (43) / ≤ 1W (55)

Environmental Conditions

Operating Temp (°C)

0 to 40

Storage Temp (°C)

-10 to 55

Operating RH (%)

10% to 80%

Storage RH (%)

10% to 80%

Accessories

Included

Installation Kit (includes 2 × 2.4m Wire Ropes); Remote Control + Batteries; User Manual (QR Code ×2); Quick Start Guide

Optional

Floor Anchor Cables, Network Upgrade

Warranty

Warranty Period

3 Years

Technical Support

Lifetime

Gallery

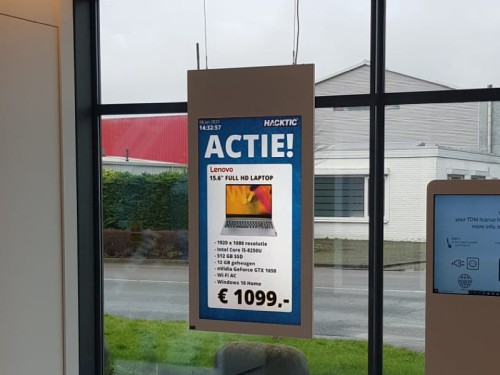

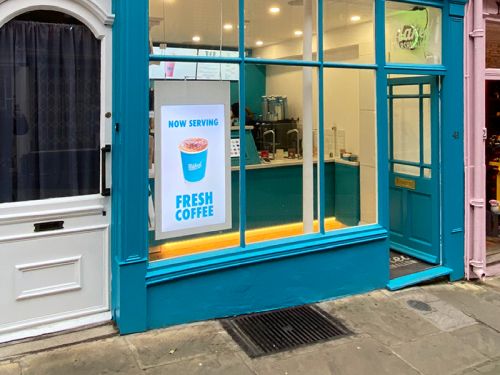

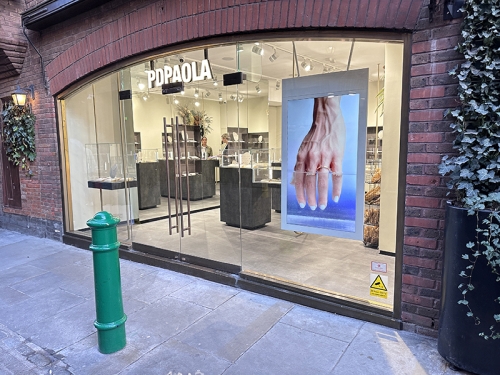

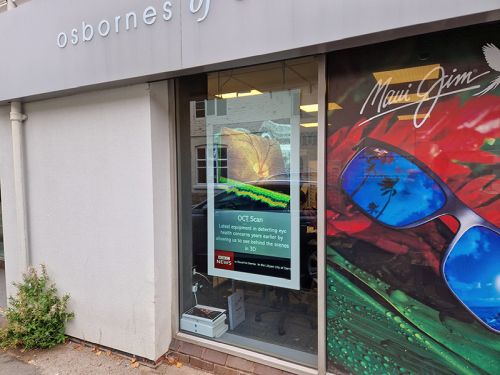

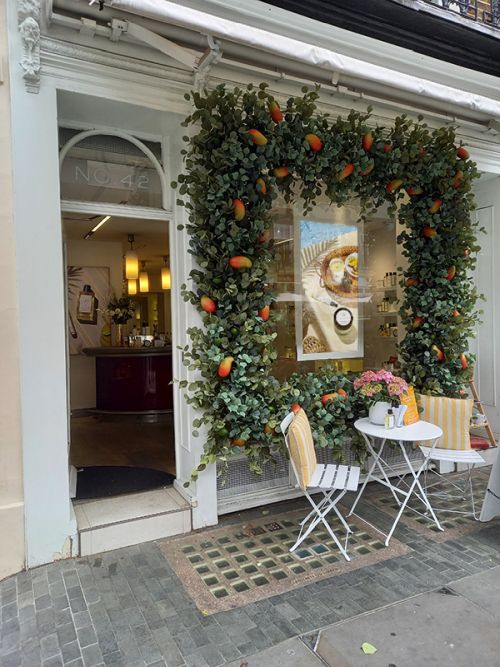

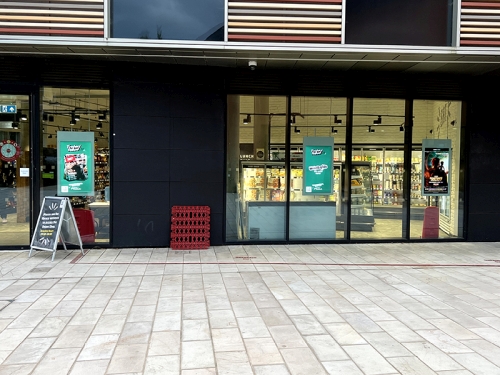

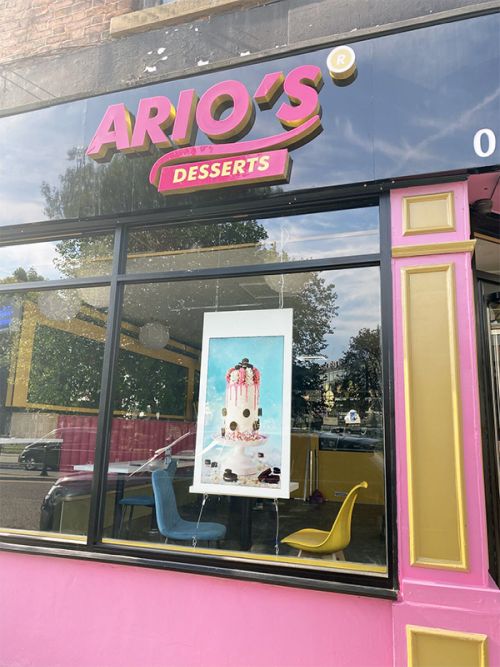

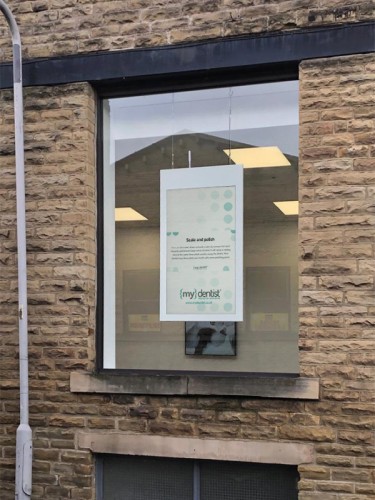

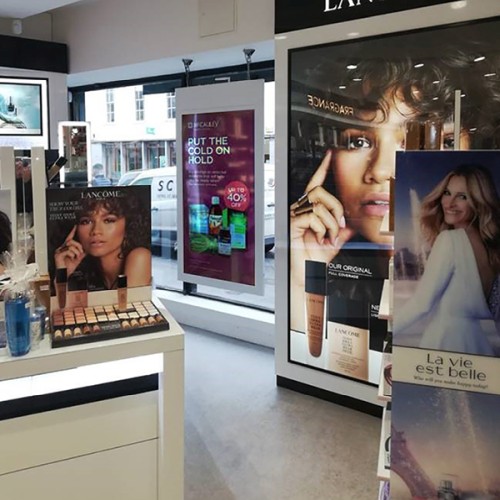

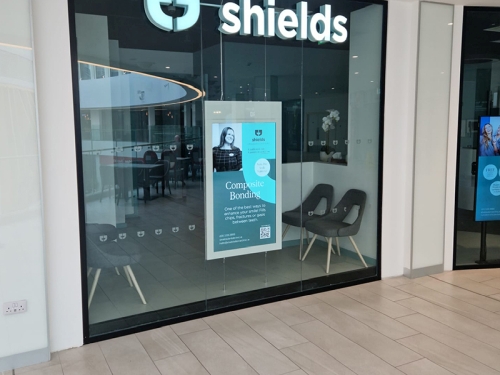

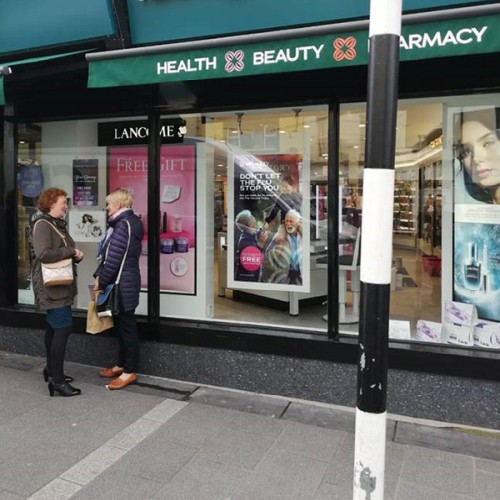

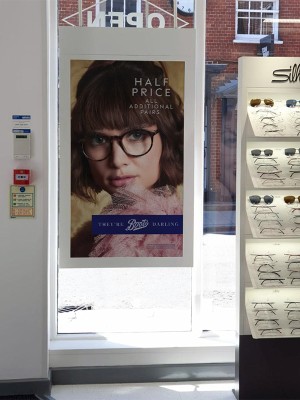

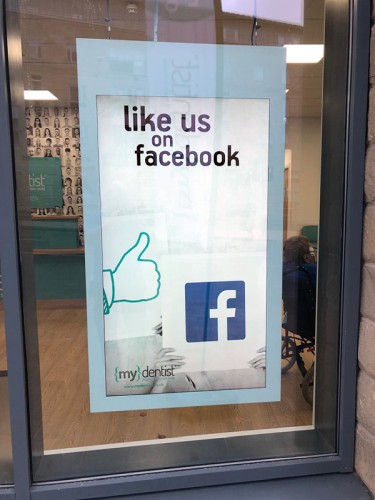

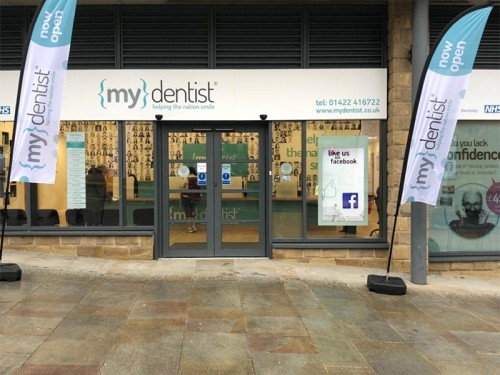

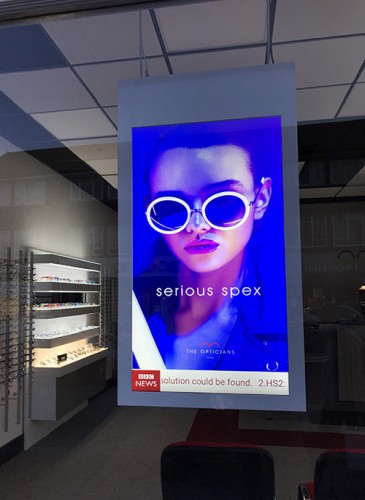

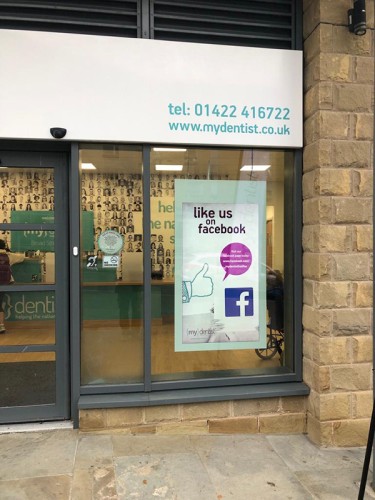

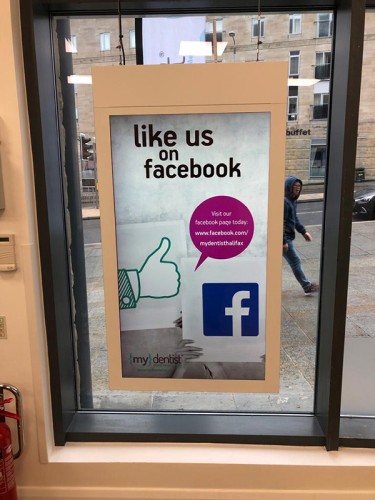

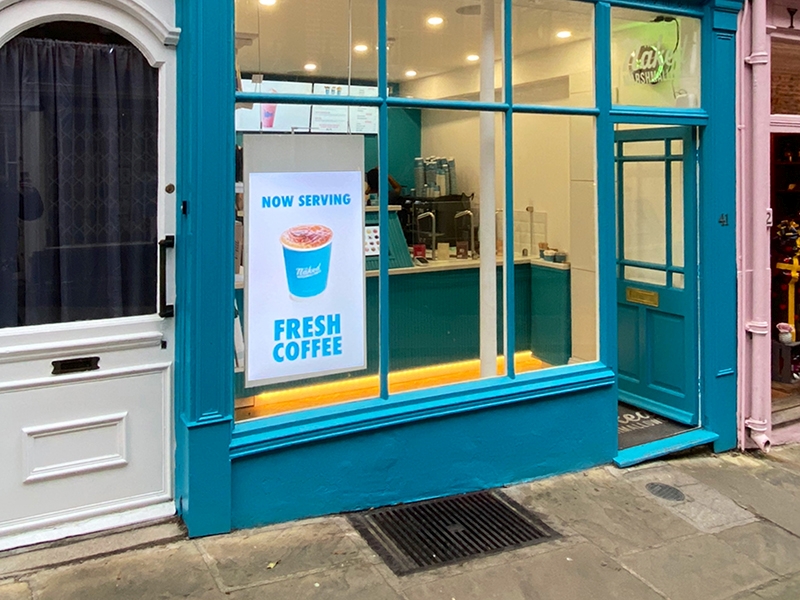

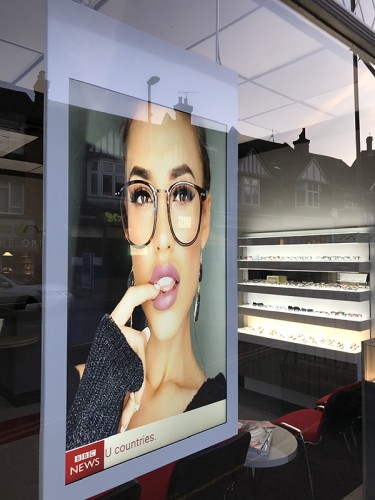

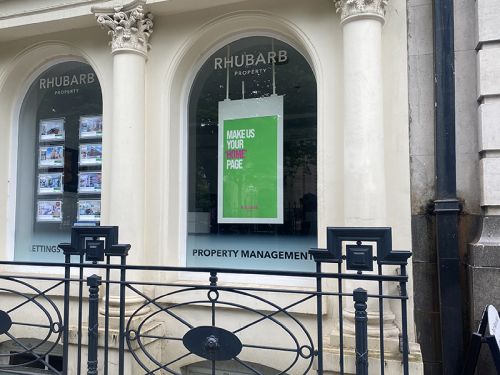

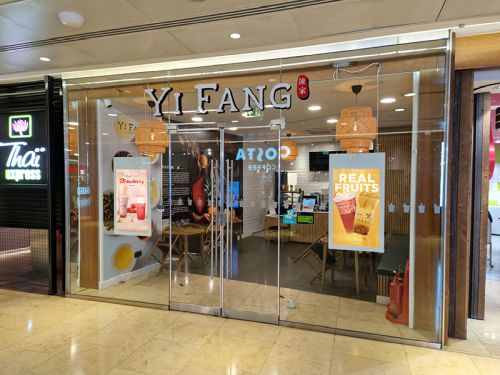

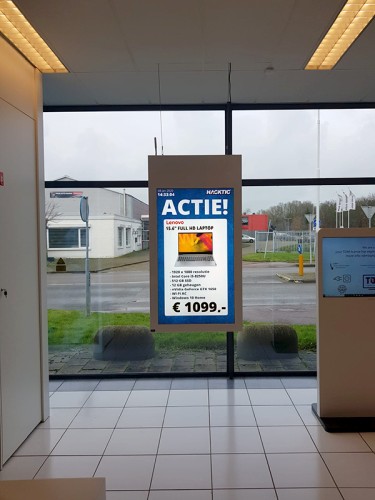

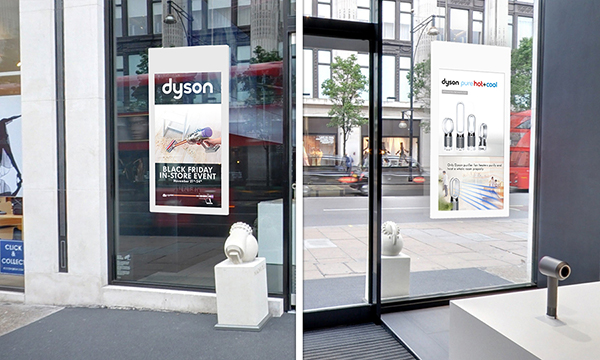

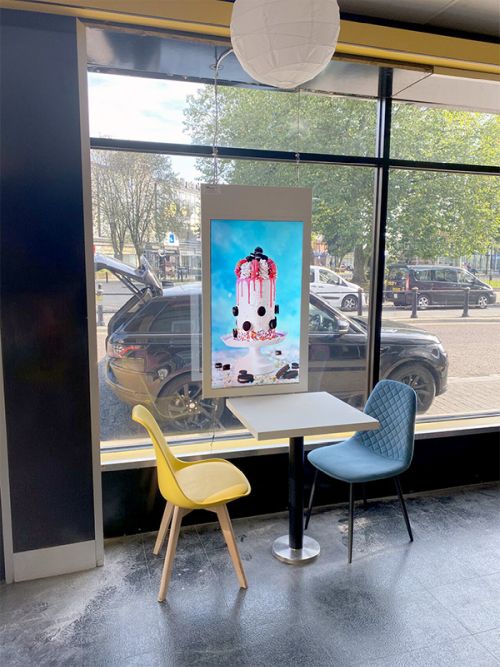

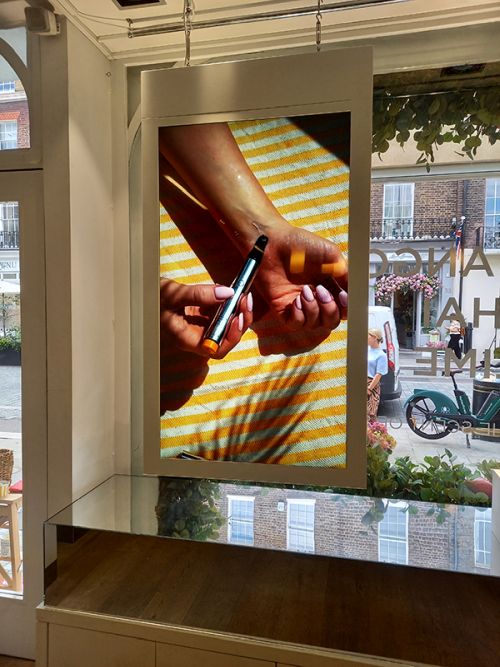

digital signage screen hanging double sided

Previous Model

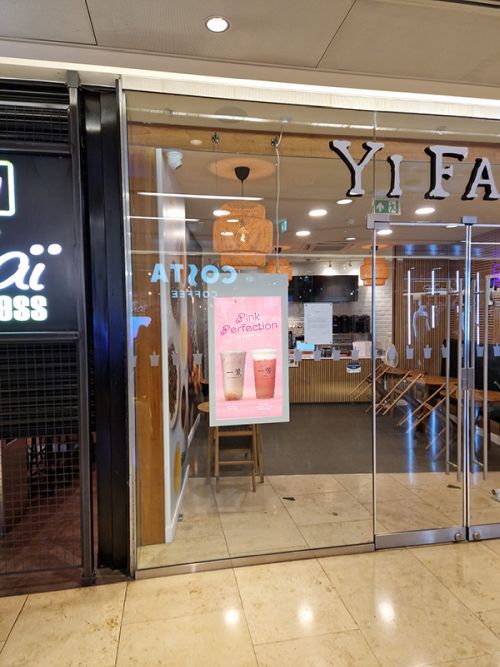

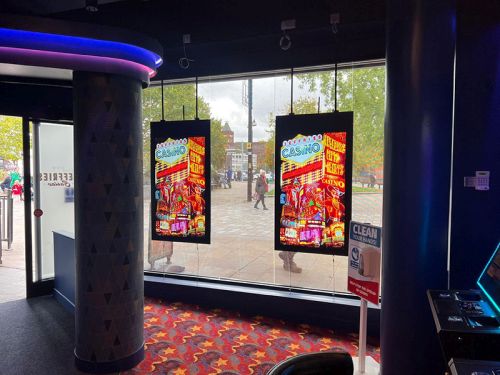

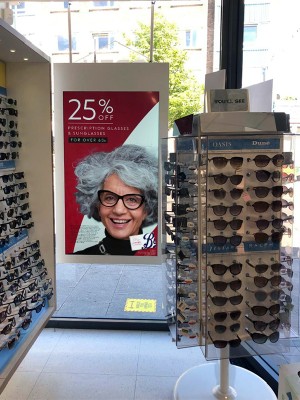

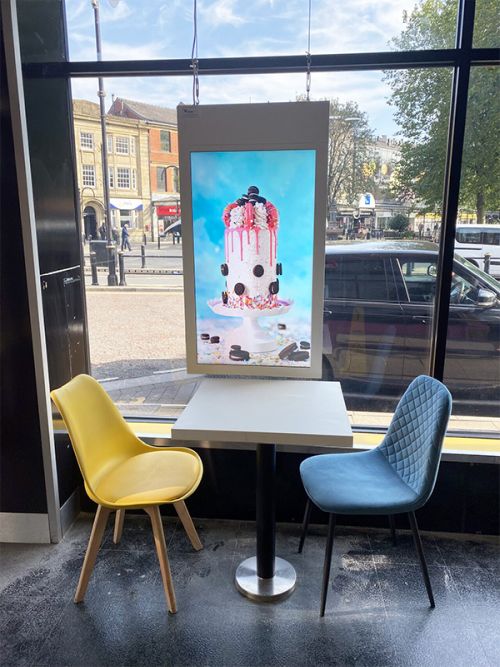

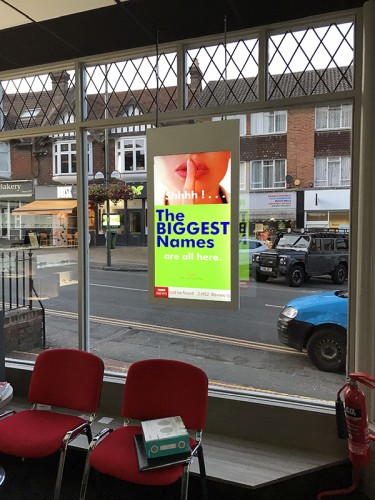

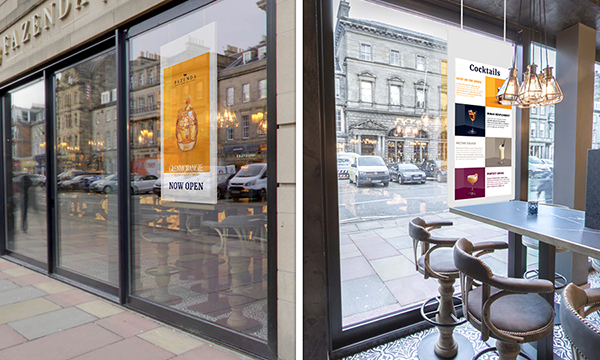

digital signage screen ultra high brightness

Videos

Case Studies

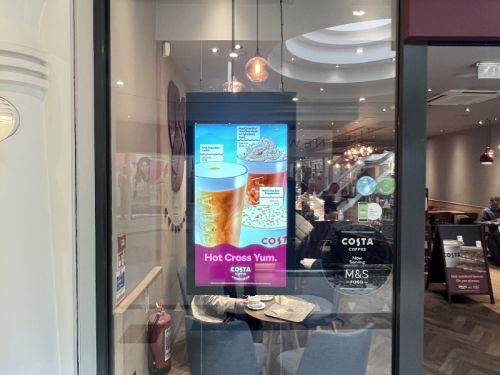

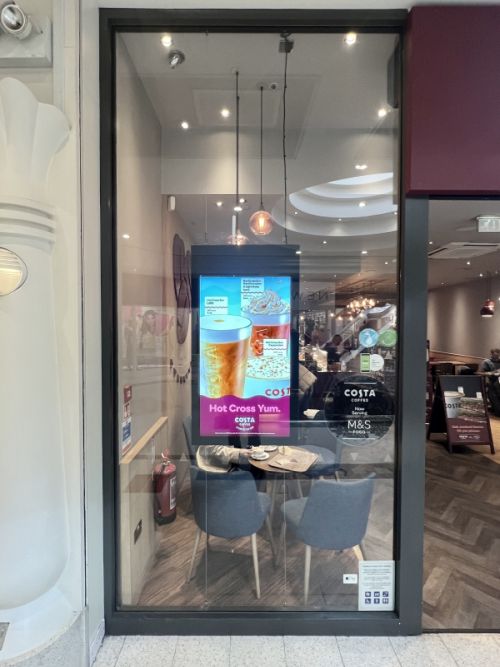

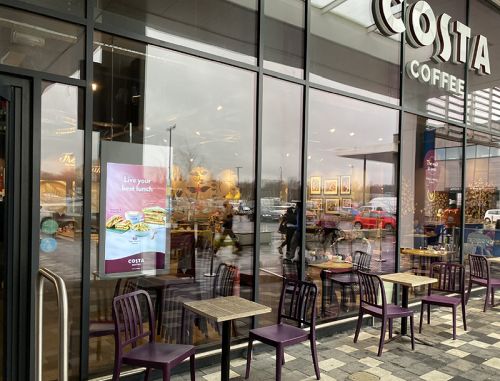

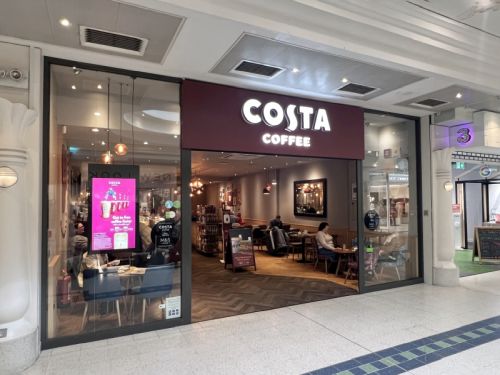

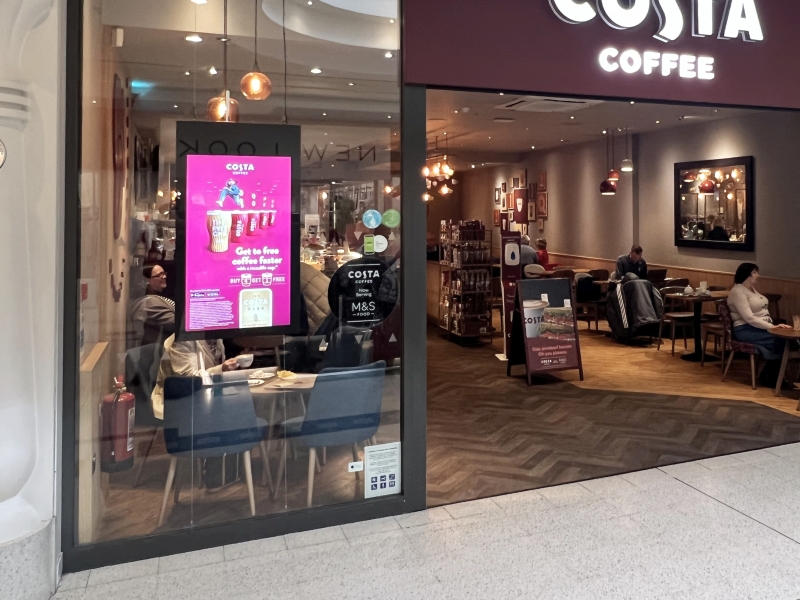

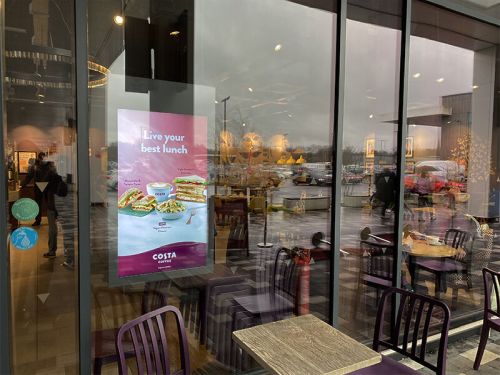

Digital Signage Case Study – Costa Coffee
