image quality
Stunning Image Quality
State of the art SMD-LED technology delivers stunning image quality across the seamless display; certain to garner attention. With advanced video processing technology to produce accurate and vibrant colours with no distortion.

digital signage high brightness sunlight readable
800cd/m² High Brightness
Equipped for all indoor ambient light conditions the 800cd/m² high brightness display is sure to shine bright and demand your audience’s attention.

complete quality control
Complete Quality Control
Every step, from production to installation, goes through a strict quality control procedure while quality calibration guarantees consistent image quality across the whole display.

high contrast ratio
Ultra High Contrast Ratio
With an ultra-high contrast ratio of 6,000:1 the LED Video Walls deliver deeper blacks, vivid colours and clear visibility across the display without sacrificing brightness.

End-to-End Project Management
digital signage led project management digital signage led project management
Design
digital signage led project management digital signage led project management
Installation
digital signage led project management digital signage led project management
Maintenance
Every LED Video Wall is unique and each comes with its own challenges. We are here to advise and guide you through every step - from design to installation and even providing maintenance we can provide full end-to-end project management where required.
front or rear service
Front Serviceability
Through an intuitive and easy-to-use maintenance system the LED Video Wall can be serviced from the front of the display. The LED modules can be removed quickly and efficiently for convenient maintenance.

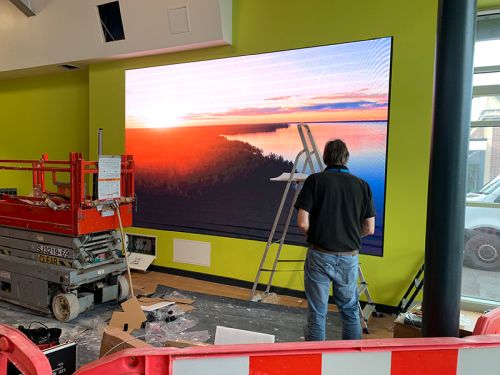

easy install
Easy Installation
Their light and compact design as well as magnetic modules, positioning pins and simple cabinet structure make them ideal for either permanent installations or rental jobs.

lightweight
Lightweight and Slim Design
Each cabinet weighs just 24kg and has a depth of 40mm meaning that the reduced weight reduces stress on the mounting structure.

LED indoor
Optimised Viewing Distances
Optimised Indoor Viewing Distances
The Indoor LED Video Walls are designed for close range viewing distances with a variety of pixel pitch options depending on your budget and requirements.

bespoke
Bespoke Video Wall Display
Make the most of their modular design as you sculpt the LED Video Wall to fill your space and stand out from the crowd.

Full Specification
P1.9

Pixel Pitch (mm)

1.9

Module Resolution (px)

TBC

Cabinet Resolution (px) - Option A

TBC

Cabinet Resolution (px) - Option B

TBC

Cabinet Resolution (px) - Option C

TBC
P2.5

Pixel Pitch (mm)

2.54

Module Resolution (px)

60x135

Cabinet Resolution (px) - Option A

480x135

Cabinet Resolution (px) - Option B

360x135

Cabinet Resolution (px) - Option C

240x135
P3.1

Pixel Pitch (mm)

3.17

Module Resolution (px)

48x108

Cabinet Resolution (px) - Option A

348x108

Cabinet Resolution (px) - Option B

261x108

Cabinet Resolution (px) - Option C

174x108
P3.8

Pixel Pitch (mm)

3.81

Module Resolution (px)

40x90

Cabinet Resolution (px) - Option A

320x90

Cabinet Resolution (px) - Option B

240x90

Small Cabinet Resolution (px) - 16:9

160x90
Pixel Pitch

Pixel Pitch (mm)

1.9

Pixel Pitch (mm)

2.54

Pixel Pitch (mm)

3.17

Pixel Pitch (mm)

3.81
LED

LED Type

Black SMD2020 3-in-1

Pixel configuration

1R1G1B

Brightness (Calibrated)

800 cd/m²

Refresh rate

≥1920 Hz

Contrast Ratio

6000:1

Viewing angle

160°

Processing

14 bit

Grayscale

14 bit

Maintenance

Front Access Only

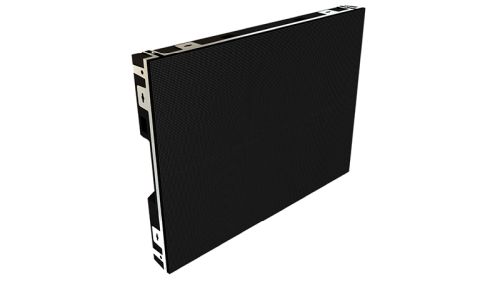

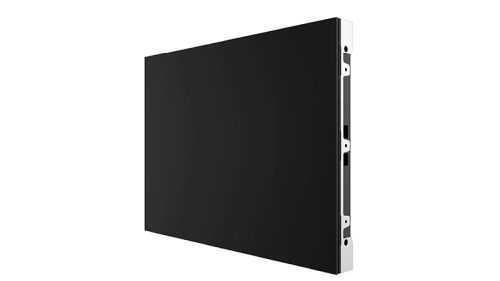

Cabinet

Large Cabinet Size (mm) - 32:9

1220x343.125x40

Medium Cabinet Size (mm) - 24:9

915x343.125x40

Small Cabinet Size (mm) - 16:9

610x343.125x40

Module Size (mm)

152.5x343.125

Net weight (Kg)

26
Power

Input Voltage

AC220/110 ± 10%, 47~63Hz

Average Power Consumption

272W/m2

Maximum Power Consumption

680W/m2
Environmental

IP Rating - Front

IP65

IP Rating - Rear

IP54

Operating Temperature

-20ºC to +45ºC

Operating Humidity

10% to 90%

Lifetime

100,000 hours
