ULTRA HIGH BRIGHTNESS
WINDOW DISPLAYS – 3,500CD/M²

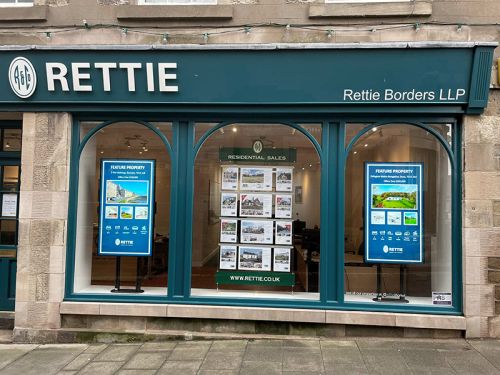

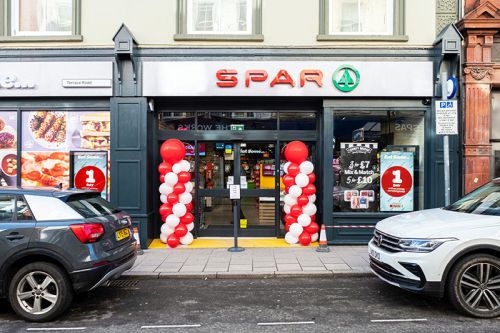

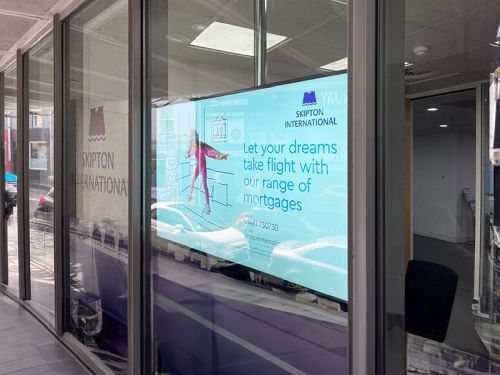

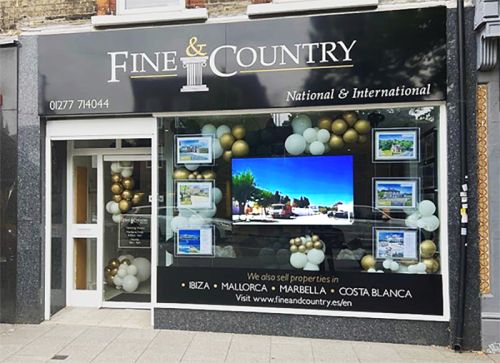

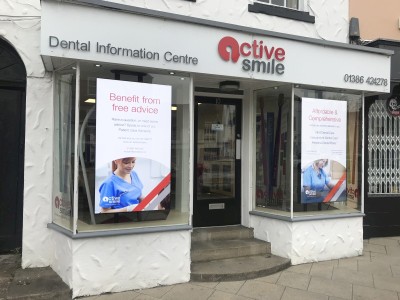

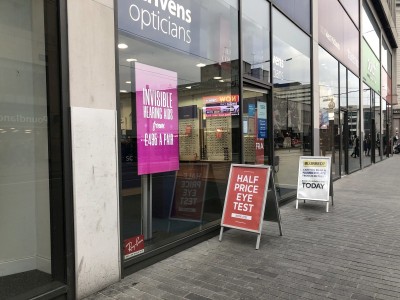

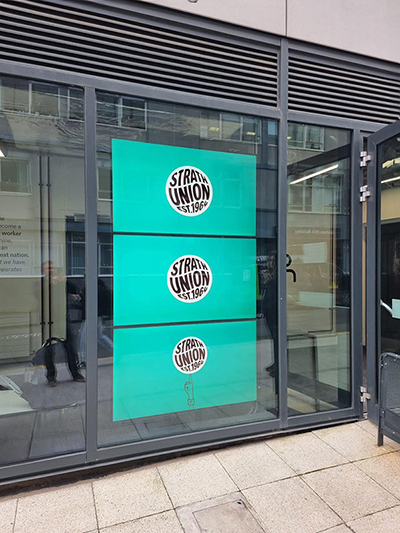

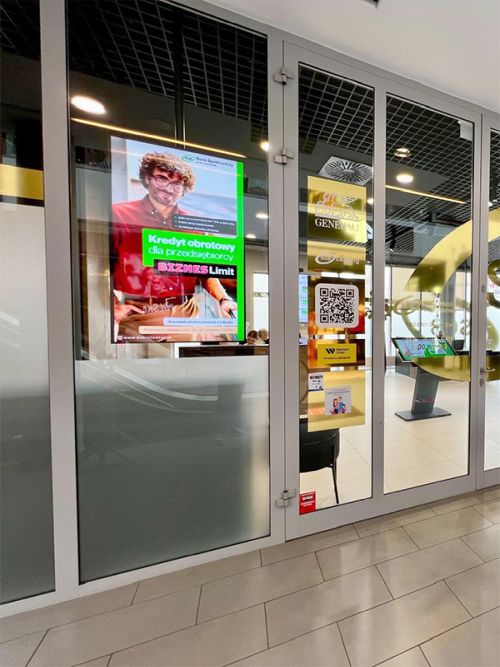

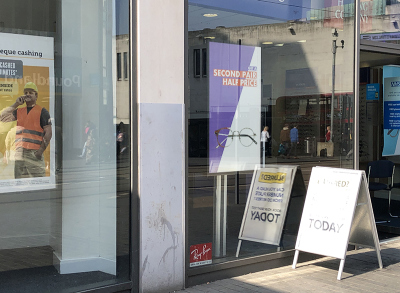

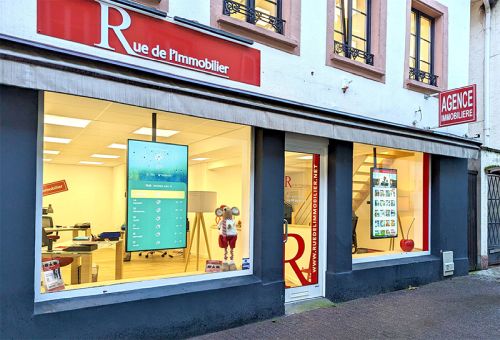

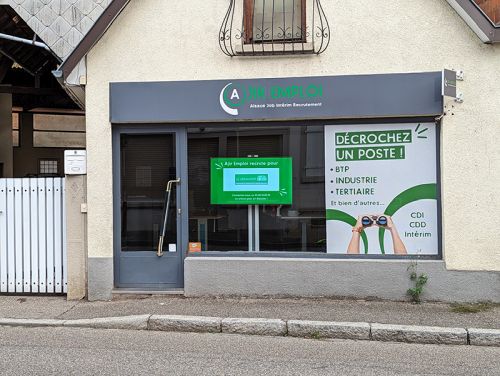

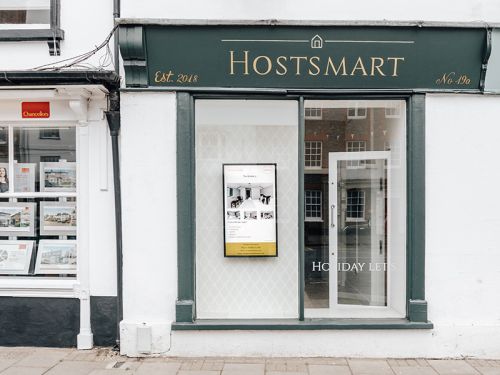

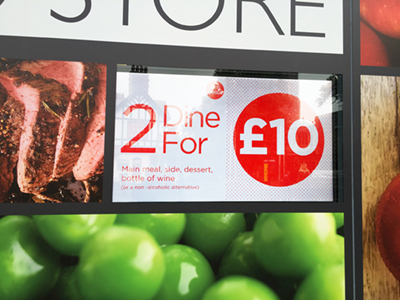

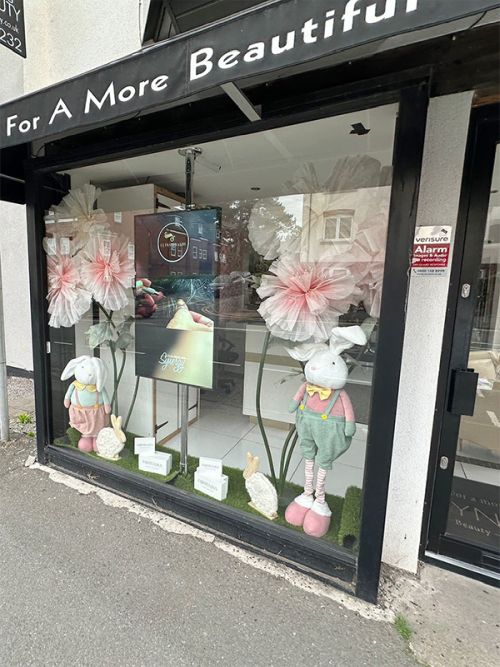

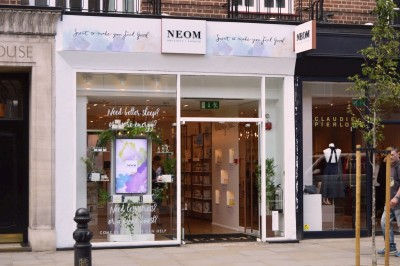

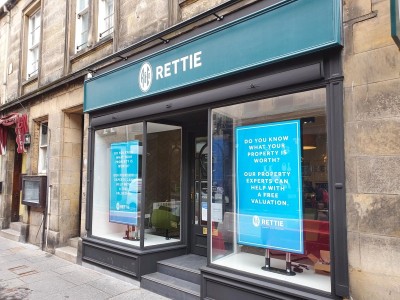

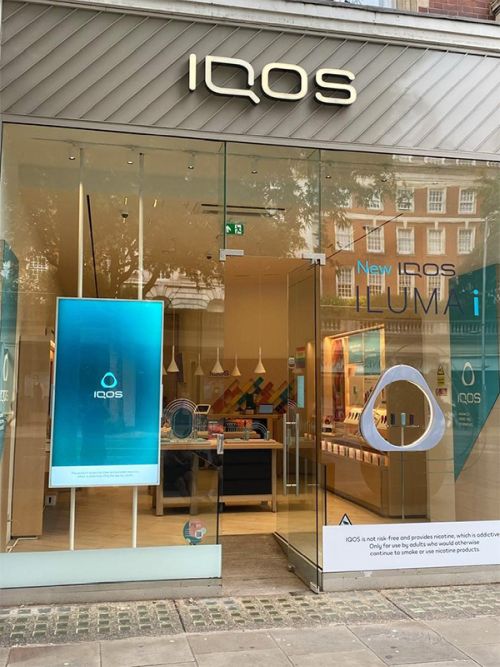

Designed for outward-facing window displays in direct sunlight
3500 cd/m² Brightness
3,500 cd/m² Brightness
Ultra Resistant Blackening
Ultra Resistant Blackening 110°C
24/7 Usage
24/7 Usage
Plug and Play
Plug and Play

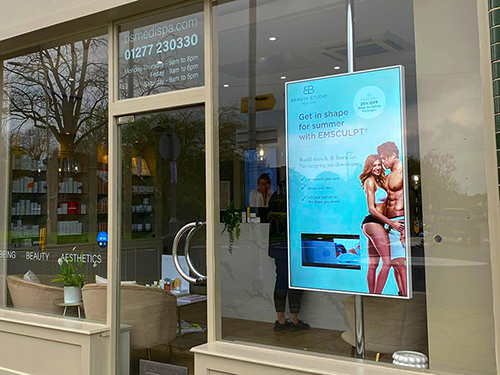

Portrait or Landscape Orientation
Landscape or Portrait
temperature control system
Temperature Control System

external light sensor
External Ambient Light Sensor
viewable through polarised lenses
Viewable through Polarised Lenses*
Multiple AV Inputs
Multiple AV Inputs
Network product
Optional Network Upgrade
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3-Year Warranty
3 year onsite warranty banner 3 year onsite warranty banner

†Terms and conditions apply. ‡65" and 75" only.

Ultra High Brightness Window Displays
sunlight readable
3,500cd/m² Direct Sunlight Readable
blackening defect
Ultra Resistant to Blackening Defect (up to 110°C)
Thanks to their special ultra-high brightness panels, these displays can withstand surface temperatures up to 110°C without suffering from any blackening defect. This is crucial for outward-facing window displays, which must contend with exposure to direct sunlight.

Ultra High Brightness Window Displays
bezel

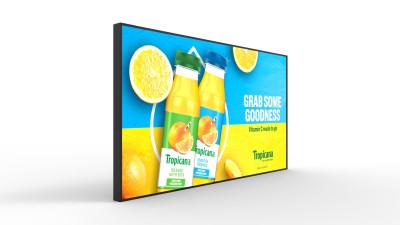

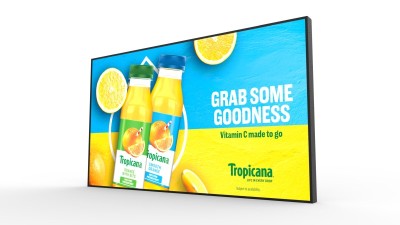

Sleek Thin Bezel
The narrow bezel not only gives these displays a stylish, modern aesthetic, but also means maximum attention is drawn to the on-screen content for high impact messaging.

lightweight enclosure
Stylish Lightweight Enclosure

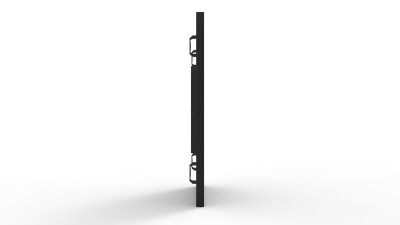

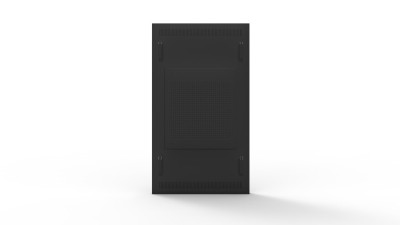

By utilising aluminium for the front frame of the enclosure, these displays have a high thermal conductivity for rapid heat loss and are lightweight for easy installation. This is enhanced by the integrated rear handles, which makes install even easier. The back case is made of robust mild steel for added durability.

external light sensor
Ambient Light Sensor
These displays include an external ambient light sensor for use when required. This ensures the screen is always operating at the most suitable brightness for its environment. The external nature of this sensor also enables seamless kiosk integration.

polarised lenses
Viewable Through Polarised Lenses*
Unlike standard LCD panels, which appear very dark or even completely black if viewed while wearing polarised glasses, these specialised displays remain completely visible. This gives total confidence that no one will miss your messages.

This exludes the 43" and 65" version
android media player
Integrated Android Media Player
The integrated Android media player allows you to easily update on-screen content via USB plug and play. Alternatively, upgrade your screen to be networked without needing any additional hardware to unlock our cloud-based CMS software. Third-party software can be installed instead if required.

smart temperature control
Smart Temperature Control System
The responsive internal airflow system keeps the panel and other internal components at optimum working temperature. This ensures a long and reliable life for your screen, even when used continuously in outward-facing windows.

24/7 usage
24/7 Commercial Grade
With a commercial grade LCD panel, LED backlight and internal components, these displays have the ability to be in constant use 24/7 for over 70,000 hours. They also have no external buttons or controls to avoid tampering.

pos-rear pos-rear

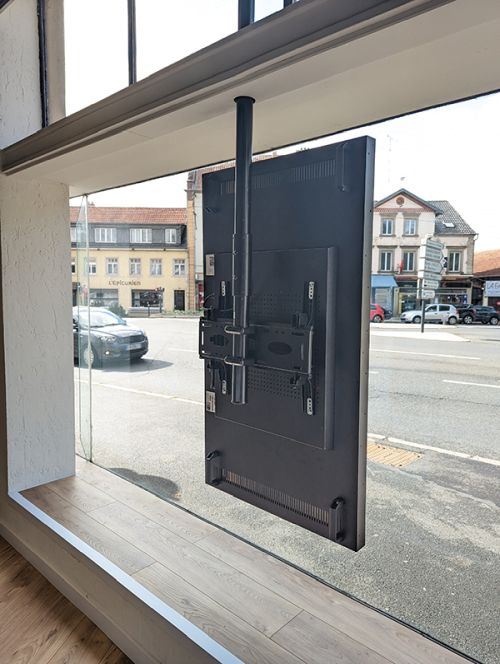

hanging ultra high brightness hanging ultra high brightness
Full Specification (HD8 and HD9)
43 Inch - UHB43HD9

Resolution (px)

1920x1080

Display Area (mm)

946.3x534.8

Bezel Size (mm)

18

Unit Size - With Handles (WxHxD mm)

966.3x554.8x94.8

Package Size (WxHxD mm)

1100x700x213

VESA Holes

400x400

Net Weight

18.6kg

Gross Weight

22.95kg

No. of Handles

4

Maximum Power Consumption (W)

202

Contrast Ratio

1,100:1
49 Inch - UHB49HD8

Resolution (px)

1920x1080

Display Area

1073.8x604

Bezel Size (mm)

8.8

Unit Size

1097.2x627.4x85.3

Package Size

1200x705x223

VESA Holes

400x400

Net Weight

23.6kg

Gross Weight

31kg

No. of Handles

4

Average Power Consumption (W) At Maximum Brightness

220

Contrast Ratio

1300:1
55 Inch - UHB55HD9

Resolution (px)

1920x1080

Display Area

1209.6x680.4

Bezel Size (mm)

12.5

Unit Size - With Handles (WxHxD mm)

1234.6x705.4x94.6

Unit Size - Without Handles (WxHxD mm)

1234.6x705.4x83.6

Package Size

1390x860x270

VESA Holes

200x400, 400x400

Net Weight

28.6kg

Gross Weight

37.5kg

No. of Handles

4

Max Power Consumption (W)

355

Contrast Ratio

1300:1
65 Inch - UHB65HD8-B2

Resolution (px)

3840x2160*

Display Area

1428.5x803.5

Bezel Size (mm)

18

Unit Size

1468.6x843.6x85

Package Size

1630x1010x220

VESA Holes

400x400

Net Weight

37.7

Gross Weight

45.6

No. of Handles

4

Average Power Consumption (W) At Maximum Brightness

554

Contrast Ratio

TBC
*Modification Required to Display 4K Resolution
75 Inch - UHB75HD8-B2

Resolution (px)

3840x2160*

Display Area

1649.7x927.9

Bezel Size (mm)

18

Unit Size

1689.7x968x85

Package Size

1830x1120x246

VESA Holes

400x400

Net Weight

48.5kg

Gross Weight

63.3kg

No. of Handles

4

Average Power Consumption (W) At Maximum Brightness

580

Contrast Ratio

TBC
*Modification Required to Display 4K Resolution
Panel

Aspect Ratio

16:9

Brightness (cd/m²)

3,500

Viewing Angle

178°

Colour

16.7M

Blackening Defect Free

Up to 110°C (230°F)
AV Inputs

Video Inputs

HDMI, VGA

Audio

Audio Socket (3.5mm)

Speaker Type

2W, 5Ω (x2)
Environmental

Surface Panel Temperature

110°C

Operating Temperature

0°C to 50°C

Storage Temperature

-30°C to 60°C

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%
Computer

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

1920x1080/1080x1920

CPU

Quad-Core ARM Cortex A17, 1.6GHz

GPU

Quad-Core ARM Mali-T764

RAM

DDR3 2GB

USB

1 x USB (OTG/HOST), 1 x USB (HOST)

LAN

100M/1000M Ethernet (Network Version Only)

Wi-Fi

802.11b/g/n (Network version screen only)

OS

Android 7.1

Graphic Engine

OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1
Accessories

Included

Scheduling Software, Remote Control, User Manual

Optional

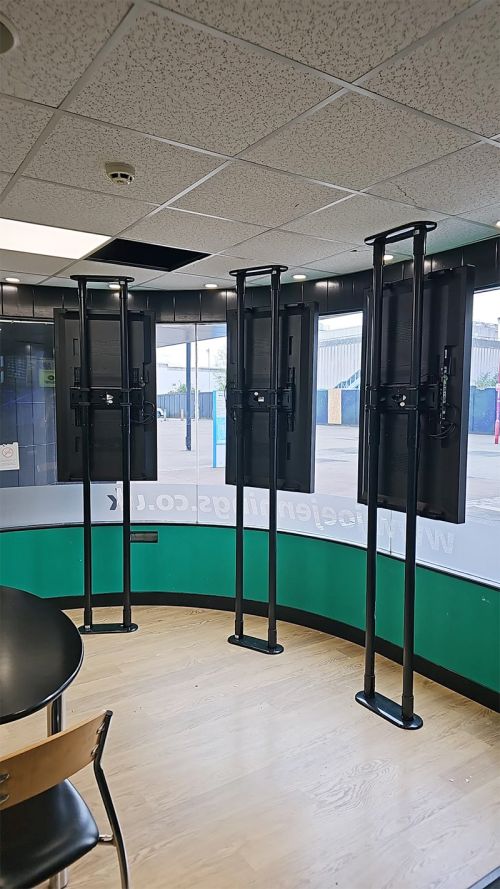

Network Upgrade, Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand
Full Specification (UHD10)
43 Inch - UHB43HD9

Resolution (px)

1920x1080

Display Area (mm)

946.3x534.8

Bezel Size (mm)

18

Unit Size - With Handles (WxHxD mm)

966.3x554.8x94.8

Package Size (WxHxD mm)

1100x700x213

VESA Holes

400x400

Net Weight

18.6kg

Gross Weight

22.95kg

No. of Handles

4

Maximum Power Consumption (W)

202

Contrast Ratio

1,100:1
49 Inch - UHB49HD8

Resolution (px)

1920x1080

Display Area

1073.8x604

Bezel Size (mm)

8.8

Unit Size

1097.2x627.4x85.3

Package Size

1200x705x223

VESA Holes

400x400

Net Weight

23.6kg

Gross Weight

31kg

No. of Handles

4

Average Power Consumption (W) At Maximum Brightness

220

Contrast Ratio

1300:1
55 Inch - UHB55HD9

Resolution (px)

1920x1080

Display Area

1209.6x680.4

Bezel Size (mm)

12.5

Unit Size - With Handles (WxHxD mm)

1234.6x705.4x94.6

Unit Size - Without Handles (WxHxD mm)

1234.6x705.4x83.6

Package Size

1390x860x270

VESA Holes

200x400, 400x400

Net Weight

28.6kg

Gross Weight

37.5kg

No. of Handles

4

Max Power Consumption (W)

355

Contrast Ratio

1300:1
65 Inch - UHB65UHD10

Display/Active Area [mm]

1428.5 x 803.5

Contrast Ratio

1,200: 1

Power Consumption

Typical: tbc; Max: 430W

Screen Dimensions (mm)

1454 x 828.7 x 83.6

Package Dimensions (mm)

1549 × 953 × 240

VESA Mounting (mm)

400 × 600 / 600 x 600 M6 14mm

Net Weight

37.3 kg

Gross Weight

45.5 kg

Operating Temperature [℃]

0 to 40℃

Storage Temperature [℃]

-10 to 55℃

Storage Relative-Humidity [%]

10% to 80%
75 Inch - UHB75UHD10

Display/Active Area [mm]

1649.7 x 927.9

Contrast Ratio

1,100: 1

Power Consumption

Typical: tbc; Max: 580W

Screen Dimensions (mm)

1689.7 x 968 x 85

Package Dimensions (mm)

1830 x 1120 x 246

VESA Mounting (mm)

400 × 400 M8

Net Weight

48.5 kg

Gross Weight

63.3 kg

Operating Temperature [℃]

0 to 50℃

Storage Temperature [℃]

-30 to 60℃

Storage Relative-Humidity [%]

5% to 95%
Display

Resolution

3840 x 2160 @60Hz

Aspect Ratio

16:9

Brightness [cd/m²]

3,500

Colour

1.07 Billions (8bit + 2bit FRC); 72% NTSC

Viewing Angle [°]

89/89/89/89

Orientation Support

Landscape / Portrait

Operating Hours

24/7 Commercial Use
System & Performance

CPU

RK3568 64bit Cortex-A55 Quad @2GHz

GPU

Quad Mali-G52 2EE

Graphics API Support

OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1

OS Operating System

Android 14

RAM

4GB

Storage

32GB

Media Format

Supports FHD 60FPS H.264/H.265 video encoding

LAN

10/100/1000M RJ45

Wi-Fi

Dual-band 2.4GHz / 5GHz (802.11a/b/g/n/ac)

Bluetooth

5.0

Optional 4G Module

1 × SIM Slot (optional)
Connectivity & Interface

HDMI

1 × HDMI 2.0 IN

USB

1 × USB 3.0 Type-A; 1 × USB 2.0 Type-A; 1 × USB Type-C (OTG only)

RS232

1 × RJ45 (Serial Control)

Ethernet

1 × RJ45 (10/100/1000M)

Audio Out

1 x 3.5mm Audio Out

Expansion Slot

1 × Micro SD

Power Input

1 × IEC C13 (Kettle Lead)

Switch

1 x Power Switch

Speakers

5W x 2

4G Module (Optional)

1 x SIM In
Power Management

Power Supply

AC 100–240V, 50/60Hz

Standby Power

≤0.5W
Environmental Conditions

Operating Relative-Humidity [%]

10% to 80%
Accessories

Included Accessories

Kettle Power Lead (3m); Remote Control + Batteries; User Manual (QR Code x2); Quick Start Guide; Light Sensor Remote Control Module

Optional Accessories

Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand
Warranty

Warranty Period

3 Years

Technical Support

Lifetime
