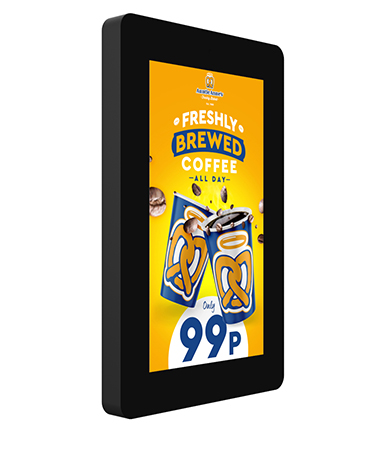

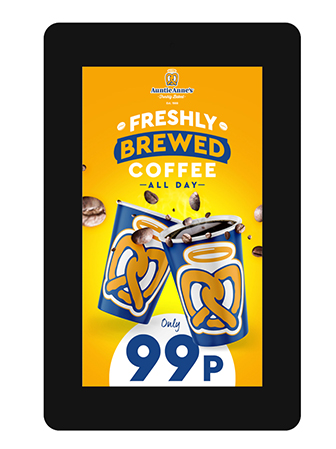

Portrait 4K Elite Outdoor Advertising Displays (55" )

Specification

Full Specification

55 Inch – OWP55UHD10

Display

Resolution

3840 × 2160 @ 60Hz

Display Area (mm)

1208.6 × 679.4

Aspect Ratio

16:9

Brightness (cd/m²)

3,500

Colour

1.07 Billion (8-bit + 2-bit FRC); 72% NTSC

Viewing Angle

89° / 89° / 89° / 89°

Contrast Ratio

1100:1

Dynamic Contrast Ratio

5,000,000:1

Orientation

Portrait

Operating Hours

24/7 Commercial Use

System & Performance

CPU

RK3568 64-bit Cortex-A55 Quad Core @ 2GHz

GPU

Quad Mali-G52 2EE

Graphics API Support

OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.0 and Vulkan 1.1

Operating System

Android 14

RAM

4GB

Storage

32GB

Video Decoding

Supports 4K 60 fps H.265/H.264/VP9 video decoding; supports FHD 60 fps H.264/H.265 video decoding

Supported Media Formats

Video: MPG, AVI, MP4; Audio: AAC, MP3; Image: JPG, PNG

LAN

10/100/1000M RJ45

Wi-Fi

Dual-band 2.4GHz / 5GHz (802.11a/b/g/n/ac)

Bluetooth

5.0

Optional 4G Module

1 × SIM Slot

Connectivity & Interfaces

HDMI

1 × HDMI 2.0 In

USB

1 × USB 3.0 Type-A, 1 × USB 2.0 Type-A, 1 × USB Type-C (OTG only)

RS-232

1 × RJ45 (Serial Control)

Ethernet

1 × RJ45 (10/100/1000M)

Audio Out

1 × 3.5mm Audio Out

Expansion Slot

1 × microSD

Power Input

Hardwired Mains Input

Speakers

2 × 10 W

Power

Power Supply

AC 100–240V, 50/60Hz

Typical Power Consumption

220W

Maximum Power Consumption

480W

Standby Power

8.5W

Dimensions & Weight

Screen Dimensions (H × W × D mm)

1533.2 × 967.2 × 177.5

Dimensions with Wall Bracket (H × W × D mm)

1533.2 × 967.2 × 240.3

Package Dimensions (H × W × D mm)

1760 × 1190 × 425

Mounting Holes (mm)

970 × 751.1, M10

Net Weight

127.5 kg

Gross Weight

179 kg

IK Rating

IK10

Environmental Conditions

Operating Temperature

-30°C to 50°C

Storage Temperature

-30°C to 60°C

Operating Humidity

10% to 90%

Storage Humidity

10% to 90%

Enclosure Protection

IP56

Accessories

Included Accessories

Bare-Ended Mains Power Lead, 2 × Locker Keys, Wall Mount, Remote Control with Batteries, User Manual (2 × QR Codes) and Quick Start Guide

Warranty & Support

Warranty Period

3 Years

Technical Support

Lifetime

Case Studies

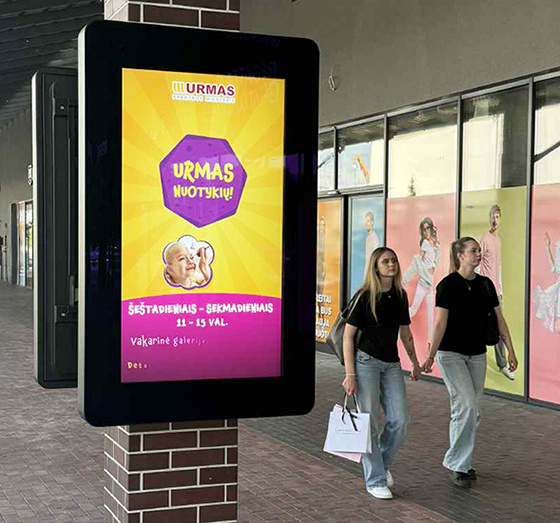

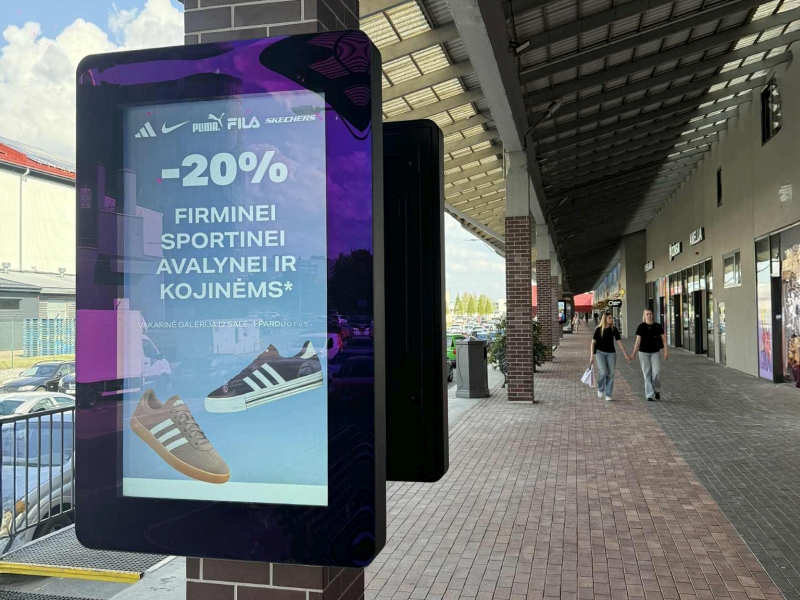

Urmas Shopping Centre - Retail - Case Study

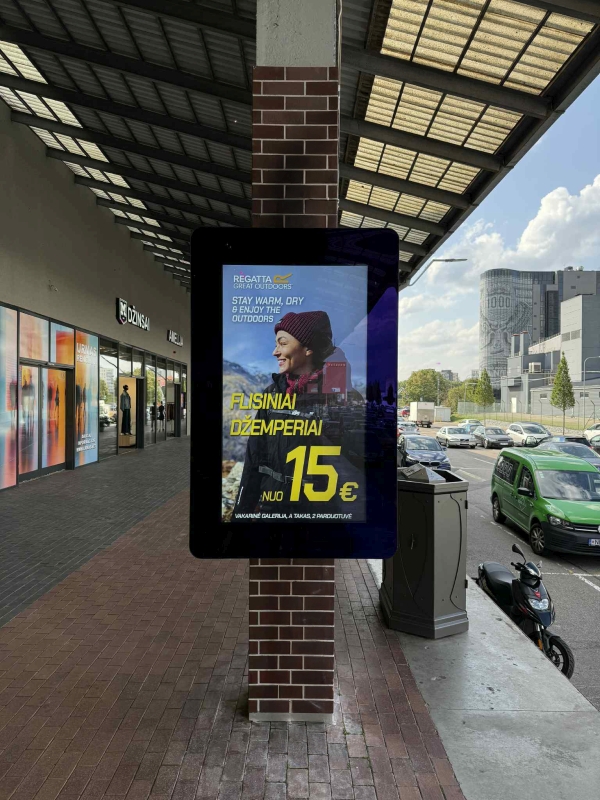

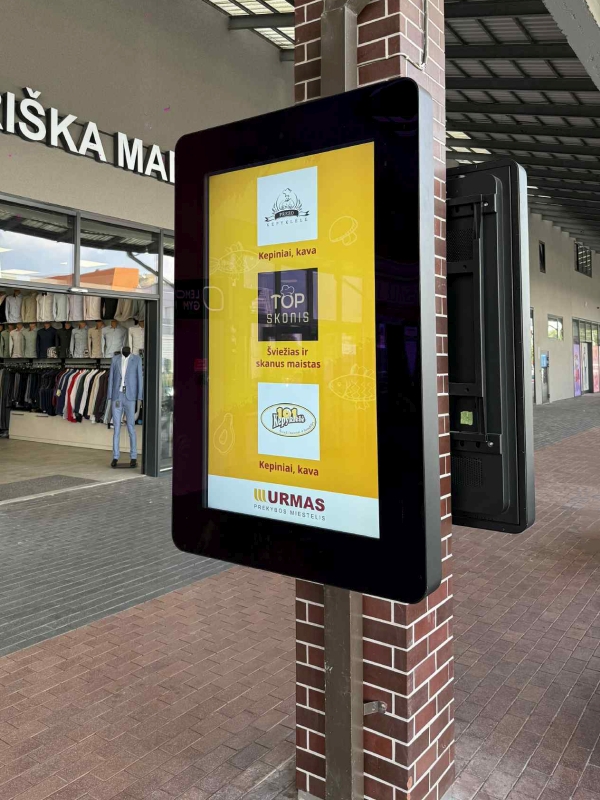

Urmas Shopping Centre, one of the busiest retail hubs in Kaunas, Lithuania, were looking to expand their use of digital signage across their large site. Their goal was to provide additional promotional opportunities for retailers, vendors, and restaurants within the centre by installing new outdoor screens on columns in the colonnade on the north side of the centre. While they already had a small number of digital signage screens in place, they wanted to extend this network and improve on the reliability of their existing solution.

In June 2025, Urmas shopping centre turned to us looking for a complete digital signage solution . . .

Continue Reading Download PDF

Downloads

Spec Sheet - Advertising Display

55" 4K Elite Outdoor Advertising Displays - Spec Sheet

Technical Drawings

OWP55UHD10 - Technical Drawing

OWP55UHD10 - Wall Bracket - Technical Drawing

OWP55UHD10 with Wall Bracket - Technical Drawing

User Manual

4K Elite Outdoor Advertising Displays - OWxxUHD10 - User Manual

OWP55UHD10 - Installation Guide

Why Choose Our Commercial Display Solutions?

Lifetime Technical Support

From the moment you receive your product, throughout the duration of your warranty and even after your warranty has expired we are here to support you. If you require any assistance is setting up or using your product, or have any problems at all, we can provide free technical support via telephone and email.

On-site Support and Maintenance

If needed, we can provide an installation service for any of our products. We can also set up service-level agreements for larger projects that require maintenance contracts. *Additional charges may apply.

Extended Warranty

All of our commercial display products come with a 3 year commercial warranty as standard but if you want to extend this you can upgrade this to cover a 5 year period. *Additional charges may apply.

Training

As well as providing free remote CMS training sessions and webinars we can also visit you to deliver bespoke training for our software and hardware* Additional charges may apply.

Advanced Replacements

Should your display suffer from any kind of hardware failure during the warranty period we will send you an advanced replacement and arrange for your old display to be collected, free of charge. This ensures no downtime where you are without a screen.

Custom Product Testing & Configuration

If you need us to test third party software or a website, or configure your screen in a particular way before it is dispatched (e.g. in a particular orientation or network mode), we can do so to make your life easier.

3D Rendering

Want to know how a particular screen will look once installed? Send us a photo of the location and we will create a 3D rendering of any screen in situ to help you to visualise how amazing it will look.

Logistics Support

We hold more stock in our UK warehouse than any other manufacturer so we can help you meet tight deadlines. For last minute orders we can also offer special express or morning delivery options (additional charges may apply). We also carry out UK based quality control checks on every display before it leaves our warehouse.

Project Support

If you need to loan a sample unit to test we’d be more than happy to arrange this. We can also provide a rental service for temporary projects* Additional charges may apply.

Customisation

Your display can be customised to suit your requirements by adding your logo or printed graphics or even tailoring the colour of a display. We can also carry out hardware modifications to existing products or manufacture bespoke solutions for special projects. *Additional charges may apply

Extras

As well as being able to provide accessories and add-ons, such as extra remote controls, NUC PCs and video wall controllers, we can also supply custom made flight cases which are great if a display needs to be moved safely from place to place. *Additional charges may apply

Next-Gen Outdoor Display Technology

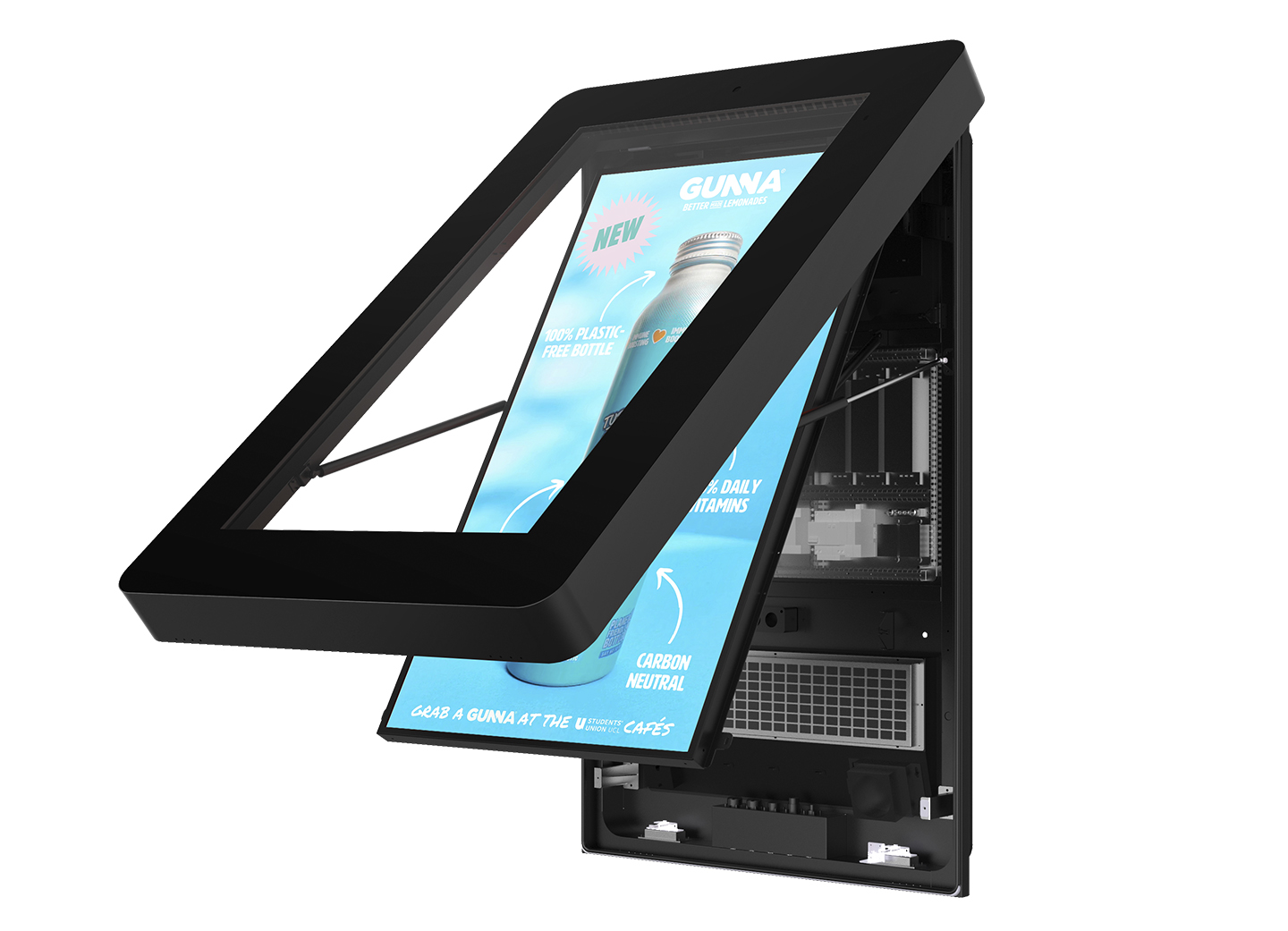

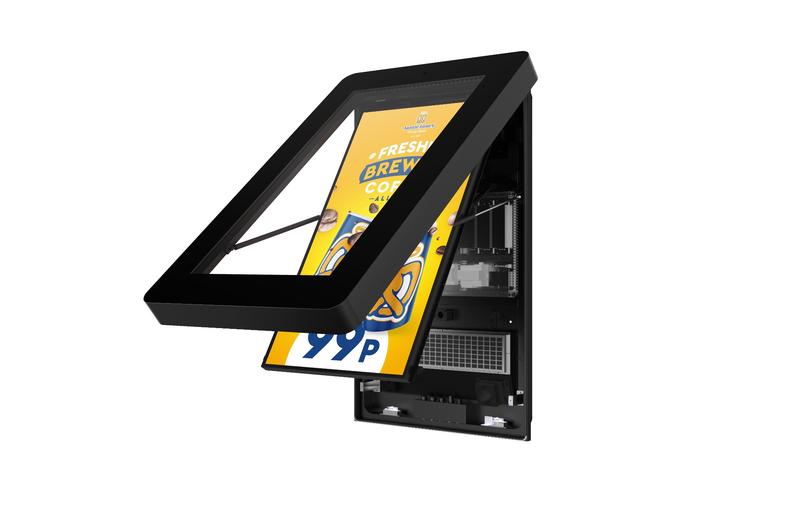

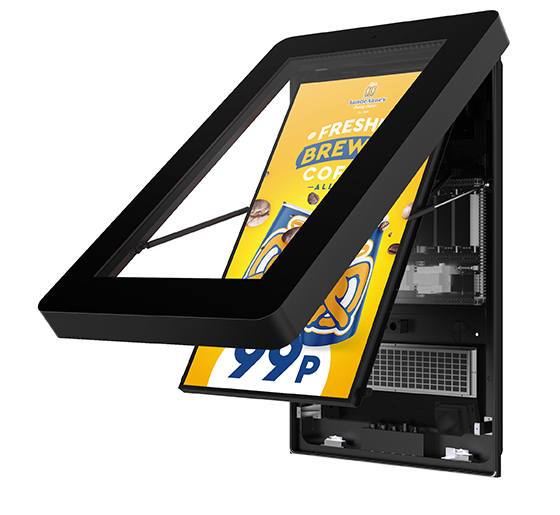

Easy Front Access for Quick Maintenance

Enhanced Contrast with Local Dimming

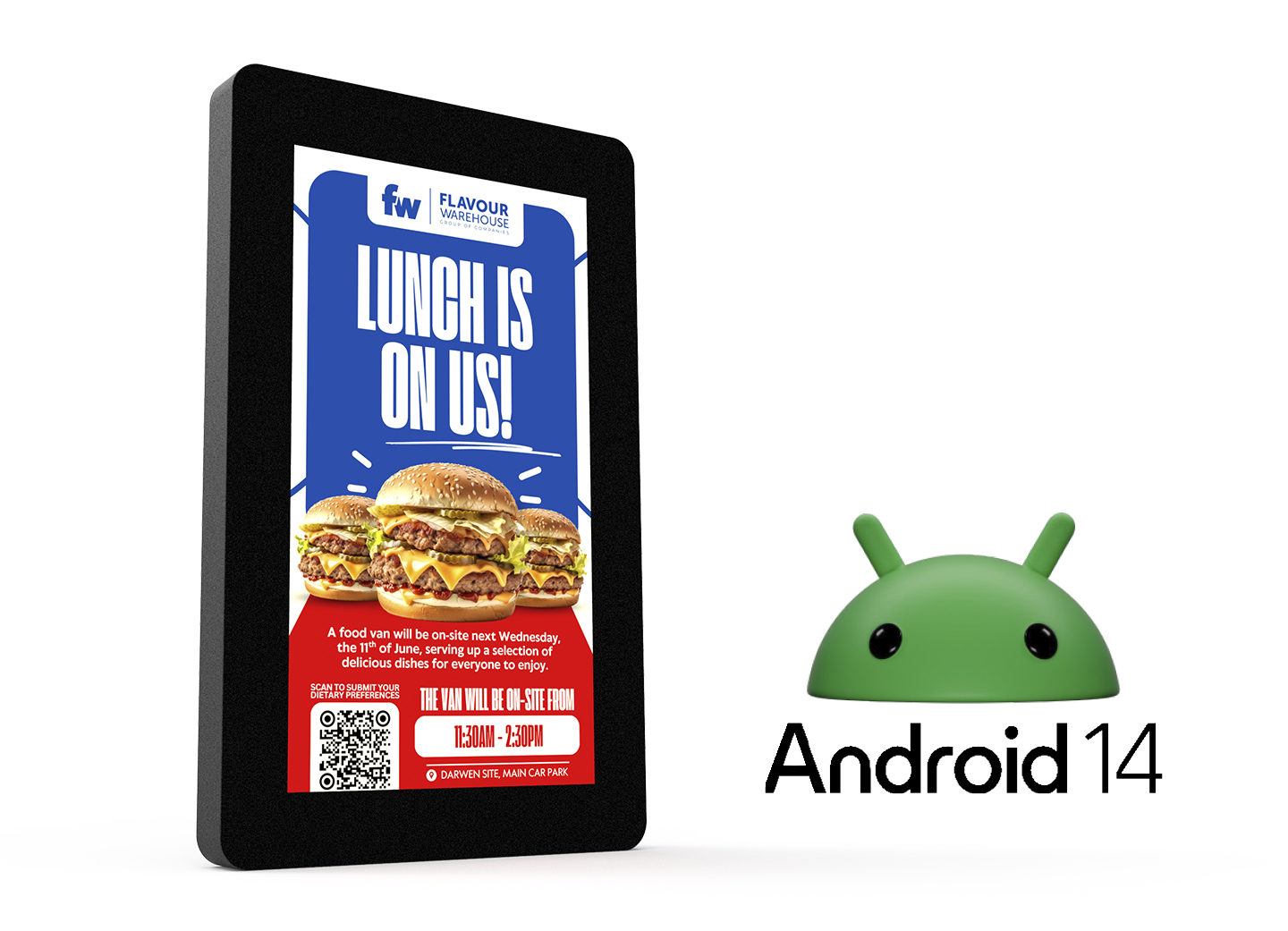

Powerful Performance with Android 14

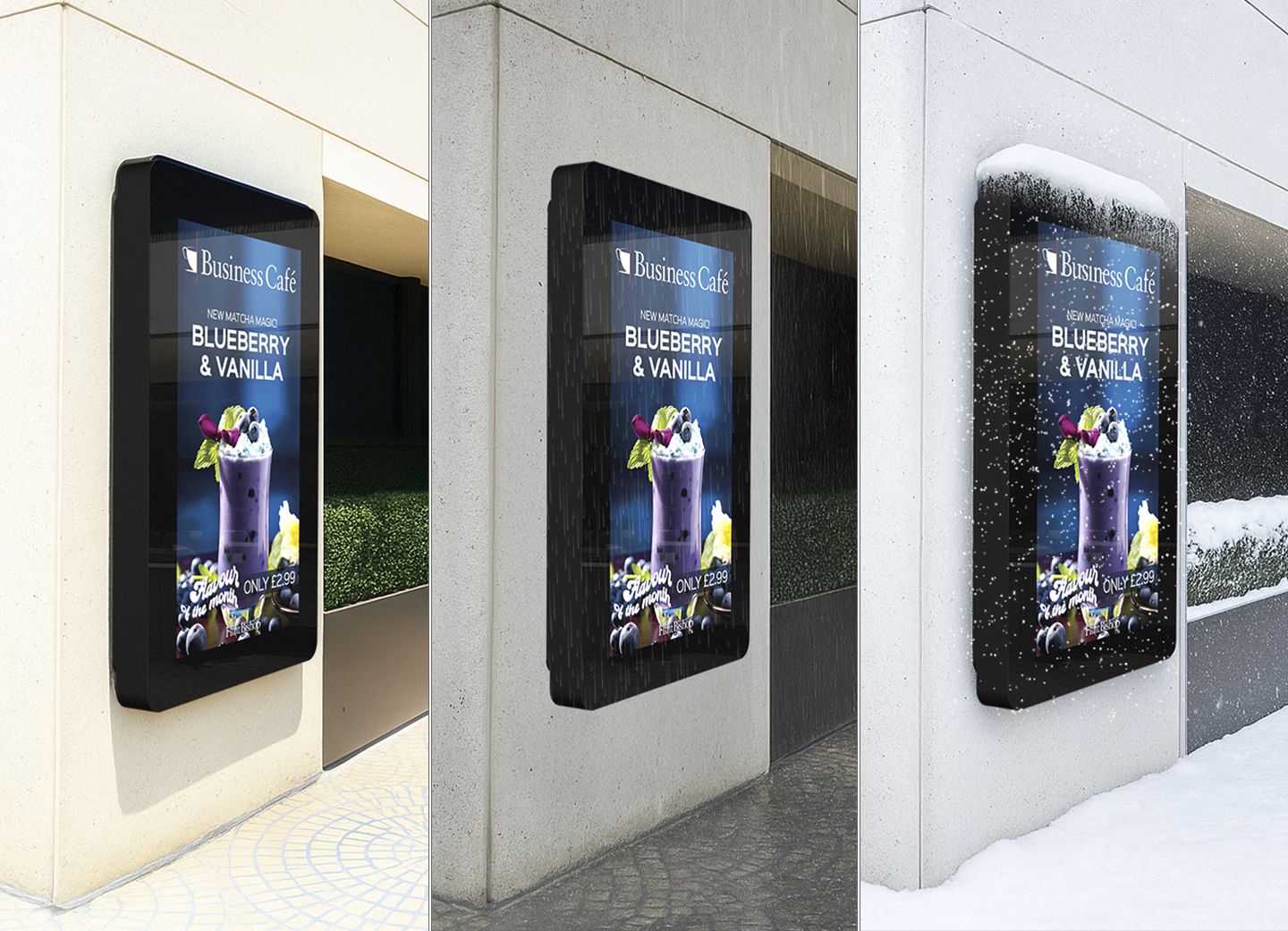

All-Weather Protection with IP56 & Dual Seal

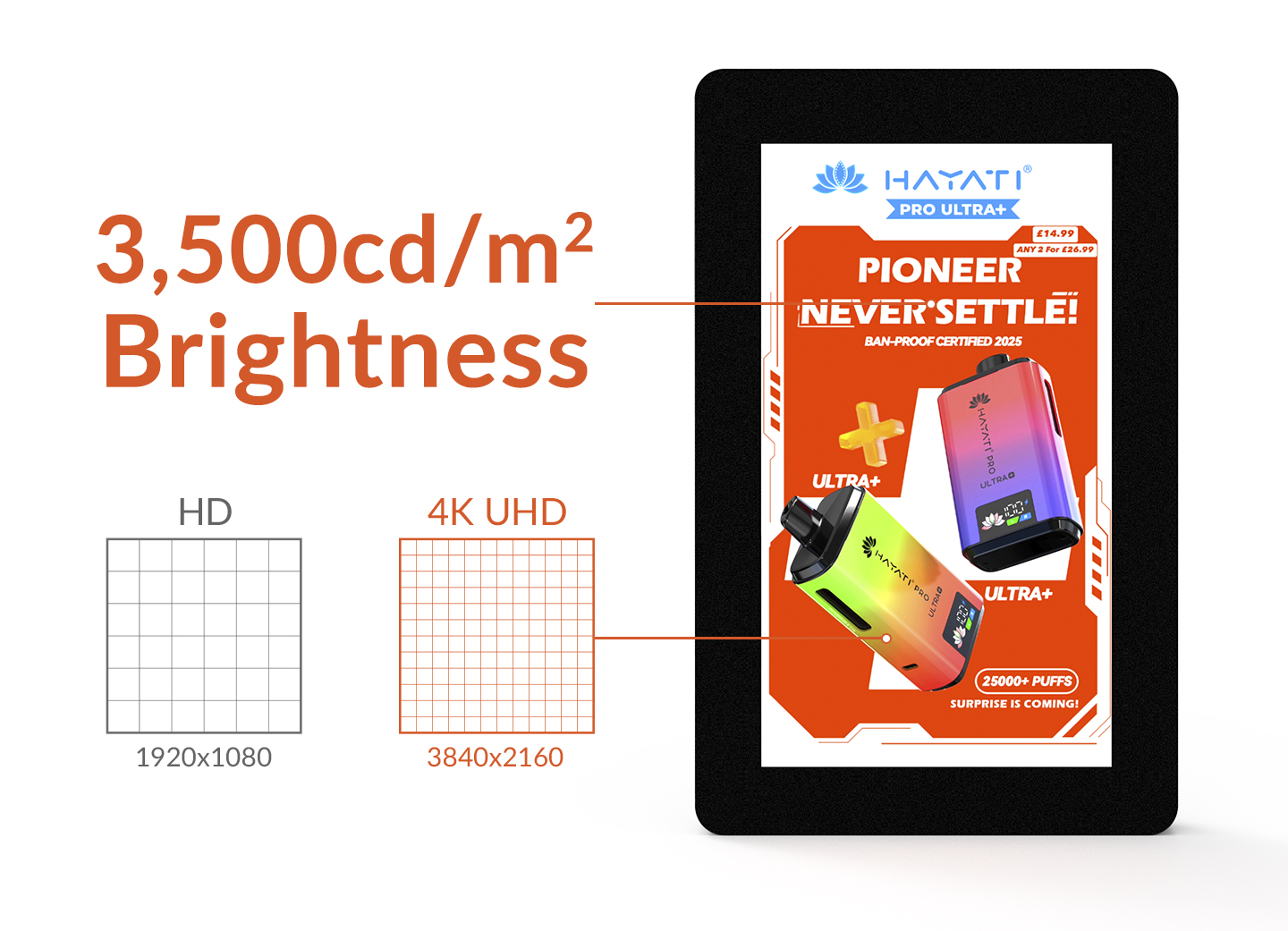

Crystal-Clear 4K Visibility in Direct Sunlight

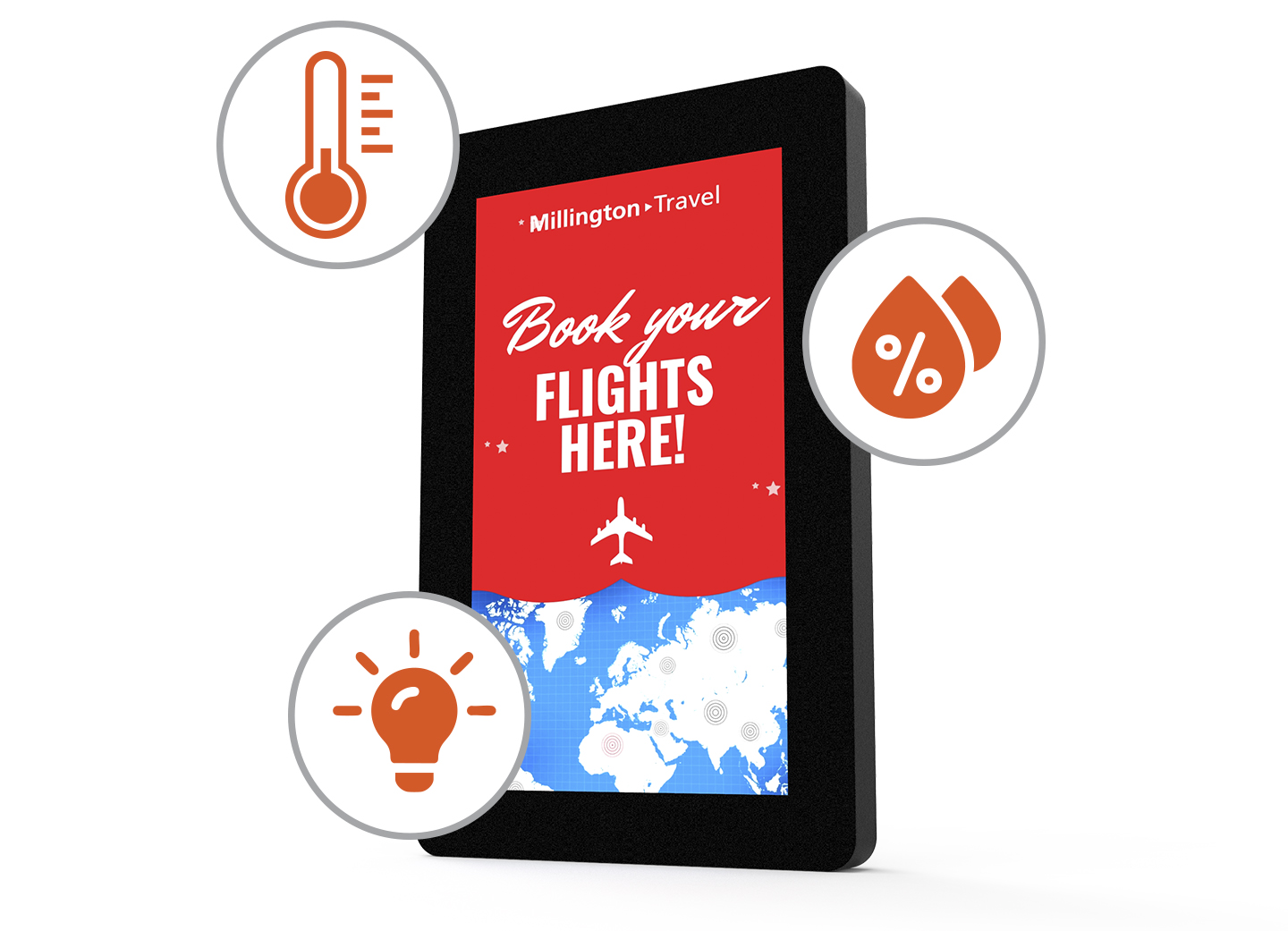

Smart Sensors for Adaptive Display Control

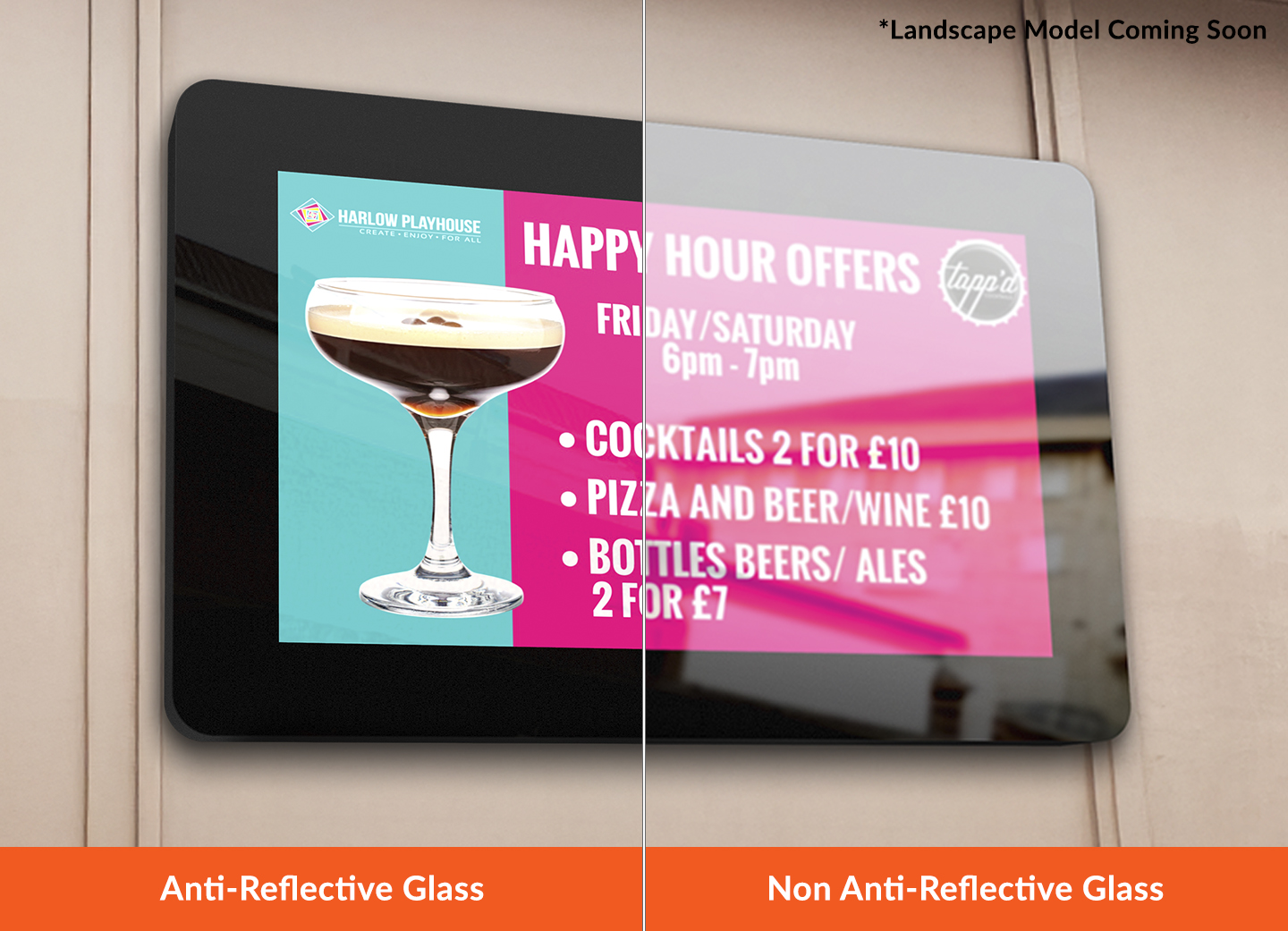

Reduced Glare with Anti-Reflective Glass

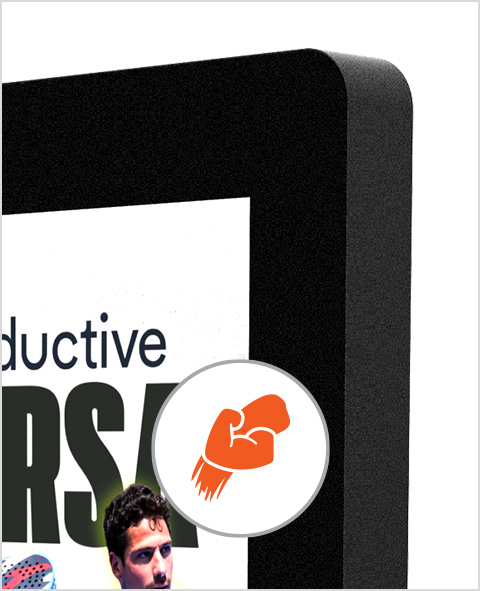

Corrosion-Resistant Marine Grade Paint

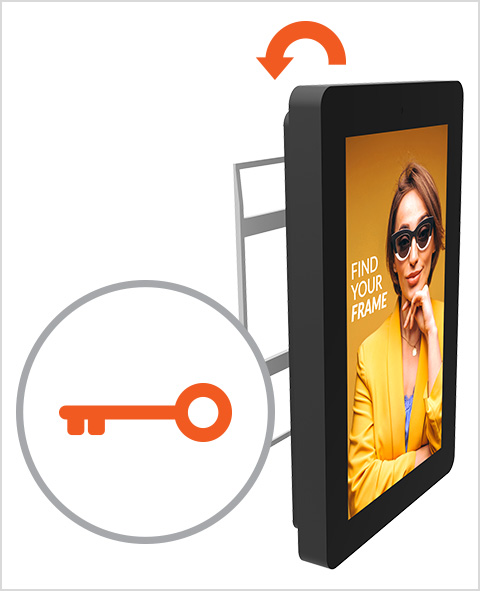

Secure and Simple Installation with Free Lockable Mount

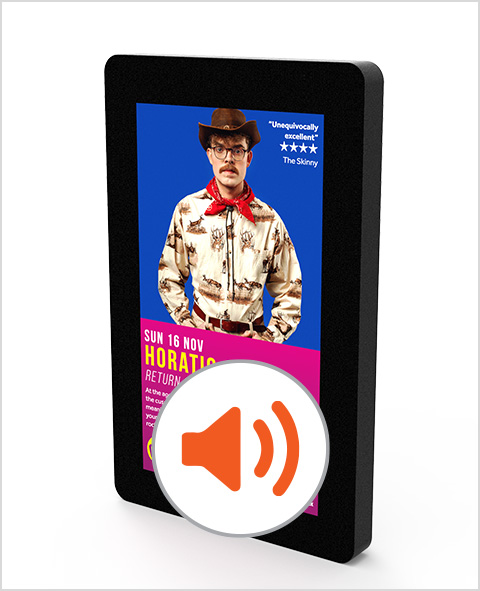

Built-in Speakers for Seamless Audio
