Pixel Pitch (mm)

3.90625

LED Type

DH-C1717

Pixel Configuration

1R1G1B

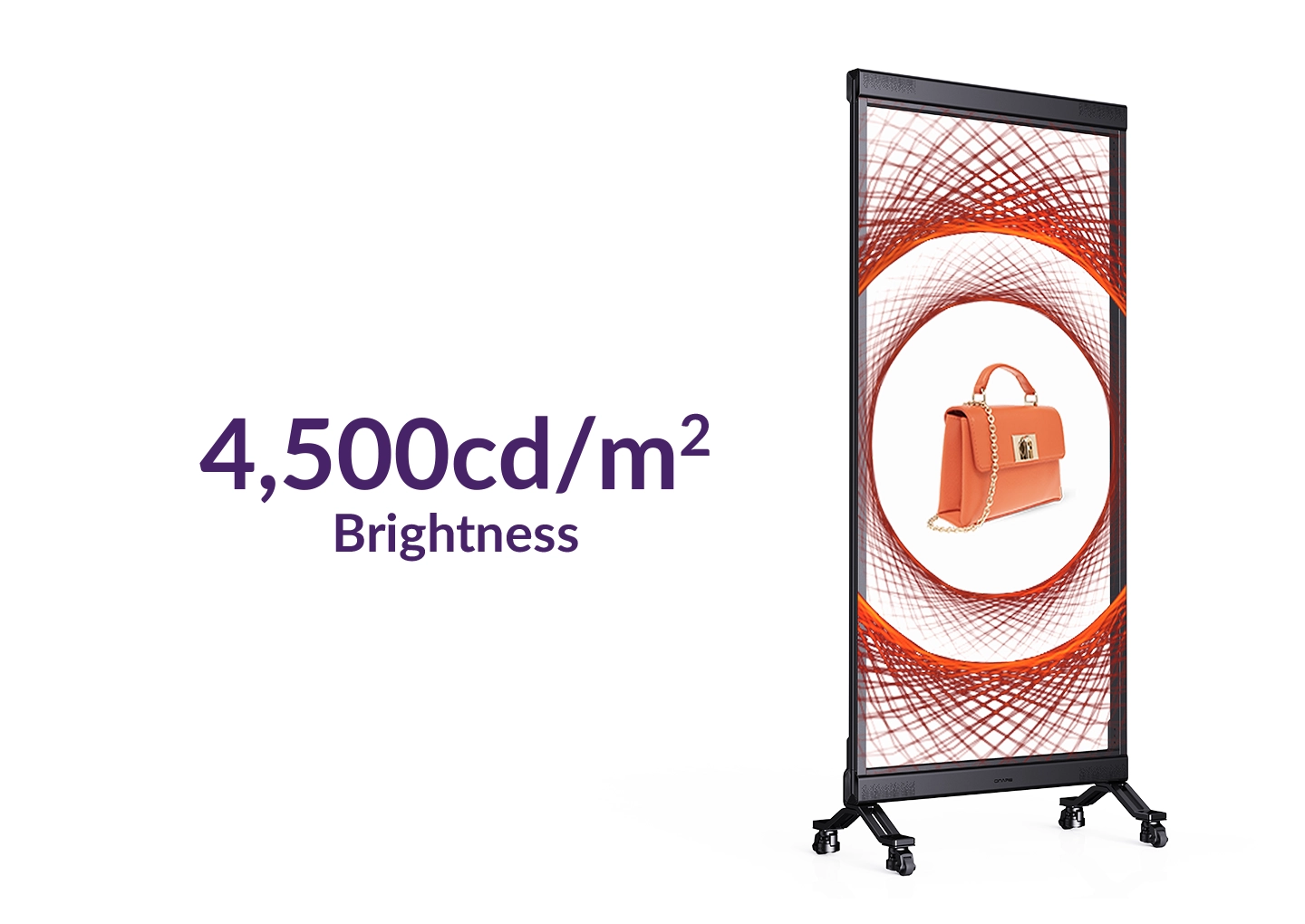

Brightness (Calibrated)

4,500cd/m²

Refresh Rate

3840Hz

Viewing Angle

140°

Maintenance

Front and rear Service

P2.5

Pixel Pitch (mm)

2.5

LED Type

SMD2121

Brightness (Calibrated)

550cd/m²

Module Resolution (px)

128x64

Cabinet Resolution (px)

256x192

Cabinet Size (mm)

640x480x54.3

Net weight (Kg)

6.8

Refresh rate

3840Hz

Cabinet Current

≤0.45A

Average Power Consumption (Per Cabinet)

33W

Max Power Consumption (Per Cabinet)

99W

Standby Power Consumption (Per Cabinet)

0.5W

P3.1

Pixel Pitch (mm)

3.17

Module Resolution (px)

48x108

Cabinet Resolution (px) - Option A

348x108

Cabinet Resolution (px) - Option B

261x108

Cabinet Resolution (px) - Option C

174x108

P3.9

Pixel Pitch (mm)

3.9

Module Resolution (px)

40x90

Cabinet Resolution (px) - Option A

320x90

Cabinet Resolution (px) - Option B

240x90

Small Cabinet Resolution (px) - 16:9

160x90

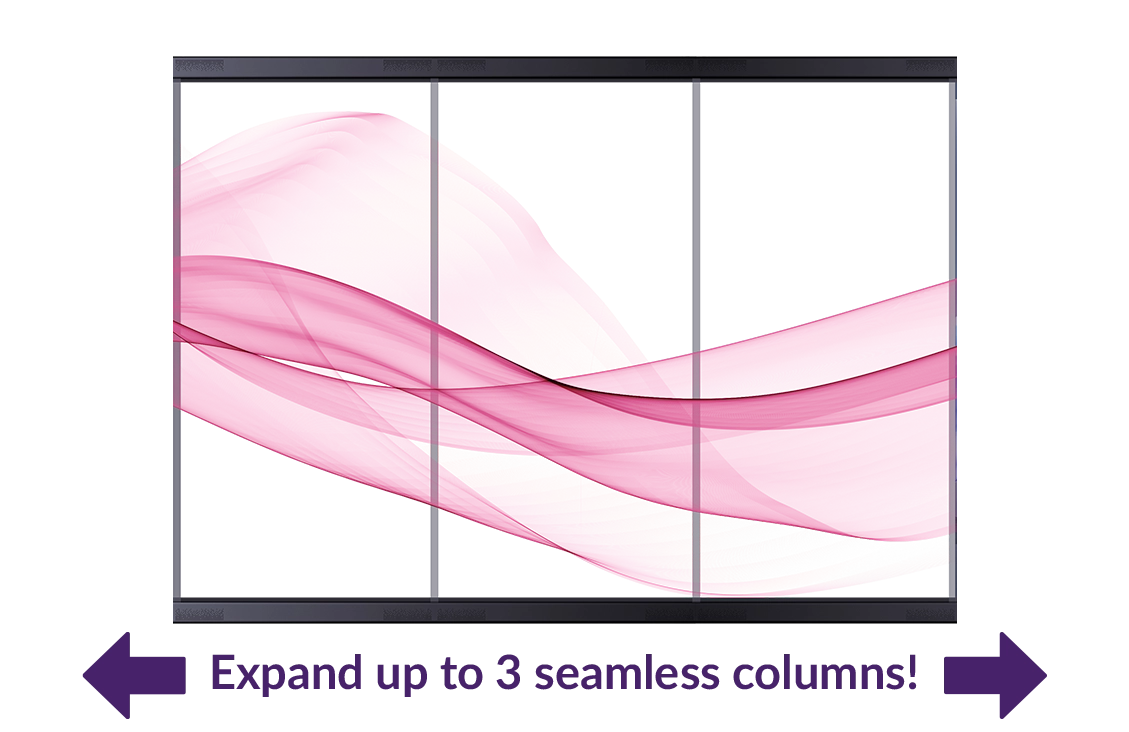

Cabinet (Per Column)

1 Column Resolution (px)

256x510

1 Column Size (mm)

1000x2346

2 Column Resolution (px)

512x510

2 Column Size (mm)

2000x2346

3 Column Resolution (px)

768x510

3 Column Size (mm)

3000x2346

Net Weight (Kg) Per Column

Cabinet

Module Size (mm)

320x160x14.5

Power

Input Voltage

110-240V

Max Power Consumption (W)

2,500

Environmental

Operating Temperature

-10ºC to +30ºC

Operating Humidity

10% to 65%

Storage Temperature

-20ºC to +40ºC

Storage Humidity

10% to 60%

Lifetime

100,000 hours

Case Studies

Digital Signage Case Study – Wahed Invest

Wahed Invest is a global online banking platform for those looking for investment opportunities that adhere to Islamic principles. Founded in the USA in 2015 they first launched in the UK market in 2018 as an online bank. In late 2022 they approached our partner as they were in the process of opening their first physical branch in the UK and were looking for digital screens to enhance the space. They understood the wow factor digital signage could bring to a space with video content. Wahed had just been let down by another supplier so were looking for a partner they could collaborate with to meet the dates of the planned opening of the branch in early 2023.

The financial firm wanted a large scale digital screen to be the centrepiece of the new branch. They wanted a big stunning display that could . . .

Continue Reading

Download PDF

Digital Signage Case Study – International Footwear Brand

International Footwear Brand (IFB) is an American fashion company founded in 1978 primarily known for its sheepskin boots and also specialise in other footwear, accessories and home textiles. Renowned for their distinctive premium and comfortable footwear the brand is synonymous with high quality products. Founded in the USA, the brand has several successful stores in the UK with two in London’s premiere shopping districts.

For their London stores the brand works with one of our partners who are an award-winning design studio. In December of 2021 IFB approached their longstanding design partner to help revamp the front window displays of their Piccadilly and Westfield stores . . .

Continue Reading

Download PDF

-->

Downloads

Spec Sheet

Indoor Transparent DV-LED Freestanding Totems - Spec Sheet

Technical Drawings

Indoor Transparent DV-LED Freestanding Totems - Technical Drawing
