Fine Pitch SMD and COB DV-LED Video Walls


Get big-screen Fine Pitch DV-LED impact at a lower cost with SMD.	Added surface protection makes COB more resistant to everyday impact and contact.
A slim 31mm display depth creates a sleek, low-profile installation.	Lower power consumption helps reduce energy use and long-term running costs.
A lighter 95kg design reduces weight on the mounting wall.	Experience deeper blacks and stronger contrast with COB.

Get big-screen Fine Pitch DV-LED impact at a lower cost with SMD.

Added surface protection makes COB more resistant to everyday impact and contact.

A slim 31mm display depth creates a sleek, low-profile installation.

Lower power consumption helps reduce energy use and long-term running costs.

A lighter 95kg design reduces weight on the mounting wall.

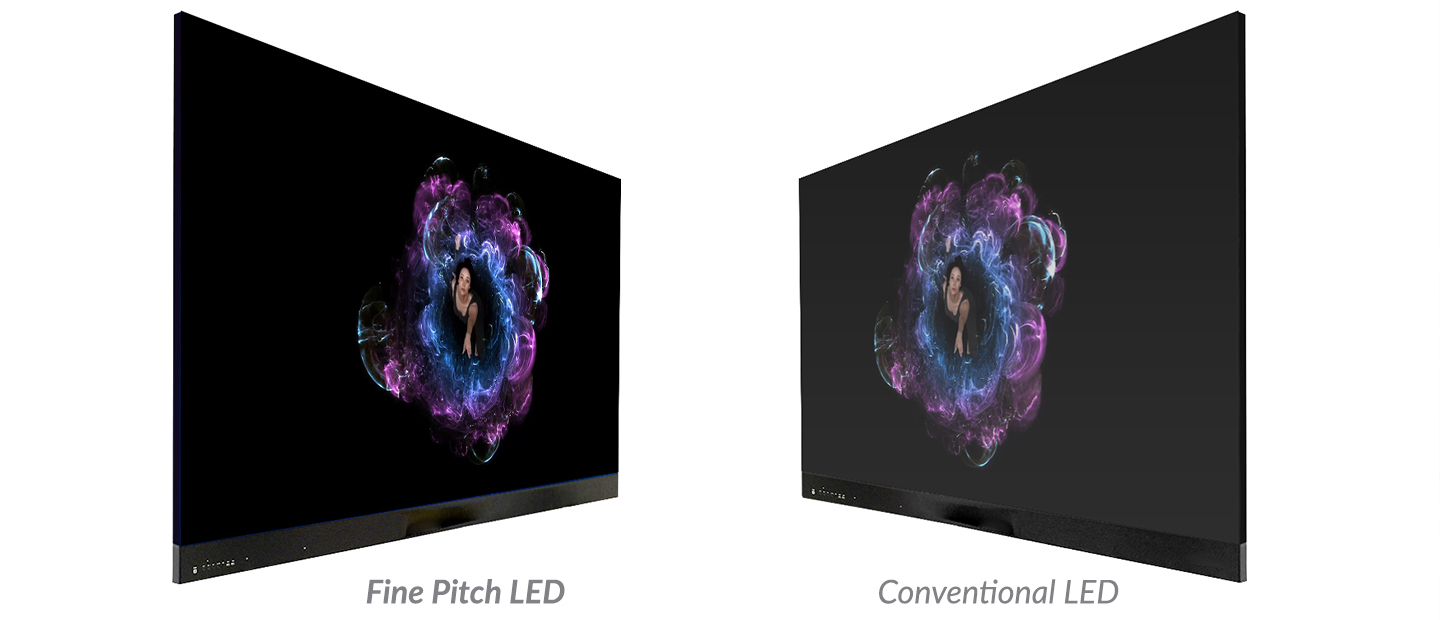

Experience deeper blacks and stronger contrast with COB.

Specification

Full Specification

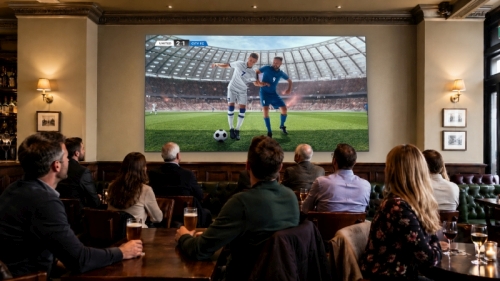

135 Inch SMD

135 Inch COB

135 Inch SMD - FP135B15A

LED Technology

SMD

Brightness (cd/m²)

100~550

Grayscale

13+6 Bit

Contrast Ratio

6,500:1

Memory

4GB

Net Weight

95kg (screen only)

Unit Size (WxHxD mm)

3012 x 1708.9 x 31

Average Power Consumption

511W

Maximum Power Consumption

1533W

Package Size (WxHxD mm)

2040 x 1060 x 1105

AV Ports

USB 3.0 x 2, HDMI In x 2, 3.5mm Audio Output, RS-232 (3.5mm), LAN

135 Inch COB - FP135B15C

LED Technology

COB

Brightness (cd/m²)

100~600

Grayscale

13 Bit

Contrast Ratio

15,000:1

Memory

8GB

Net Weight

105kg (screen only)

Unit Size (WxHxD mm)

3012 x 1708.9 x 62

Average Power Consumption

416W

Maximum Power Consumption

1250W

Package Size (WxHxD mm)

1900 x 775 x 1215

AV Ports

USB 2.0, USB 3.0, USB Type-C, HDMI In x 2, HDMI Out, 3.5mm Audio Output, RS-232 (RJ45), LAN

LED

Screen Size

135 Inch

Pixel Pitch (mm)

1.5625

Resolution (px)

1920x1080

Display Area (mm)

3000x1687.5

Aspect Ratio

16:9

Refresh Rate (Hz)

3840

Viewing Angle

170°

Maintenance

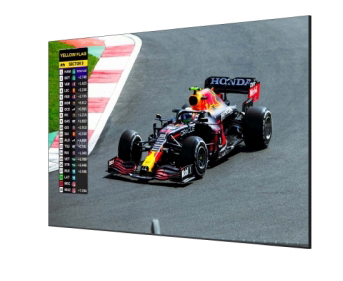

Front Access Only

Audio

Speakers

2 x 15W

Power

Input Voltage

AC100~240V (50Hz~60Hz)

Standby Power Consumption

≤0.5W

Computer

CPU

Octa-core (4 x Cortex-A76 + 4 x Cortex-A55), up to 2.4GHz

Storage

64GB

LAN

100M/1000M

Wi-Fi

Dual-band 2.4G/5G

OS

Android 13

Environmental

Operating Temperature

-10°C to 40°C

Operating Humidity

10% to 80%

Accessories

Included

Remote Control, Front Maintenance Tool, Tool Kit, Wall Mount

Optional

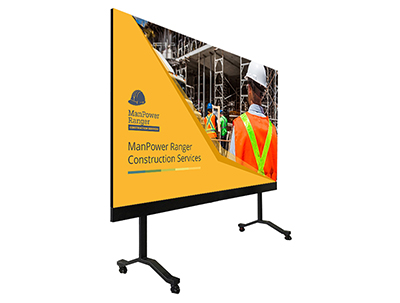

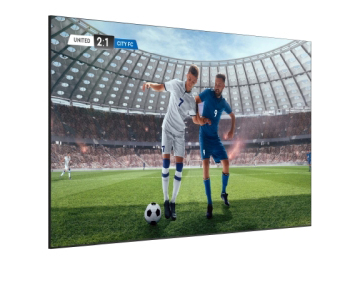

Floor Stand

Warranty

Warranty Period

3 Year Warranty

Technical Support

Lifetime

SMD Spec Sheet

Fine Pitch SMD DV-LED Video Walls - FP135B15A

COB Spec Sheet

Fine Pitch COB DV-LED Video Walls - FP135B15C
