Network Digital Menu Boards
Cost-effective package solution; 24/7 commercial grade displays with built-in network media player and 1 year CMS software subscription
Complete Package Solution
Complete Package Solution
Wireless Wi-Fi connection
Wi-Fi Connection
LAN Connection
LAN Connection
24/7 Usage
24/7 Usage
Synchronised Screens
Multi-Screen Synchronisation
scheduling software
Advanced Scheduling
Template Library
Exclusive Template Library

Commercial grade IPS Panel
Commercial Grade IPS Panel
Portrait or Landscape Orientation
Portrait or Landscape Orientation
Scrolling Text Zone RSS Zone
Scrolling Text/RSS Feed
Eco Friendly Power Timer
Eco Friendly Power Timer
Network product
Cloud Based Software
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3-Year Warranty

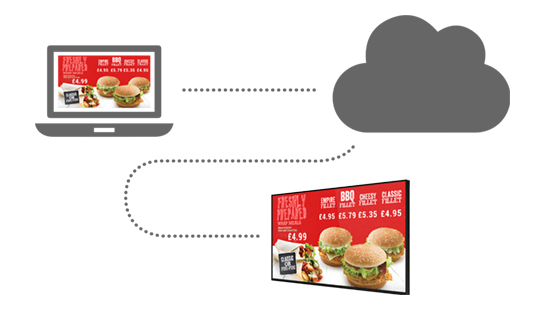

Wireless Wi-Fi
Update Over the Internet
Network Product
1 Year Free Software Licence
With our package the first year of using our cloud based content management system is absolutely free. You don’t pay anything for 12 months and get full unrestricted access to the software as well as lifetime technical support. You can also purchase 3 additional year’s access at the point of purchase or make a one off payment to have access for life.

exclusive template library
Template Library
Browse and choose from our exclusive library of Digital Signage templates. Within each predesigned template you get the original media files, template layout and playlist. You can customise each of these to just how you would like. You can add your own prices, branding, images or videos. Change the font size or colour; the templates are fully adaptable to your needs.

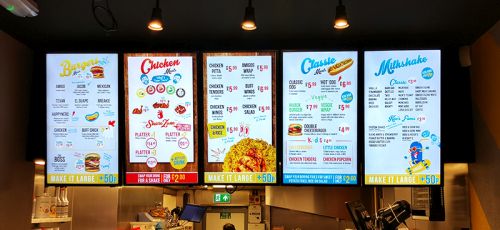

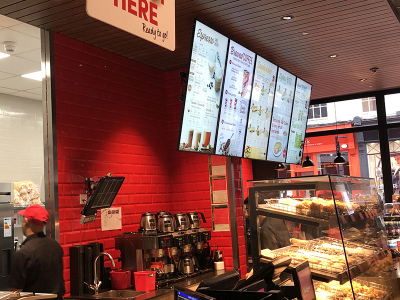

synchronised Screens
Multi-Screen Synchronisation

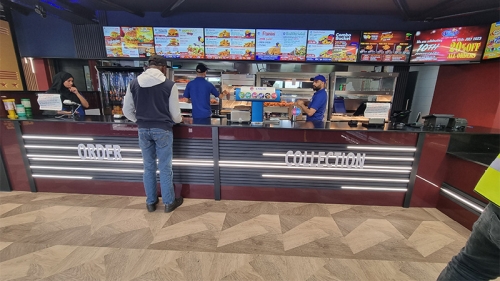

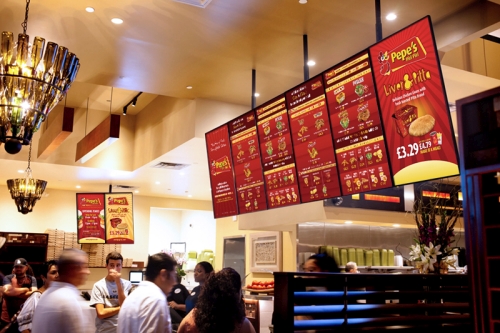

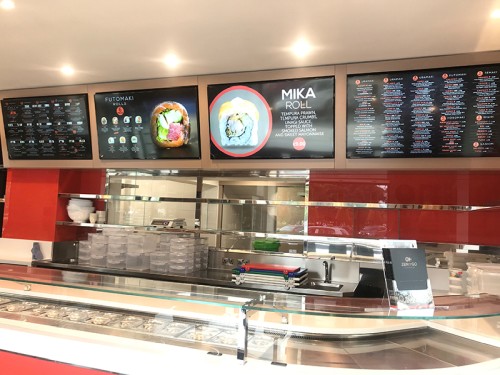

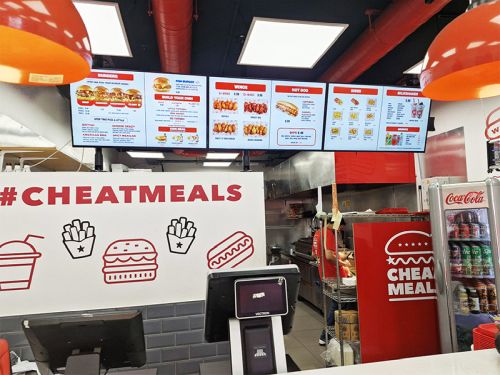

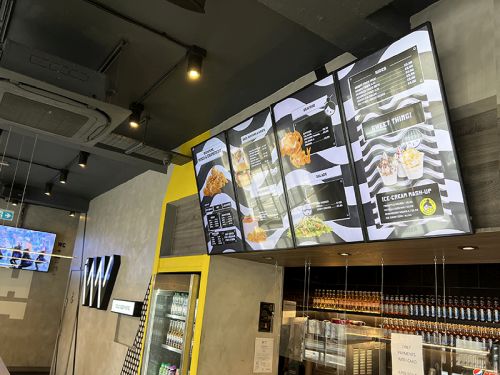

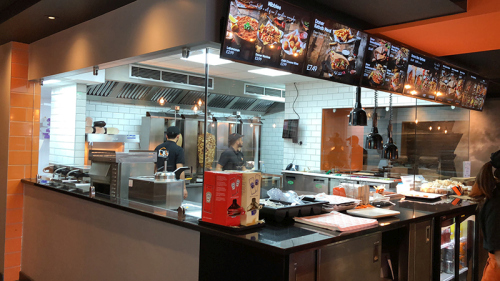

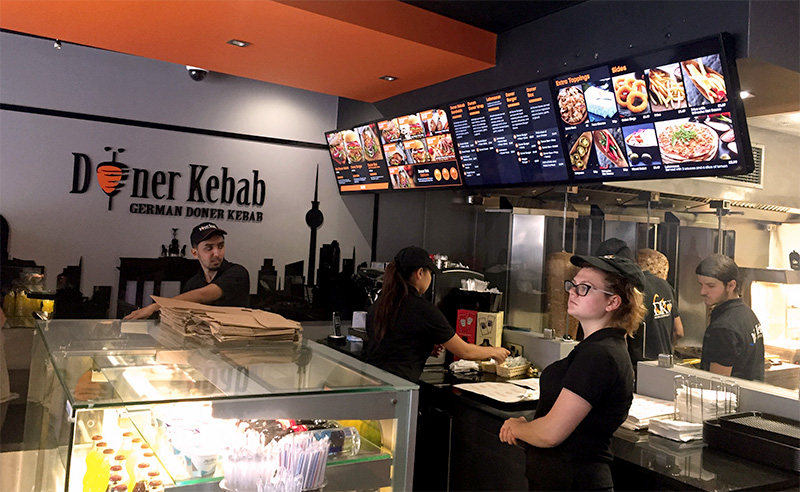

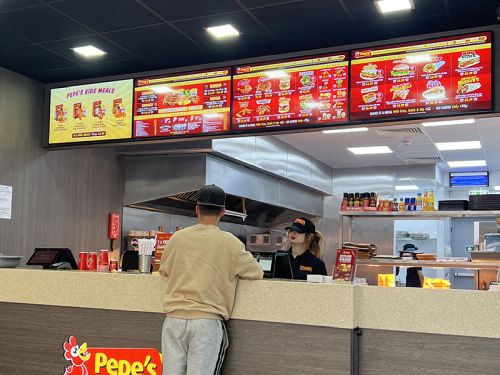

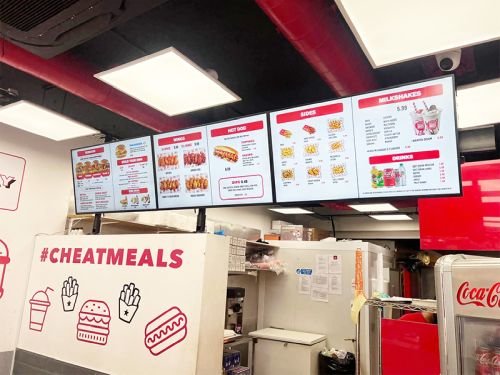

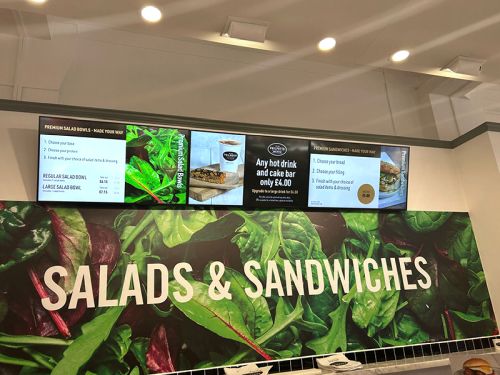

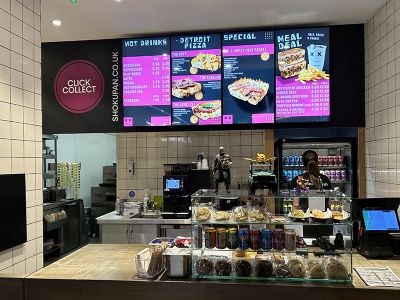

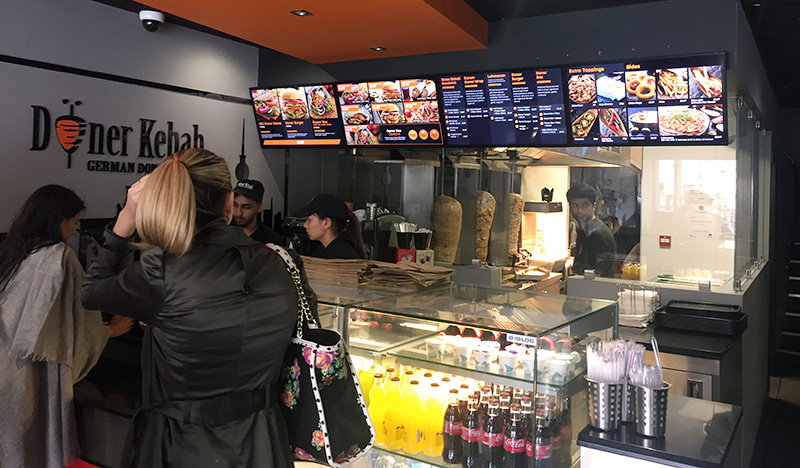

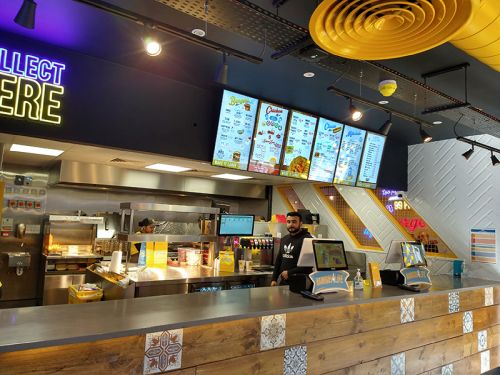

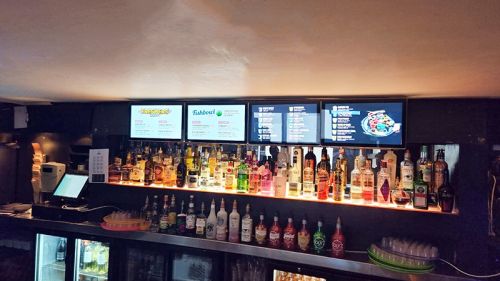

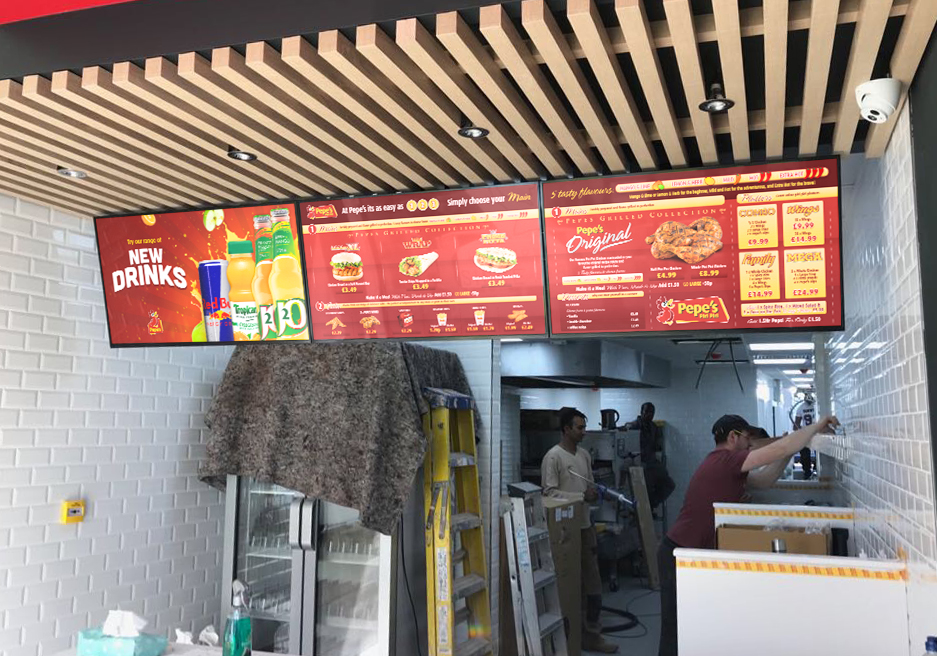

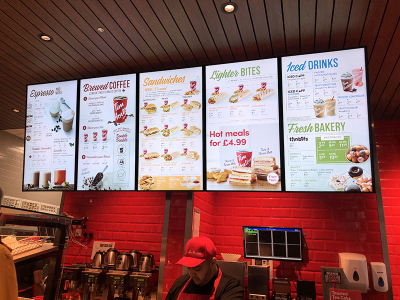

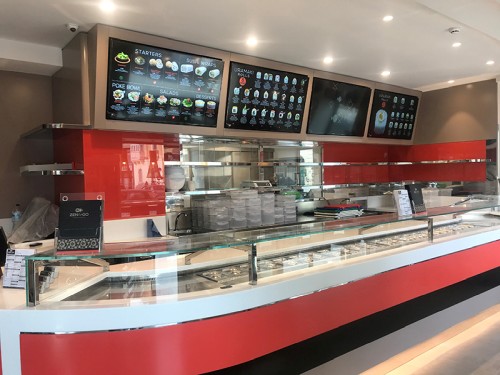

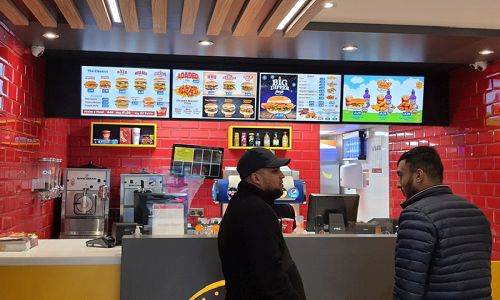

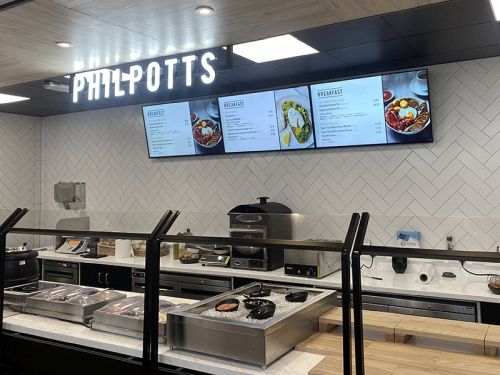

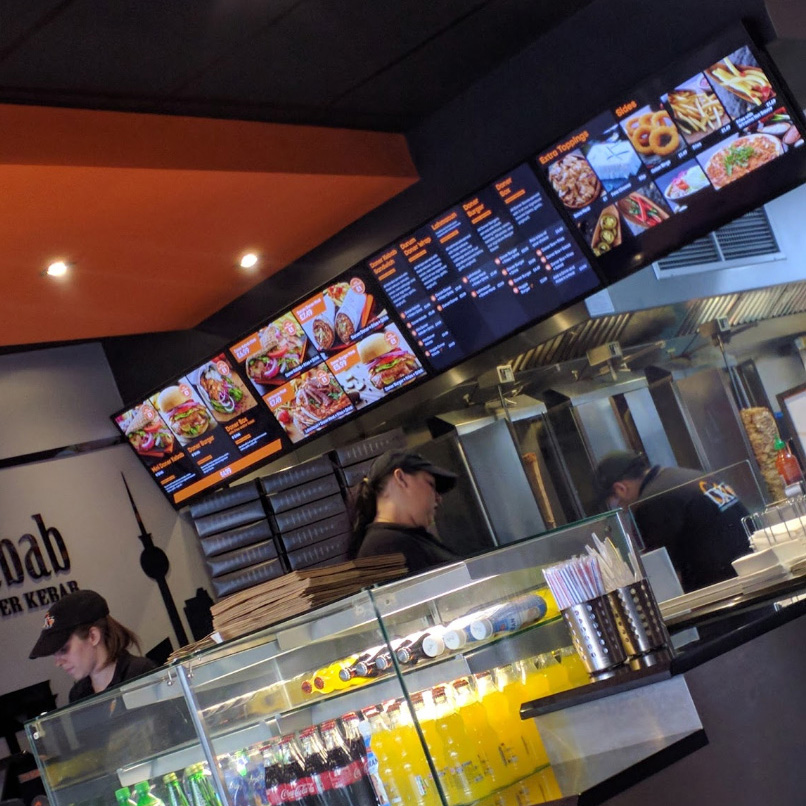

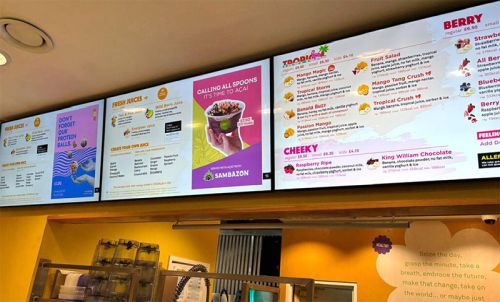

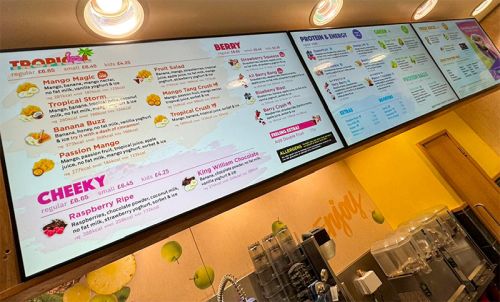

You can synchronise your Digital Menu Boards across multiple screens provided they are connected to the same network. This is ideal for menus above the counter.

Network Digital menu Boards digital signage screens

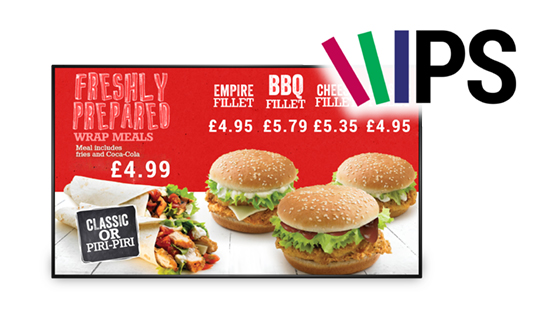

IPS Panel
24/7 Commercial Grade IPS Panel
With a commercial grade IPS panel with a brightness of 450cd/m² (twice the brightness of domestic televisions) this Digital Menu Board is able to reproduce and maintain the ultimate colour temperature for lifelike images even in the most challenging lighting environments. With a lifespan of over 70,000 hours the screen can be in use 24/7 with no loss in image quality. There are no external buttons or controls on the screen to avoid tampering.

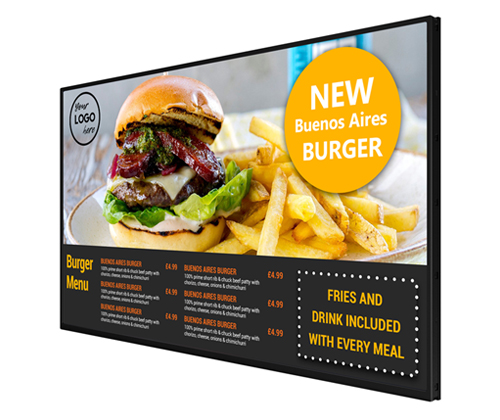

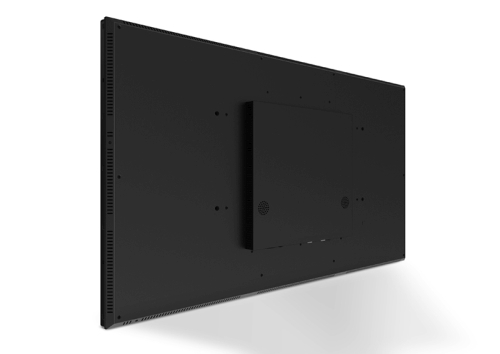

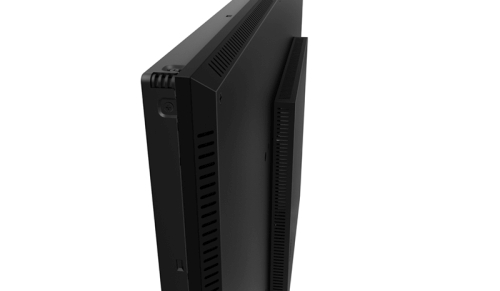

narrow bezel
Narrow Bezel

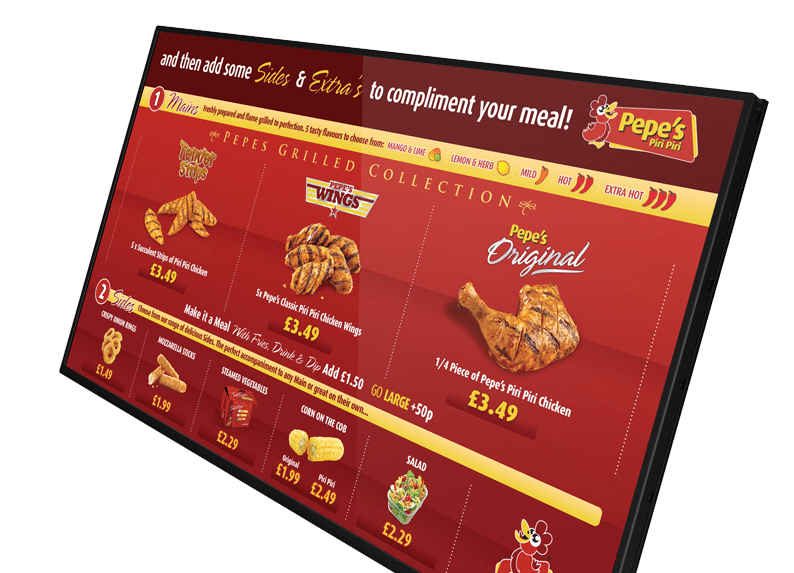

The narrow bezel on the Digital Menu Boards allows your menu to take centre stage. When multiple Digital Menu Boards are placed side by side there is a virtually seamless display thanks to their thinner edges and superior image precision.

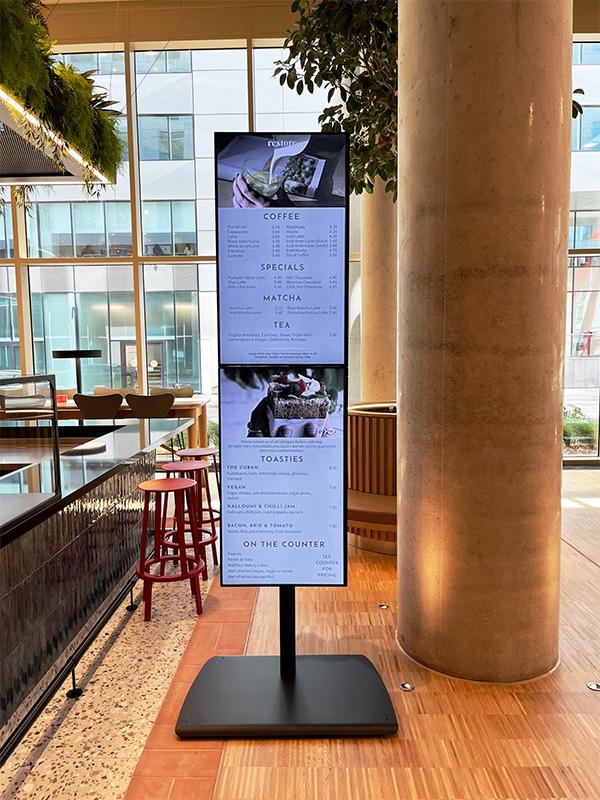

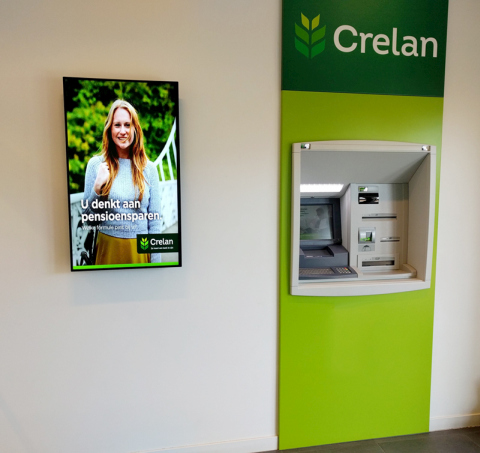

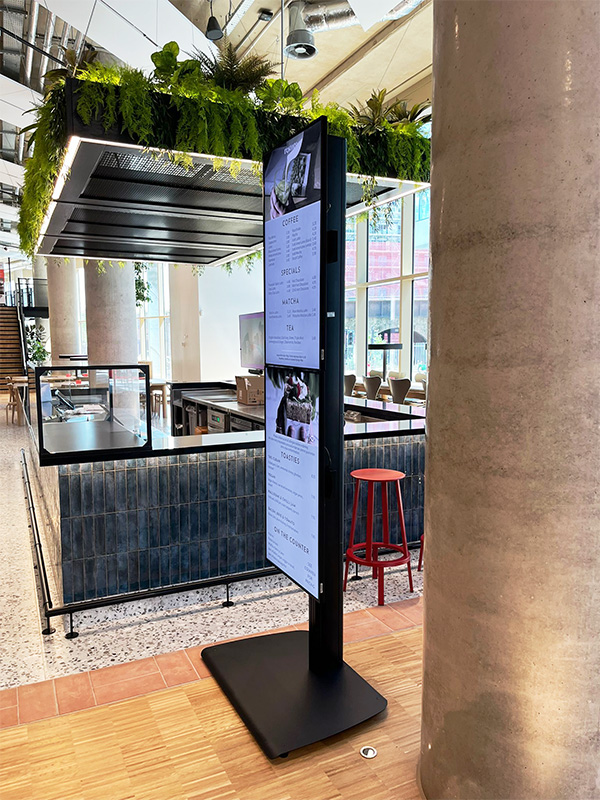

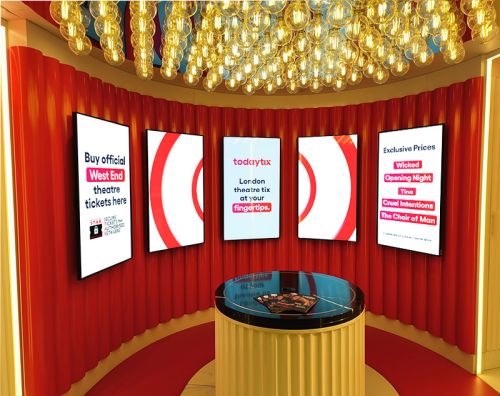

Portrait or Landscape Orientation
Portrait or Landscape

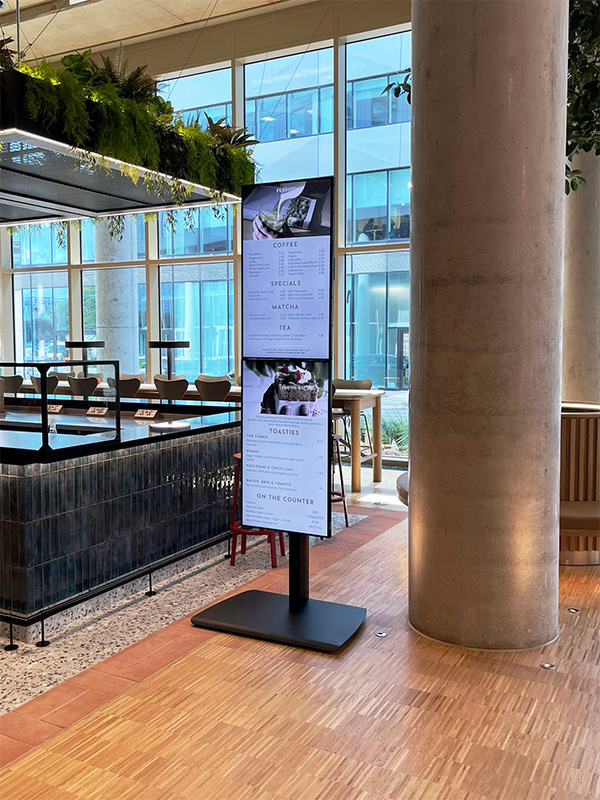

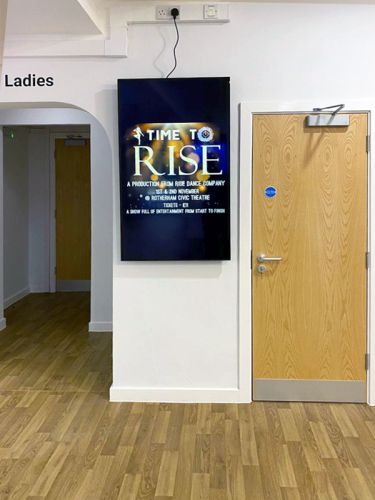

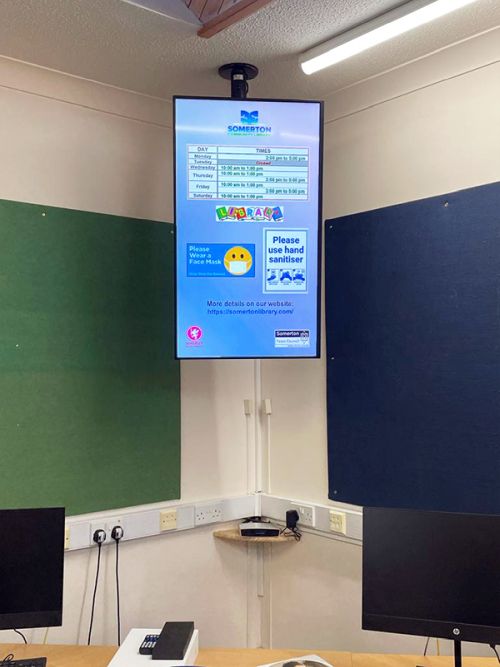

The screen can be used in either a landscape or portrait orientation depending on your requirement.

Integrated Speakers
Integrated Speakers
The displays have two integrated speakers for applications that involve an audio element.

Plug and Play
Plug and Play
If there is no internet access available the screen can still be updated thanks to their backup USB update option. Simply package up your Playlist onto a USB stick and insert into the screen. Your templates, schedule and content will now copy over and start playing.

Eco Friendly Power Timer
Eco Power Timer
Allows for reduced power usage by automatically powering off in hours that the displays are not required. You can set daily or weekly On/Off times for your displays.

Scrolling Text Zone RSS Zone
Scrolling Text Message
Display a ticker tape message or live RSS feed. From here you can adjust the font, size, colour, speed and direction of the text.

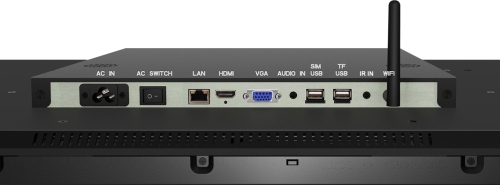

Network Digital menu Boards digital signage screens multiple av connections Network Digital menu Boards digital signage screens multiple av connections
Full Specification
32 Inch - DM32D

Display Area

698.4x393

Unit Size

716.2x415x45.95

Package Size

870x565x170

VESA Holes

400x200

Net Weight

8.6kg

Gross Weight

11.8kg

Power Consumption (w)

38
43 Inch - DM43D

Display Area

941.2x529.4

Unit Size

963.6x557.9x46.1

Package Size

1067x660x163

VESA Holes

400x200

Net Weight

11.25kg

Gross Weight

15.2kg

Power Consumption (w)

45
50 Inch - DM50D

Display Area

1073.8x604

Unit Size

1090.4x621.3x56.9

Package Size

1238x760x195

VESA Holes

400x400/400x200

Net Weight

23kg

Gross Weight

28.9kg

Power Consumption (w)

55

Bezel Size (mm)

8.3
55 Inch - DM55D

Display Area

1209.6x680.4

Unit Size

1232x708.9x50.4

Package Size

1380x835x195

VESA Holes

400x200

Net Weight

18kg

Gross Weight

25.95kg

Power Consumption (w)

65
Panel

Resolution

1920x1080

Aspect Ratio

16:9

Brightness (cd/m²)

450

Colour

16.7M

Viewing Angle

178°

Contrast Ratio

4000:1
AV Inputs

Video

HDMI, VGA

Audio

Audio Socket (3.5mm)

Speaker Type

5W, 8Ω (x2)
Environmental

Operating Temperature

0°C to 50°C

Storage Temperature

-30°C to 60°C

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%
Computer

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

1920x1080/1080x1920

CPU

Quad-Core ARM Cortex A17, 1.6GHz

GPU

Quad-Core ARM Mali-T764

RAM

DDR3 2GB

USB

1 x USB (OTG/HOST), 1 x USB (HOST)

LAN

100M/1000M Ethernet (Network Version Only)

Wi-Fi

802.11b/g/n (Network version screen only)

OS

Android 7.1

Graphic Engine

OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1
Accessories

Included

Scheduling Software, Remote Control, User Manual

Optional

Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand
Videos

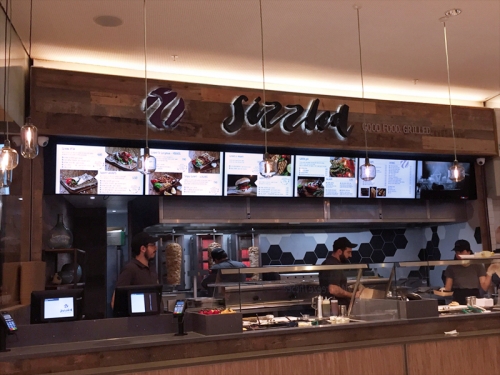

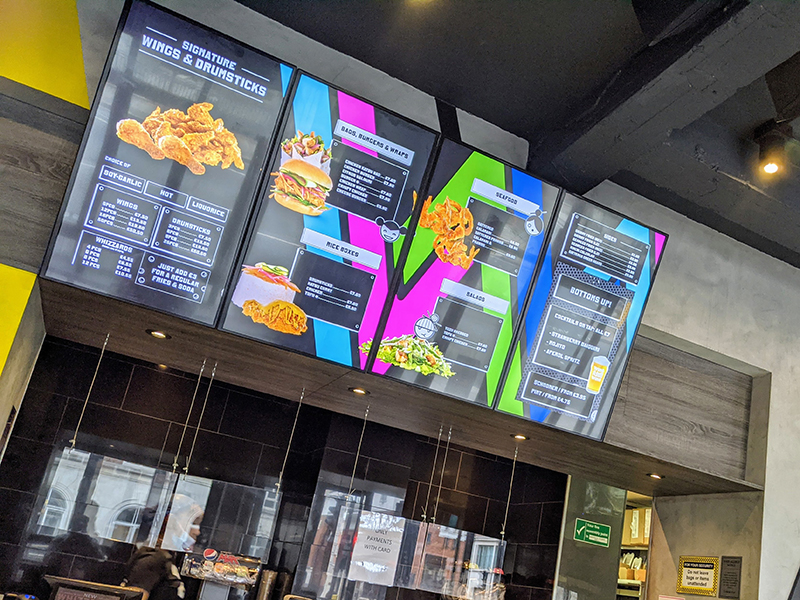

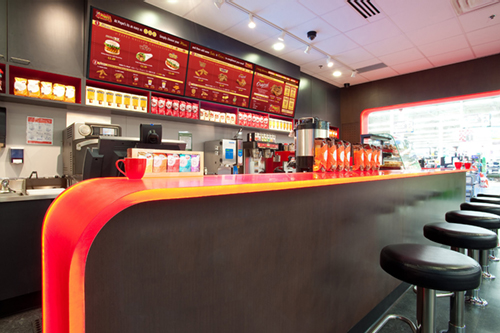

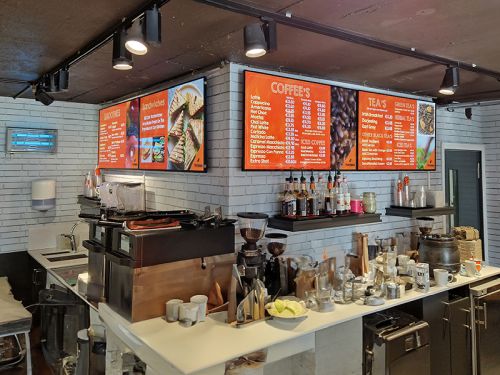

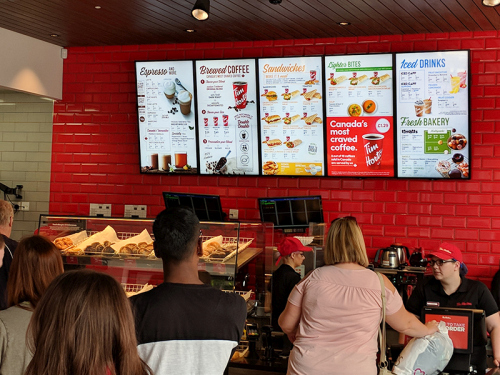

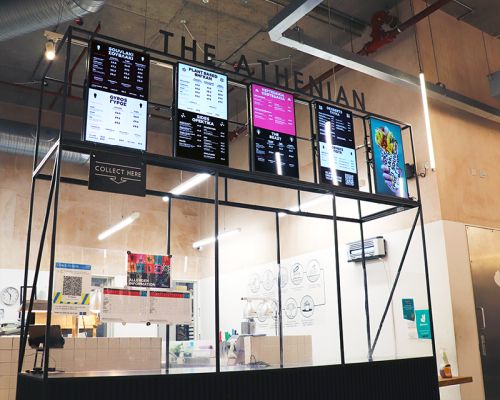

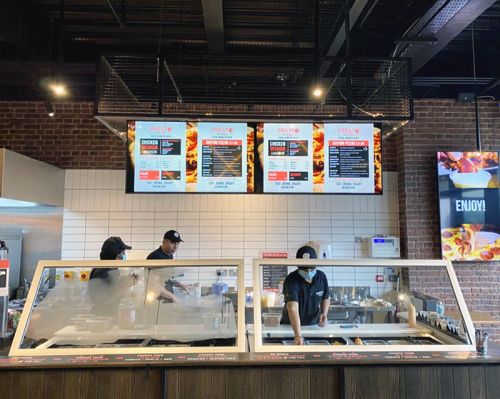

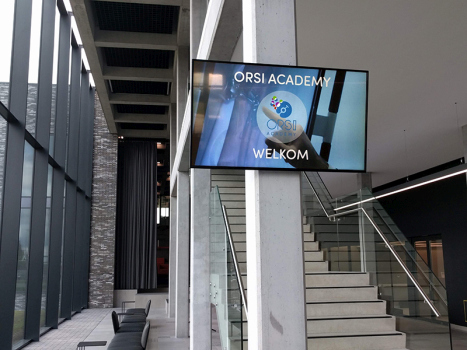

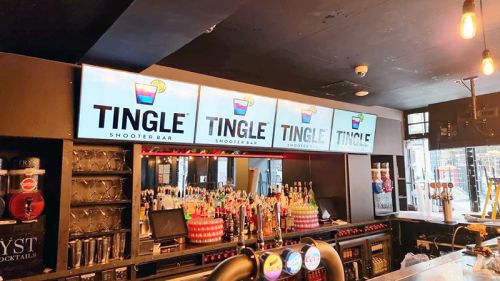

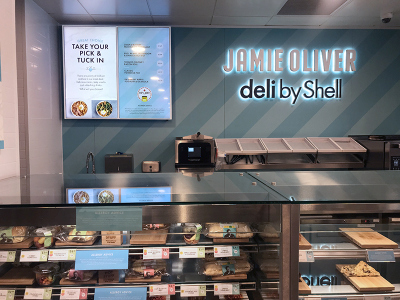

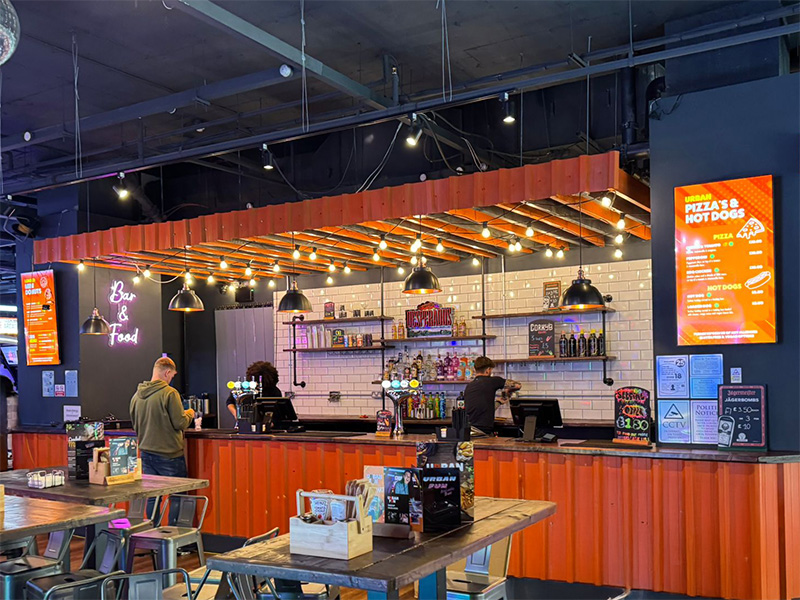

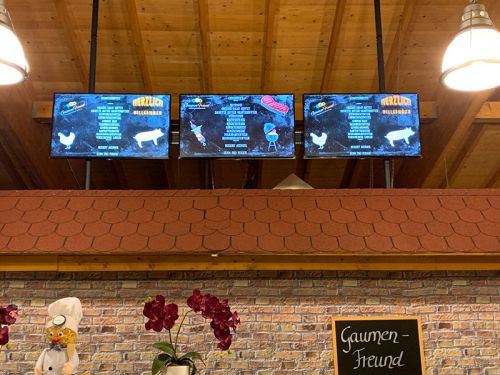

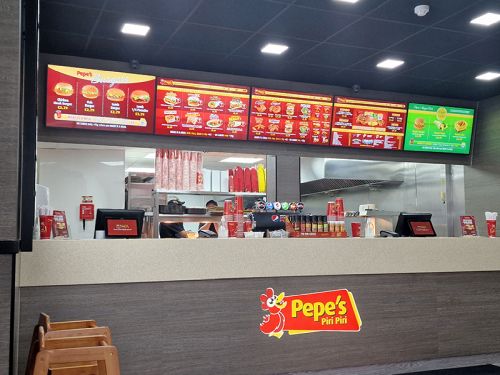

Case Studies
