33 Inch Square Professional Advertising Displays

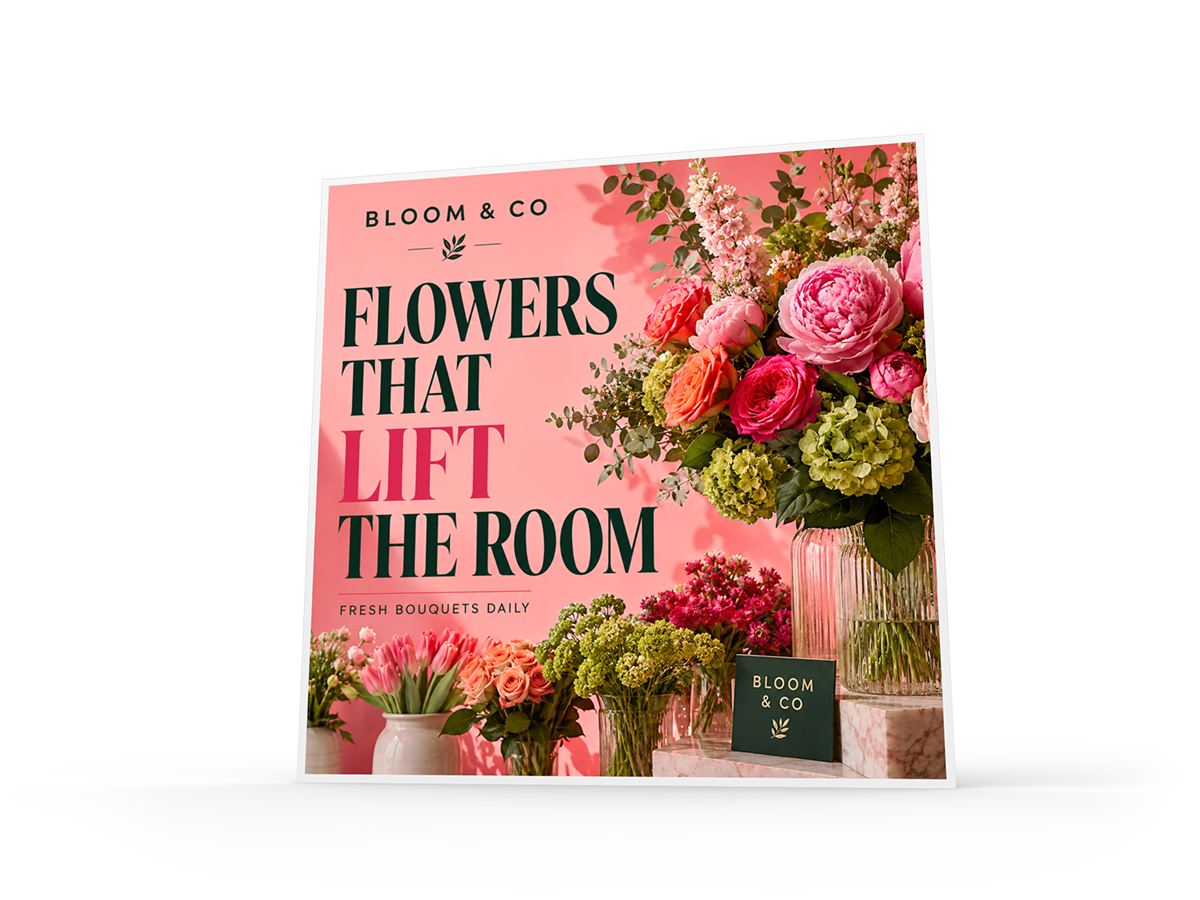

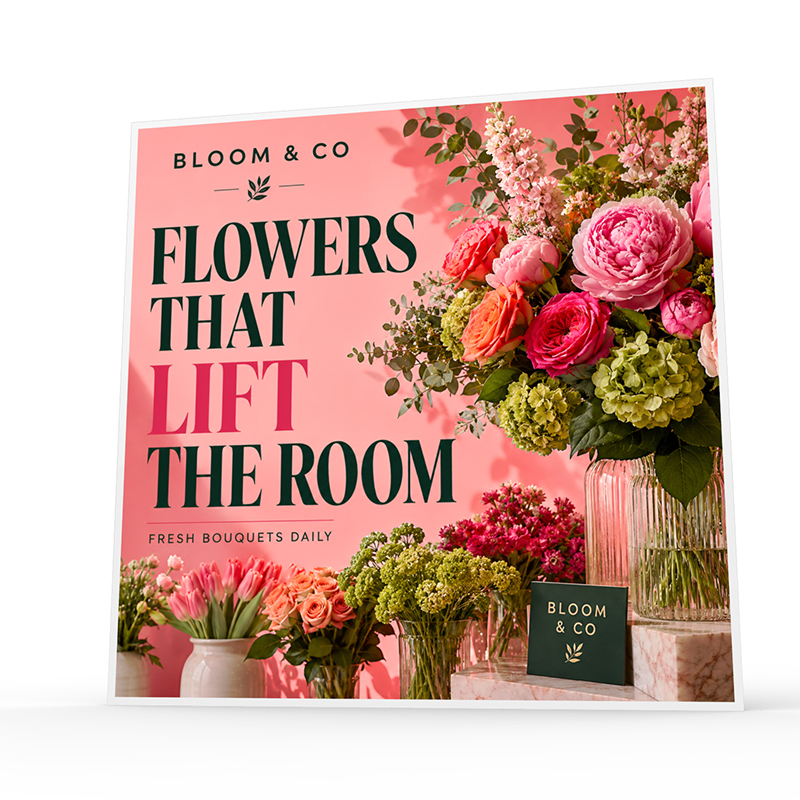

Striking Square Aspect Ratio

The unconventional square format immediately draws attention, offering a unique layout that stands out from standard landscape and portrait displays. Perfect for square content, it enables more balanced and visually engaging compositions that make any installation impossible to miss.

Precision Picture Calibration

Each display panel is professionally calibrated for picture quality, optimising key visual characteristics including colour accuracy, white balance, brightness, contrast and gamma to deliver consistently accurate, true-to-life images.

Anti-Glare Panel

The anti-glare coated panel reduces reflections and ambient light interference, ensuring consistently clear visibility and improved readability across bright public environments.

Beyond HD

Featuring a 1920 × 1920 resolution, the display delivers a pixel density that exceeds standard Full HD, producing crisp, detailed images optimised for square-format content and close-range viewing environments.

Small Equal Bezels

The ultra-slim, uniform bezels on all sides maximise the viewing area and maintain a clean, modern appearance - ideal for multi-screen video walls or seamless side-by-side installations.

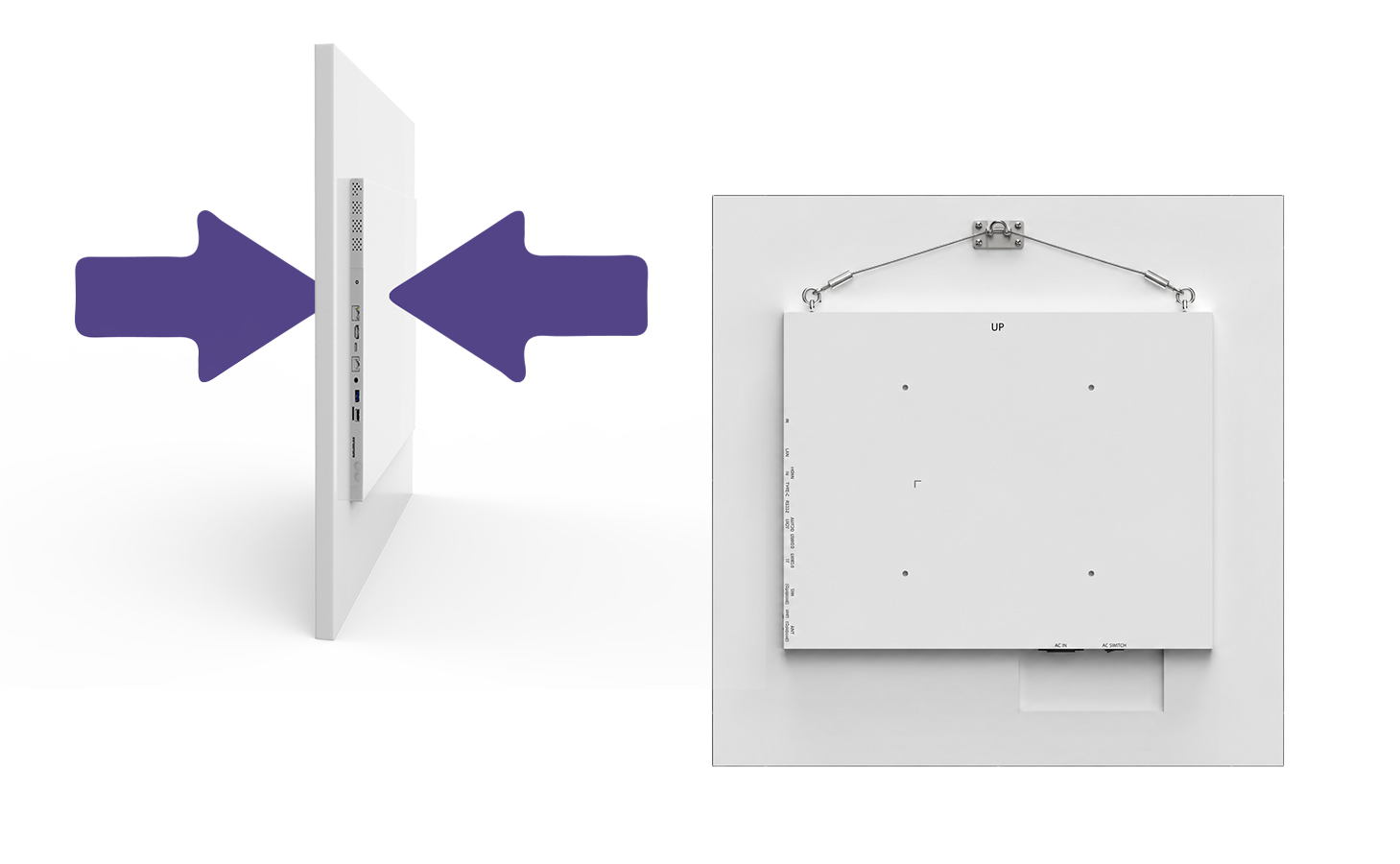

Slim & Lightweight Design

At just 42mm deep and 9.8kg, the super slim and lightweight design makes handling and installation easier for AV integrators, while reducing mounting demands and creating a discreet profile that integrates seamlessly into commercial environments.

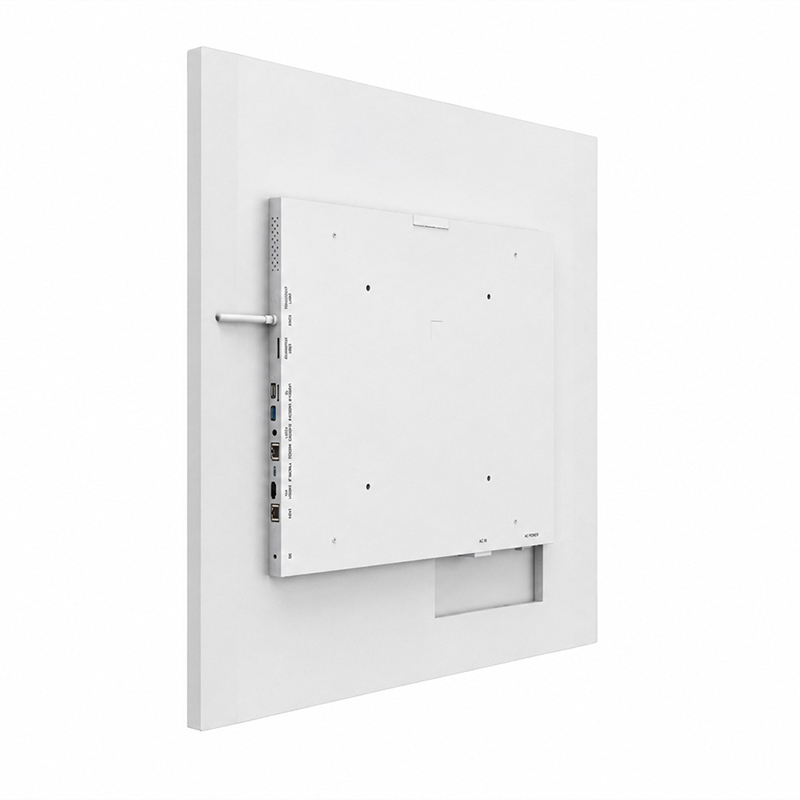

Multiple Mounting Methods

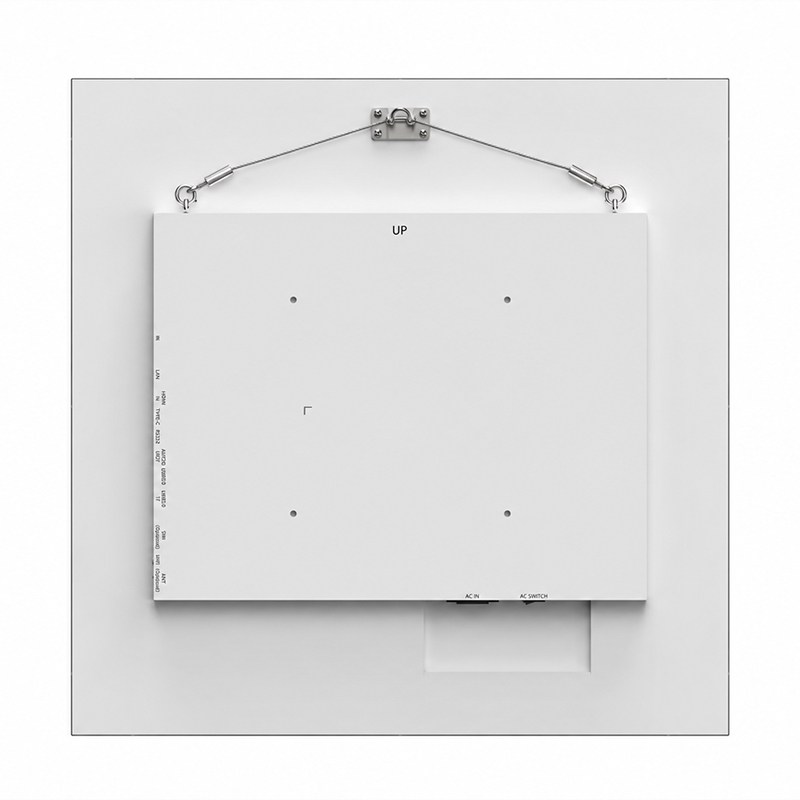

The unique steel cable hanging system offers a quick, secure and flexible mounting solution, opening up new possibilities for creative installations. For more traditional wall mounting, the display also features a standard 200 × 200 VESA mounting pattern.

Integrated Android 14

The integrated Android 14 media player allows for easy updates via the internet and My Signage Portal. With a 25% performance boost compared to previous versions, it also ensures full compatibility with modern applications and improved security.

Instant Remote Updates

With My Signage Portal, users can manage and control content across one or multiple displays from anywhere in the world. Schedule campaigns, update content instantly, and maintain full remote oversight through a simple, online platform.

Built-In Speakers

Take your digital signage solution to the next level by adding an audio element using the two integrated slimline speakers.

Specification

Full Specification

Display - SQ33HD10

Resolution

1920 × 1920 px @ 60 Hz

Display Area

596.1 × 596.1 mm

Aspect Ratio

1:1

Brightness

400 cd/m²

Colour

16.7M (8-bit); 72% NTSC

Haze Level

25%

Viewing Angle

89° / 89° / 89° / 89°

Contrast Ratio

1,000:1

Orientation

Square

Operating Hours

24/7 Commercial Use

System & Performance

CPU

RK3568 64bit Cortex-A55 Quad @2GHz

GPU

Mali-G52 MP2

Graphics API Support

OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1

Operating System

Android 14

RAM

4 GB

Storage

64 GB

Media Format

Supports FHD 60FPS H.264/H.265 video decoding

LAN

10/100/1000M RJ45

Wi-Fi

Dual-band 2.4/5 GHz (802.11a/b/g/n/ac)

Bluetooth

5.0

Optional 4G Module

1 × SIM Slot (optional)

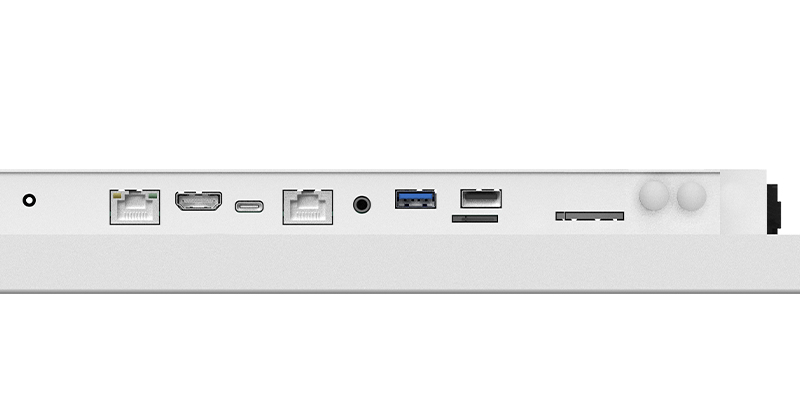

Connectivity & Interface

HDMI

1 × HDMI 2.0 IN

USB

1 × USB 3.0 Type-A; 1 × USB 2.0 Type-A; 1 × USB Type-C (OTG only)

RS232

1 × RJ45 (Serial Control)

Ethernet

1 × RJ45 (10/100/1000M)

Audio Out

1 × 3.5mm Audio Out

Expansion Slot

1 × Micro SD

Power Input

1 × IEC C6 (Cloverleaf)

Switch

1 × Power Switch

Speakers

2W 8Ω × 2

4G Module (Optional)

1 × SIM In

Power, Dimensions & Weight

Power Supply

AC 100-240 V, 50/60 Hz

Power Consumption

55 W

Standby Power

≤0.5 W

Unit Size (W × H × D)

615.3 × 615.3 × 42 mm

Package Size (W × H × D)

760 × 760 × 110 mm

VESA Pattern

200 × 200 mm; M6, 6 mm

Net Weight

9.8 kg

Gross Weight

12 kg

Environmental

Operating Temperature

0°C to 40°C

Storage Temperature

-10°C to 55°C

Operating Humidity

10% to 80%

Storage Humidity

10% to 80%

Accessories & Support

Included Accessories

Cloverleaf Power Lead (1.8m); Remote Control + Batteries; Hanging Wire; User Manual (QR Code x2); Quick Start Guide

Optional Accessories

Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand, Wooden Frame (Black, Walnut or White)

Warranty Period

3 Years

Technical Support

Lifetime

SQ33HD10 data sheet v1.0. Errors and omissions excepted.
