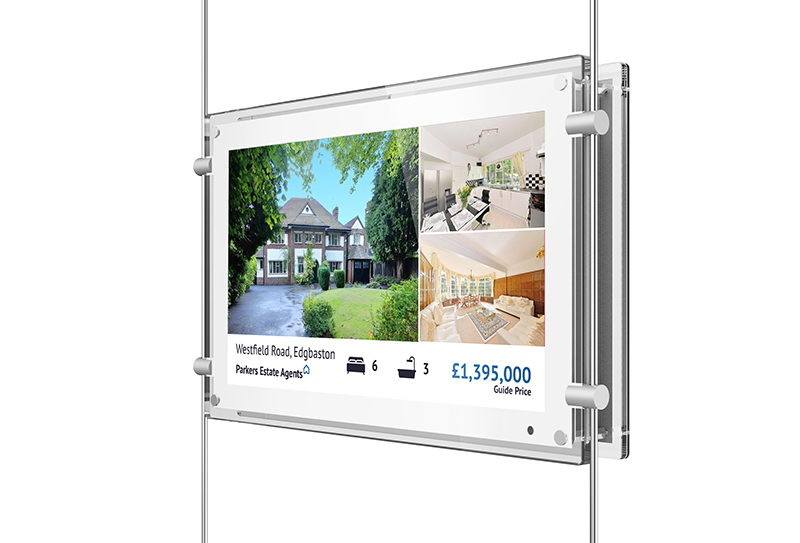

15” Digital Rod Displays
Rod Powered
Rod Powered Displays
Sunlight Readable
Sunlight Readable
LED Frame
Illuminated LED Frame
Rear Graphic Pocket
Rear Graphic Pocket
Android Media Player
Android Media Player
Plug and Play
Plug and Play
24/7 Usage
24/7 Usage

Network Upgrade
Network Upgrade
Wide Viewing Angle
Wide Viewing Angle
Multi-Screen Synchronisation
Multi-Screen Synchronisation
Integrated Speakers
Integrated Speakers
Full HD
Full HD
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3 Years Warranty
Plug and Play
Plug and Play
The Digital Rod Displays come with a built in HD media player, allowing you to update them using a USB memory stick. Load your pictures and videos onto a USB memory stick then insert it into the display, which will copy the files into its internal flash memory. Once you remove the memory stick the screen will then start playing the pictures and videos in a continuous loop.
light pocket
Digital Light Pockets

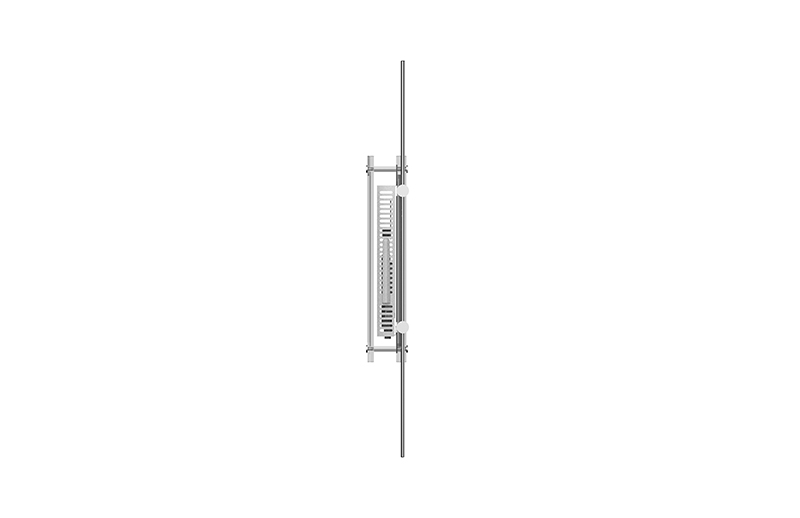

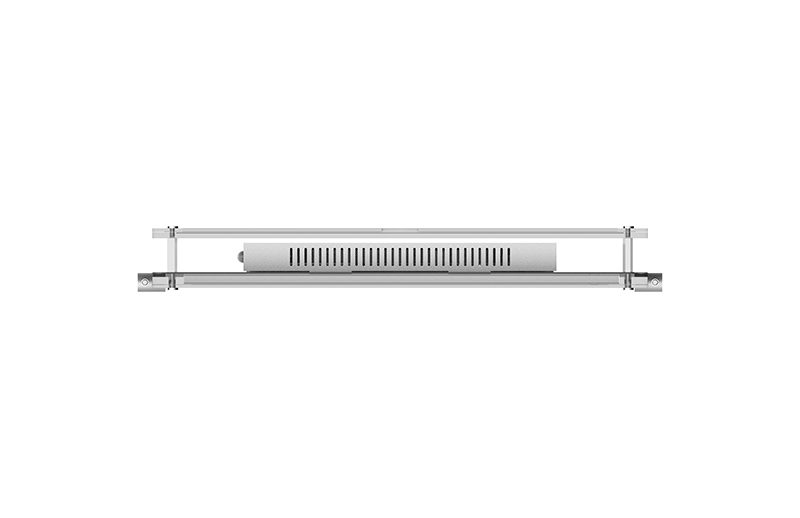

Rod Power
Rod Powered Displays
No mains cable is required to provide power as these innovative screens are powered via the rods on which they are mounted. Achieve a clean and seamless installation with no cables whatsoever for a modern and sleek feel.
Sunlight
1,000cd/m² Brightness
Digital Rod Display

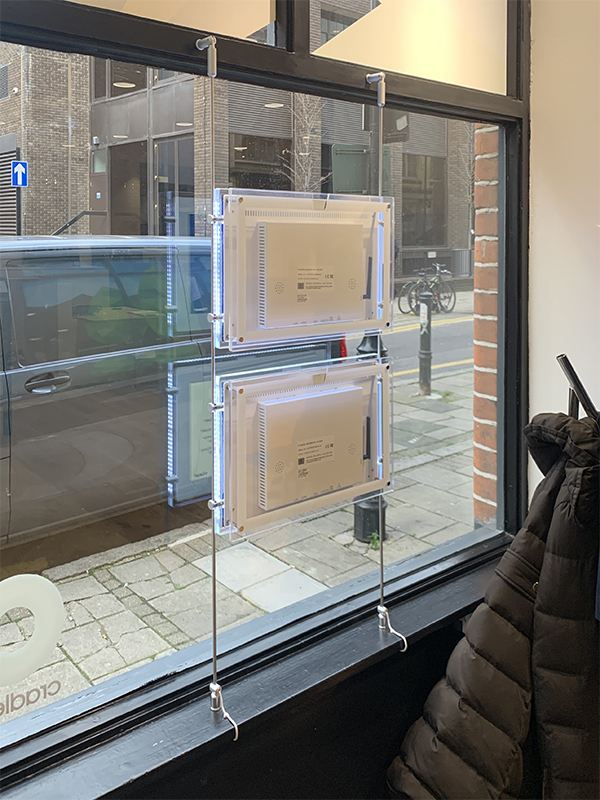

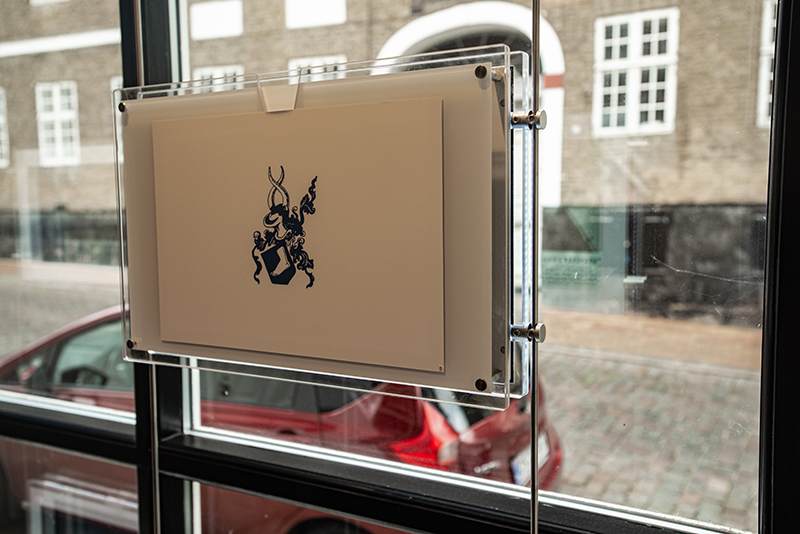

rear graphics
Rear Graphics Pocket

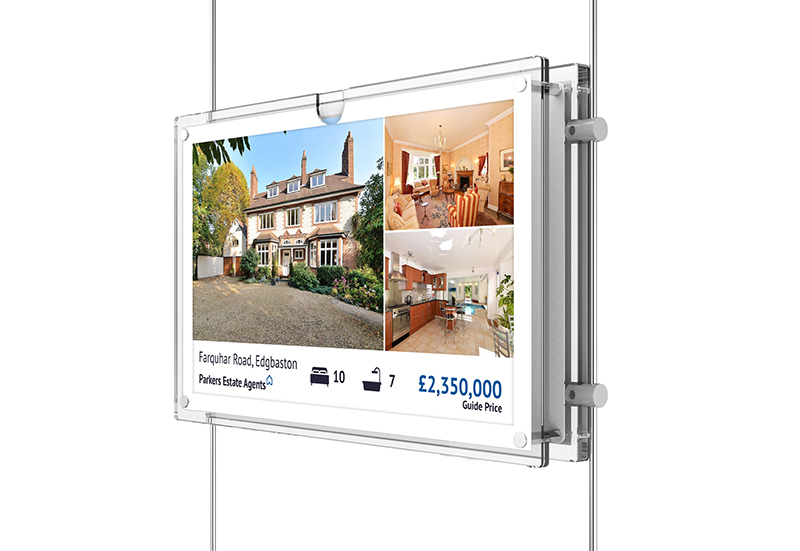

On the rear of the Digital Rod Displays there is a pocket that a printed graphic can be inserted into to really maximise on the space used. This can be removed if necessary but comes as standard at no extra cost.

LED Frame
LED Frame

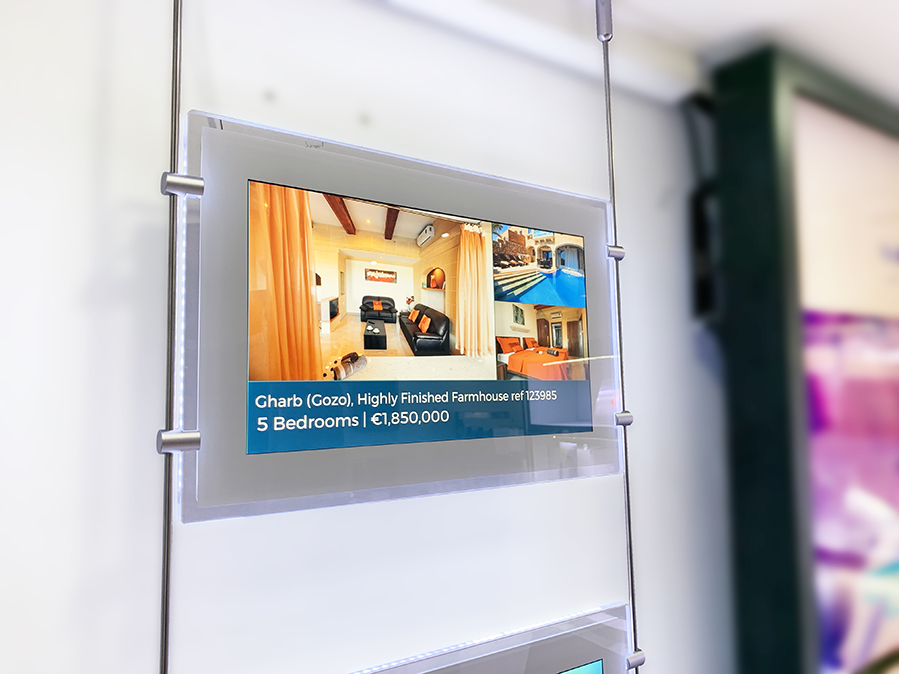

The Digital Rod Displays have an attractive LED illuminated bevelled edge to compliment traditional static light pockets seamlessly.

Android Media Player
Android Media Player
There is an integrated Android media player inside the screen allowing you to upgrade to a network version without needing any additional hardware. You can also install third party Android apps if required.

Network Upgrade - Wifi
Network Upgrade

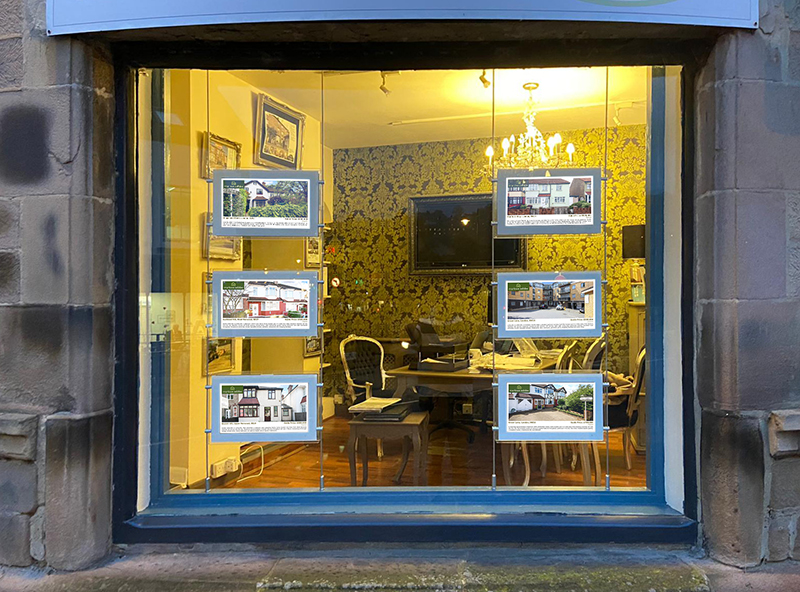

sync displays
Synchronise Media Player

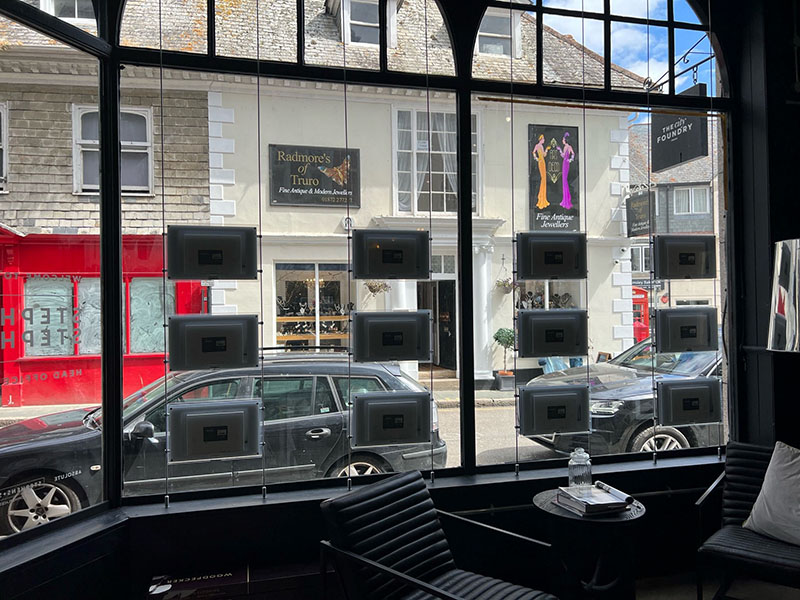

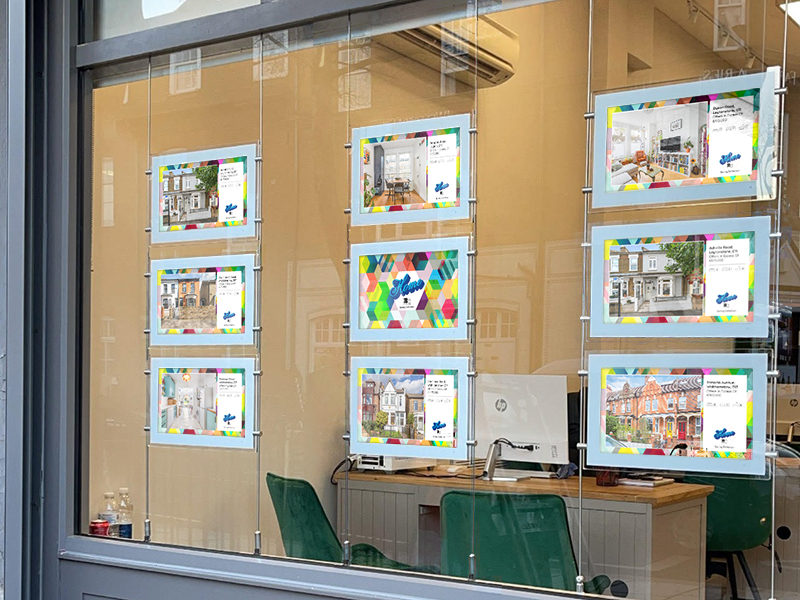

Synchronise your content across multiple Digital Rod Displays in the same window display. You can achieve the effect of one large image or video across multiple screens or have content playing and transitioning in perfect unison.

syncronised digital rod displays
Full Specification
Panel

Screen Size

15"

Resolution

1920x1080

Display Area

344x193.5

Aspect Ratio

16:9

Brightness (cd/m²)

1,000

Colour

16.7M

Viewing Angle

178°

Contrast Ratio

5000:1
Audio

Speaker Type

5W, 8Ω (x2)

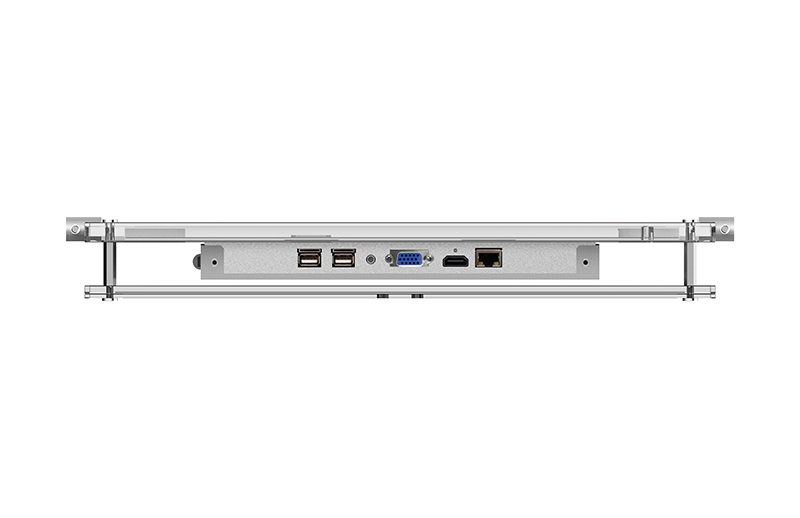

AV Inputs

Video

HDMI, VGA

Audio

Audio Socket (3.5mm)
Power

Power Consumption (W)

16

Input Voltage (with transformer)

12V (DC)
Mechanical

Unit Size (WxHxD mm)

430x280x49.2* Includes Rear Graphics Pocket

Package Size (WxHxD mm)

348x489x121.5

Net Weight (kg)

3.8

Gross Weight (kg)

5.2
Environmental

Operating Temperature

0°C to 50°C

Storage Temperature

-30°C to 60°C

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%
Computer

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

1920x1080/1080x1920

Internal Memory

6GB

CPU

Quad-Core Cortex-A17@1.61GHz

GPU

Mali-T760 MP4 @600MHz

RAM

2GB DDR3

ROM

8GB NAND

USB

USB2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11b/g/n (Network version screen only)

OS

Android 5.1.1

Graphic Engine

OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1
Accessories

Included

Scheduling Software, Remote Control, User Manual

Optional

Network Upgrade
