Mirror PCAP Touch Screen with Dual OS (50") Other sizes available on request

  • Mirror PCAP Touch Screen
  • Mirror PCAP Touch Screen
  • Mirror PCAP Touch Screen
  • Mirror PCAP Touch Screen
  • Mirror PCAP Touch Screen
  • Mirror PCAP Touch Screen
  • Mirror PCAP Touch Screen
LCD video wall displays digital signage advertising product feaure icons Mirror screen Dual operating Systems landscape or portrait multiple av inputs and outputs Ten Touch Points PCAP Touch 24.7 Commercial Grade Speakers IPS Panel lifetime technical support three year warranty

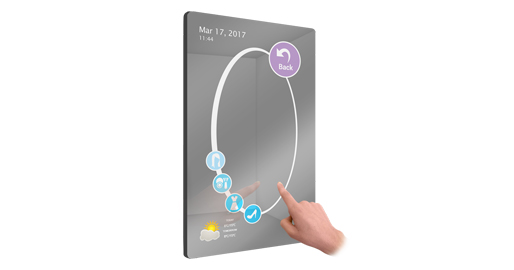

Interactive Mirror

Add some magic to your Touch Screen with our Mirror PCAP Touch Screens. The stunning display is sure to create an impression on users as they interact with the mirror! Suitable for a wide range of applications from fitting rooms, retail stores, from hotels to parties the list of possibilities is endless with such a unique display like this. With a brightness of 450cd/m2 the screen is perfectly calibrated so content in white shines bright for users and areas left in black are reflective.Mirror PCAP Touch Screens

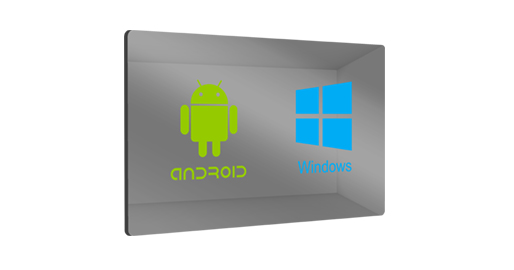

Dual OS

Experience the most versatile commercial touch screen on the market. With both Android and Windows operating systems installed on the integrated PC it cannot be beaten on flexibility. Easily switch from Windows to Android; this screen has it all in one convenient package. A Windows license will need to be purchased separately.PCAP with Dual Android Windows OS

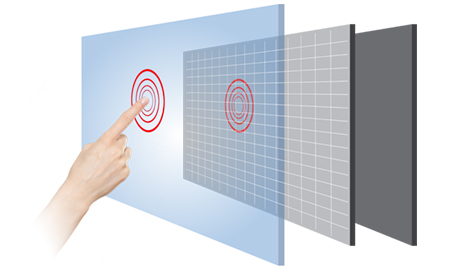

PCAP Touch

State of the art Projected Capacitive interactive technology offers the most responsive and sensitive touch experience available. Designed for commercial applications, PCAP touch technology works by fixing a sensor grid between a layer of cover glass and the LCD panel, when a finger touches the glass the grid detects the coordinates of the touch point. Unlike other touch technologies PCAP is not affected by dust or debris on the screen surface, allows for up to 10 touch points and offers superior optical quality.PCAP Touch Screen

10 Point Touch

Having up to 10 touch points allows for a wider variety of applications than ever before. This kind of functionality allows you to manipulate images, zoom in an out as well as perform many other touch gestures; much like you would with a domestic tablet. It also allows for multiple users interacting with the screen at one time.Touch Screen 10 touch points

LED Backlight

The LED backlight used is not only eco-friendly but also ensures the display has enhanced brightness and contrast. This technology increases the lifespan and reduces the power consumption by around 30%. This form of light technology is mercury free; safeguarding this screen’s eco friendliness. Touch Screen LED backlight

24/7 Usage

Built with commercial grade panel and components these displays are designed to run 24/7 in constant use; unlike domestic tablets. The panel also has a lifespan of over 50,000 hours of continuous use. They can also be used in landscape or portrait orientation.24/7 Touch Screen

Attach External Devices

Although the screens have an integrated PC with two operating systems, there is also a possibility to attach external devices if required. Simply connect your device to the screen, via VGA or HDMI (for the video signal) and USB (for the touch functionality). The screen will then serve as your computer monitor and the touch functionality controls the cursor, essentially acting as your mouse. Touch Screen external devices

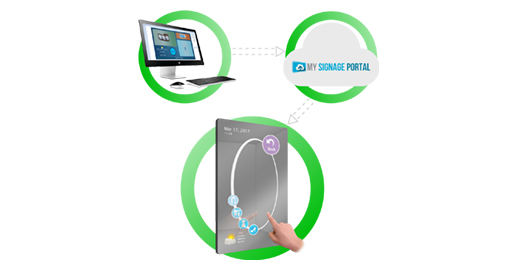

Touch CMS

The Mirror PCAP Touch Screen can be used as a touch monitor if you connect your own PC or you can run your own touch software from the integrated Dual OS PC board with Windows and Android. However you can use our ground breaking new Touch Cloud Management System that puts you in control as you create, deploy and touch your very own content on screen. First, you create your custom layouts with our user friendly software that requires no knowledge of coding to use. Then deploy the content from your PC direct to your Touch Screens in a matter of seconds. Now all that is left to do is touch as you let your content do the talking about your brand, company, service or product.

To learn more about the Touch CMS. Please click here
seamless video wall ultra narrow bezel
Product Code MAO50E2
Diagonal Size (inch) 50"
Resolution 1920x1080
Display Area (mm) 1076x606
Pixel Pitch (HxW mm) 0.576x 0.576
Aspect Ratio 16:9
Unit Size (WxHxD mm) 1186.6x716.6x65
Package Size (WxHxD mm) 1320x850x260
VESA Holes (mm) 400x200
Net Weight (Kg) 30.6
Gross Weight (Kg) 36.65
Brightness (cd/m2) 450
Colour 16.7M
Viewing Angle 178°
Contrast Ratio 5000:1
Input Voltage AC110~240V (50Hz~60Hz)
Working Temperature 0°C to 50°C
AV Signal Inputs VGA, HDMI
CPU Intel® Atom™ (Quad-core) x5-Z8350 Processor (2M Cache, up to 1.92 GHz)
RAM 4GB (DDR3L-RS 1600MHz)
Instruction Set 64-bit
Graphic Engine Intel® HD Graphics 400 (8th Gen, Supports DirectX11.2, OpenGL4.4 and OpenCL 2.0)
Hard Drive/Internal Memory (eMMC) 64GB
USB 2 x USB 2.0
LAN 10/100M Ethernet
Wi-Fi 802.11b/g/n
OS Android 5.1.1
Windows® 8 /8.1 64-bit, Windows® 10 64-bit,
Windows 10 IoT Enterprise 64bit (licence purchased separately)
Other No accessible buttons or controls
Accessories Remote Control, User Manual, Power Cable, USB to USB Cable, Wi-Fi Aerial
