Ultra-Wide Stretched Bar Displays
28" and 37" Ultra Wide Stretched Bar Displays
Wide Aspect Ratio
Ultra-Wide Aspect Ratio
IPS Panel
High Brightness
Narrow Bezel
Narrow Bezel
light
Streamlined Enclosure
HD Display
Clear HD Resolution
android media player
Android Media Player
Synchronise Multiple Displays
Synchronise Multiple Displays*

24/7 Commercial Grade
24/7 Commercial Grade
IPS Panel
IPS Panel
Free Network Upgrade
Free Network Upgrade
Connect Devices
Connect Devices
Free Wall Mount
Free Wall Mount
other sizes
Other Sizes Available
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3-Year Warranty
*28" Model Only
Perfect as a banner-style endcap display in retail stores and supermarkets
shelf edge display
Versatile Retail Solution
sync displays
Synchronise Multiple Displays
The multi-screen synchronisation function allows you to place multiple displays side-by-side and run attention-grabbing content seamlessly across the entire promotional endcap.

*28" Model Only
ultra wide stretched bar
bezel
Streamlined Enclosure
Designed to maximise the impact of content, these displays feature a sleek, narrow bezel. This is especially important when placing multiple screens together. The compact design also adds to the aesthetic and reduces strain on shelf edges.

sunlight readable
High Brightness
Ideal for brightly-lit retail spaces, these displays feature 700cd/m² (28” model) and 1,000 cd/m² (37” model) commercial grade high brightness panels – certain to make your content really stand out.

ips panel
IPS Panel
Ideal for portrait use, commercial grade IPS panels guarantee incredible image quality and colour depth at an ultra-wide viewing angle in any direction without any fall-off in colour accuracy.

shelf edge display
high definition
Clear HD Resolution
Unlike DV-LED stretched displays, this solution uses a full HD LCD panel to provide a clear image and fine details. This high resolution is essential to be able to read text at close proximity and also produces the best results when showing video.

cms
Free Network Upgrade
These displays come with a free upgrade to unlock network CMS functionality. The built-in Android media player also allows you to easily update the screen via USB plug and play or using third-party software if necessary.

24/7 usage
24/7 Commercial Grade
Designed for supermarkets and other retail spaces, these displays utilise a commercial grade LCD panel, LED backlight and internal components. This means they can run constantly 24/7 for over 70,000 hours.

inputs
Multiple Inputs
If you need to use the screen as a monitor, you can connect it to an external source, such as a third-party PC or media player, using the HDMI or VGA and 3.5mm audio jack inputs.

multiple media zones
multiple media zones
Multiple Media Zones
58:9 Ultra-Wide Stretched Bar Monitors
Wide Aspect Ratio
Ultra-Wide Aspect Ratio
4k Display
Clear 4k Resolution
integrated speakers
Integrated Speakers
rs-232 control
RS-232 Control
Synchronise Multiple Displays
Synchronise Multiple Displays

24/7 Commercial Grade
24/7 Commercial Grade
Free Wall Mount
Free Wall Mount
android media player
Optional Android Media Player
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3-Year Warranty
Colossal display with unique aspect ratio that is guaranteed to grab attention and is ideal for unconventional spaces
4k displays
4K Resolution (3,840 x 600)
Unlike custom DV-LED stretched displays, this solution uses a 4K LCD panel to provide a clear image and fine details. This high resolution is essential to be able to read text at close proximity and also produces the crystal clear results when showing video.

tiled displays
Tiled Displays
Once connected to an external source you can tile the picture across multiple wide stretched monitors to create eye catching displays.

android media player
Optional Android Media Player
On the rear of the screen there is space to mount our 4K Android Network Media Player or third-party media player and connect via HDMI, transforming the screen into a full Android solution.

28" and 37" Ultra Wide Stretched Bar Displays
Full Specification

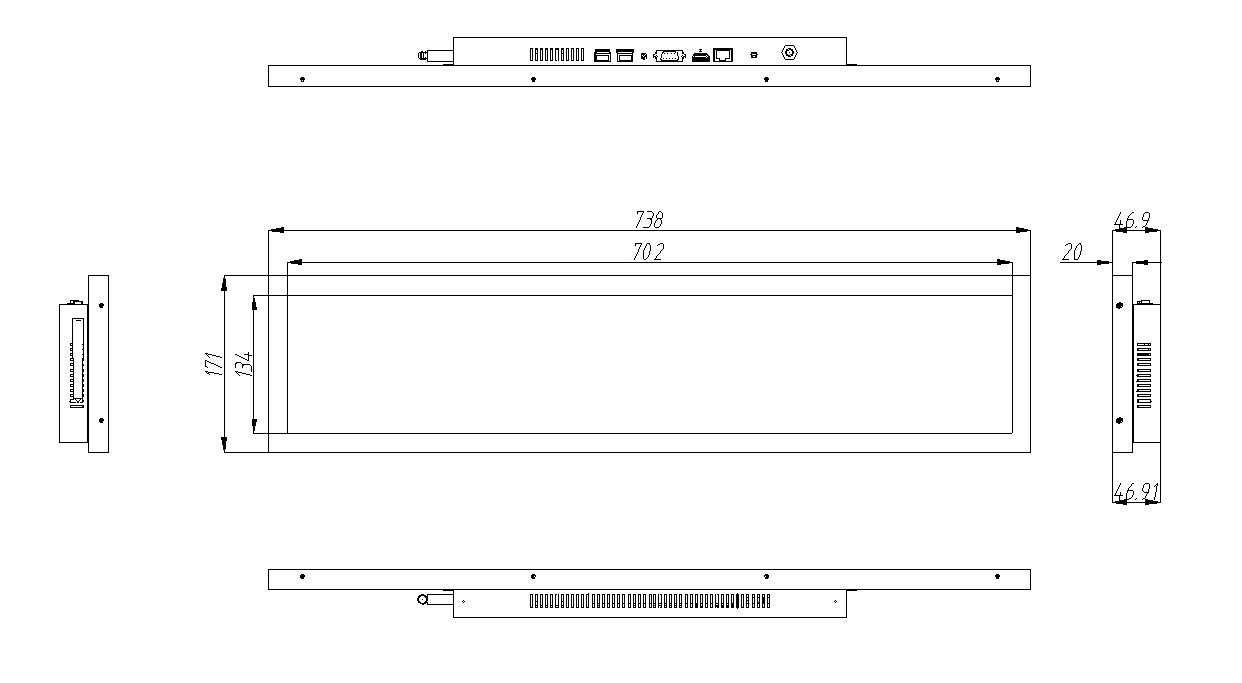

28 Inch - WS28HD8-B

Resolution

1920x360

Display Area

702x134

Aspect Ratio

16:3

Brightness

700cd/m²

Contrast Ratio

1,200:1

Unit Size

738x171x47

Package Size

877.1x308.6x128

VESA Pattern

75x75

Net Weight

5.1Kg

Gross Weight

6.7Kg

Power Consumption (w)

<30
37 Inch - WS37HD8

Resolution

1920x540

Display Area

919.3x259.55

Aspect Ratio

32:9

Brightness

1,000cd/m²

Contrast Ratio

1,000:1

Unit Size

954.5x291.5x51.5

Package Size

1055x390x220

VESA Pattern

100x100

Net Weight

8

Gross Weight

9

Power Consumption (w)

36
Panel

Colour

16.7M

Viewing Angle

89°
AV Inputs

Video

HDMI, VGA

Audio

Audio Socket (3.5mm)
Environmental

Operating Temperature

0°C to 40°C

Storage Temperature

-10°C to 60°C

Operating Humidity

10% to 85%

Storage Humidity

5% to 95%
Computer

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

CPU

Quad-Core ARM Cortex A17, 1.6GHz

GPU

Quad-Core ARM Mali-T764

RAM

DDR3 2GB

Internal Storage

8GB eMMC

USB

1 x USB (OTG/HOST), 1 x USB (HOST)

LAN

100M/1000M Ethernet (Network Version Only)

Wi-Fi

802.11b/g/n (Network version screen only)

Bluetooth

Bluetooth 4.0

OS

Android 7.1

Graphic Engine

OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1
Accessories

Included

Scheduling Software, Remote Control, User Manual, Wall Mount

Optional

Network Upgrade, Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand
58:9 Ultra-Wide Stretched Bar Monitors
Full Specification
WS76M
Panel

Resolution

3840x600

Display Area (mm)

1895x296

Aspect Ratio

58:9

Brightness (cd/m2)

500

Colour

1.07B

Viewing Angle

89°

Contrast Ratio

1,200:1
Panel

Colour

16.7M

Viewing Angle

89°
AV Ports

Ports

HDMI In, HDMI Out, RS-232 In, RS-232 Out, USB
Audio

Speaker Type

2x8Ω5W
Power

Power Consumption (W)

177

Input Voltage

AC110~240V (50Hz~60Hz)
Mechanical

Unit Size (WxHxD mm)

1926.9x326.9x77.5

Package Size (WxHxD mm)

2060x460x220

VESA Holes (mm)

600x250 M6

Net Weight (Kg)

23.2

Gross Weight (Kg)

28.65
Environmental

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 60°C

Operating Humidity

10% to 85%

Storage Humidity

5% to 95%
Accessories

Included

Remote Control, User Manual, Wall Mount

Optional

4K Android Media Player
