Outdoor Digital Advertising Displays
2500cd/m2
2500cd/m2
Weather Proof
Weather Proof
Vandal Proof
Vandal Proof
temperature control system
Smart Tempaerature Control System
steel enclosure
Steel Enclosure
Anti Glare Glass
Anti Glare Glass
Wide Viewing Angle
Wide Viewing Angle

24/7 Usage
24/7 Usage
Plug and Play
Plug and Play
Network product
Network Upgrade Available
pcap touch
Touch Upgrade Available
Free Wall Mount
Free Wall Mount
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3 Years Warranty
Sunlight Readable
Sunlight Readable
Brightness is key when using outdoor Digital Signage, our Outdoor Digital Advertising Displays use Ultra High Brightness panels (2,500cd/m²) more than 8 times brighter than a standard LCD panel to allow easy readability in direct sunlight (22 inch model is 2,000cd/m²).

Weatherproof
Weatherproof
Suitable for the harshest of outdoor conditions - designed with a robust, corrosion protected, outer casing to give protection from both the elements and the public. The outer casing has an IP65 rating which means it keeps out all airborne swarf, dust and other particles as well as being protected from any wet weather conditions; broadening the range of possible environments.

Vandal Proof
Vandal Proof
The outer casing of our Outdoor Digital Signage Advertising Displays is made from mild steel as well as having thermally toughened glass. Controls and openings are hidden and not accessible by passersby.

internal air conditioning temperature control
Smart Temperature Control System
Not only are the outdoor Digital Signage displays able to withstand hot and cold surroundings but they are able to manage the internal conditions to maximise the life of your product. Built in air-conditioning can now be tailored to allow the display to work at an optimal level in any climate.

digital signage water proof ip rated
Anti Glare Glass
Anti-Reflective Glass
The glass frontage is also anti-reflective to help defuse direct sunlight shining on the display, improving overall clarity.

Plug and Play
Plug and Play
The Outdoor Digital Advertising Displays come with a built in HD Android media player, allowing you to update them using a USB memory stick. Load your pictures and videos onto a USB memory stick then insert it into the display, which will copy the files into its internal flash memory. Once you remove the memory stick the screen will then start playing the pictures and videos in a continuous loop.

Network product
Optional Network Upgrade
For a small charge you can also upgrade your screen to be networked, allowing you to remotely update your outdoor Digital Signage screen via LAN, WiFi or 3G using our cloud based CMS.

Free Landscape/Portrait Wall Mount
Free Landscape/Portrait Wall Mount

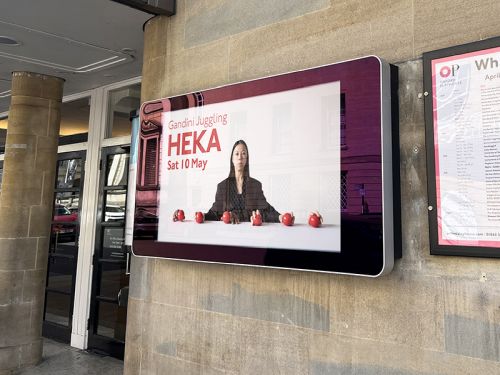

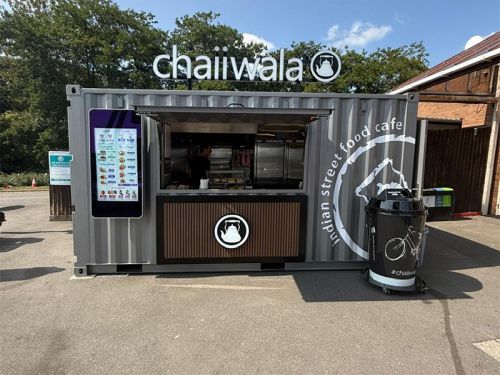

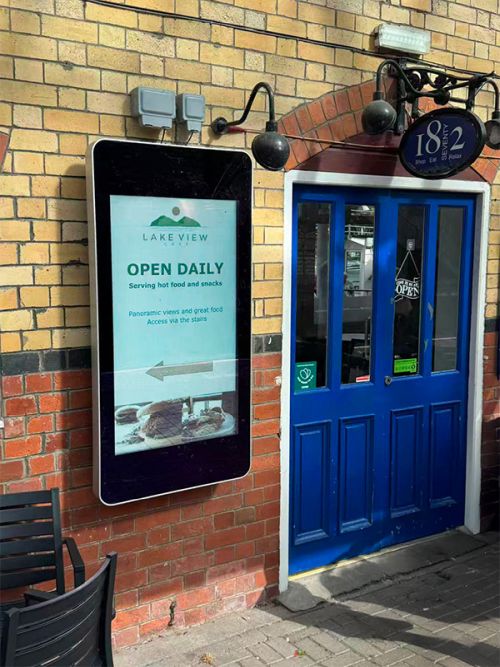

The display can be mounted in either landscape or portrait orientation, depending on the application. We also include a free wall mounting bracket that allows you to install your display in either landscape or portrait orientation and lock it in place.

Internal locker
Third Party Media Player
Should you need to run the screen from another source, such as a small sized third party media player or PC, there is a small secure internal locker in which to place your device.

Touch Screen
Hardware Modification
Optional extras include a touch screen upgrade, a 3G module for wireless updates and a built in camera for user interactivity. Other hardware integration is available on request.

digital signage water proof ip rated digital signage water proof ip rated
Full Specification
22 Inch - OW22D

Display Area

270x477

Unit Size

397x737x120

Brightness cd/m2

2000

Colour

1.06B

Pixel Pitch

0.2537x 0.2537

VESA Holes

350x250

Net Weight

20.05kg

Gross Weight

23.5kg

Power Consumption (w)

130
32 Inch - OW32D

Display Area

396x702

Unit Size

516x1041x130

Colour

1.06B

Pixel Pitch

0.36375x0.36375

VESA Holes

400x300

Net Weight

35kg

Gross Weight

49kg

Power Consumption (w)

190
43 Inch - OW43D

Display Area

526x934

Unit Size

670x1410x140

Colour

16.7M

Pixel Pitch

0.1615x0.4845

VESA Holes

400x400/400x800

Net Weight

52kg

Gross Weight

78kg

Power Consumption (w)

250
49 Inch - OW49D

Display Area

603x1073

Unit Size

746x1500x140

Colour

1.06B

Pixel Pitch

0.565 x 0.565

VESA Holes

500x400/500x800

Net Weight

74kg

Gross Weight

95kg

Power Consumption (w)

300
55 Inch - OW55D

Display Area

684x1215

Unit Size

817x1637x145

Colour

1.073G

Pixel Pitch

0.21x0.63

VESA Holes

600x400/600x800

Net Weight

76.5kg

Gross Weight

94.9kg

Power Consumption (w)

430
65 Inch - OW65D

Display Area

803.5x1428.5

Unit Size

990x1910x140

Colour

1.06B

Pixel Pitch

0.744 x 0.744

VESA Holes

700x400/700x800

Net Weight

95kg

Gross Weight

120kg

Power Consumption (w)

550
Panel

Resolution

1080x1920

Aspect Ratio

16:9

Brightness (cd/m2)

2500*
Excludes 22"

Viewing Angle

178°

Contrast Ratio

8000:1
AV Inputs

Video

HDMI, VGA
Power

Input Voltage

AC110~240V (50Hz~60Hz)
Environmental

Enclosure Protection

IP65

Operating Temperature

-20 °C to 50°C

Operating Humidity

10% - 80%

Storage Temperature

-30 °C to 60°C

Storage Humidity

5% - 90%
Computer

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

1920x1080/1080x1920

Internal Memory

6GB

CPU

Duel-Core Cortex-A9 @1.6GHz

GPU

Mali-400 MP4 @400MHz

RAM

1GB DDR3

ROM

8GB NAND

USB

USB2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11b/g/n (Network version screen only)

OS

Android 4.2.2

Graphic Engine

OpenGL ES 1.1/2.0, OpenVG 1.1
Accessories

Included

AC Power Cable, Remote Control, Wall Mount

Optional

Touch Screen Upgrade, Network Upgrade, Camera
