49" & 55" LCD Video Wall Displays
narrow bezel
Narrow Bezel
Automatic Tiling
Automatic Tiling
Multiple AV Inputs
Multiple AV Inputs

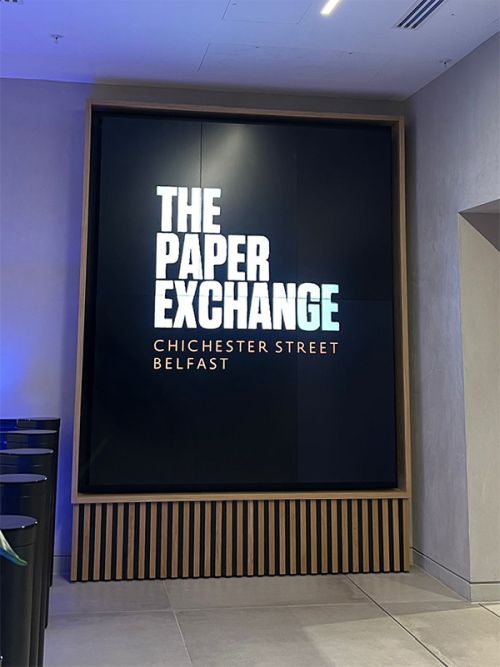

Portrait or Landscape Orientation
Portrait/Landscape Orientation
24/7 Usage
24/7 Usage
Wide Viewing Angle
Wide Viewing Angle
Commercial grade IPS Panel
IPS Commercial Grade Panel

Multiple Configurations
Multiple Configurations
Eco Friendly Power Timer
Eco-Friendly Power Timer
LED Backlight
LED Backlight
temperature control system
Smart Temperature Control System
High Definition
Full High Definition 1080p
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3 Years Warranty
narrow bezel

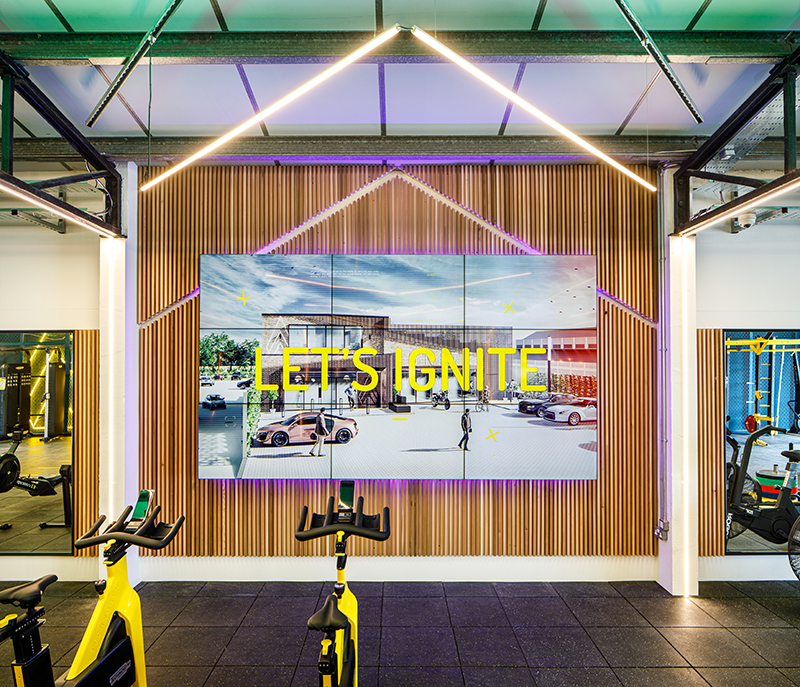

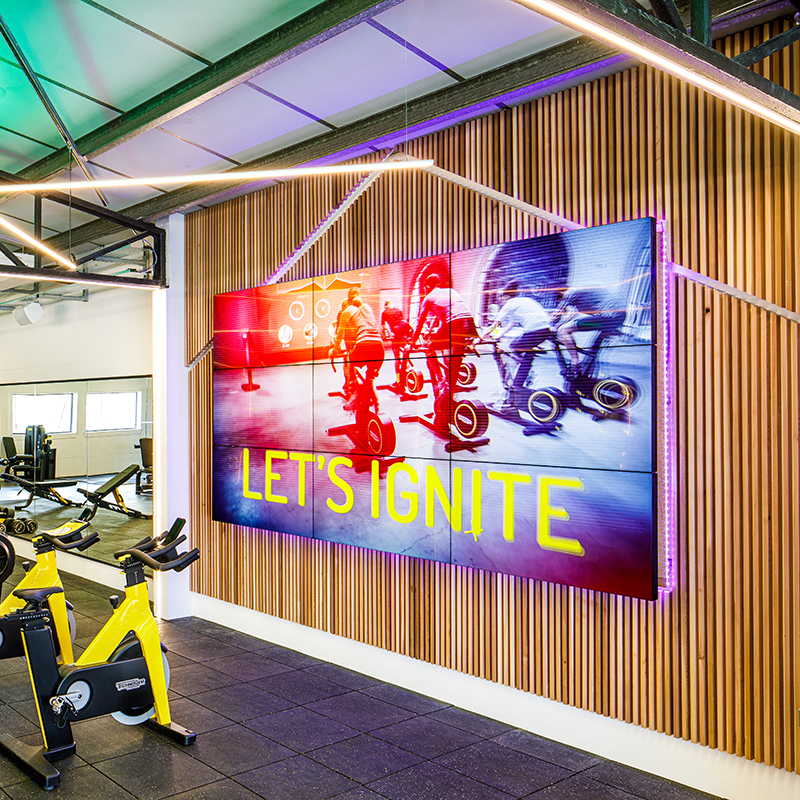

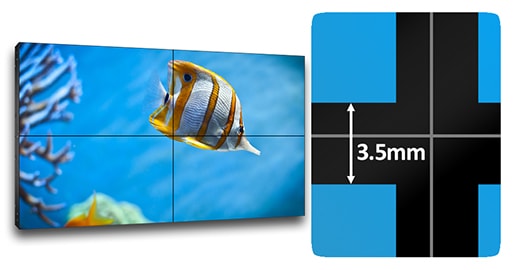

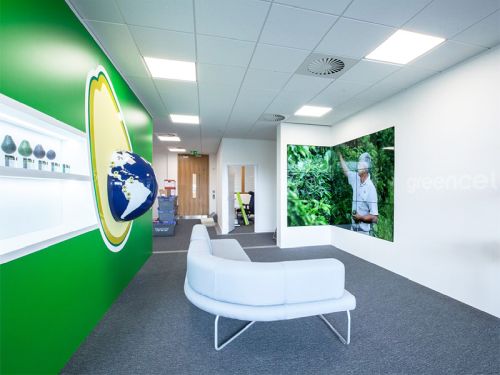

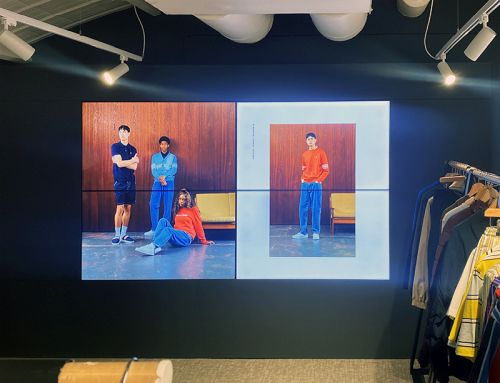

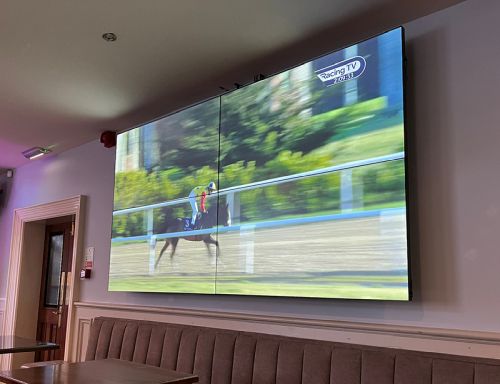

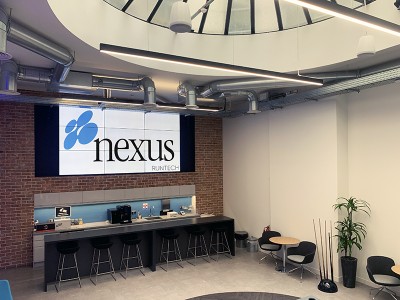

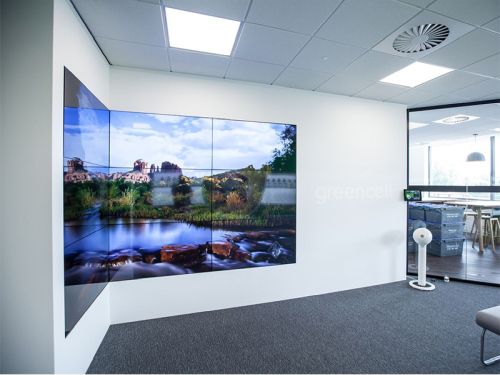

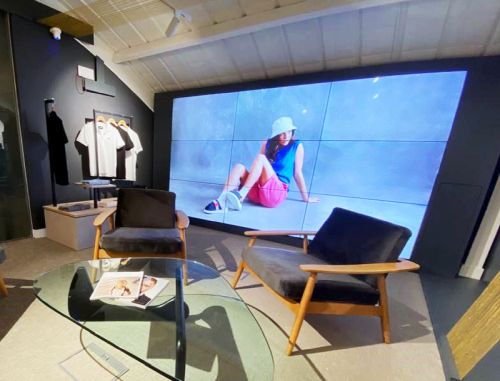

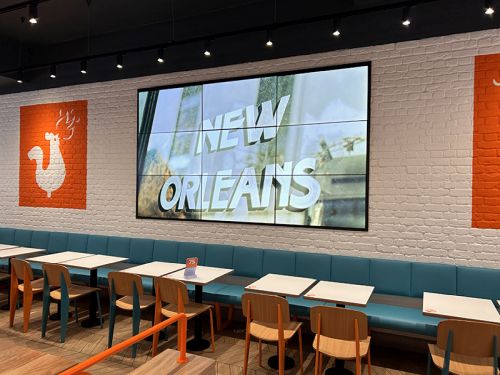

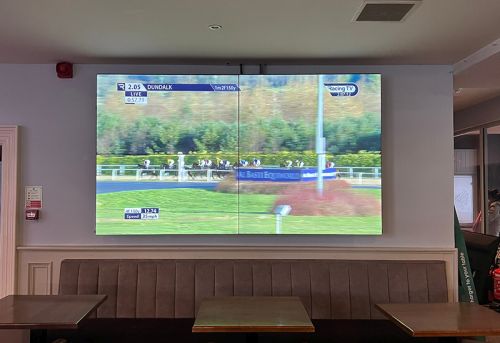

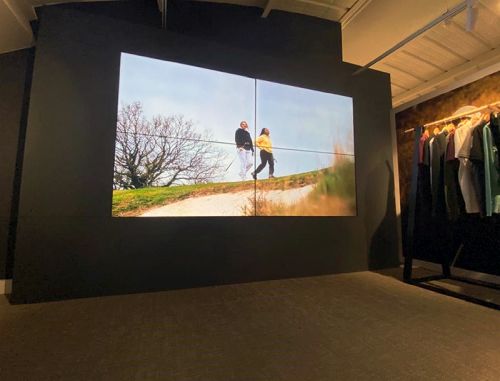

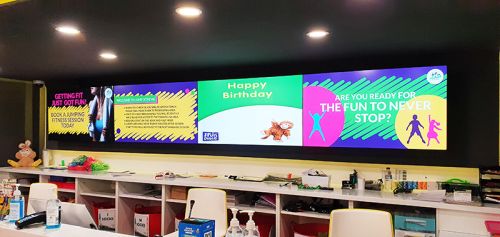

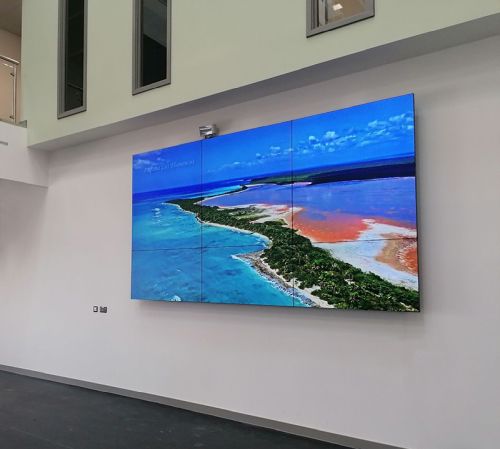

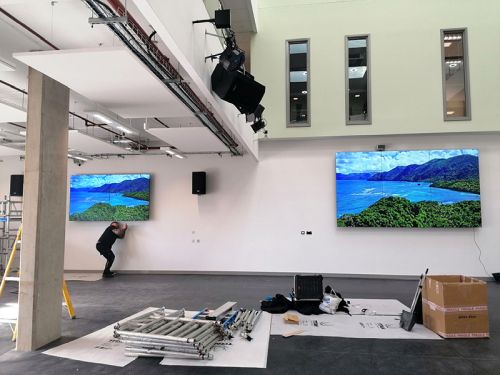

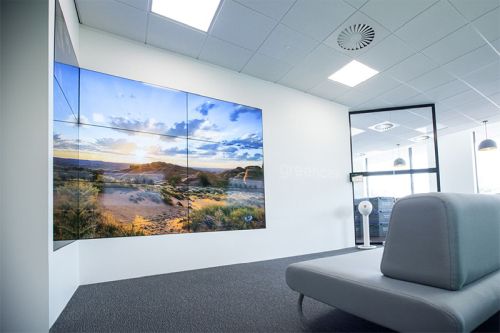

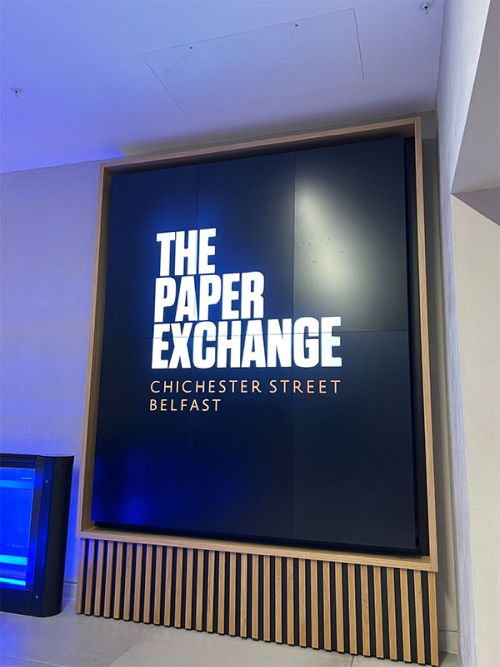

Seamless Video Wall
With a total bezel size of 3.5mm these displays are ideal as part of a virtually seamless LCD Video Wall – providing you with an eye catching, and content focused display. Their super narrow bezel allows you to build video walls of any size.

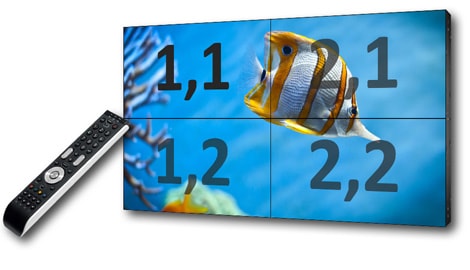

Embedded Video Matrix Processor
Embedded Video Matrix Processor
Our Video Wall Displays can be used independently or as part of a tiled video wall. If you require a video wall with hassle free setup then the units can tile the video signal automatically thanks to their built in video matrix processor. This means the video wall can have any configuration without any additional hardware.

commercial grade ips panel

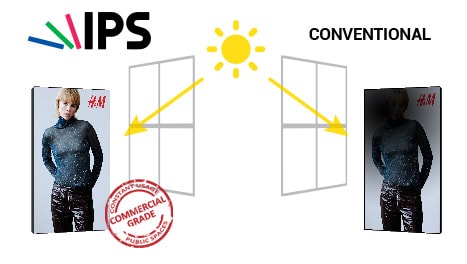

IPS Commercial Grade Panel
Superior colour uniformity, viewing angle and remarkable vibrancy - even when mounted in portrait. Also these panels do not suffer from blackening defect when used as a window display.

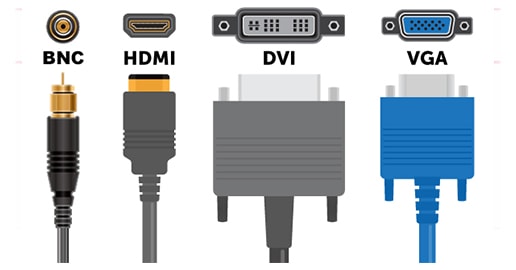

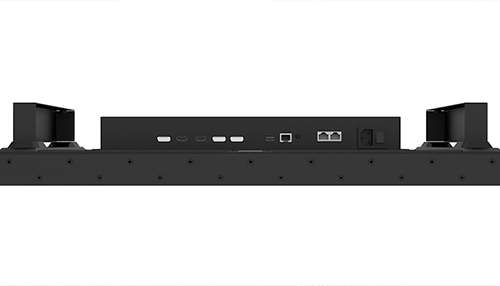

Multiple Inputs
Multiple Inputs
Powerful interface supporting a wide range of audio and video inputs, such as HDMI, VGA, DVI, RGB/HV, Composite Video, and YPbPr.

seamless video wall ultra narrow bezel
Eco Friendly Power Timer
Power Timer
The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen. The ability to power on and off automatically means that the screen is only in use when it needs to be; improving your environmental efficiency.

LED Backlight
LED Backlight Technology
Thanks to their LED backlight these displays offer improved brightness and contrast as well as drastically improving their lifespan and reducing their power consumption. Unlike other forms of light this technology is mercury free; making it even more eco-friendly.

temperature control system
Smart Temperature Control System
The internal air-conditioning system allows the screens to be in constant use. A fanless cooling system keeps their panels and other internal components at the optimum working temperature; ensuring a long and reliable life for your screens.

Network Product

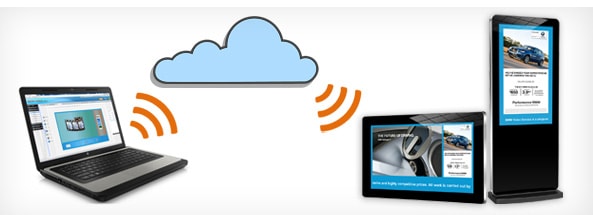

Optional Network Upgrade
seamless video wall ultra narrow bezel seamless video wall ultra narrow bezel
Full Specification
49 Inch - TL49H6

Display Area

1074x600.8

Bezel Size

Bottom/right: 2.34, Top/left: 1.16

Unit Size

1077.5x604.3x113.8

Package Size

1258x858x285

VESA Holes

600x300

Net Weight

25kg

Gross Weight

31.5kg

Power Consumption (w)

155
55 Inch - TL55H6

Display Area

1209.9x680.7

Bezel Size

Bottom/right: 1.2, Top/left: 2.3

Unit Size

1213.4x684.2x117.9

Package Size

1390x916x303

VESA Holes

600x300

Net Weight

31.5kg

Gross Weight

40.6kg

Power Consumption (w)

160
Panel

Resolution

1920x1080

Aspect Ratio

16:9

Brightness (cd/m2)

500

Colour

16.7M

Viewing Angle

178°

Contrast Ratio

4000:1

Backlight Life

50,000 Hours
AV Inputs/Outputs

Inputs

HDMI, DVI, VGA, RGB/HV (BNC), Video1 IN (BNC), Video2 IN (BNC), RS-232 In, IR In, Keyboard (IR), Audio in

Outputs

RS-232 Out, IR Out, Audio out
Power

Input Voltage

100V ~ 240V(50/60Hz)

Power Management

VESA DPMS
Environmental

Operating Temperature

0°C to 50°C

Operating Humidity

10% to 90%

Working Pressure

800-1114 hPa (Altitude:0-2,000m)
Accessories

Included

Remote control, AC Power Cable, User Manual, VGA/HDMI Cable, OSD Control Box
