PCAP Touch Screen Kiosk with Dual OS
pcap touch
PCAP Touch
Integrated Dual Android Windows OS
Dual OS
Internal Locker
Internal Locker
Commercial grade IPS Panel
Commercial Grade IPS panel
Portrait or Landscape Orientation
Landscape/Portrait Orientation
Wireless Wi-Fi connection
Integrated WI-Fi
Ten Touch Points
10 Touch Points

Rear Connections
Rear Connections
24/7 Usage
24/7 Usage
No External PC
No External PC Required
Integrated Speakers
Integrated Speakers
anti fingerprint
Anti Fingerprint/ Smooth Gestures
Lifetime Technical Support
Lifetime Technical Support
Three Year Warranty
3 Years Warranty
Integrated Dual Android Windows OS

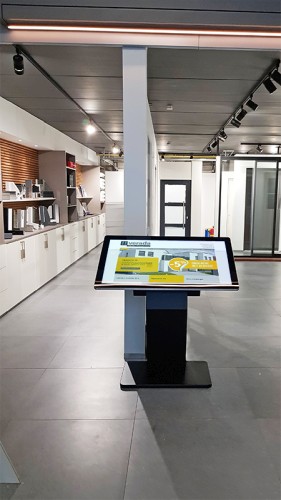

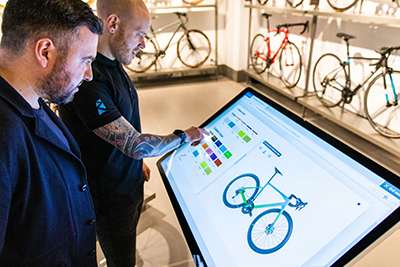

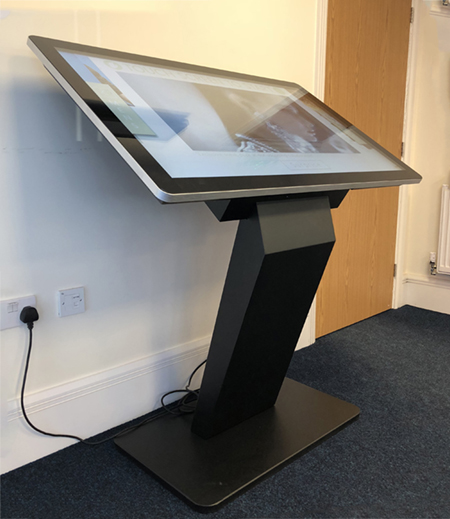

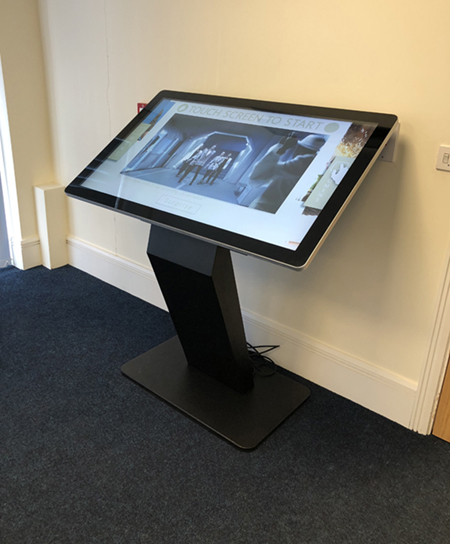

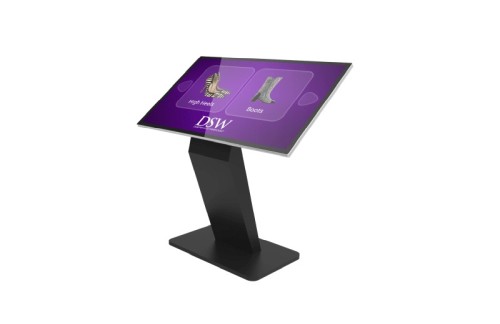

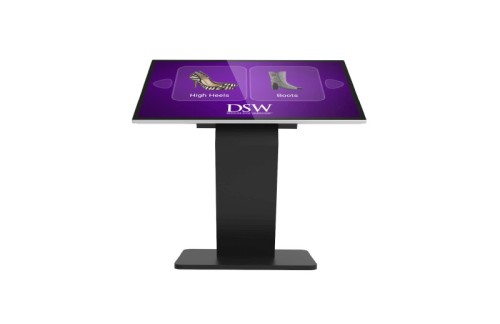

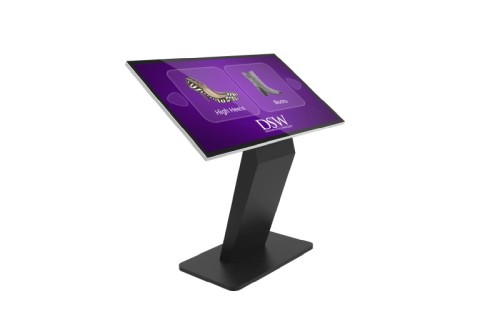

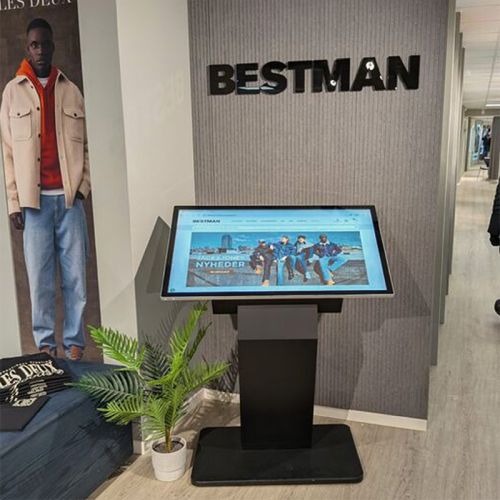

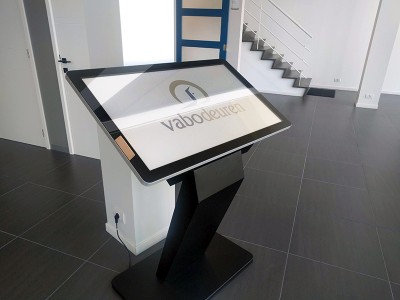

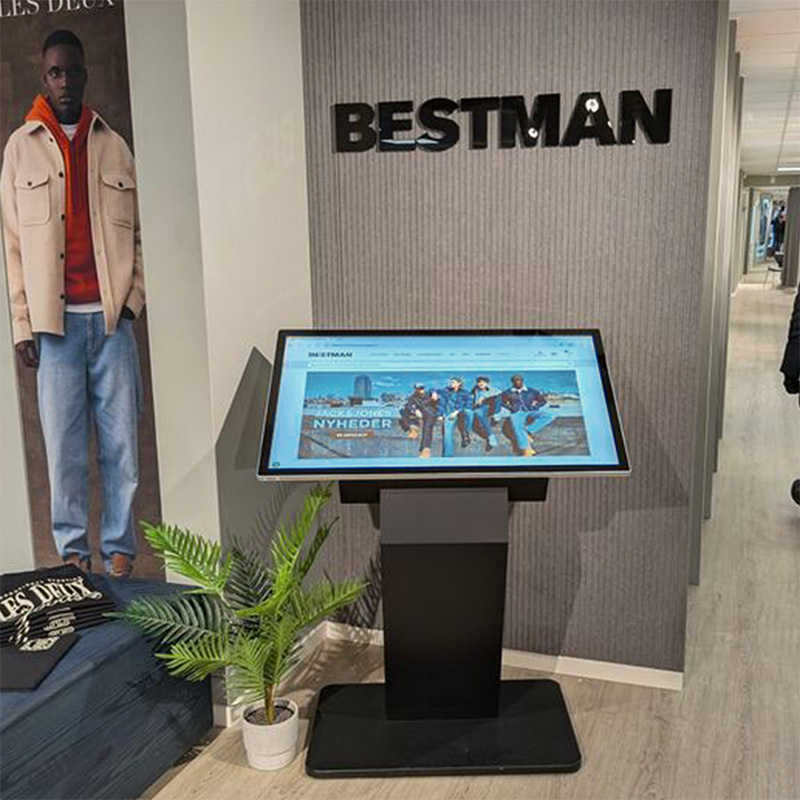

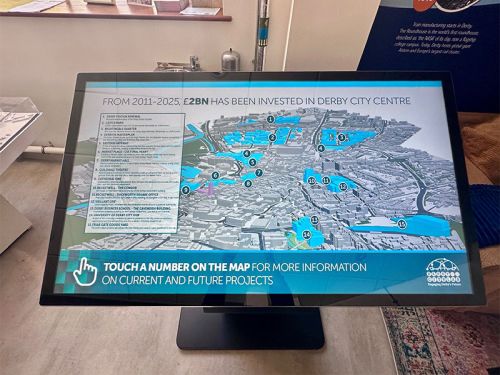

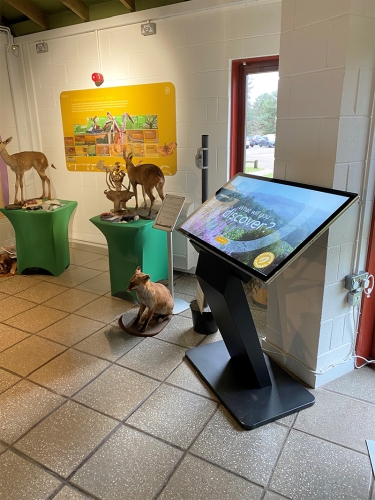

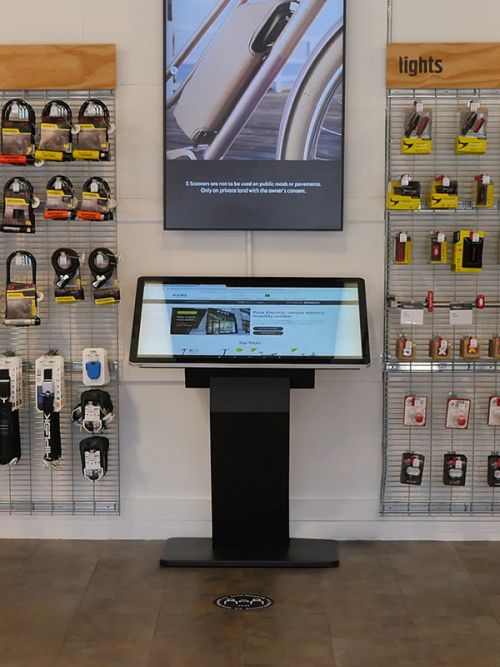

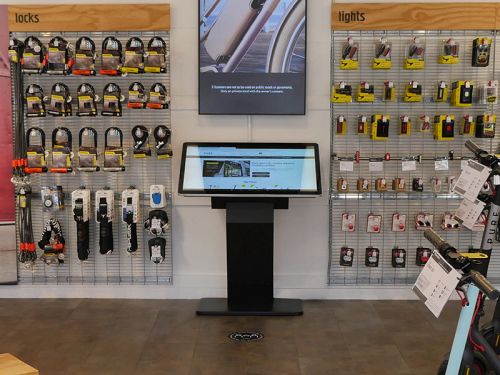

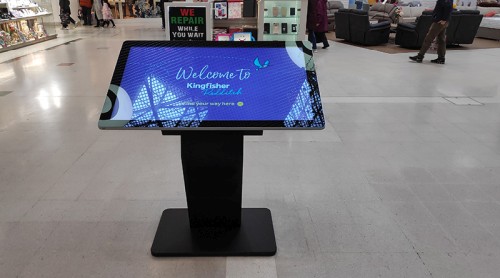

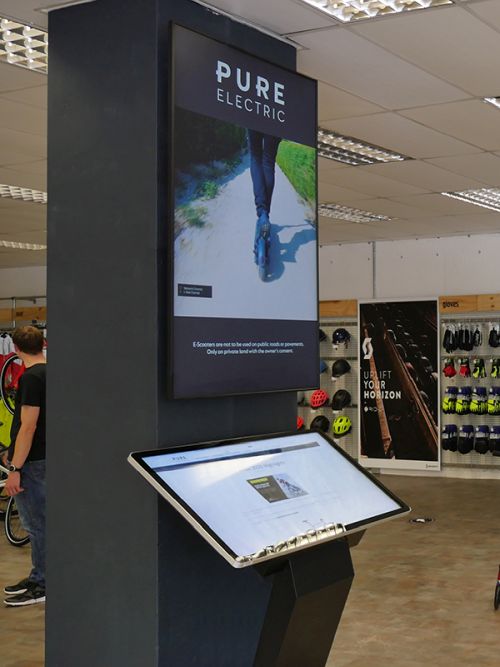

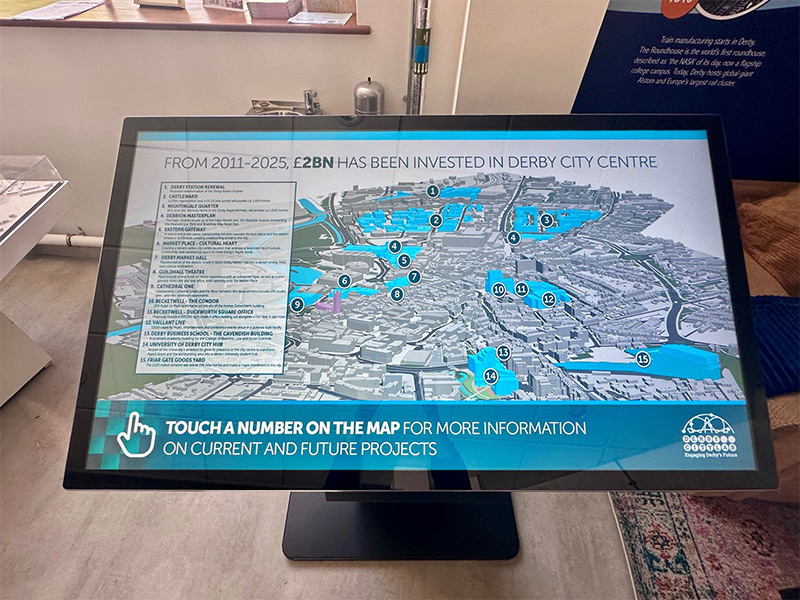

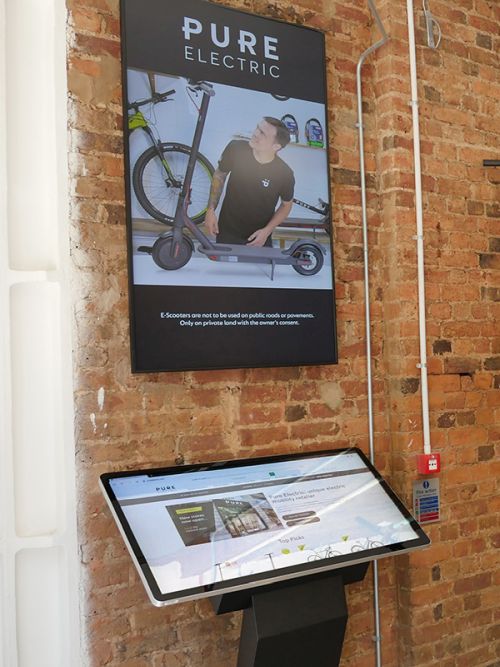

All-in-One Touch Kiosk
This all-in-one interactive display combines the best in PCAP Touch Screen technology with a stylish and secure kiosk. The screen resembles a giant tablet with the edge to edge glass tempered front and aluminium bezel. Designed for use in commercial applications the easy to use ergonomic design allows users to interact with the screen perfectly. The striking design, along with the built in dual OS PC, sets this solution apart from other touch screens on the market both in terms of functionality and aesthetics.

Integrated Dual Android Windows OS
Dual OS
Experience the most versatile commercial touch screen kiosk on the market. With both Android and Windows operating systems built in to the integrated PC it cannot be beaten on flexibility; this screen has it all in one convenient package.

Ten Touch Screen
PCAP Touch

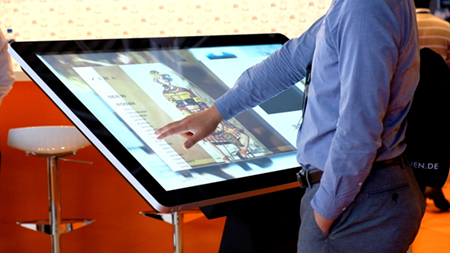

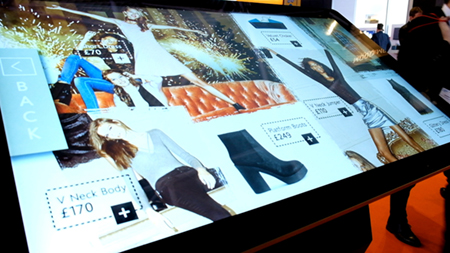

State of the art Projected Capacitive interactive technology offers the most responsive touch experience available while featuring sleek edge-to-edge glass. Designed for commercial applications, PCAP touch technology works by fixing a sensor grid between a layer of cover glass and the LCD panel, when a finger touches the glass the grid detects the coordinates of the touch point. Unlike other touch technologies PCAP is not affected by dust or debris on the screen surface. Our screens boast 10 touch points, allowing for smart phone-like touch gestures and multiple users, as well as offering superior optical quality.

anti fingerprint surface plasma treatment
Surface Plasma Treatment
Not only is the front glass face tempered, which makes it more durable and suitable for public use, but it is also plasma treated to give it an oleophobic coating. What this means is that it is more resistant to surface oil and moisture which reduces the residue left my fingerprints. It also lowers the surface tension and friction, making touch gestures much smoother, improving the overall tactile experience for the user. All this is achieved without having an etched finish which means that the overall optical clarity is maintained to the maximum level.

PCAP Touch Screens with Dual OS
IPS Panel
IPS Panel
Accurately displays image quality and colour depth at a 178° ultra wide viewing angle. There is no fall-off in colour accuracy and no diversion in contrast ratio at wide angles. From bright sunlight to the most challenging lighting environments these displays are designed to reproduce and maintain the ultimate colour temperature for lifelike images. The panel is also optimised for mounting in either landscape or portrait orientation.

LED Backlight
LED Backlight
The LED backlight used is not only eco-friendly but also ensures the display has enhanced brightness and contrast. This technology increases the lifespan and reduces the power consumption by around 30%. This form of light technology is mercury free; safeguarding this screen’s eco friendliness.

24/7 Usage
24/7 Usage
Built with commercial grade panel and components these displays are designed to run 24/7 in constant use; unlike domestic tablets. The panel also has a lifespan of over 70,000 hours of continuous use.

portrait landscape orientation
Landscape/Portrait Orientation
The 43” and 50” versions can be installed in portrait orientation as well as the standard landscape. This transforms the kiosk into an even more eye-catching display and makes it really stand out from the crowd.

digital signage touch screen kiosk digital signage touch screen kiosk
led plug and play
Internal Locker
Internal Locker
The touch screen kiosk is an all-in-one solution with the integrated PC with Windows and Android. However if you want to connect an external PC or media player there is a secure and discrete internal locker on the rear of the display that allows you to integrate such devices seamlessly. Simply connect your device to the screen via VGA or HDMI (for the video signal) and USB (for the touch functionality). The screen will then serve as your computer’s interactive monitor. You can also extend the connections on your device, such as the USB ports, LAN port, Wi-Fi aerial and power cable to the external ports on the rear of the kiosk.

Touch CMS

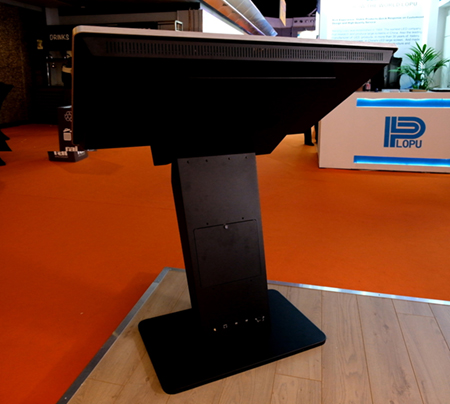

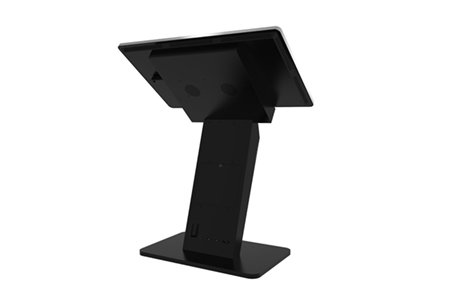

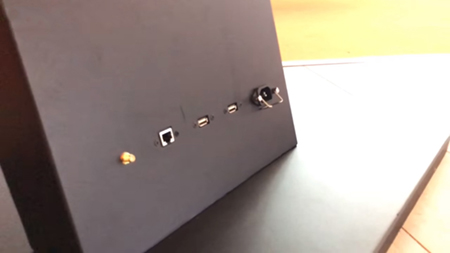

Rear Connectivity
Once your kiosk is in place you can use the ports on the rear of the base to conveniently connect your USB, Ethernet cable, power cable or Wi-Fi aerial direct to the Touch Screen. The rear connections work whether you are using the built in PC or a third party device inside the internal locker.

Touch CMS
Touch CMS
Full Specification
43 Inch - TAO43E3

Display Area

942.5x530.5

Unit Size

1048.9x1246x534.25

Power Consumption (w)

65

Net Weight

66.55kg

Gross Weight

77.25kg

Package Size

Box 1: 1003x678x435
Box 2: 1180x772x230
50 Inch - TAO50E3

Display Area

1076x606

Unit Size

1186x1285x599.4

Power Consumption (w)

75

Net Weight

73.05kg

Gross Weight

85.50kg

Package Size

Box 1: 1003x678x435
Box 2: 1350x865x260
55 Inch - TAO55E3

Display Area

1211x682

Unit Size

1319.6x1320x660.2

Power Consumption (w)

85

Net Weight

81.60kg

Gross Weight

95.60kg

Package Size

Box 1: 1003x678x435
Box 2: 1480x950x250
Panel/Mechanical

Resolution

1920x1080

Aspect Ratio

16:9

Brightness (cd/m2)

450

Viewing Angle

178°

Contrast Ratio

5000:1

Colour

16.7M

Footprint

800x500
Touch

Touch Technology

Projected Capacitive

Touch Points

10

Glass Hardness

7H minimum
AV Inputs/Audio

Inputs (when used as monitor)

HDMI, VGA, RS-232

Audio Input (when used as monitor)

Audio Socket (3.5mm)

Audio Output (internal PC)

Audio Socket (3.5mm)

Speaker Type

2W, 5Ω (x2)
Power

Input Voltage

AC110~240V (50Hz~60Hz)
Environmental

Operating Temperature

0°C to 50°C

Storage Temperature

-30°C to 60°C

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%
Computer

CPU

Intel® Atom™ (Quad-core) x5-Z8350 Processor (2M Cache, up to 1.92 GHz)

RAM

4GB (DDR3L-RS 1600MHz)

Instruction Set

64-bit

Graphic Engine

Intel® HD Graphics 400 (8th Gen, Supports DirectX11.2, OpenGL4.4 and OpenCL 2.0)

Hard Drive/Internal Memory (eMMC)

64GB

USB

2 x USB 2.0

LAN

10/100/1000 Ethernet

Wi-Fi

802.11b/g/n

OS

Android 5.1.1
Windows® 8 /8.1 64-bit, Windows® 10 64-bit,
Windows 10 IoT Enterprise 64bit (licence purchased separately)

Other

No accessible buttons or controls
Accessories

Included

Remote Control, User Manual, Power Cable,
USB to USB Cable, Wi-Fi Aerial
