NEW Compact style Touch Screen Kiosk

Our 22 Inch PCAP Self Service Kiosk is designed to increase business efficiency, enhance customer experience and reduce costs while also opening up new revenue streams. With more mounting options than ever the versatile kiosk allows businesses to stay competitive in the modern market.

Versatile Mounting Options

Enhance the space in your store by choosing any of the secure mounting methods for the kiosks. With versatile countertop, wall mounted and freestanding variations, our self-service kiosks seamlessly integrate in any retail/QSR location for better customer experiences.

Elegant Space-Efficient Design

Experience cutting-edge convenience with our Self Service Kiosk’s sleek, compact design. The modern, space-saving solution seamlessly blends into any environment. Streamlined and stylish, this kiosk is perfect for businesses looking to maximize efficiency without compromising on aesthetics.

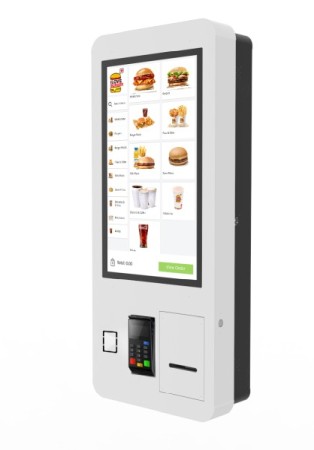

Versatile Touch Screen Kiosk

Our 27 Inch PCAP Self Service Kiosk with its robust and familiar design is a market leading solution for businesses. The all-in-one display can increase efficiency for businesses, enhance customer experience and reduce costs while also opening up new revenue streams. With dual mounting options available the 27 Inch PCAP Self Service Kiosk is the gold standard for interactive self service kiosks.

Dual Anti-Theft Mounting Options

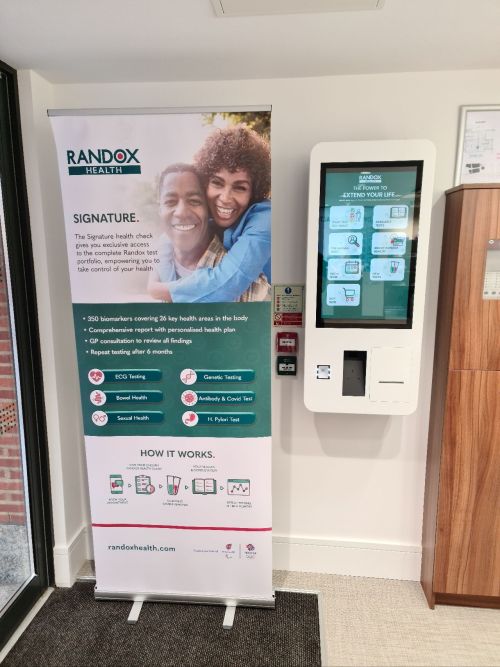

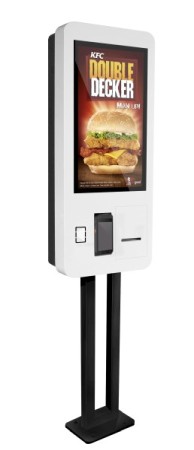

As standard the kiosk can be securely mounted directly to the wall from inside the lockable door – providing an anti-theft flush fit. There is also an optional floor stand available on request when wall mounting is not possible.

Classic Modern Kiosk Design

With it’s robust, powerful and familiar design the self service kiosks can elevate businesses to the next level. The modern, space-saving solution seamlessly blends into any environment. Available in pure white we can also customise the colour of the enclosure to perfectly match your brand too.

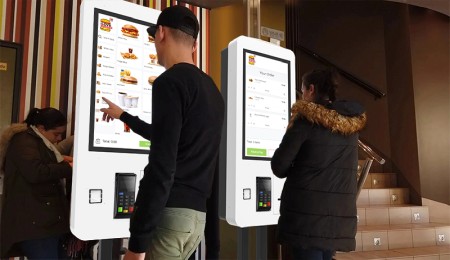

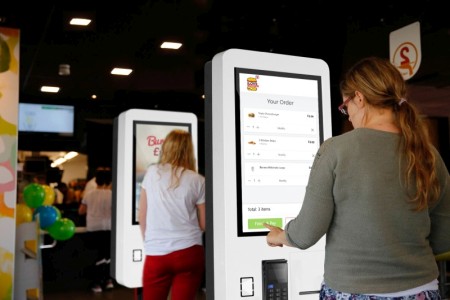

All-in-One Automated Self Ordering System

The numerous benefits for self service systems are clear, from allowing staff to focus more on customer service, reducing queues and waiting times as well as improving and optimising the overall customer experience. This all-in-one solution is designed for the fast food sector but can also be used in a range of retail spaces providing a PCAP touch screen, QR Code scanner, printer in one solution. There is also space to integrate a credit card payment reader.

Integrated Epson Printer

The integrated printer provides a fast and reliable printing solution for the kisok and can be used to print receipts and promotional vouchers. The printer is designed to not only be easy to use but also easy to maintain for businesses. With Epsons advanced technology, the inkless thermal printer can print receipts up to 250mm/sec with additional options that can reduce paper usage up to 30%.

Easy Roll Replace

The till roll for the thermal printer is located in a separate compartment so that staff can quickly and conveniently replace the roll without having to open the main access door.

Integrated QR Code Scanner & Thermal Receipt Printer

The scanner features an LED light to improve reading ability and can be used to scan barcodes or QR codes in conjunction with special offers or to place orders.

Easy Maintenance and Cleaning

Tool-free maintenance is possible via the lockable front access door, allowing store staff to swap out and replace components without having to remove from the wall. The touch screen and barcode scanner are also recessed into the enclosure for a wipe clean surface.

Anti-Theft Mounting Options

Super Durable Anti-Glare Glass

The glass front is not only thermally toughened but also has a special anti-scratch 6H hardness coating. There is also a special coating on the panel which reduces annoying reflections created by external light sources.

24/7 Constant Use

As many quick service restaurants and supermarkets are open 24/7 any kiosk solution needs to be up to the task of being in continuous use.

Customisable

Other sizes and colours are available on request. We can also design and manufacture bespoke units with an integrated camera or double-sided versions. For existing models we offer a coloured vinyl wrap service as well as custom logo and graphics.

Built-in High Performance
Windows PC

There is a powerful built-in Intel core i5 Windows PC that can deliver impressive performance 24/7. If your application runs on Android or Linux these operating systems are also supported by the hardware.

Optional NFC Card Reader

If required, an NFC card reader can be seamlessly integrated into this solution. This will allow users to make swift, contactless payments via mobile devices.

Specification

Full Specification

22 Inch

27 Inch

22 Inch - SO22B

Display Area

268.1x476.6

Brightness (cd/m2)

250

Contrast Ratio

3000:1

Unit Size

313x810.2x284.3

Package Size

TBC

VESA Holes

160x230

Power Consumption (W)

≤130

Net Weight

TBC

Gross Weight

TBC

Card Machine Slot Size (WxH mm)

TBC

27 Inch - SO27C

Display Area

336.2x597.6

Brightness (cd/m2)

350

Contrast Ratio

5000:1

Unit Size

462x1075x192.4

Package Size

1155x560x265

VESA Holes

350x900

Power Consumption (W)

Net Weight

41kg

Gross Weight

45kg

Card Machine Slot Size (WxH mm)

92x193

43 Inch - AO43F

Display Area

942.5x530.5

Unit Size

1048.9x636.9x64.7

Package Size

1180x772x230

VESA Holes

400x200

Power Consumption (w)

Net Weight

24.6kg

Gross Weight

29.4kg

50 Inch - AO50F

Display Area

1076x606

Unit Size

1186.6x716.6x65

Package Size

1350x865x260

VESA Holes

400x200

Power Consumption (w)

Net Weight

32.45kg

Gross Weight

38.95kg

55 Inch - AO55F

Display Area

1211x682

Unit Size

1319.6x790.6x65

Package Size

1480x950x250

VESA Holes

400x200

Power Consumption (w)

Net Weight

39.15kg

Gross Weight

46.75kg

Panel

Resolution (px)

1080x1920

Aspect Ratio

16:9

Colour

16.7M

Viewing Angle

178°

Contrast Ratio

5000:1

Response time

5ms

Lifespan (hours)

70,000

Touch

Touch Technology

Projected Capacitive

Touch Points

Glass Hardness

6H minimum

Audio

Built-in stereo speakers

8Ω, 5W x 2

Power

Power Input

AC110~240V (50Hz~60Hz)

Computer

CPU

Intel® Core i5-8259U

RAM

8GB (Expandable up to 32GB | Dual Slot)

Hard Drive/Internal Memory

256GB

LAN

10/100/1000 Ethernet

Wi-Fi

INTEL 3168

OS

Windows 7, Windows 8, Windows 10, Linux (licence purchased separately)

Printer

Printing Method

Line Thermal

Available Printing Width

58mm or 80mm

Printing Speed

Max. 250mm/s

Scanner

Sensing Mode

CMOS

Light Source

LED (6000K) 900lux @100mm

Scanning Angle

Omni-directional

Scanning Speed

30 times/second

Resolving Power

640x480 pixels

Reading Accuracy

≥8mil

Print Contrast

≥20%

Environmental

Operating Temperature

0°C to 50°C

Storage Temperature

-30°C to 60°C

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%

Accessories

Included

Till Roll Key, Front Access Key, User Manual, Wi-Fi Aerial, Power Cable

Optional

Wall Mount, Floor Stand, Countertop Stand (22 Inch Only), Software Package

Gallery

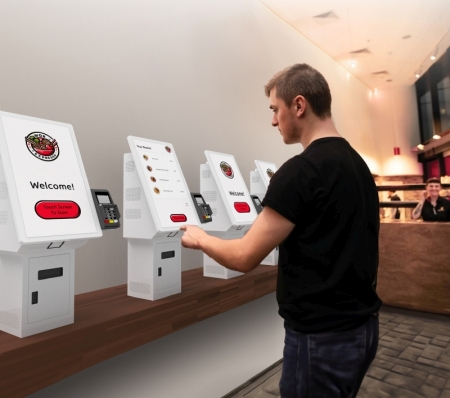

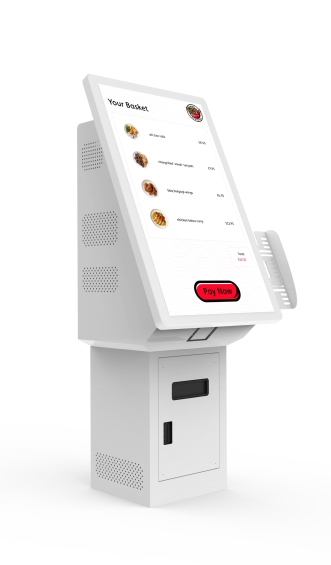

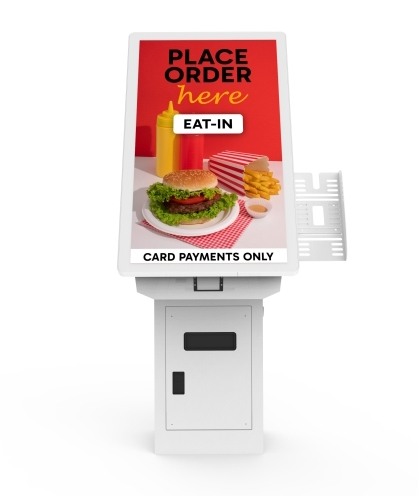

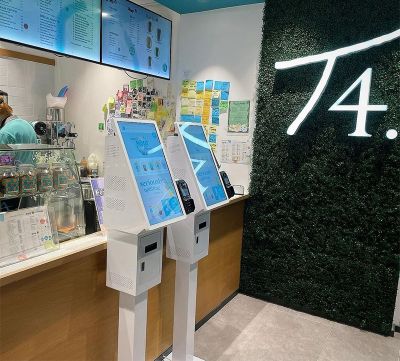

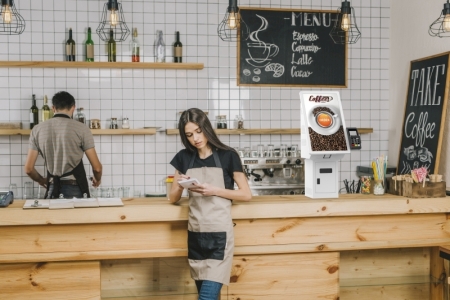

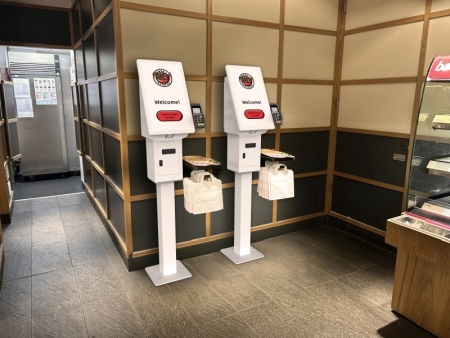

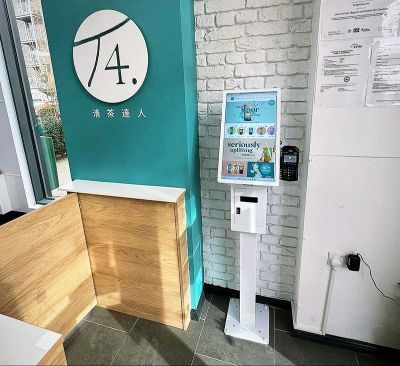

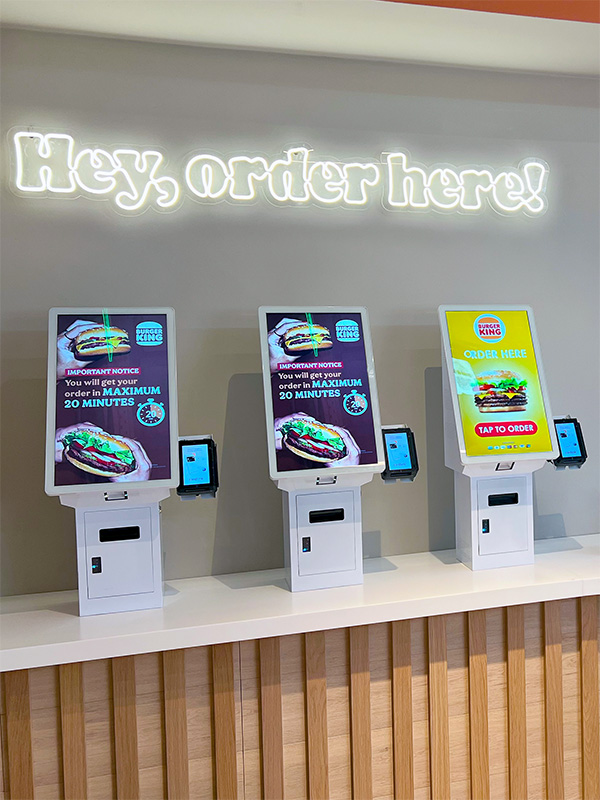

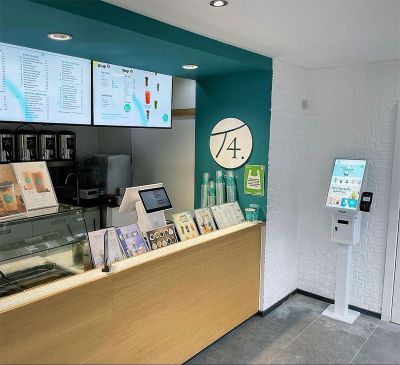

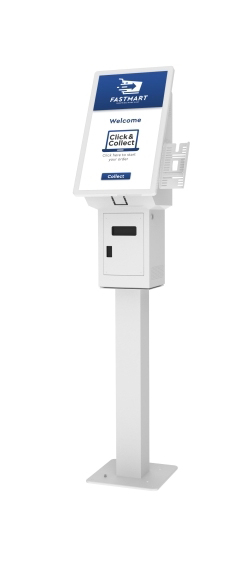

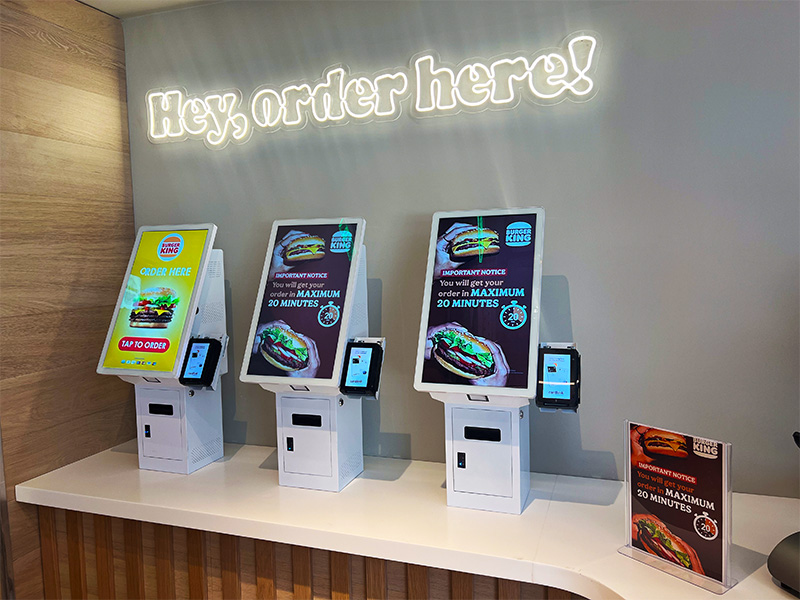

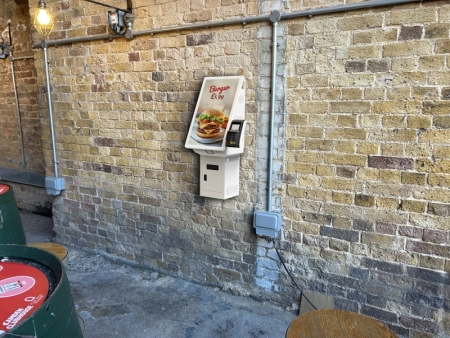

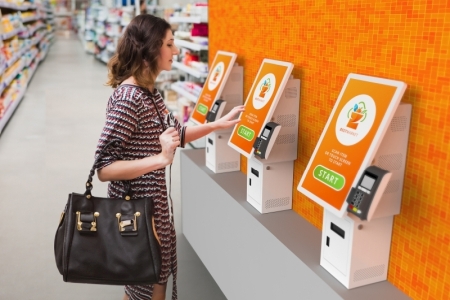

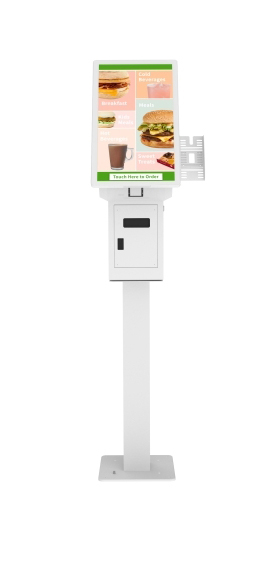

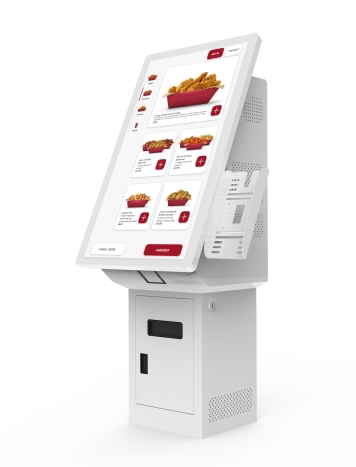

22 Inch PCAP Self Service Kiosk

digital signage screens touch screen exhibition

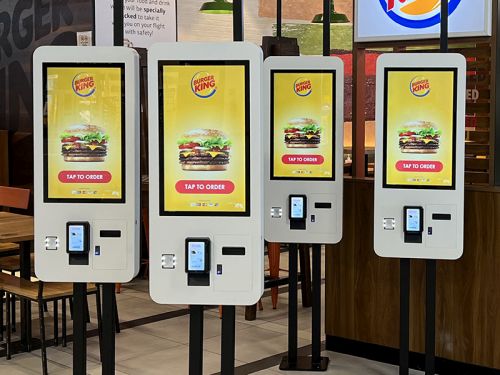

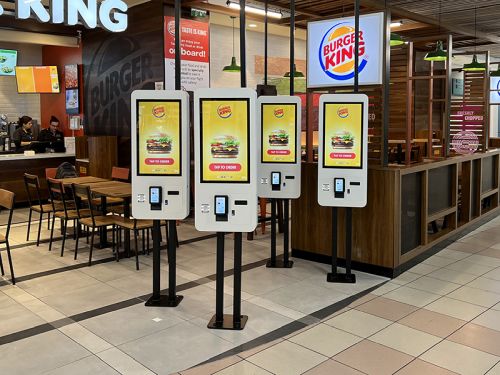

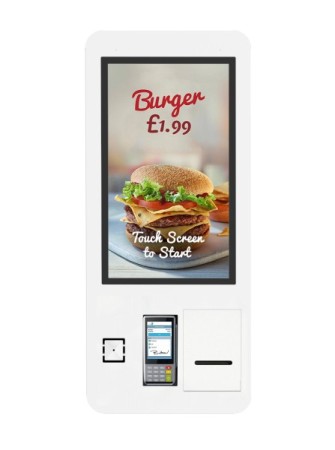

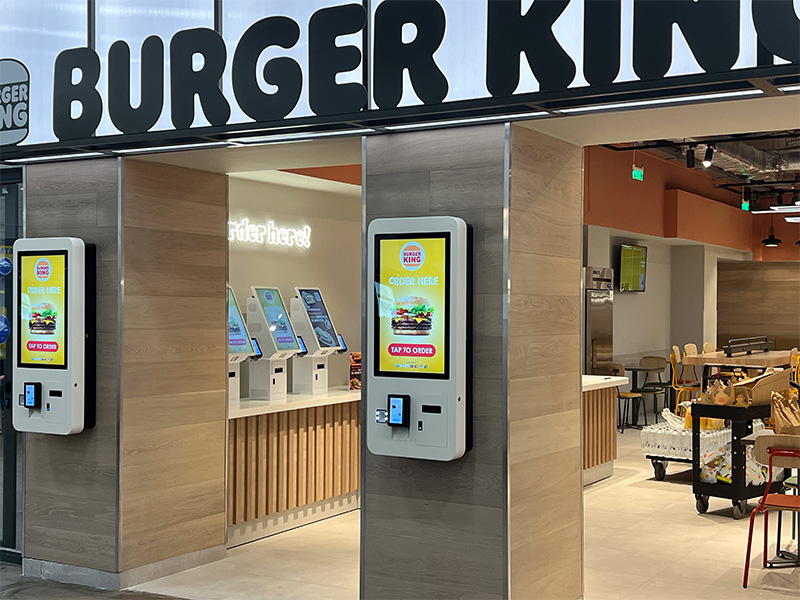

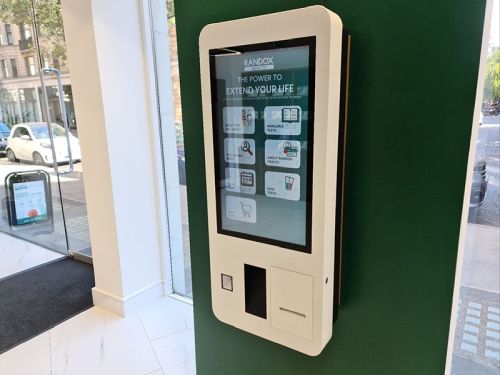

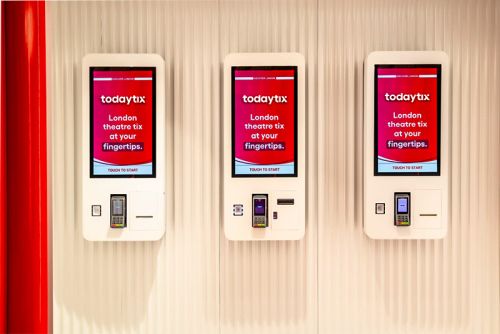

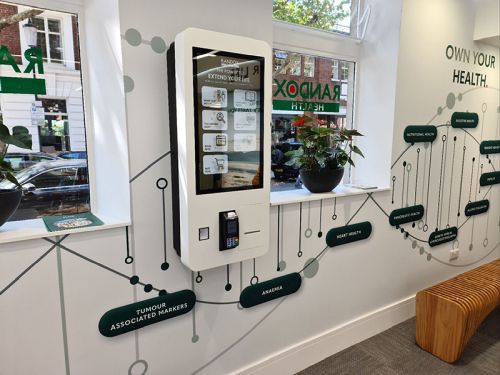

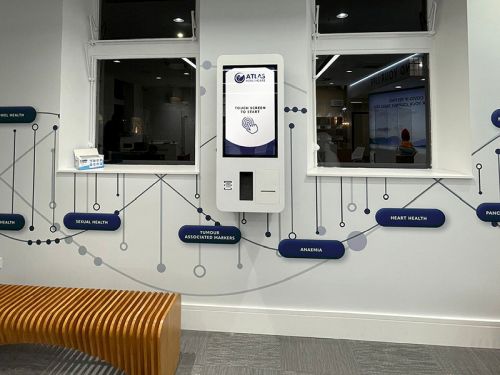

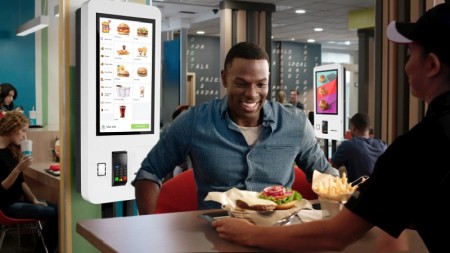

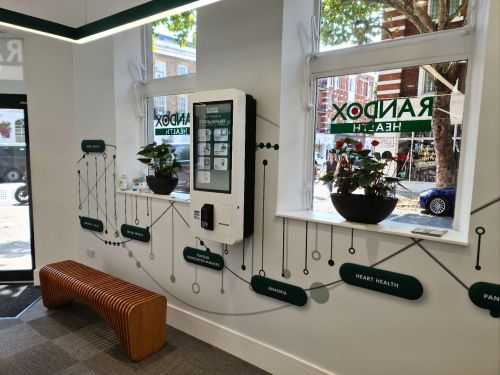

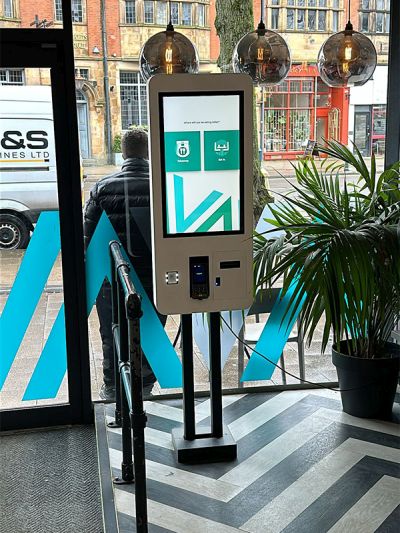

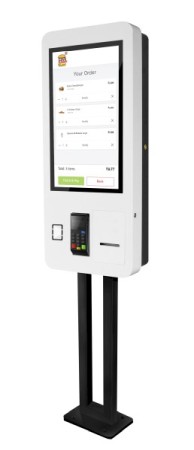

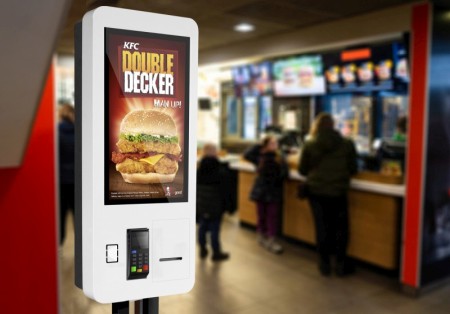

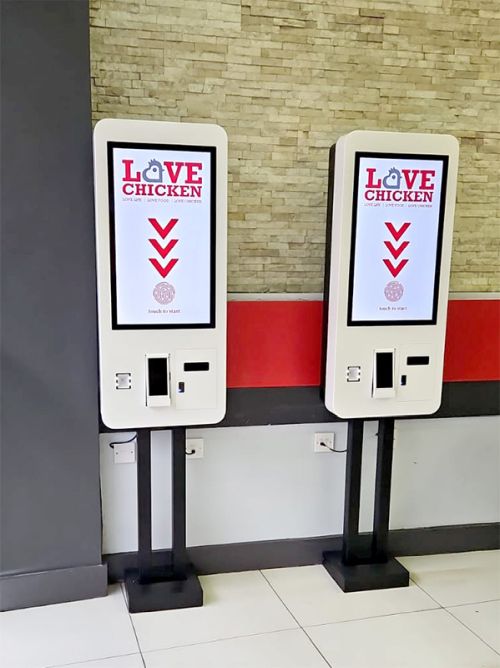

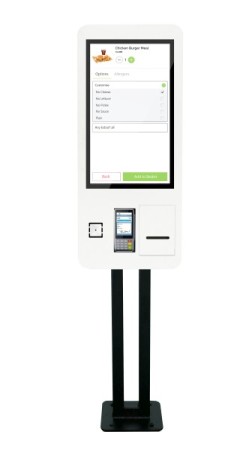

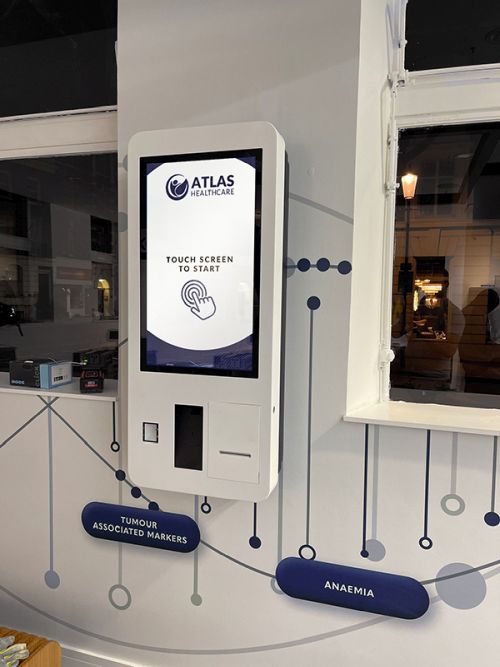

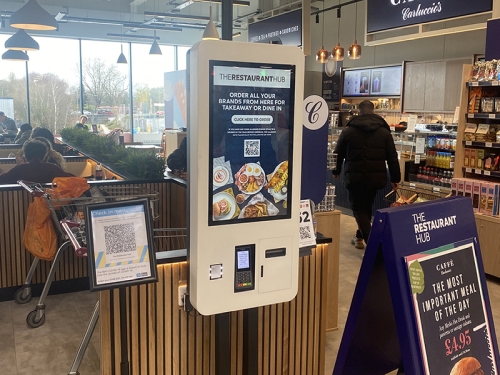

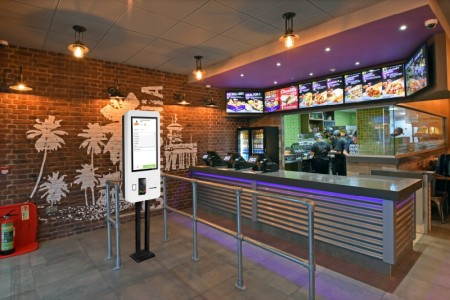

27 Inch PCAP Self Service Kiosk
