Android Network Advertising Displays
Wireless Wi-Fi connection
Wireless WiFi
Network product
Cloud Based Software
LAN Connection
LAN Connection
Multiple AV Inputs
Multiple AV Inputs
Portrait or Landscape Orientation
Landscape or Portrait
Eco Friendly Power Timer
Eco-Friendly Power Timer
24/7 Usage
24/7 Usage

multiple media zones
Multiple Media Zones
Wide Viewing Angle
Wide Viewing Angle
Super Slim Profile
Super Slim Profile
Commercial grade IPS Panel
Commercial Grade IPS Panel
Lifetime Technical Support
Lifetime Technical Support
Free Super Slim Wall Mount
Free Super Slim Wall Mount
Three Year Warranty
3 Years Warranty
Queen’s Award Winning Solution
unique Screen

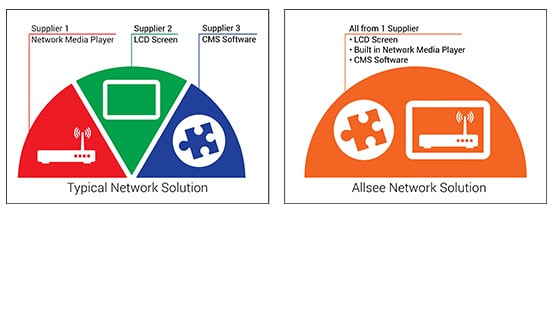

What Makes Us Unique?
Our screens have an integrated Android network media player; making installation a breeze. Typically network solutions require you to invest in additional networking hardware - complicating the installation process and the overall system. Hardware and software usually come from different sources which can result in confusion and conflict when identifying any potential faults. In contrast to this, any issues with our screens or Digital Signage software will be dealt with directly by us; one supplier, one solution.

Integrated Android Media Player
Android Media Player
Their integrated Android network media player provides a super fast processing speed allowing for improved communication with the CMS. This means that you can update your screens quicker than ever before. It also allows you to display a live website; this can be anything from a live URL feed provided by a third party to your social media profile. The Android network media player also allows you to run your own software should you already have a CMS solution.

Network Product

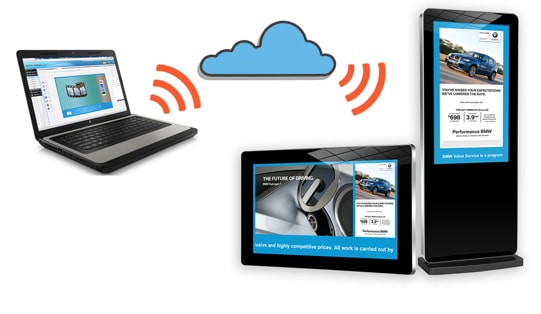

Cloud-based Content Management System (CMS)
multiple connections
Connectivity
Connect your Wall-Mounted Slimline Network Screens to the internet wirelessly via Wi-Fi or via a Local Area Connection. If an internet connection is not available a 3G router can be incorporated into the screen, meaning that we can provide an integrated network solution for any location.

digital signage network all-in-one cms software
custom layouts

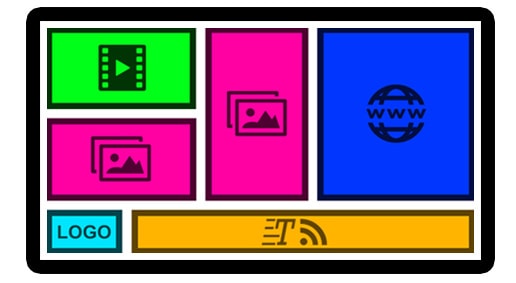

Create Custom layouts
This feature allows you to design your own layout with different media zones for your images, videos, webpages, time, date and also allows you to add a scrolling message or RSS feed. You can even give your layout a corporate “skin” to go around your media zones.

Scheduling Software

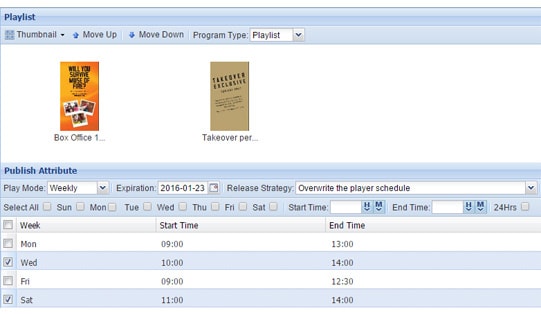

Schedule Playlists
Display what you like, when you like. Create playlists that will automatically display your desired content a pre-determined times and dates. Whatever your scheduling requirements, our system can support them.

Multiple Users

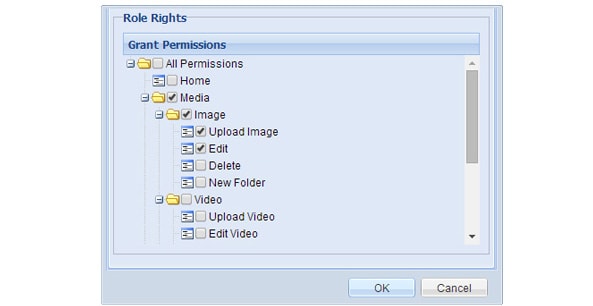

Manage Users and Review Logs
You may wish to limit some functions of the software or zones of the screens to specific users. For example you may wish to allow a receptionist to have access to the screen in the reception area but nothing else – our system allows full user rights control.

Records are kept from all screen and user activity so as you can monitor the usage and effectiveness of your content.

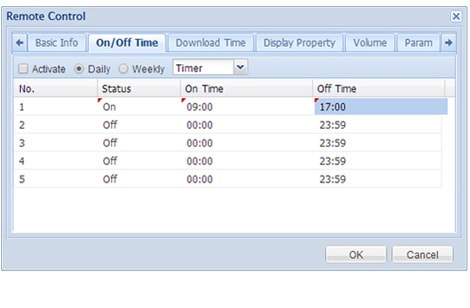

Remote Screen Functions
Remote Screen Functions
You can now access functions of your screens via the CMS, such as setting On/Off times for each of your screens and adjusting display settings like Brightness, Contrast and Colour; a truly centralised solution.

Remote Screen Functions
Supported Files and Formats
Networked Screens can support a wider range of files and formats than the standalone solution. From standard file formats such as images (JPG, GIF, BMP, PNG), video (MPG, AVI, MP4, RM, RMVB, TS) and audio (MP3, WMA) you can now display Office Document files. Your Word, Excel and PowerPoint files can now be directly sent to your advertising display alongside PDF’s. RSS feeds are also available in the form a scrolling text ticker on screen. Websites with HTML5 can also be shown on your display, great for displaying dynamic online content or even social media feeds.

digital signage network all-in-one cms software
digital signage style tablet iphone ipad

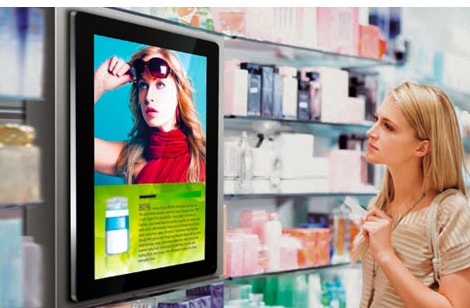

Tablet-like Styling
These are the most stylish and attractive commercial grade screens on the market. They are designed to be in constant use 24/7 for over 70,000 hours. Their buttonless tempered glass face, rounded corners, steel enclosure with super slim profile and aluminium surround all add to their eye-catching tablet-like aesthetics.

LED backlight technology means they use substantially less energy as well as increasing their lifespan. It also provides a sharper image, increased brightness, a more vibrant contrast ratio and allows for a slimline profile.
IPS Panel
IPS Panel
As well as having a brightness of 450cd/m², much brighter than a domestic TV, the commercial IPS panels accurately display an image’s quality and colour depth at a 178° ultra wide viewing angle. There is no fall-off in colour accuracy and no diversion in contrast ratio at wide angles. From bright sunlight to the most challenging lighting environments these displays are designed to reproduce and maintain the ultimate colour temperature for lifelike images. The panel is also optimised for mounting in either landscape or portrait orientation.

Free Super Slim Wall Mount
Free Wall Mount
A super slim wall mount is included with your screen at no extra cost; ensuring that you have complete out-of-the-box digital signage solution. The secure mount can be used to hang your display in either landscape or portrait orientation with a flush finish to the wall.

Full Specification
19 Inch - PF19W3

Display Area

408.6x229.6

Unit Size

501x322x36

Package Size

580x430x120

VESA Holes

100x100/150x100

Net Weight

5.9kg

Gross Weight

7.8kg

Power Consumption (w)

16

Speaker Type

2W, 5Ω (x2)
22 Inch - PF22W3

Display Area

478x269

Unit Size

590x383x33.7

Package Size

655x485x120

VESA Holes

100x100

Net Weight

8.5kg

Gross Weight

10.3kg

Power Consumption (w)

22

Speaker Type

2W, 5Ω (x2)
32 Inch - PF32W3

Display Area

699x394

Unit Size

814x504x63

Package Size

956x605x164

VESA Holes

400x200

Net Weight

13.1kg

Gross Weight

16.9kg

Power Consumption (w)

52

Speaker Type

5W, 8Ω (x2)
43 Inch - PF43W3

Display Area

942x525

Unit Size

1045x638x63

Package Size

1175x775x165

VESA Holes

400x400

Net Weight

22.8

Gross Weight

30.2

Power Consumption (w)

65

Speaker Type

5W, 8Ω (x2)
50 Inch - PF50W3

Display Area

1075.6x605.4

Unit Size

1199x736x44

Package Size

1357x867x176

VESA Holes

400x400

Net Weight

28.05kg

Gross Weight

37kg

Power Consumption (w)

75

Speaker Type

5W, 8Ω (x2)
55 Inch - PF55W3

Display Area

1211x682

Unit Size

1366x837x50.1

Package Size

1525x1016x214

VESA Holes

400x400

Net Weight

39.7kg

Gross Weight

49.7kg

Power Consumption (w)

85

Speaker Type

5W, 8Ω (x2)
Panel

Resolution

1920x1080

Aspect Ratio

16:9

Brightness (cd/m2)

450

Colour

16.7M

Viewing Angle

178°

Contrast Ratio

5000:1
AV Inputs

Video

HDMI, VGA

Audio

Audio Socket (3.5mm)
Environmental

Operating Temperature

0°C to 50°C

Storage Temperature

-30°C to 60°C

Operating Humidity

10% to 80%

Storage Humidity

5% to 95%
Computer

Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

1920x1080/1080x1920

Internal Memory

6GB

CPU

Duel-Core Cortex-A9 @1.6GHz

GPU

Mali-400 MP4 @400MHz

RAM

1GB DDR3

ROM

8GB NAND

USB

USB2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11b/g/n (Network version screen only)

OS

Android 4.2.2

Graphic Engine

OpenGL ES 1.1/2.0, OpenVG 1.1
